To MTS-4e ειναι ενα πολυμπριζο AC 220V με 4 schuko (SWD-XXX-e).

Εγγυηση Αντιπροσωπειας χρονια . Δυνατοτητα δοσεων.

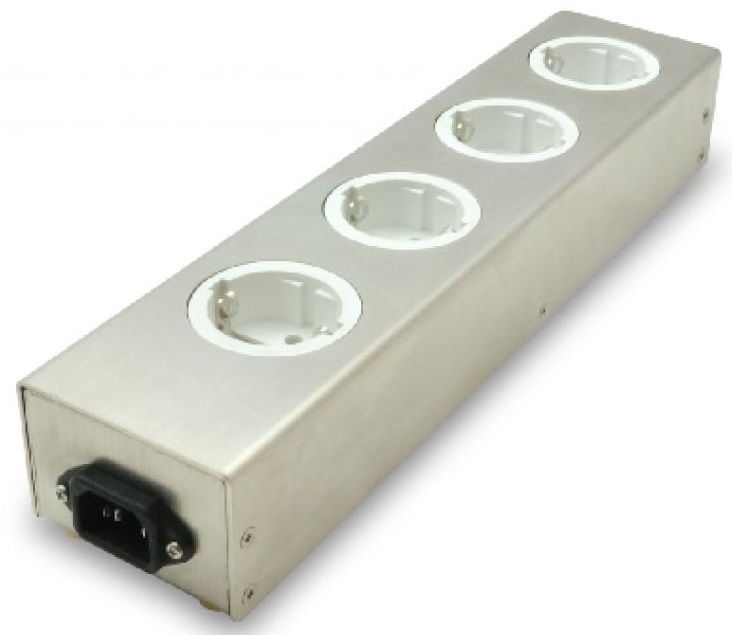

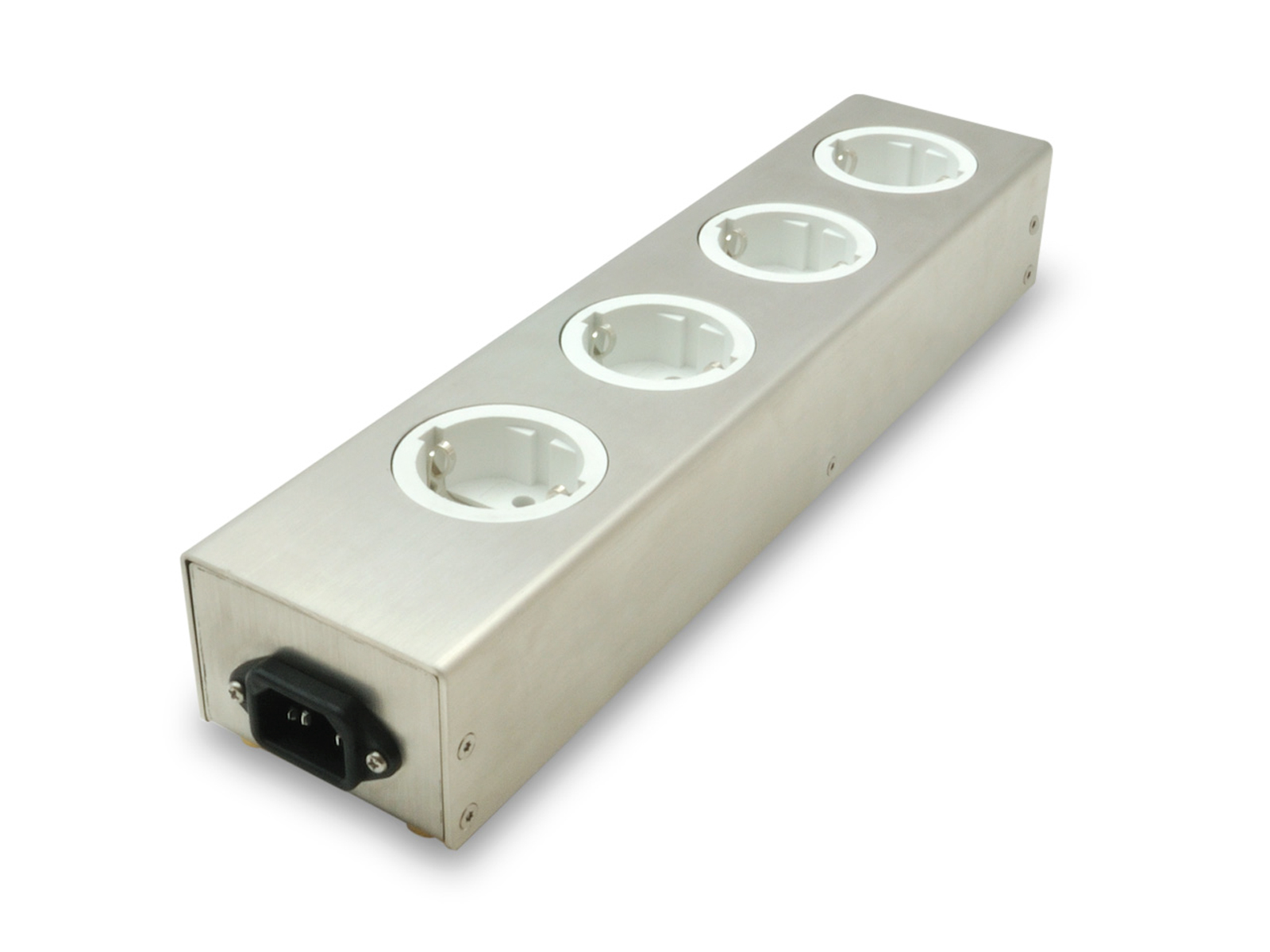

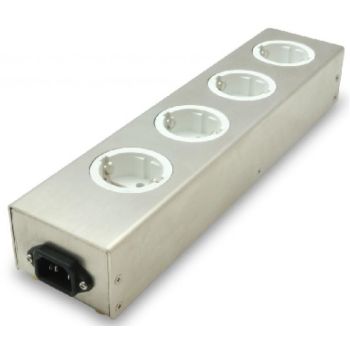

The simplicity is what comes with wider use and what makes people use for a long time. This "MTS-4e" power distribution strip is lined up as an entry model and is created by based on our long-time knowhow. Due to the employment of detachable power cord, you can enjoy trying various power cable and selecting your favorite sound character.

Features

• The Dual-Spring vise structure is newly-developed for the contacts of our new outlet, SWD-XXX. Due to its strong holding power and 9mm wide contact area, the contacts tightly hold the inserted pins and reduce vibration at the contacts with no loss of signal transmission.
• The chassis of MTS-4e is made of highly rigid stainless steel which is non-magnetic SUS 304. It protects from not only vibration but also electric-magnetic wave or external noise contermination. And all components, from 6.0mm thick contact down to stainless screws, are made of non-magnetic substance.
• For the soldering connection, we employed SS-47 audio grade solder.
• Compared to general solders which usually contain 3N (99.9%) pure tin, SS-47 contains 4N (99.993%) pure tin achieved by excluding impurities to the maximum. Furthermore, 4.7% silver and 1.7% copper are contained for the purpose of improvement of electric conductivity and durability.
• The inlet is designed specially for MT series. The contacts are made of brass. The plating is a combination of silver (1.5μ) and rhodium (0.3μ). The body is made of 30%GF PBT.
• We adapted VEM 313 sheet (Visco Elastic Material) for damping material for the inside of the chassis.
• For its internal wiring, we employed 2mm 4N OFC copper wire. And for its insulator, we employed low-dielectric polyorefin resin.
• For the better separation from the floor, we specially employed accurately machined brass spikes. Although it is set to four-point support as default, three point support is also applicable according to your preference.

Specifications

• Model name MTS-4e
• Case 1.6mm stainless steel (SUS 304)
• outlets SWD-XXX-E (24K gold + Palladium plating)
• Hookup wiring OFC 2.0mm solid wire (AC mains) / 3398-14 (Ground)
• Inlet     IEC 60320 C-14 Inlet (NC-174RR)
• Case Dimensions W 75 × H 53 × L 320
• Weight     1.9kg
• Rated V/A 250V/10A
• Release Date 2005/07/15
