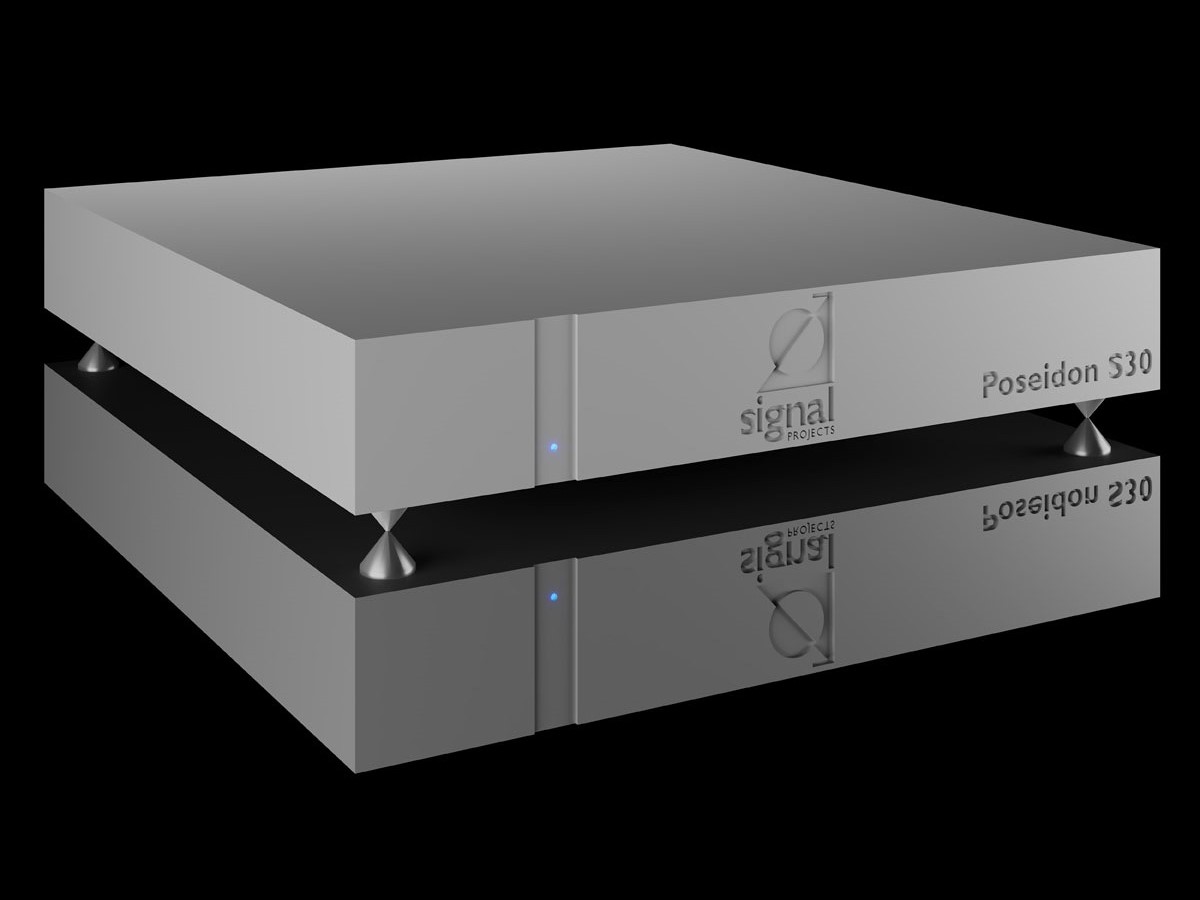

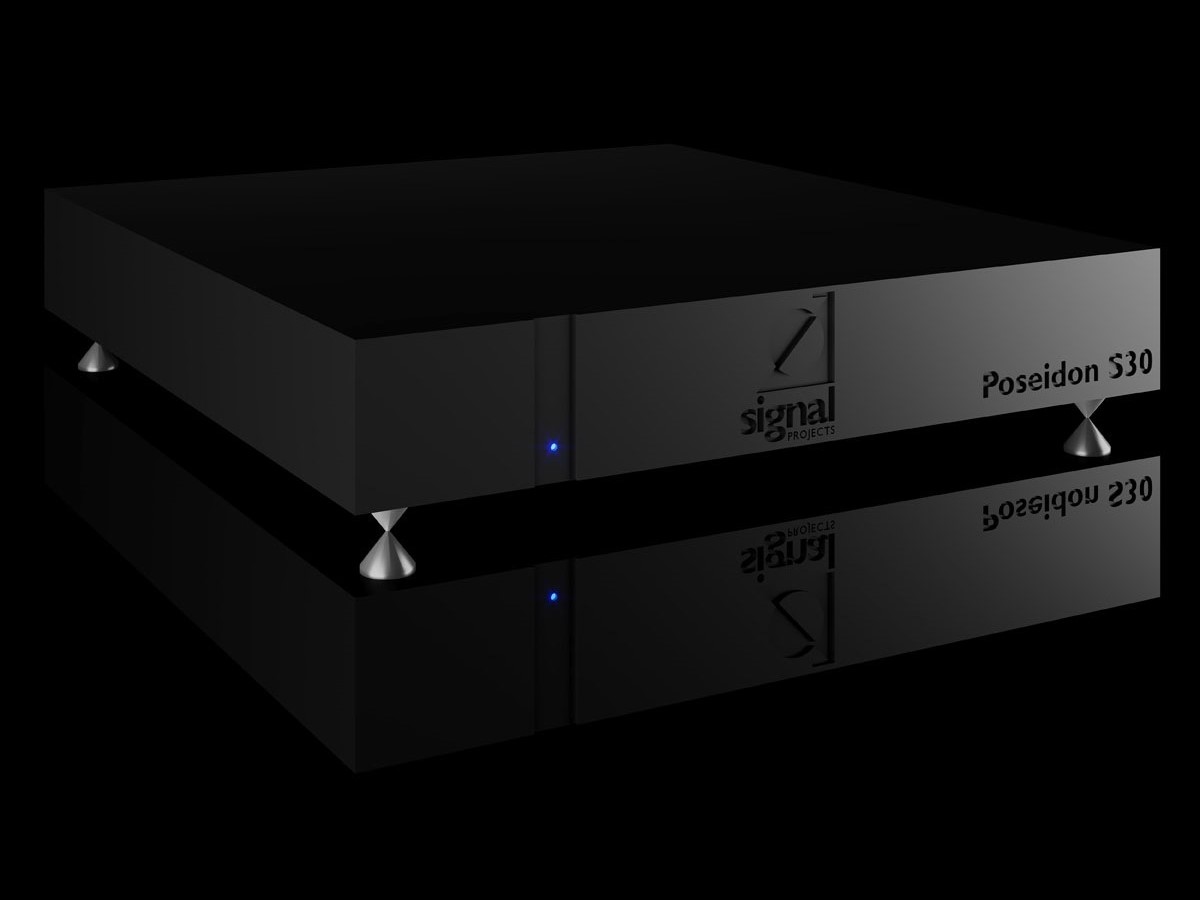

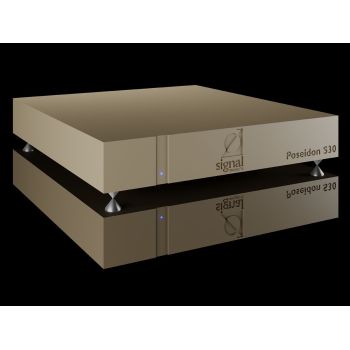

Το Signal Projects Poseidon S30 ειναι ενα, πληρως απομονωμενο και υπερυψηλης αποτελεσματικοτητας πολυμπριζο-φιλτρο-εικονικη γειωση ρευματος, οποιασδηποτε ηλεκτρομαγνητικης (EMI) και ραδιοσυχνοτικης (RFI) παρεμβολης. Κατασκευασμενο απο μονοκομματο συμπαγες αλουμινιο και καλωδιωση χαλκου υπερυψηλης καθαροτητας 7N (99,99999%).

Εγγυηση Αντιπροσωπειας. Δυνατοτητα δοσεων, ανταλλαγων.

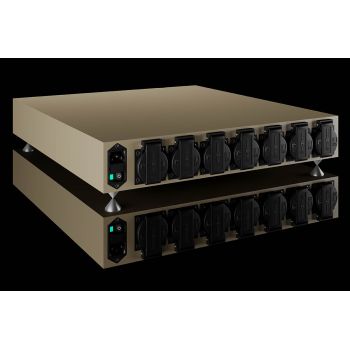

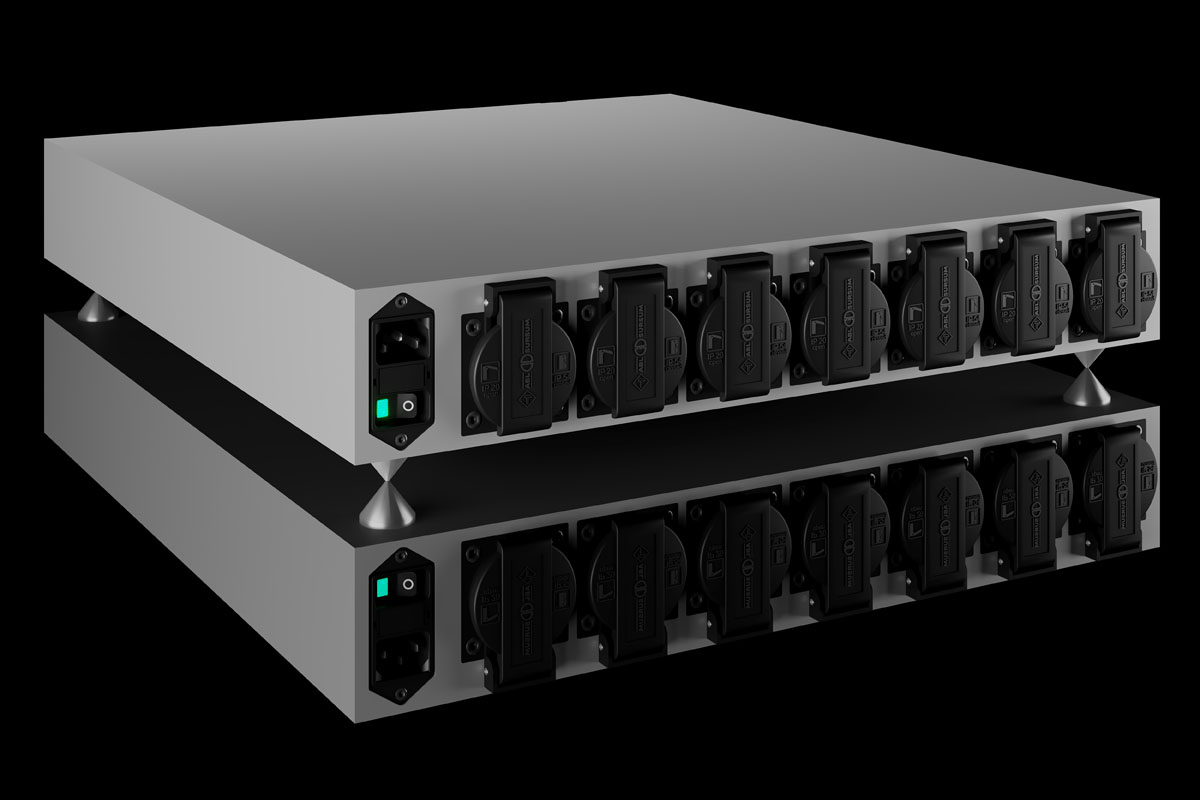

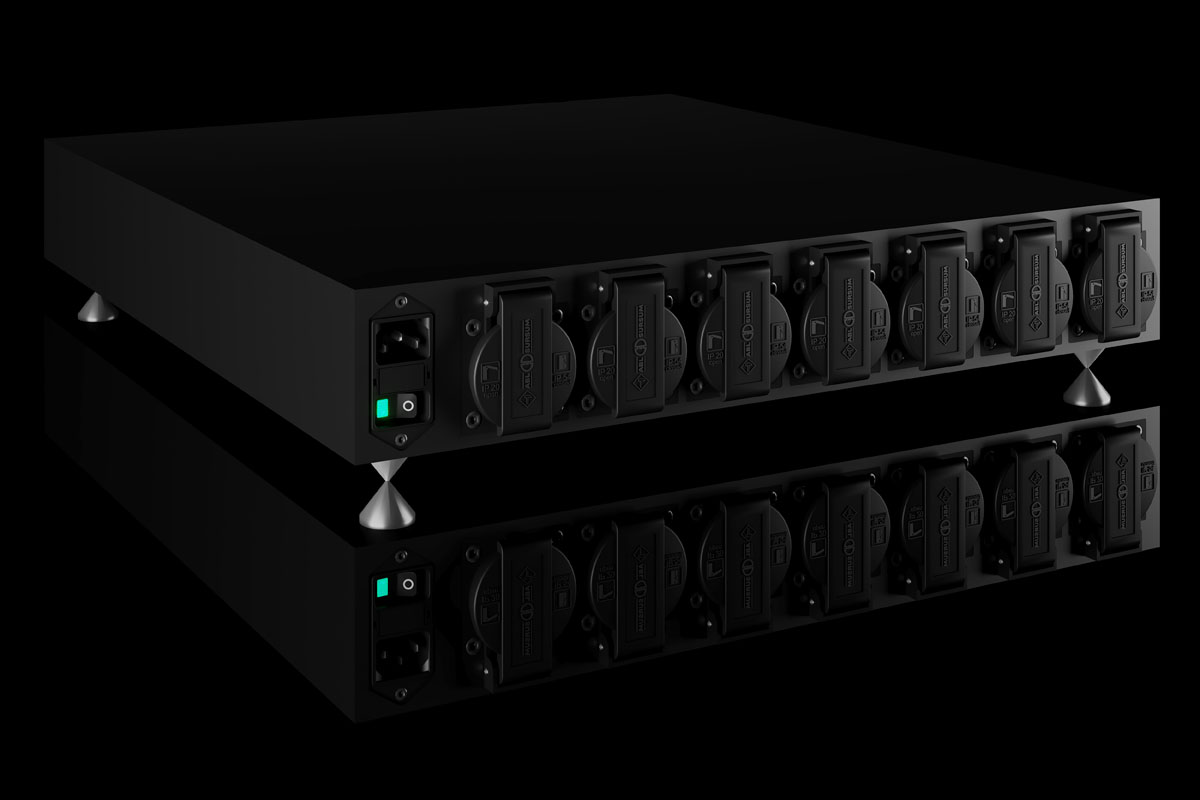

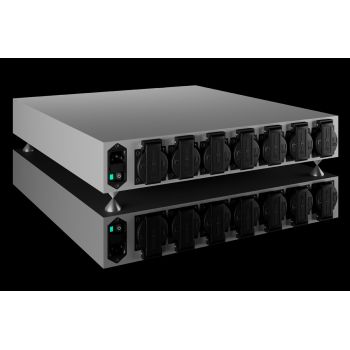

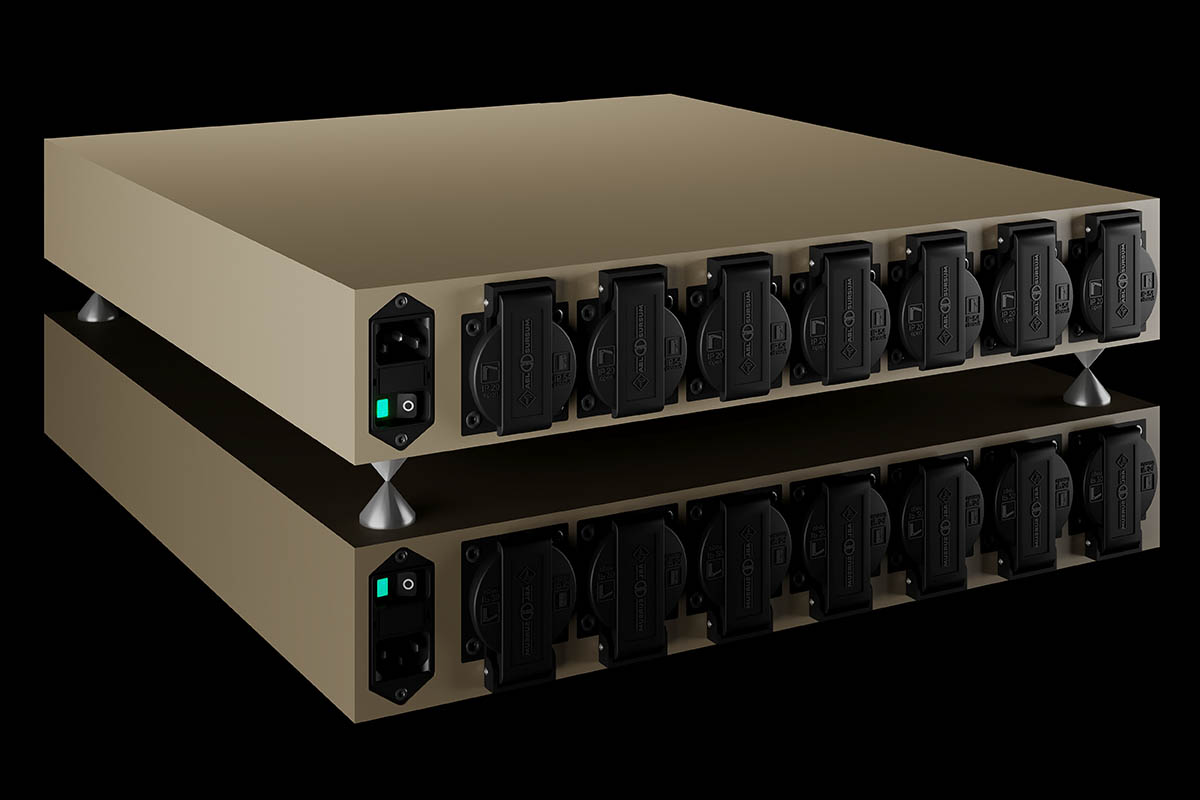

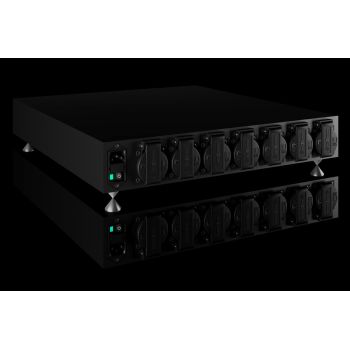

Poseidon S30 is a 7-outlet (EU, UK, US, AU) power distribution device for advances audio and video electronic components. In all version of Poseidon S30, the outlets are custom upgraded in our lab, in order to comply with the voltage and current requirements of our circuits.

-Power Line Filter. The unit contains an ultra low leakage 30A power line filter against Electro-Magnetic and Radio Frequency Interferences.

-Power Isolation. The circuit of Poseidon S30 is using 3 balanced power isolation toroidal transformers of 400W or 600W (depended on user’s preference). Our isolation transformers are made of ultra-high purity copper coils, with 4-edge binding topology on the secondary and the 400Hz toroidal core plates with custom refined surfaces, providing extreme performance and efficiency, and zero ringing. The exceptional design of our balanced transformers constrains all fields to the core material and completely eliminates radiations of any type of electromagnetic interferences. Poseidon S30 provides 3,4 or 5 balanced isolated power outputs (depended on user’s preference) for pre-amplifiers, tuners, digital converters, class D amplification stages, phono stages, turntables motors and other low voltage consumption electronic devices.

-Virtual Grounding. Thanks to the exceptional design of our power toroidal transformers and the hard wiring configuration of Poseidon S30, the unit provides a high efficiency virtual grounding circuit that is able to eliminate (when connected to properly grounded power cables) all grounding problems of any system.

-Ultra-High Purity Copper Wiring. The internal wiring of Poseidon S30 is based on the 7N copper conductors used on Signal Projects Atlantis power cables. The exceptional characteristics of Atlantis power conductors provide significantly increased conductivity and thus the lowest possible propagation delay between the internal components of the unit. This is helping Poseidon S30 to perform with impressive clarity, with superb neutrality and excellent balance beyond the limits of audible frequencies, and in the same time to reveal plenty of detail and to draw the 3 dimensions of the stage with excellent accuracy.

-Solid Billet Chassis. The chassis of Poseidon S30 is made of T8 aircraft grade solid billet aluminium in one of the most accurate CNC machines of today. The topology and the placement of the internal components of Poseidon S30, have been designed and calculated by a custom made software, in a way to provide the optimum shielding and the maximum protection against magnetically coupled and all kinds of external emitted interferences.

Hard Wiring Specifications

• Type: Multi-Core for CX version / Hybrid for CSG version
• Cross sectional area: 1,20mm² (high current), 1,02mm² (medium current)
• Metals: Copper (optional: Copper, Silver & Gold)
• Purity: 7N (refers to copper)

Power Line Filter Specifications

• Operating Current: 30A/40 °C at 120V/60Hz or 250V/50Hz
• Maximum Leakage: 0,35mA at 120V/60Hz or 0,64mA at 250V/50Hz
• Capacitance (Line to Ground): 0,017μF (0,5ΜΗz/0,5VAC)
• Capacitance (Line to Line): 0,098μF (0,5MHz/0,5VAC)
• Inductance: 0,49 mH nominal

Isolation Transformers Specifications

• Coil: Triple varnished OFC high purity copper
• Toroidal Core: 400Hz highest grade core plates with custom refined surfaces
• Transformer’s Power: 3 x 400VA for CX version / 3 x 600VA for CSG version

Chassis Specifications

• Material: Solid billet aircraft grade aluminium T8
• Dimensions: 43cm (W) x 47cm (D) x 7cm (H) without spikes (10cm (H) with spikes)
• Weight: 41kg
