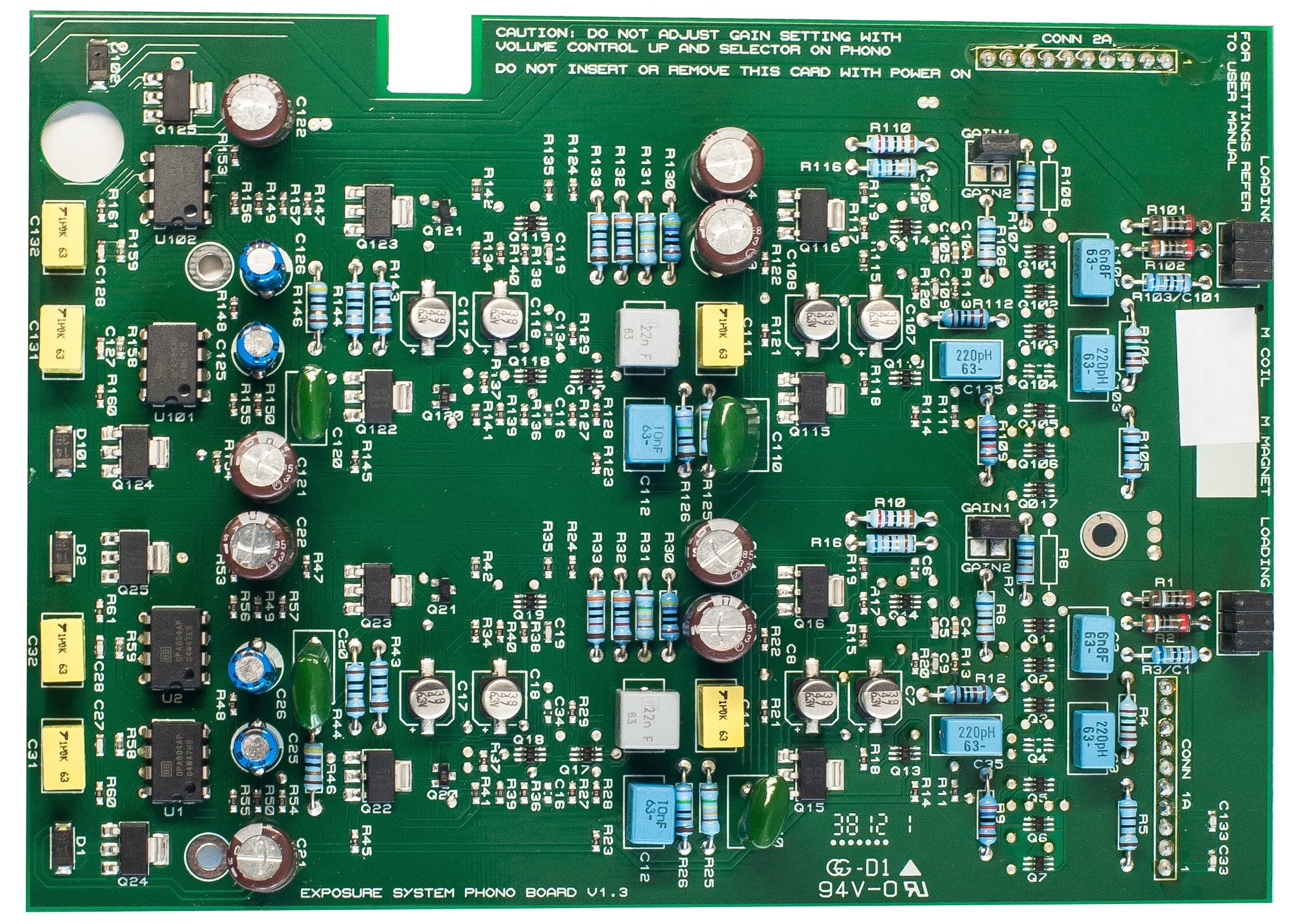

Η Exposure MC Phono Card ειναι μια καρτα phono για κεφαλες moving coil (MC). Για χρηση στον ολοκληρωμενους ενισχυτες 3010s2, 3010s2D, 3510 ή τους προενισχυτες 3010s2, 3010s2D, 3510, 5010.

Εγγυηση Αντιπροσωπειας 3 χρονια. Δυνατοτητα δοσεων.

Features

• All discrete transistor audio stages
• High quality parts used throughout
• Tight tolerance parts used for accurate equalisation
• Low noise power supply regulators
• Multiple parallel input transistors for low noise
• DC coupled input stage

Can be fitted to :

• 3010 Integrated Amplifier
• 3010S Integrated Amplifier
• 3010S2 Integrated Amplifier
• 3010S2D Integrated Amplifier
• 3510  Integrated Amplifier
• 3010S2 Preamplifier
• 3010S2D Preamplifier
• 3510  Preamplifier
• 5010 Preamplifier

Specifications

• Sensitivity : 500uV (gain 1 links open) or 250uV with gain 1 links fitted
• Frequency Repsonse : +/- 0.25dB ref 1KHz   30Hz to 20KHz.  With IEC roll off
• Input Loading : 6n8 in parallel with 1K5 ohms or with jumpers fitted:

1. J1 + 2 + 3 : 100 ohms
2. J1 + 2 : 110 ohms
3. J1 + 3 : 130 ohms
4. J1 : 160 ohms
5. J2 + 3 : 210 ohms
6. J2 : 310 ohms
7. J3 : 470 ohms
