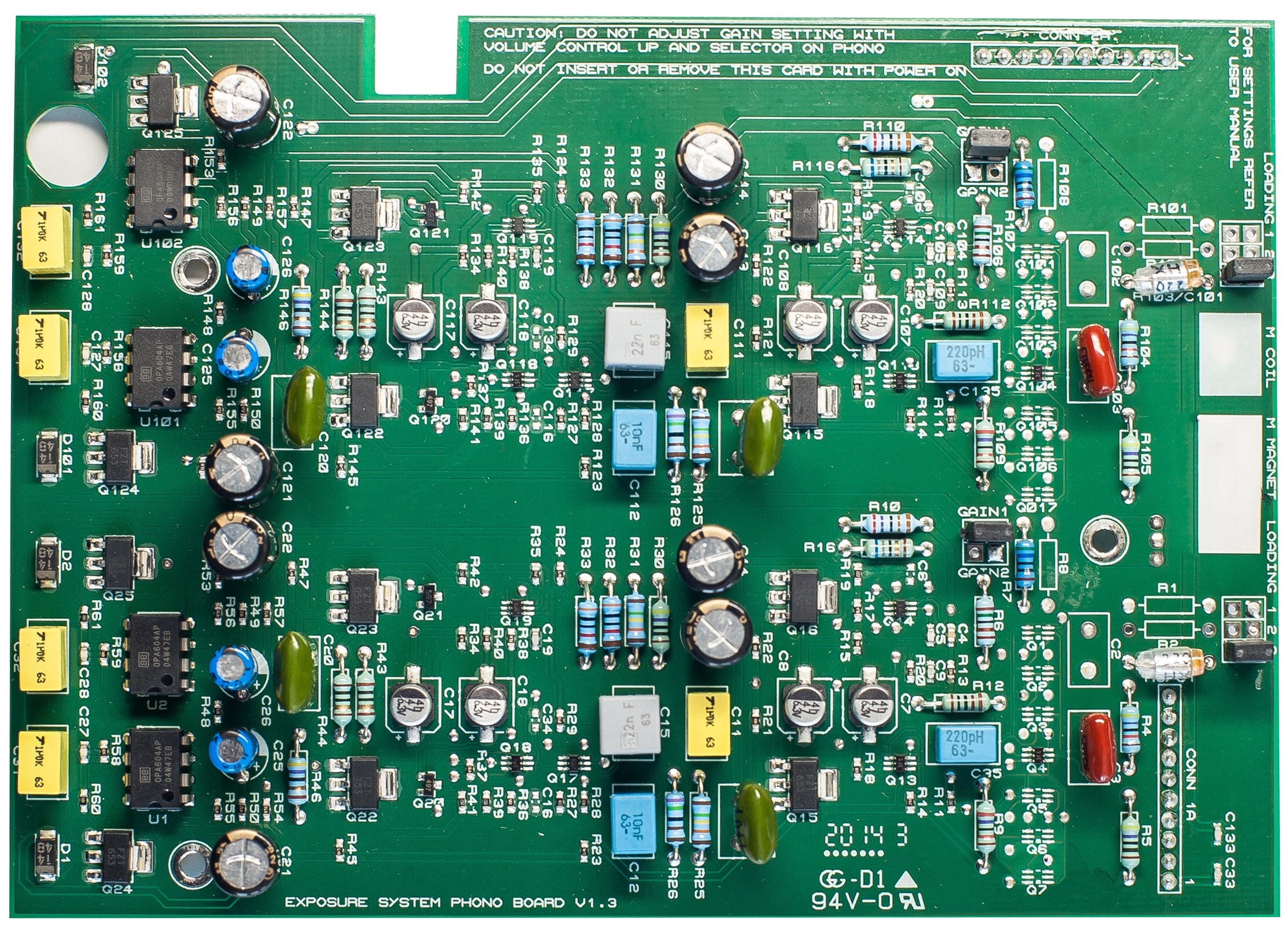

Η Exposure MM Phono Card ειναι μια καρτα phono για κεφαλες moving magnet (MM). Για χρηση στον ολοκληρωμενους ενισχυτες 3010s2, 3010s2D, 3510 ή τους προενισχυτες 3010s2, 3010s2D, 3510, 5010.

Εγγυηση Αντιπροσωπειας 3 χρονια. Δυνατοτητα δοσεων.

Features

• All discrete transistor audio stages
• High quality parts used throughout
• Tight tolerance parts used for accurate equalisation
• Low noise power supply regulators
• DC coupled input stage

Can be fitted to :

• 3010 Integrated Amplifier
• 3010S Integrated Amplifier
• 3010S2 Integrated Amplifier
• 3010S2D Integrated Amplifier
• 3510  Integrated Amplifier
• 3010S2 Preamplifier
• 3010S2D Preamplifier
• 3510  Preamplifier
• 5010 Preamplifier

Specifications

• Sensitivity : 5mV (gain 1 links open) or 2.5mV with gain 1 links fitted
• Input Loading : 47K ohms in parallel with 100pF capacitance (loading links open) or 320pF with loading links fitted
• Frequency Repsonse : +/- 0.25dB ref 1KHz   30Hz to 20KHz.  With IEC roll off
