Το Exposure XM-3 ειναι προενισχυτης για κεφαλες  (made in England) ΜΜ ή MC, με δυνατοτητα ρυθμισης gain και αντιστασης εισοδου. Τεραστιο τροφοδοτικο (200VA τοροειδης) και πολλες σταθεροποιησεις. Χρηση μονο ξεχωριστων τρανζιστορς και αντιστασεων , πυκνωτων υπερυψηλης ποιοτητας.

Εγγυηση Αντιπροσωπειας 3 χρονια. Δυνατοτητα δοσεων.

Features

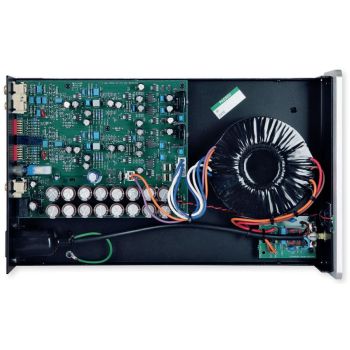

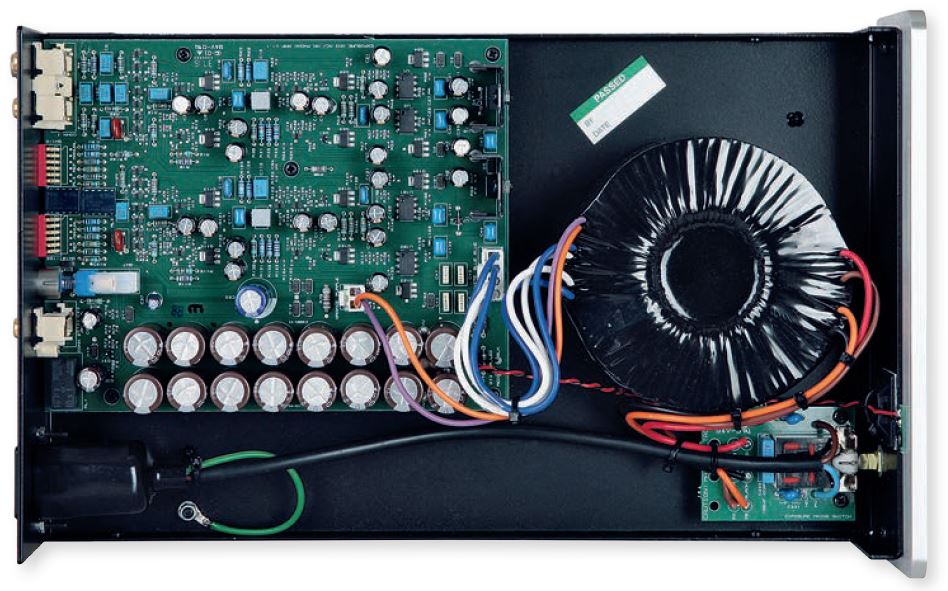

1. Large 200VA custom made toroidal transformer for power supply
2. Multiple power supply capacitors in parallel for low ESR
3. All discrete transistor audio stages
4. High quality resistors & capacitors used in the signal path

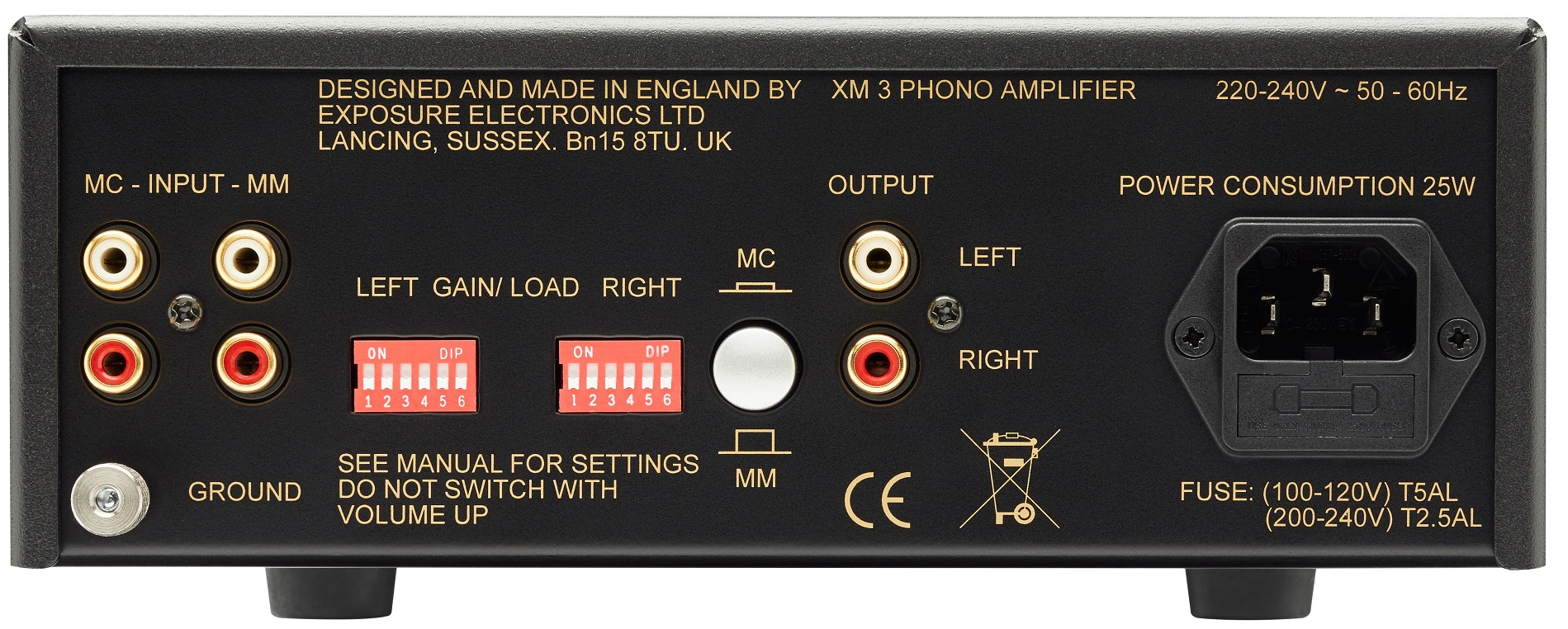

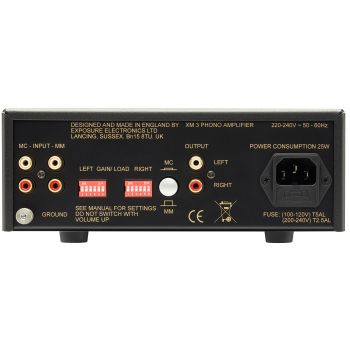

5. Separate MM & MC inputs selectable on the back panel
6. Adjustable loading & gain switches on the back panel
7. High quality all aluminium case work and extruded front panel
8. Three year guarantee
9. Available in black or titanium

Moving Magnet Input :

1. Sensitivity : 3.5mV input for 350mV output, 40dB gain setting
2. Signal to Noise ratio, ref 1KHz & 350mV out : Gain Switch 4 ON : >70dB , Gain Switch 4 OFF : >78dB

Moving Coil Input :

1. Sensitivity : 350uV input for 350mV output, 60dB gain setting
2. Signal to Noise ratio, ref 1KHz & 350mV out : >67db A weighted. ALL gain switches (4-6)

General specifications :

1. Frequency Response : 30Hz - 20Hz within +/- 0.25dB ref 1KHz with low frequency roll off below 30Hz
2. Total Harmonic at 1KHz, ref 350mV out <0.025% MC Input : Maximum Ouput Voltage : 7.8V RMS 1KHz , Output Impedance : 50 ohms
3. Mains Supply : 110/120V or 220/240V at 50/60Hz (factory set)
4. Power Consumption : <25W
5. Dimensions (WxHxD) : 218mm x 89mm x 348mm
6. Net Weight (unpacked) : 4kg
7. Gross Weight (packed) : 5kg
