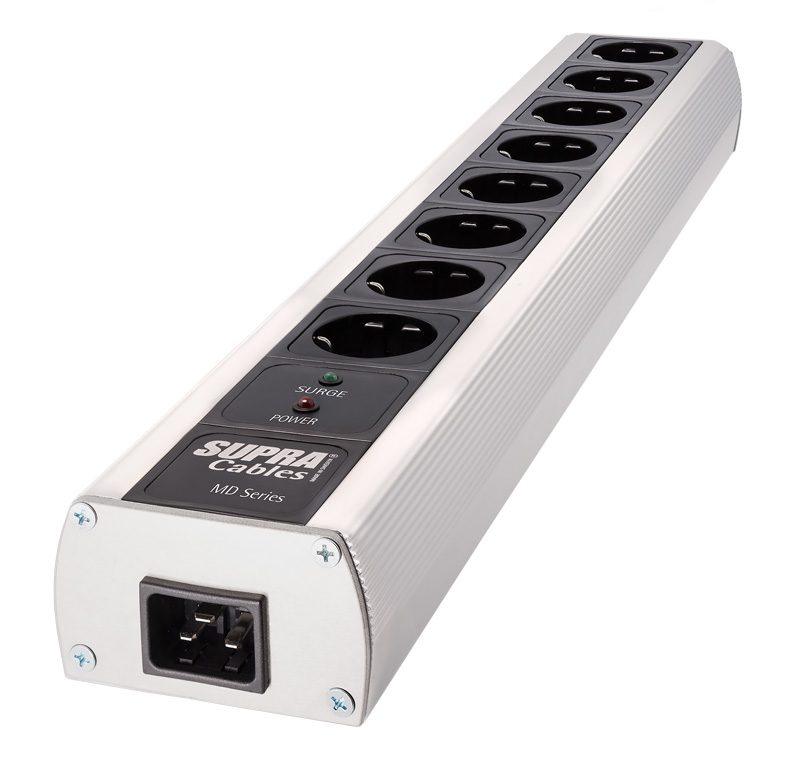

Το Supra Lorad MD-08-16 EU/SP mkIII ειναι θωρακισμένο πολύπριζο αλουμινίου 8 υποδοχών SCHUKO με φίλτρο NIF (Non Intrusive). Ορειχάλκινες επαφές. Τριπλή προστασία: φάσης προς γείωση, ουδέτερου προς γείωση & φάσης προς ουδέτερο. Ασφάλεια για τα παιδιά. Περιέχονται εξαρτήματα ανάρτησης σε τοίχο. Δέχεται αποσπώμενο καλώδιο ρευματοληψίας με το φις SWF-16S. Διαστάσεις ΜxΠxΥ: 54 x 9 x 5,3 cm.

The new EU Mk3 mains blocks are greatly improved. Even better connectors, filter and surge protection. All parts are either made in Germany and Sweden. Assembling in the Supra factory, Ljungskile, Sweden. .

MD08-16-EU/SP Mk3
Radiation Free, with Non-Intrusive Filtering and 3-way Surge Protection
8 Schuko EU sockets, fully shielded in Aluminum
NIF-filter, Shielded, 16A

A shielded mains distribution block in Aluminum with surge protection. Free from noise deriving from a variety of noise fields from e.g. cell phones, DECT phones, dimmers and many other domestic electrical equipment? SUPRA MD is a sound and performance enhancing mains distribution strip, containing a proprietary SUPRA NIF, Non-Intrusive Filtering circuitry, providing a mild noise and radio frequency filtering that will not slow down or mute the dynamics from your Hi-Fi audio system. The conscious Hi-Fi enthusiast connects the Supra MD mains distribution strip only to wall sockets with earth terminal using Supra LoRad CS-16-EU mains flex (optional).

• Radio frequency interference reduced by 40dB!
• Internal wiring of 2.5sqmm oxygen free copper leads
• Supports a staggering 3680W of continuous power!
• Protects you and your Hi-Fi audio system from harmful noise fields and radiation!

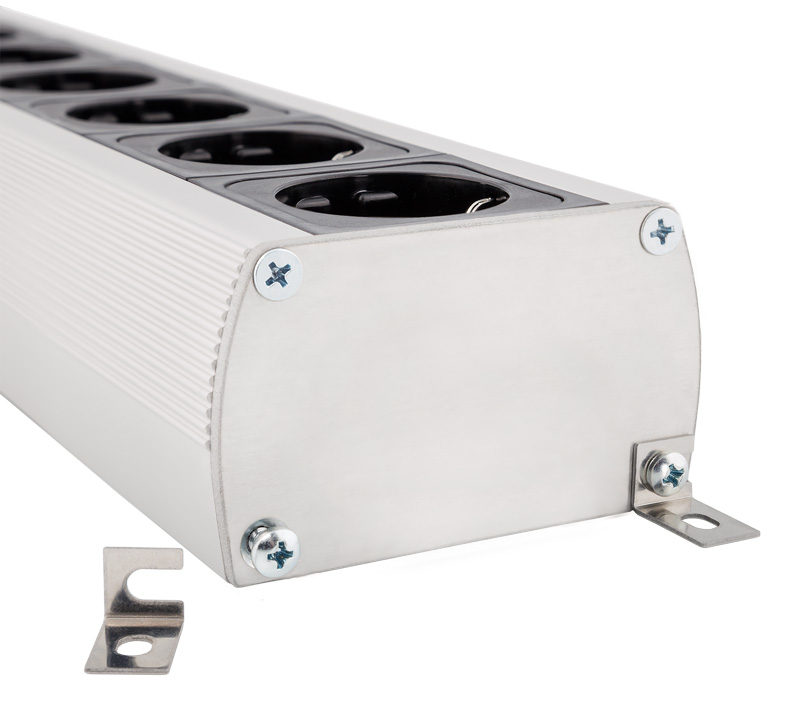

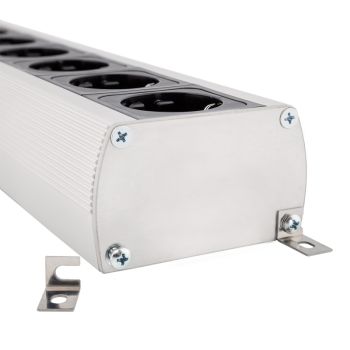

• Suitable for wall mounting

Multi-way Surge Protection.
When other manufacturers stop at one-way protection, i. e. only between the live and neutral lead from the power source, Supra goes all-in and offer a full three-way protection required to protect your HiFi audio system from e.g. a nearby lightning strike. The conscious HiFi enthusiast connects the Supra MD mains distribution strip only to wall sockets with earth terminal using Supra LoRad CS-16-EU mains flex (optional).

SUPRA NIF Transient Filter
A Non-Intrusive Filtering circuitry, providing a mild noise and radio frequency filtering that will not slow down or mute the dynamics from your Hi-Fi audio system.

To make our mains blocks more flexible and suit all customers we have removed the filter on 1 output. We can supply custom configuration, filter on all, half or on no outputs. Standard NIF configuration as below.

Output 1 & 2

• Non Filtered, recommended for Amplifier.
• Surge protected

Output 3 to 8

• Filtered
• Surge protected

Note!
SUPRA Mains block must be connected to a ground terminal socket for the various protections and filters to be active

Specifications:

Chassis: Aluminum

Sockets: European Standard

Inlet: SUPRA MCH-16, IEC320 16A

Outlets: 8 x SUPRA MCH-16/EU, Schuko Female.

Max AC Current: 16A

Max AC Voltage: 250V

Max Continuous Power: 3680W

Surge Protection: Type 3

Uoc =  2.5kV(P-N), 4.0kV(P(N)-PE)

Up =  2.0kV(P-N), 2.05V(P(N)-PE)

Weight: 1.5 Kg

Dimensions: (LxWxH): 537 x 89 x 53mm

Suitable for wall mounting

Note: Optional Supra LoRad CS-16-EU mains flex is required
