Ο Mark Levinson No 5206 ειναι προενισχυτης 11 εισοδων (RCA, XLR, Optical, Coaxial, Aes/Ebu, USB) και 2 εξοδων (RCA και XLR). Διαθετει ενσωματωμενο dac.

Εγγυηση Αντιπροσωπειας. Δυνατοτητα δοσεων, ανταλλαγων.

Features

• Pure Path discrete, direct coupled, fully balanced, dual-monaural signal path
• Discrete, balanced R-2R ladder volume control for precision and performance
• Class-A Pure Phono stage with custom configuration for MC and MM cartridge compatibility
• Integrated Main Drive fully balanced class-A headphone preamplifier circuitry
• Selectable fourth-order, 80 Hz high-pass filter allows seamless integration of subwoofers
• Designed and handcrafted in the USA

Specifications

• Type: Stereo preamplifier with MM / MC phono stage and headphone amplifier
• Line stage gain, normal gain setting: 13.5dB balanced; 7.5dB single-ended
• Line stage frequency response: 20Hz to 20kHz: (+/-0.02dB)
• Line stage frequency response: 0.4Hz to 370kHz (+0.1 / -3dB)
• THD+N at 1kHZ (2Vrms single ended or 4Vrmsbalanced output) <0.003%
• Signal to noise ratio: (Ref. to 2Vrms single-ended, 4Vrms balanced (max vol) >115dB @ 1kHz
• Crosstalk at 1KHZ <-107dB
• Channel Separation: >115dB at 1kHz (below noise floor)
• Input Impedance: >45k Ohms
• Output Impedance: <80 Ohms single ended, <160 Ohms balanced
• Maximum input level, normal gain setting: >10Vrms, single ended, >15VRMS, balanced
• Maximum output level: >11Vrms single ended, >22Vrms balanced

Headphone Section

• Headphone output impedance: Selectable; <3 Ohms or 75 Ohms
• Headphone maximum output, low impedance setting, 30 Ohms (0.3W), 20 to 20kHz, <0.1% THD: >3Vrms
• Headphone maximum output, low impedance setting, 300 Ohms, 20HZ to 20kHz, <0.1% THD: >9Vrms
• Headphone THD+N, 20Hz to 20kHz, 2Vrms: <0.03% @ 30 Ohms, <0.01% @ 300 Ohms

Phono Stage

• RIAA Frequency response: 20Hz to 20kHz, (+/-0.3dB)
• Infrasonic filter: Defeatable 15Hz, second order (12dB/octave)
• Moving Magnet Mode
• Input resistance: 47k Ohms
• Input capacitance: Selectable; 50, 100, 150, 200, or 680pF
• Gain: 40dB @ 1kHz
• THD+N, 20Hz to 20kKHz, 2Vrms output: <0.03%
• Moving Coil Mode
• Input resistance: Selectable; 20, 33, 50, 66, 100, 200, 330, 500, 1000, or 47k Ohms
• Input capacitance: 50pF
• Gain: Selectable; 50, 60, or 70dB @ 1kHz
• THD+N, 20Hz TO 20kHz, 2Vrms output: <0.02%, 50dB or 60dB settings, <0.04, 70dB setting

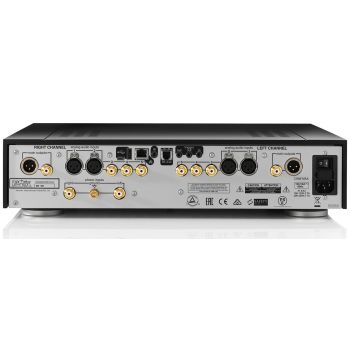

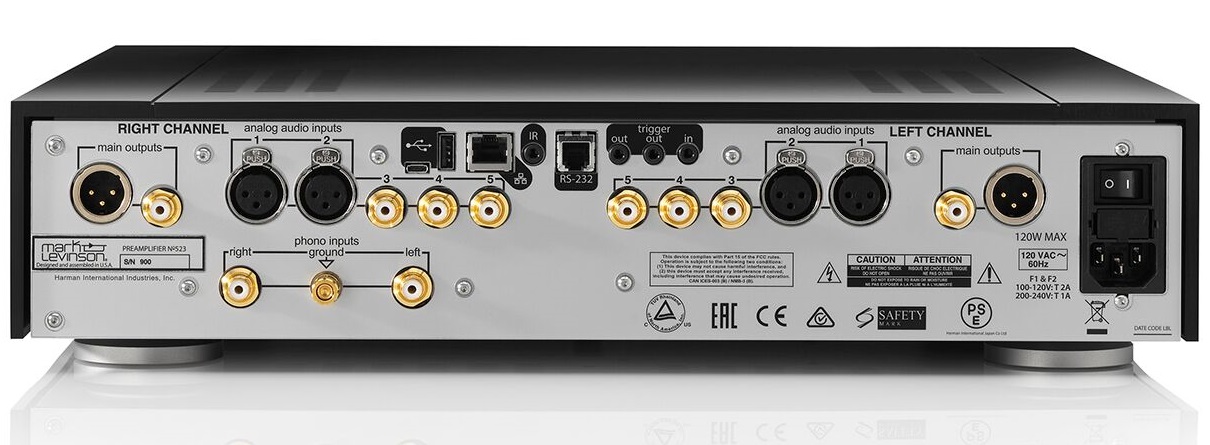

Inputs-Outputs

• Analog Inputs Two balanced XLR, three single-ended RCA line, one single-ended RCA phono w/ground
• Analog Outputs One balanced XLR, one pair single-ended RCA, one headphone (1/4", 6.3mm TS)
• Control Connectors:  Ethernet (RJ45), RS-232 (RJ12), Trigger In and Out, IR In, USB-A, and Mini USB

Dimensions

• Dimensions: (HxWxD) 8.9cm x 43.8cm x 45.7cm
• Weight: 28.8 kg
