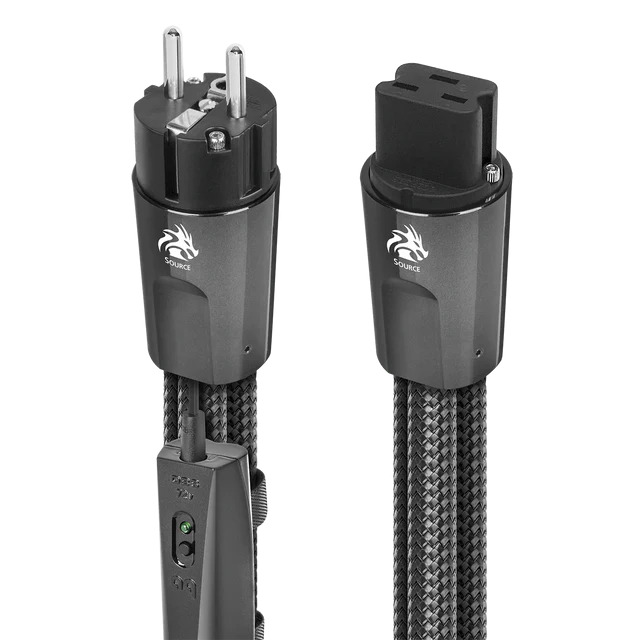

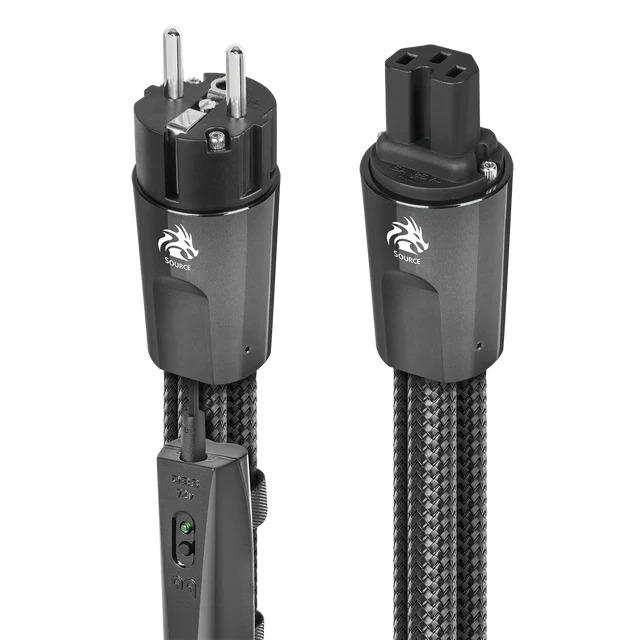

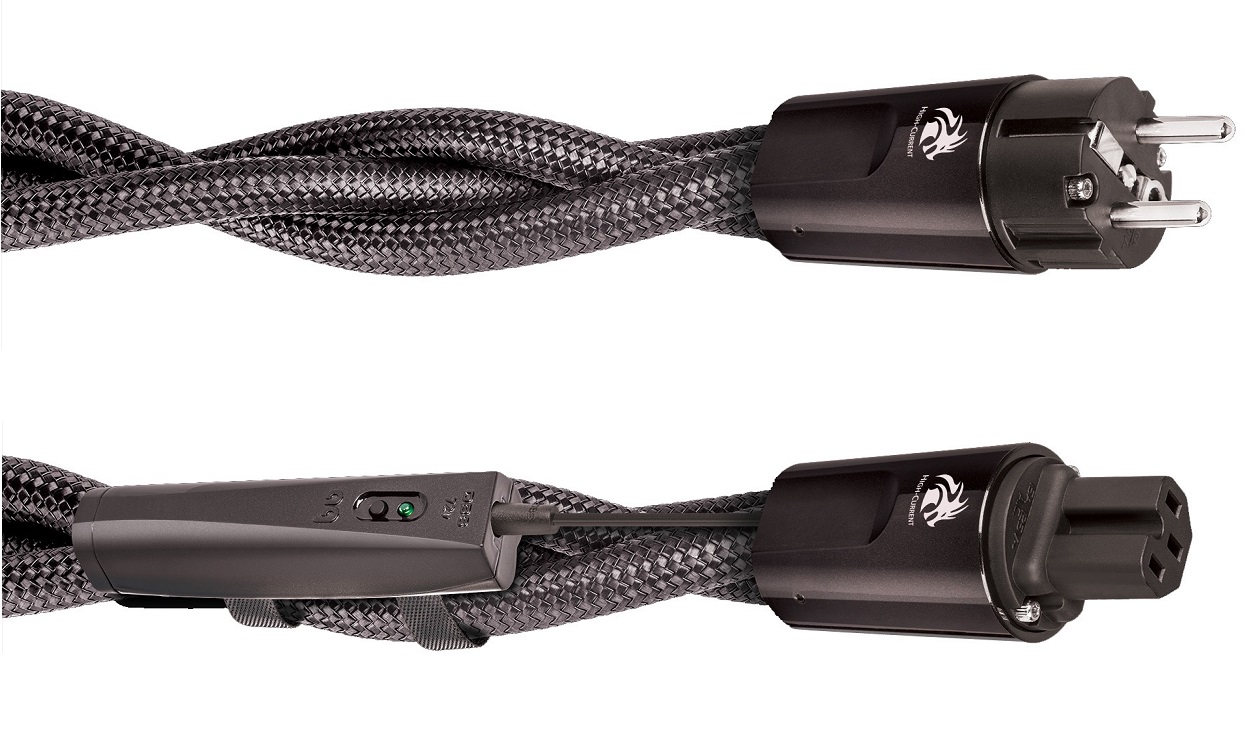

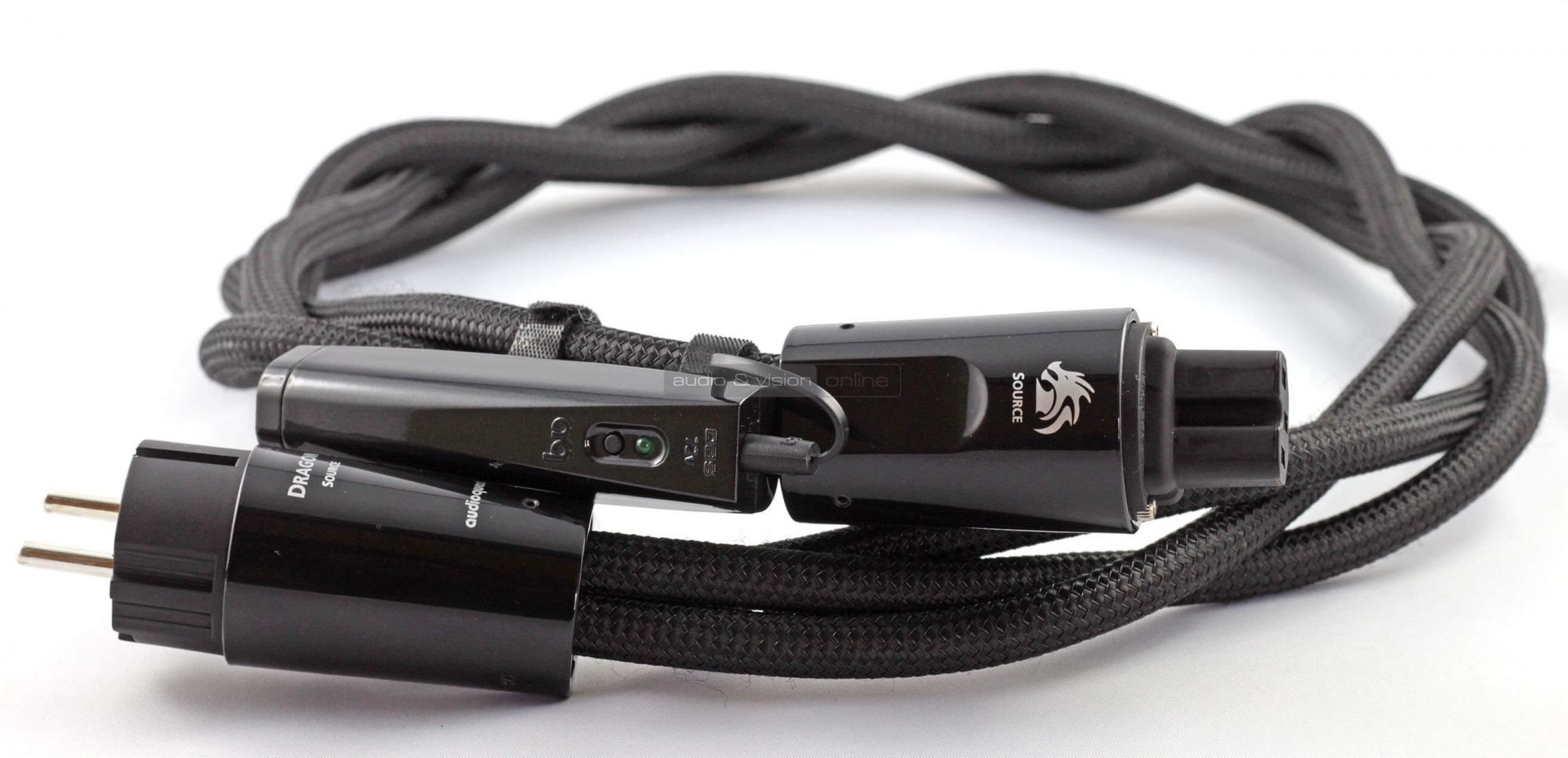

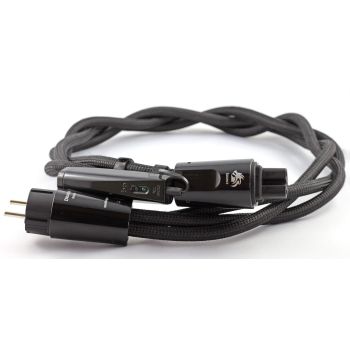

Το AudioQuest Dragon Source/Constant-Current ειναι καλωδιο ρευματος (220V) με ακροδεκτες IEC και Schuko. Διαθετει ενεργο συστημα καταστολης ραδιοπαρεμβολων 72v DBS.

Εγγυηση Αντιπροσωπειας. Δυνατοτητα ανταλλαγων, δοσεων.

Specifications

• Conductors: Solid Perfect-Surface Silver (PSS)/Perfect-Surface Copper+ (PSC+)
• Gauge: 16 AWG
• Optimized for: Sources
• Technology: Zero Characteristic Impedance (50Hz – 1MHz)
• Ground Noise-Dissipation: 72V Dielectric Bias System
• Jacket: Carbon / Black
• Terminations: Cold-Welded Connectors

Technology

Note: AudioQuest Dragon/Source AC power cable is not appropriate for use with AC power conditioners, power regenerators, AC isolation transformers, AC battery back-up devices, as well as any power amplifier, powered sub-woofer, powered loudspeaker, powered receiver, or integrated amplifier (whether tube, solid state or digital switching). These products will require greater RMS and transient current capacity. In extreme instances, they could suffer diminished performance and/or present an electrical danger by exceeding the AudioQuest Dragon/Source AC power cable’s maximum current capacity. For those applications, we highly recommend selecting the AudioQuest’s Dragon/High-Current AC power cable.

Directionality
All drawn metal strands or conductors have a non-symmetrical, and therefore directional, grain structure. AudioQuest controls the resulting RF impedance variation so that noise is drained away from where it will cause distortion. The correct direction is determined by listening to every batch of metal conductors used in every AudioQuest audio cable. Arrows are clearly marked on the connectors to ensure superior sound quality.

High Purity Conductors - Perfect-Surface Silver (PSS)/Perfect-Surface Copper+ (PSC+) Conductors
A carefully finessed combination of solid Perfect-Surface Silver (PSS) and solid Perfect-Surface Copper + (PSC+) conductors prevent strand interaction, a major source of ear fatiguing transient intermodulation distortion. The astonishingly smooth and pure Perfect-Surface Copper+ eliminates harshness and greatly increases clarity compared to OFHC, OCC, 8N and other premium coppers. Extremely high-purity Perfect-Surface Silver further minimizes distortion caused by grain boundaries, which exist within any metal conductor. The astonishingly smooth and pure Perfect-Surface Copper further eliminates harshness and greatly increases clarity compared to OFHC, OCC, 8N and other premium coppers.

Dielectric-Bias System with Radio Frequency Trap
All insulation between two or more conductors is also a dielectric whose properties will affect the integrity of the signal. When the dielectric is unbiased, dielectric-involvement (absorption and non-linear release of energy) causes different amounts of time delay (phase shift) for different frequencies and energy levels, which is a real problem for very time-sensitive multi-octave audio. The inclusion of an RF Trap (developed for AudioQuest’s Niagara Series of power products), ensures that radio frequency noise will not be induced into the signal conductors from the DBS field elements. (DBS, US Pat #s 7,126,055 & 7,872,195 B1)

Ground Noise-Dissipation Technology
AC Ground wires provide protection from current-wiring faults, but they also act as antennas. Thus, they are subject to induced radio frequency (RF) noise. This RF noise bypasses component power supplies and is typically coupled directly into a system’s most sensitive audio-video circuits. AudioQuest’s patented Ground-Noise Dissipation greatly reduces this distortion, yielding unprecedented levels of noise dissipation across the widest bandwidth (range) of radio frequencies possible. Our unique circuit-topology utilizes a common-mode phase-cancelling array, in concert with proprietary dielectric materials which provide additional differential linear filtering. (US Patent # 9,373,439)

Uncompressed High-Current Transfer
With current capacity of 20 amps RMS @ 125VAC 50/60Hz (16 amps RMS @ 220-240VA 50/60Hz), Thunder/High-Current can withstand current transient peaks many times its continuous (average) RMS rating. This makes Thunder/High-Current ideally suited for a wide assortment of AC power conditioners, power regenerators, AC isolation transformers, and AC battery back-up devices, as well as any power amplifier, powered subwoofer, powered loudspeaker, powered receiver, or integrated amplifier.
