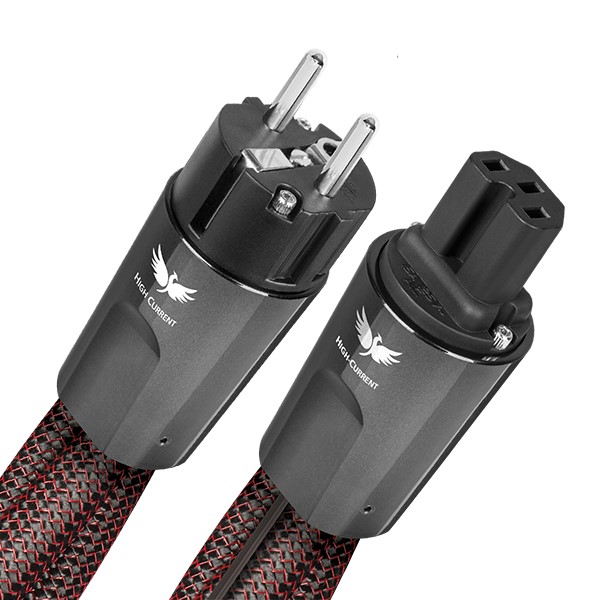

Το AudioQuest FireBird High (Variable) Current ειναι καλωδιο ρευματος (220V) με ακροδεκτες IEC και Schuko. Διαθετει ενεργο συστημα καταστολης ραδιοπαρεμβολων 72v DBS.

Εγγυηση Αντιπροσωπειας. Δυνατοτητα ανταλλαγων, δοσεων.

Specifications

• Conductors: 50% Solid PSC+ & 50% Solid PSS
• Optimized for: constant or “fixed” current draw.
• Technology: Zero Characteristic Impedance (50Hz – 1MHz)
• Ground Noise-Dissipation: 72V Dielectric Bias System
• Jacket: Black/Red Braid
• Terminations: Cold-Welded Connectors


Alternating Current (AC), is a far-from-perfect power source. AC power technology is well over a century old and was never designed to meet the exacting standards of today’s high resolution audio-video components. AC noise is present at the utility source, and is then exacerbated by radio frequency noise that is induced (picked up by the AC power cord) and coupled to the component power supplies and to circuit ground. This creates distortion and low-level signal losses via the “masking effect.” Most AC power cords and power conditioner-regenerators, though helpful to a point, are simply not up to the task.

Note: AudioQuest FireBird/Source AC power cable is not appropriate for use with AC power conditioners, power regenerators, AC isolation transformers, AC battery back-up devices, as well as any power amplifier, powered sub-woofer, powered loudspeaker, powered receiver, or integrated amplifier (whether tube, solid state or digital switching). These products will require greater RMS and transient current capacity. In extreme instances, they could suffer diminished performance and/or present an electrical danger by exceeding the AudioQuest Dragon/Source AC power cable’s maximum current capacity. For those applications, we highly recommend selecting the AudioQuest’s FireBird/High-Current AC power cable.

Technology

High (Variable) Current Cables
Optimized for use with AC power conditioners/regenerators, power amplifiers, and any components that contain a built-in power amplifier, including AV receivers, powered speakers, and powered subwoofers.

Solid Perfect-Surface Silver (PSS) and Perfect-Surface Copper+ (PSC+) Conductors
Solid conductors prevent electrical strand-to-strand interaction, major sources of distortion. Surface quality is critical because a conductor can be considered as a rail-guide for both the fields within a conductor, and for the magnetic fields that extend outside the conductor. The astonishingly smooth and pure surface of all AudioQuest’s Perfect-Surface metals nearly eliminates harshness and greatly increases clarity compared to lesser materials. The careful choice of the sizes of the PSS and PSC+ conductors ensures that FireBird’s performance is close to using all PSS Silver, but at a much lower cost.

ZERO-Tech
With current capacity of 20 amps RMS @ 125VAC 50/60Hz (16 amps RMS @ 220-240VA 50/60Hz), FireBird/High (Variable) Current can withstand current transient peaks many times its continuous (average) RMS rating. This makes FireBird/High (Variable) Current ideally suited for a wide assortment of AC power conditioners, power regenerators, AC isolation transformers, and AC battery back-up devices, as well as any power amplifier, powered subwoofer, powered loudspeaker, powered receiver, or integrated amplifier.

RF/ND-Tech
AC Ground wires may provide protection from an electrical short circuit, but they also act as an antenna. Thus, they are subject to induced radio-frequency (RF) noise. This RF noise bypasses component power supplies and is typically coupled directly into a system’s most sensitive audio/video circuits. AudioQuest’s RF/ND-Tech greatly reduces this distortion, yielding unprecedented levels of noise dissipation across the widest bandwidth (range) of radio frequencies possible. Our unique circuit topology uses a common-mode phase-cancelling array, in concert with proprietary dielectric materials which provide additional differential linear filtering. US Patent # 8,988,168.

72v Dielectric-Bias System (DBS)
Insulation is also a dielectric that can act like a shunt-filter. Biasing minimizes dielectric-noise and linearizes the filter, significantly improving wide-bandwidth dissipation of induced RF noise.

Directionality
All drawn metal strands or conductors have a non-symmetrical, and therefore directional, grain structure. AudioQuest controls the resulting RF impedance variation so that noise is drained away from where it will cause distortion. The correct direction is determined by listening to every batch of metal conductors used in every AudioQuest audio cable. When applicable, arrows are clearly marked on the connectors to ensure superior sound quality. For most models of AQ cable, the arrows not only indicate the direction that optimizes metal-directionality as part of Noise-Dissipation, but also indicates non-symmetrical attachment of shield and GND in order to optimize full-system performance.
