To Atlas Mavros Ultra L RCA Grun ειναι ενα shielded interconnect, με αγωγους απο χαλκο OCC, με κυριο χαρακτηριστικο πιο εξελιγμενη θωρακιση dd (dual drain). Διαθετει ακροδεκτες συνδεσης σε καθεστως Συνεκτικης Γειωσης η εξωτερικο Ground Box.

Εγγυηση Αντιπροσωπειας. Δυνατοτητα δοσεων.

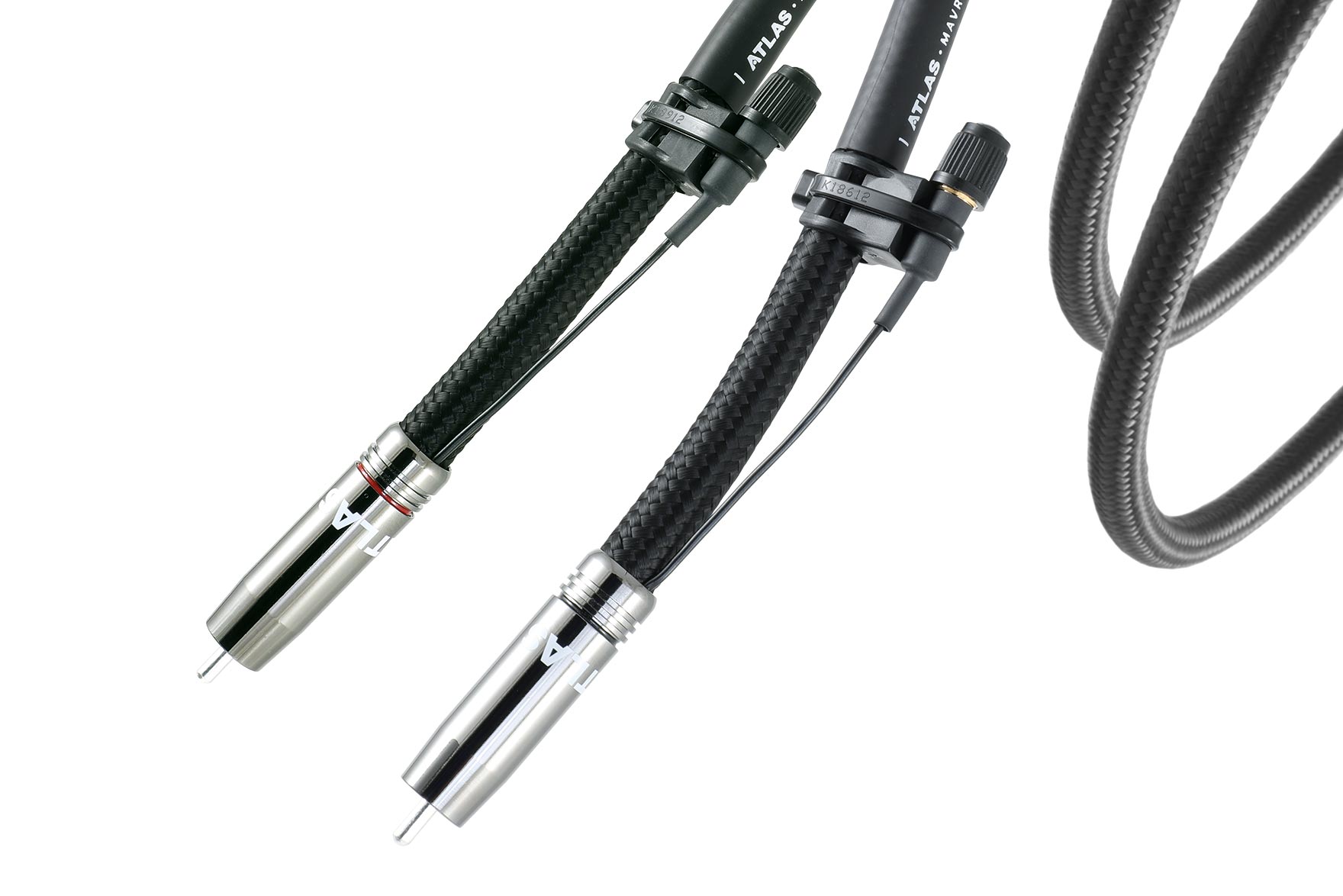

The Mavros Ultra L RCA uses the very highest quality ‘6N’ (99.99997% purity) copper manufactured using the OCC ‘Ohno Continuous Cast’ technique. Cables manufactured with lower grade materials and poor manufacture typically have a coarse, grainy structure which compromises sound quality. In the manufacture of Mavros, we maximise the copper’s conductivity by ensuring that there is typically one grain in approximately 125 metres of conductor, allowing the signal a continuous unbroken path –in practice, the signal has a faster, cleaner and more direct path to follow.

The cable consists of a pair of conductors, each made up from six bundles of 12 multi-conductor wires, plus a thicker centre wire. This in turn is covered by a continuous copper/Mylar™ electrostatic screen with copper shielding braid, ensuring minimal susceptibility to RF interference and noise.

Theoretically, the best dielectric (insulation layer) is air. Conventional dielectric (insulation) materials impose their own signature distortion and loss on the signal. Our technique uses a microporous PTFE (Teflon™) tape, which is wound around the core conductors, then covered again and stabilised using a protective FPE (Flexible PolyEthylene) dielectric. This process maintains the required conductor geometry, and bestows greater manufacturing consistency. Termination is with ourlow-mass, high bandwidth, cold-weld Ultra L RCA or XLR connectors, both of which have minimal effect on the integrity of the signal.

Specifications

• Construction Twin multicore dual drain
• Material OCC
• Dielectric Microporous PTFE (Teflon™)
• Screen Braid + Mylar™, 100%
• Capacitance 48.92 pF/m
• Inductance 0.7256 µH/m
• Resistance 0.0181
• VOP 0.81
• Outside Diameter9.8mm
