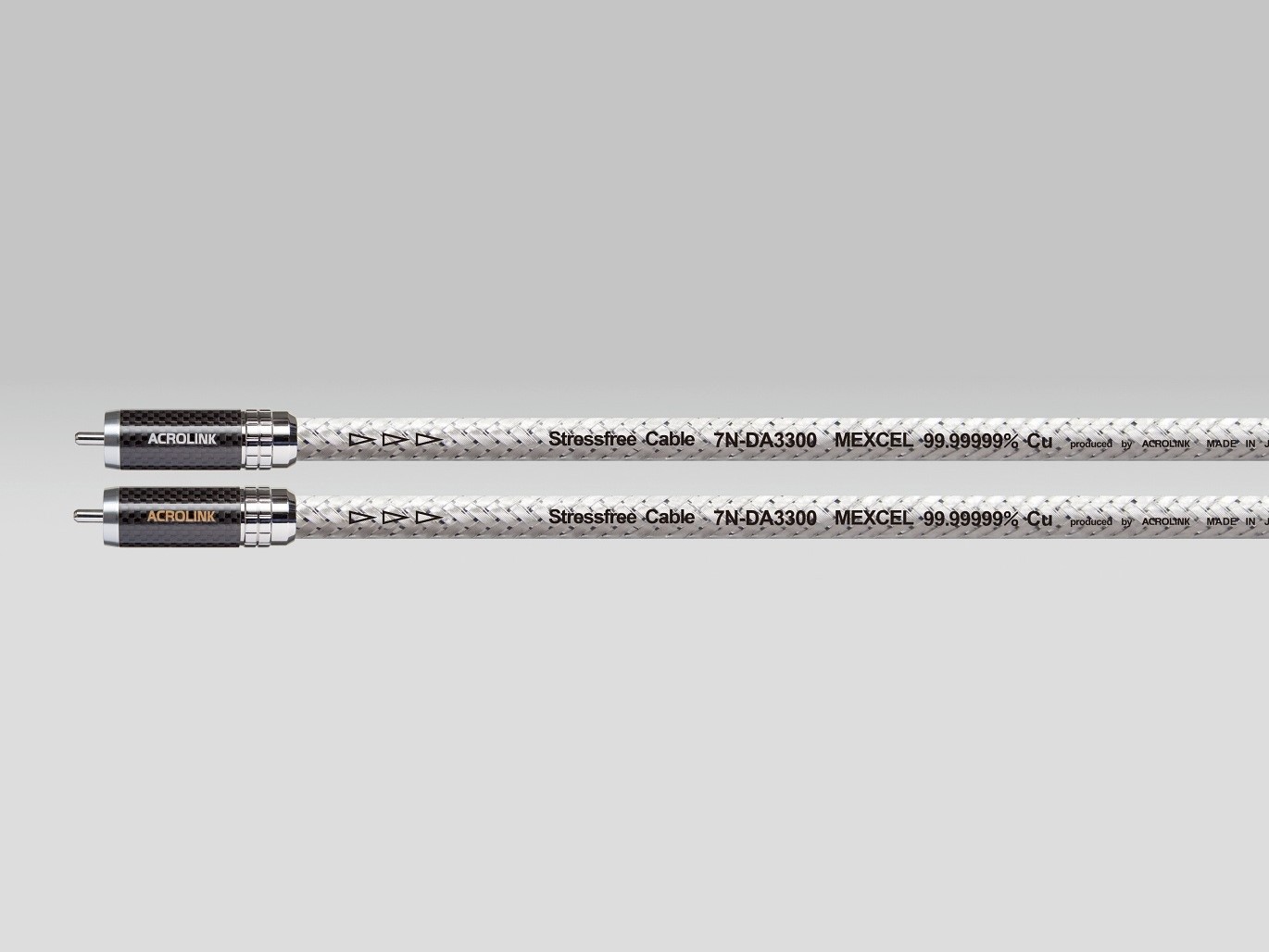

To Acrolink 7N-DA3300 Mexcel ειναι ενα καλωδιο interconnect, με αγωγους κατασκευασμενους απο υψηλης καθαροτητας μονοκρυσταλλικο stressfree Mexcel χαλκο 7N (99,99999%), τερματισμενο με βυσματα RCA (με κεντρικο πιν απο ρελλουριο χαλκο και γειωση απο βυριλλιο χαλκο. Αμφοτεροι ακροδεκτες ειναι επιρροδιωμενοι.

Εγγυηση Αντιπροσωπειας. Δυνατοτητα δοσεων, ανταλλαγων.

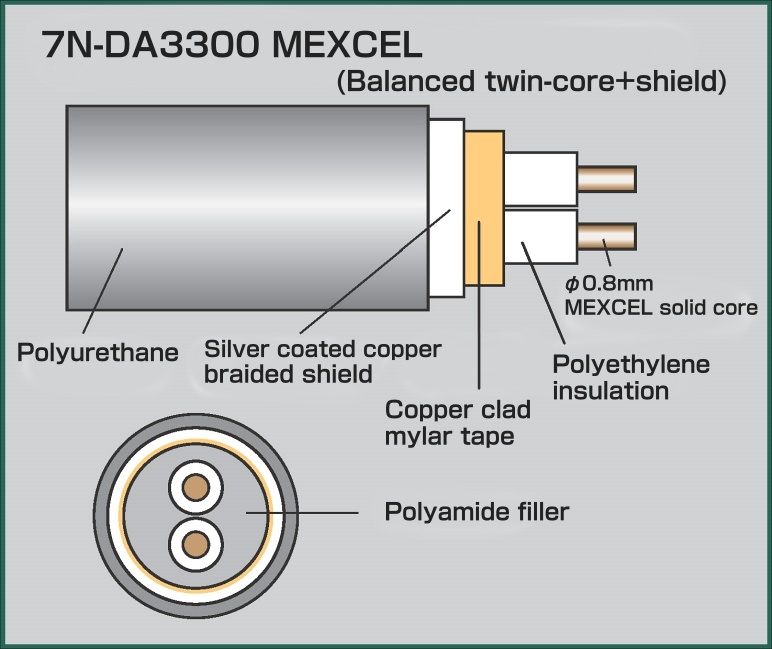

Cable Materials & Specifications

• Conductor: 7N Cu MEXCEL solid core 0.8mm×2 (Balanced twin-core structure)
• Insulation: Polyethylene
• Shielding: Copper clad mylar tape + silver plated copper braided wire
• Outers sleeve: UV resistant Polyurethane
• Conductor resistance: 36.4 mΩ/m
• Impedance: 110 Ω
• Cable diameter: 9.5 mm

RCA connector Specifications

• Positive terminal: Tellurium copper
• Negative terminal: Beryllium copper
• Plating: Mirror polish treatment with direct rhodium plating
• Outer body material: Aluminum + Carbon fiber

MEXCEL is a conductor insulation technology using a system called MEDIS®(Mitsubishi Electro Deposition Insulation System)
which is developed and patient technology by Mitsubishi Cable Industries Ltd.Each conductor is perfectly and evently insulated

Stranded length for 7N-DA3300 MEXCEL is 1.0m and 1.5m pair.Special length order available.

About MexcelThe ultimate transmission characteristics attained in the new cable series produced by ACROLINK enter the world of audio. The most remarkable feature of the cables is their high frequency transmission capability, the frequency response has been increased to up to 18 GHz with flat curves at a stroke while the frequency response of other audio cables available on the market is limited to 1 GHz in high frequency transmission. A very wide frequency response is achieved. The MEXCEL series cables with extremely low variance in AC resistance also have amazingly high frequency response from the audible frequency range to the high frequency range limited theoretically with flat curves.

High purity stress-free 7N copper is used as raw conductor material. MEXCEL insulated strands were developed using the stress-free 7N copper for inner conductors and outer conductors and they are used for MEXCEL cables. MEXCEL is a new enameled wire developed by Mitsubishi Cable Industries, Ltd. and has a rectangular shaped cross section. In the past, it has been difficult to apply insulation film over four corners of a single wire, so round conductors have been used out of necessity. Mitsubishi, however, has developed the epoch-making MEDIS electro-deposited insulation system, which can be called an electro-plating of the insulating resin. Unlike round conductors, rectangular conductors eliminate space between wires when wound making it possible to manufacture high density, super high performance coils. Super high performance audio cables in the new ACROLINK MEXCEL series are developed jointly by the two companies making the best use of this technology. High density braided wires are used for signal conductors as well as shielded cables to realize super wide range audio cables.

This type of MEXCEL cable falls into a category called litz wires in the field of audio, the cross sections are rectangular and densely braided. The sum of the cross section areas of the strands made of rectangular wires is larger than the strands made of round wires and it suppresses high frequency response characteristic deterioration caused by the skin effect. By braiding rectangular MEXCEL insulated strands densely, the outer conductors suppress the radiation of signals to the outside. Using rectangular strands will make the surface area larger than round strands having the same cross section area, even transmission of signals throughout the cross section is possible and the skin effect is further suppressed.

In coaxial type cables, cables have threefold covered coaxial construction (one sheath and two shields made of different material) with perfect countermeasures for external noise caused by electromagnetic waves. In the shielded two conductor type, rectangular MEXCEL insulation strands made of high purity stress-free 7N copper are braided into both conductors and shields. In speaker cables, the semiconductor layer of insulation material suppresses both the generation of static electricity caused by friction of the insulation material when cables vibrate and the external noise of electromagnetic waves.

For insulation material, special resin, used in the space and defense equipment for its extremely low dielectric constant, is used. The resin is not frequency and temperature dependent, so signals do not deteriorate regardless of frequency band and ambient temperature.
High quality raw material, special polyurethane resin which no one has never thought of using it for sheath, coupled with precise construction design, high quality audio cables exceeding MIL specs by far have come to the world of audio. The new world of sound completely achieved thus will make recently increasing high-end audio equipment fully enjoyable and transmits information of new high density, large capacity media without loosing any.

Arrows appear on all cables to indicate connection direction. Connect cables in the direction indicated by the arrows, as that specifies the signal transmission.
