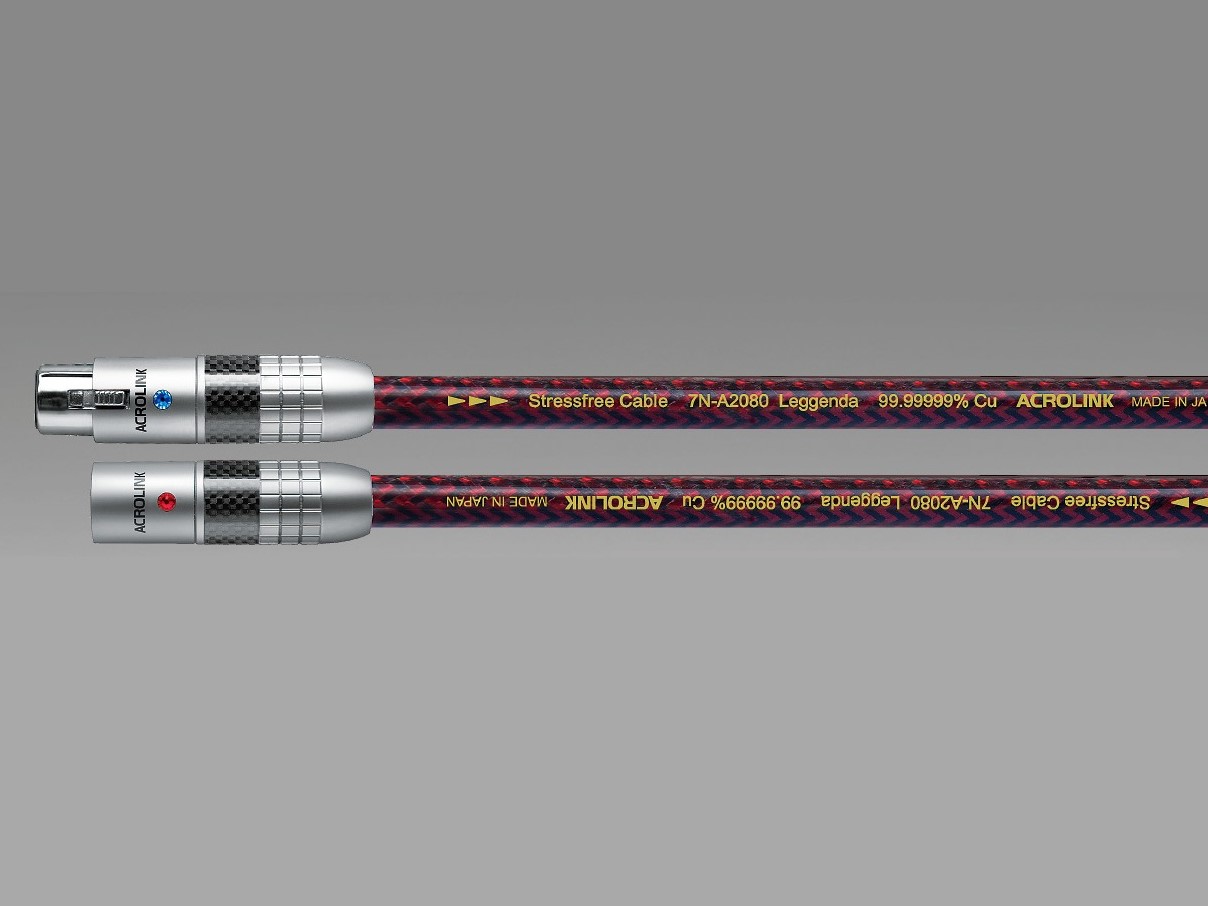

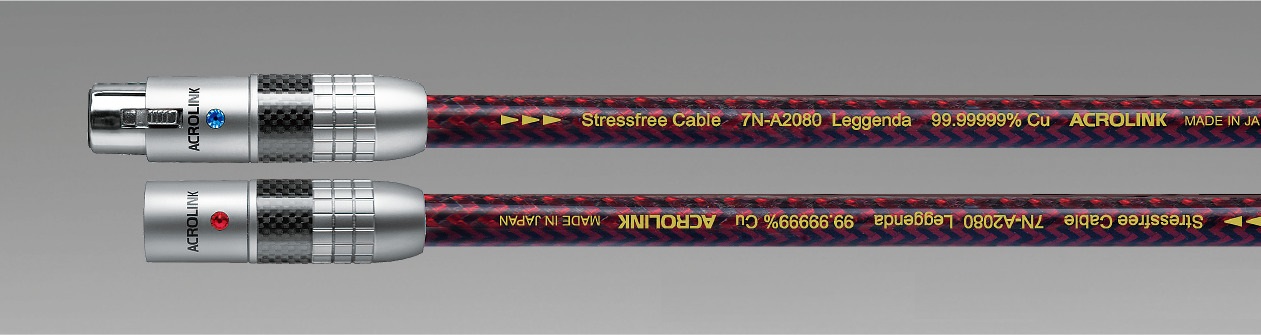

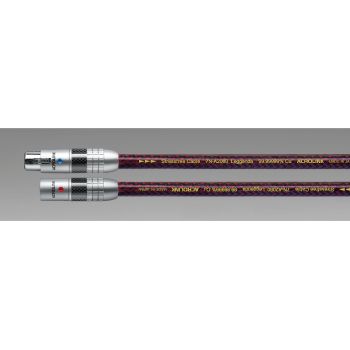

To Acrolink 7N-A2080 Leggenda XLR ειναι ενα καλωδιο interconnect, με αγωγους κατασκευασμενους απο υψηλης καθαροτητας μονοκρυσταλλικο χαλκο 7N (99,99999%), τερματισμενο με βυσματα XLR. Τα female pins απο επιρροδιωμενο βυρηλλιο χαλκο και τα male pins απο επιρροδιωμενο τελλουριο χαλκο.

Εγγυηση Αντιπροσωπειας. Δυνατοτητα δοσεων.

Cable Materials & Specifications

• Cable diameter: 1.0mm
• Conductor: 7N Cu D.U.C.C Stressfree Liz wire 0.24mm x 25 strands x2 cores(AWG 16)
• Insulation: Polyethylene resin
• Inner sleeve: Hybrid Polyolefin resin with resonance control powder (Tungsten + Amorphous)
• Shielding: Copper foil tape + Braided 7N Cu wire + Noise BEAT tape + braided UEW
• Outer sleeve: UV resistant Polyurethane resin
• Conductor resistance: 18mΩ/m
• Electrostatic capacitance: 57pF/m
• Impedance specification: 110Ω(XLR & AES/EBU)

RCA connector Specifications

• Center contact pin: Hollow shaped Beryllium copper
• Negative side contact part: Deoxidized Phosphor copper
• Plating: Silver layered Rhodium(Hand polished before plating)
• Cover: Aluminum + Carbon fiber + Duralumin

Standard length of 7N-A2080 Leggenda series are 1.0m and 1.5m.Special length order available.
D.U.C.C stands for Dia Ultra Crystallized Copper which is specifically developed copper wire for high-end audio cables. D.U.C.C has controlled crystal structure and the minimized transmission loss. Patent technology and registered trade mark of Mitsubishi Materials LTD.
Noise BEAT tape is a thin aluminum resin tape which is able to efficiently absorb noise current. Developed and trade mark of NTT AT (Nippon Telegraph and Telephone Corporation Advanced Technology)
UEW stands for Urethane Enamel Wire
