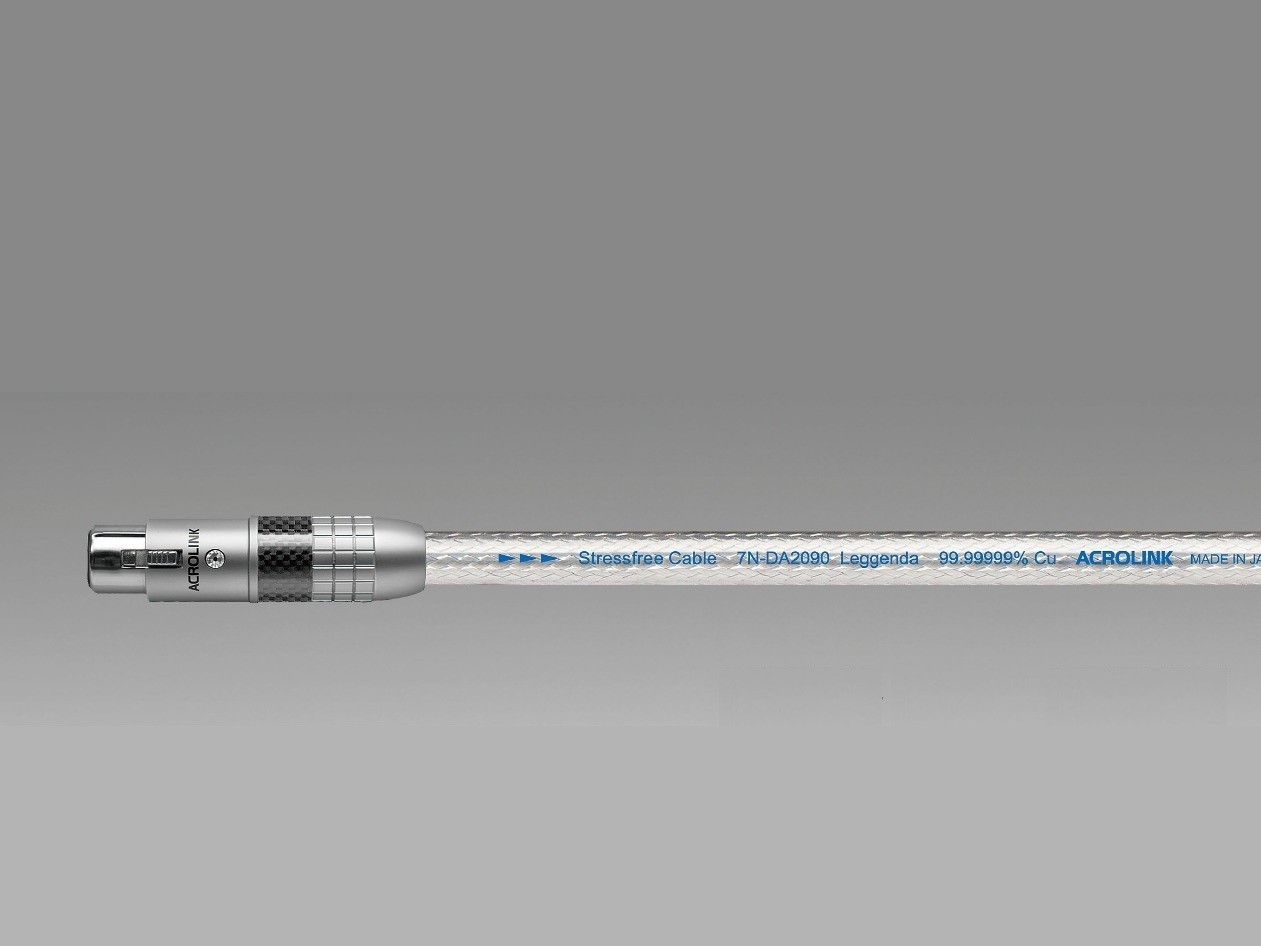

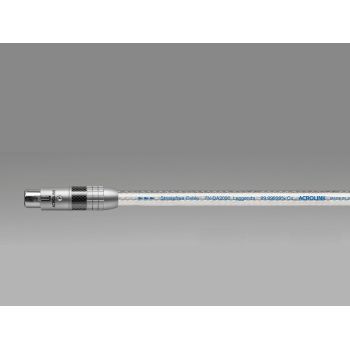

To Acrolink 7N-DA2090 ειναι ενα ψηφιακο καλωδιο, τερματισμενο με βυσματα AES/EBU (110Ω), κατασκευασμενο απο stressfree copper 7N (99,99999% pure).

Εγγυηση Αντιπροσωπειας. Δυνατοτητα δοσεων.

Cable Materials & Specifications

• Cable diameter: 11.0mm
• Conductor: 7N Cu D.U.C.C Stressfree 0.26 x 19 strands x 2 cores(AWG 16)
• Insulation: Polyethylene resin(Positive), Polyethylene resin(Negative)
• Inner sleeve: Hybrid Polyolefin resin with resonance control powder (Tungsten + Amorphous)
• Shielding: Copper foil tape + Braided 7N Cu wire + Noise BEAT tape + Silver plated braided copper
• Outer sleeve: UV resistant Polyurethane resin
• Conductor resistance: 18mΩ/m
• Electrostatic capacitance: 56pF/m
• Impedance specification: 110Ω(XLR & AES/EBU)

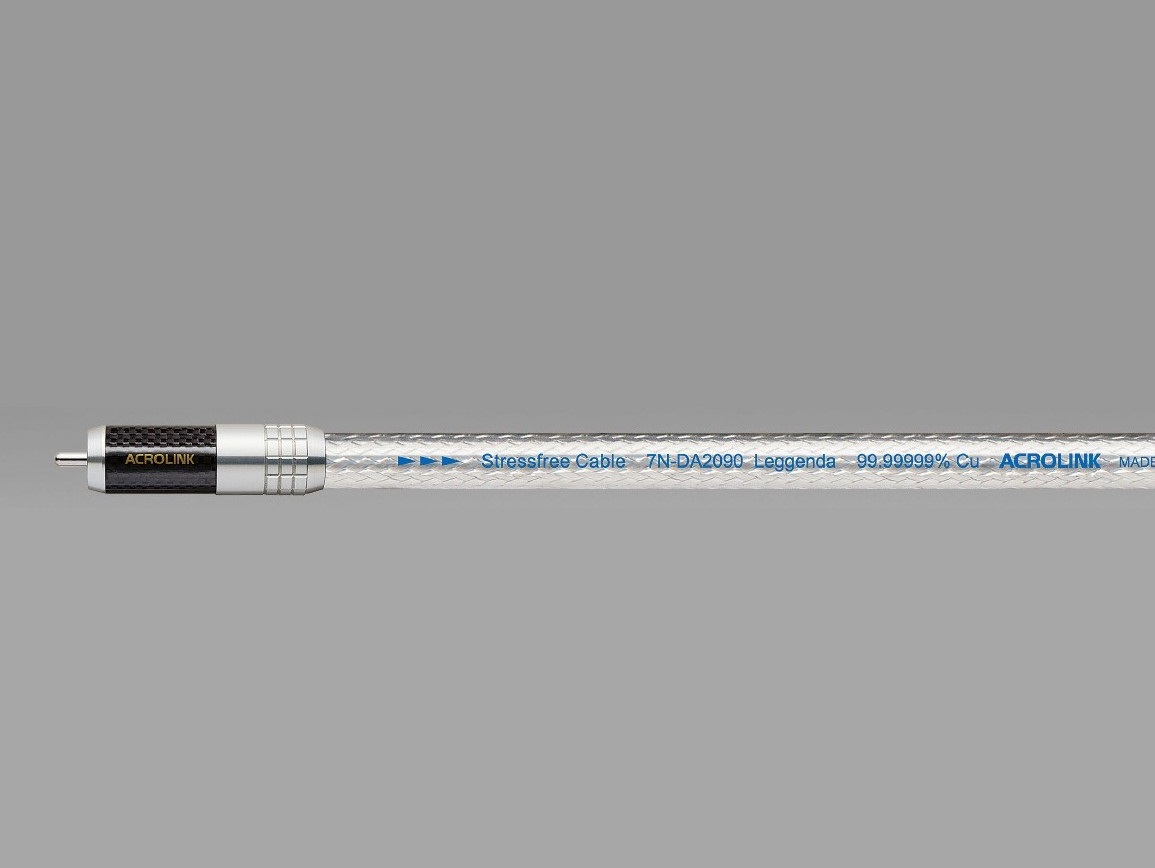

RCA connector Specifications

• Center contact pin: Hollow shaped Beryllium copper
• Negative side contact part: Deoxidized Phosphor copper
• Plating; Silver layered Rhodiumm(Hand polished before plating)
• Cover: Aluminum + Carbon fiber + Duralumin

Standard length of 7N-DA2090 Leggenda series are 1.0m and 1.5m. Special length order available.

D.U.C.C stands for Dia Ultra Crystallized Copper which is specifically developed copper wire for high-end audio cables. D.U.C.C has controlled crystal structure and the minimized transmission loss. Patent technology and registered trade mark of Mitsubishi Materials LTD.

Noise BEAT tape is a thin aluminum resin tape which is able to efficiently absorb noise current. Developed and trade mark of NTT AT(Nippon Telegraph and Telephone Corporation Advanced Technology)
