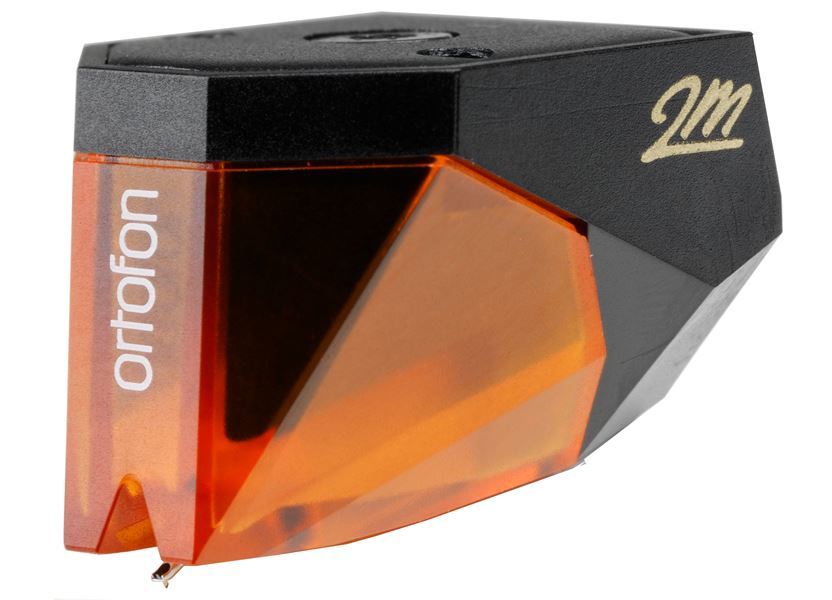

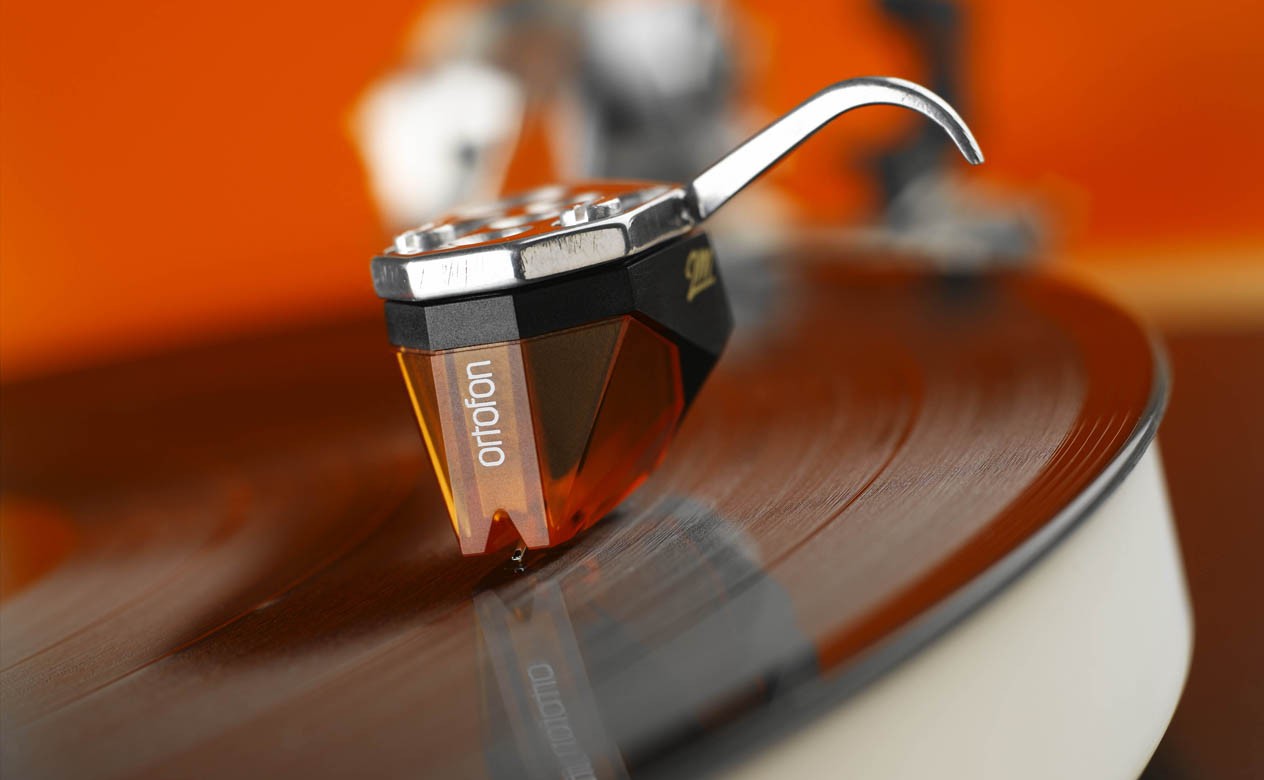

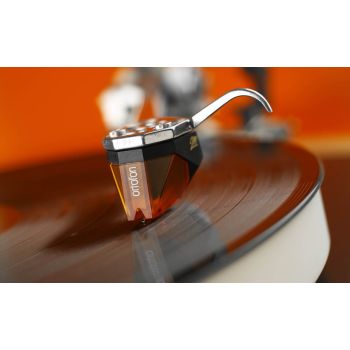

Ortofon 2M Bronze (κεφαλή με βελόνα)

Η Ortofon 2M Bronze ειναι κεφαλη κινητου μαγνητη ΜΜ με κοπη διαμαντιου Nude Fine Line και εξοδο 5mV.

Τιμή Καταλόγου: 399.00€
379.00€

Διαθεσιμότητα: 1-3 ημέρες

ΚΟΣΤΟΣ ΑΠΟΣΤΟΛΗΣ ΟΠΟΥΔΗΠΟΤΕ ΣΤΗΝ ΕΛΛΑΔΑ: 2.00€

Η Ortofon 2M Bronze ειναι κεφαλη κινητου μαγνητη ΜΜ με κοπη διαμαντιου Nude Fine Line και εξοδο 5mV.

Δυνατοτητα δοσεων.

The 2M Bronze features a Nude Fine Line diamond, which is particularly suited for demanding applications. The slim profile of the Fine Line stylus will track even the highest frequency information, making it a must for discerning listeners. Additionally, its larger footprint ensures reduced distortion and record wear.

The cartridge body is manufactured from Hopelex, a material which ensures high rigidity while eliminating unwanted resonances. The 2M Bronze uses a special upgraded engine, featuring split pole pins with a silver plated copper wire.

Ortofon 2M Bronze specifications:

  • Output voltage at 1000 Hz, 5cm/sec.  -  5 mV
  • Channel balance at 1 kHz  -  1 dB
  • Channel separation at 1 kHz  -  26 dB
  • Channel separation at 15 kHz  -  15 dB
  • Frequency range at - 3dB  -  20-29.000 Hz
  • Frequency response  -  20-20.000 + 2 / - 0 dB
  • Tracking ability at 315Hz at recommended tracking force  -  80 µm
  • Compliance, dynamic, lateral  -  22 µm/mN
  • Stylus type  -  Nude Fine Line
  • Stylus tip radius  -   r/R 8/40 µm
  • Tracking force range  -  1.4-1.7 g (14-17 mN)
  • Tracking force, recommended  -  1.5 g (15 mN)
  • Tracking angle  -  20°
  • Internal impedance, DC resistance  -  1.2 kOhm
  • Internal inductance  -  630 mH
  • Recommended load resistance  - 47 kOhm
  • Recommended load capacitance  -  150-300 pF
  • Cartridge colour, body/stylus  -  Black/Bronze
  • Cartridge weight  -   7.2 g

Replacement stylus unit  -  2M Bronze (interchangeable with 2M Black)
Stylus lifetime: with proper care we find that up to 1000 hours is possible without degradation of performance. Please read about stylus care on our FAQ

The 2M Series' engines, coils and magnets configurations are not identical: Red and Blue are identical, so are the Bronze and Black and so are the true mono variants 2M Mono and 2M 78. Likewise, 2M series styli are interchangeable within the below combinations:
- 2M Red, 2M Blue and 2M Silver
- 2M Bronze and 2M Black
- 2M Mono and 2M 78

Download the 2M series userguide

Download the 2M series brochure

 Compatibility with Rega brand TT/TA:
REGA brand cartridges’ height from stylus tip to the top cartridge mounting surface is lower than standard. Therefore you would need spacers to ensure the correct set-up of the Ortofon cartridge. Please read about cartridge set-up and alignment on tonearm on our FAQ
Adjusting the height of your Rega tonearm is easy with Acoustic Signature's Spacer Set. It allows you to adjust the height from 0.5 mm to 3.5 mm in precise steps of 0.5 mm - without removing the tone arm. Simply loosen the screws, insert the AS-spacer, then lock the screws back down, and you're tonearm is ready to play.
3.2 - 4 mm spacers should be enough for 2M cartridge.
