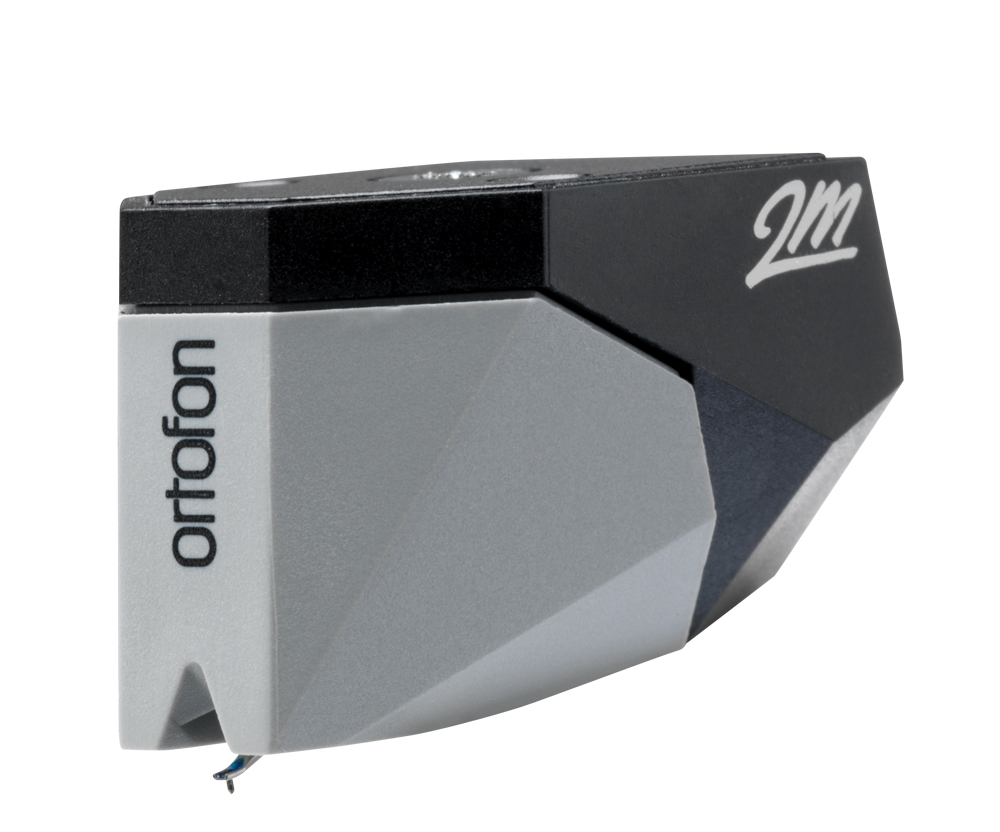

Ortofon 2M-78
Η Ortofon 2M-78 ειναι κεφαλη καταλληλη για δισκους 78 στροφων.
Κατόπιν παραγγελίας
ΔΩΡΕΑΝ ΑΠΟΣΤΟΛΗ ΣΕ ΟΛΗ ΤΗΝ ΕΛΛΑΔΑ
Η Ortofon 2M-78 ειναι κεφαλη καταλληλη για δισκους 78 στροφων.
- An improved engine, which provides a high level of sonic accuracy
- Spherical diamond that is perfect for playback of 78 rpm shellac records, which require a larger stylus profile
- 2M 78 uses a strapped output to deliver the same output signal from both sets of pole pins. This effectively eliminates the need for mono-specific equipment, making it possible to enjoy true mono reproduction on any stereo playback system.The 2M Series provides excellent compatibility when used in an assortment of playback systems and with a wide variety of phono preamps.
Read more about Ortofon True Mono cartridges range »
Ortofon 2M-78 specifications:
- Output voltage at 1000 Hz, 5cm/sec. - 4 mV
- Frequency range at - 3dB - 20-20.000 Hz
- Frequency response - 20-20.000 Hz + 3 / - 1 dB
- Tracking ability at 315Hz at recommended tracking force - 70 µm
- Compliance, dynamic, lateral - 18 µm/mN
- Stylus type - Spherical
- Stylus tip radius - R 65 µm
- Tracking force range - 1.6-2.0g (16-20 mN)
- Tracking force, recommended - 1.8 g (18 mN)
- Internal impedance, DC resistance - 700 Ohm
- Internal inductance - 350 mH
- Recommended load resistance - 47 kOhm
- Recommended load capacitance - 150-300 pF
- Tracking angle - 20°
- Cartridge colour, body/stylus - Black/Grey
- Cartridge weight without screws - 7.2 g
2M PnP MkII cartridge with integrated headshell weight - 20 g
2M PnP MkII cartridge with integrated headshell length - 52 mm
Replacement stylus unit - 2M 78 (interchangeable with 2M Mono)
Stylus lifetime: with proper care we find that up to 1000 hours is possible without degradation of performance. Please read about stylus care on our FAQ.
The 2M Series' engines, coils and magnets configurations are not identical: Red and Blue are identical, so are the Bronze and Black and so are the true mono variants 2M Mono and 2M 78. Likewise, 2M series styli are interchangeable within the below combinations:
- 2M Red, 2M Blue and 2M Silver
- 2M Bronze and 2M Black
- 2M Mono and 2M 78
Download the 2M series userguide
