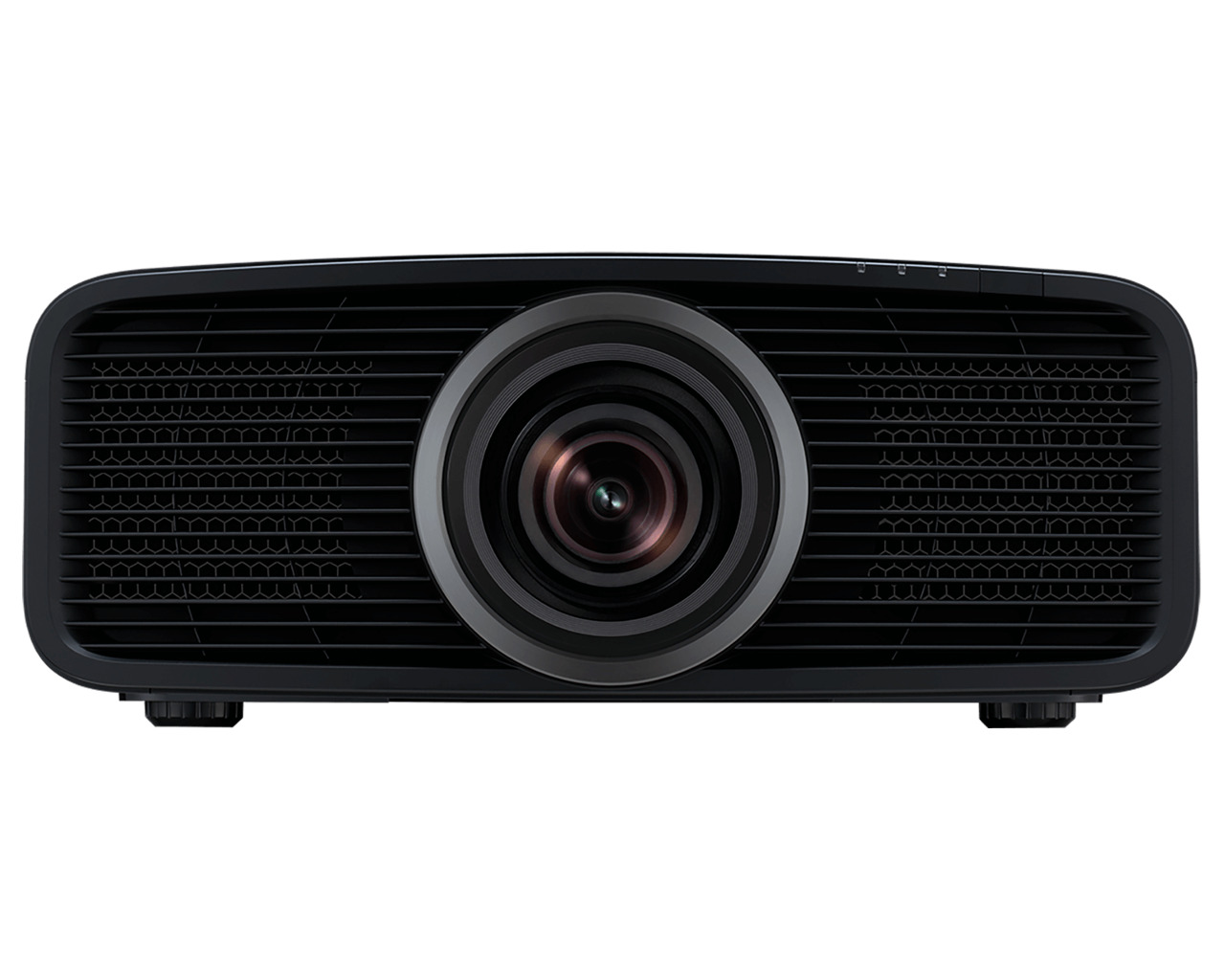

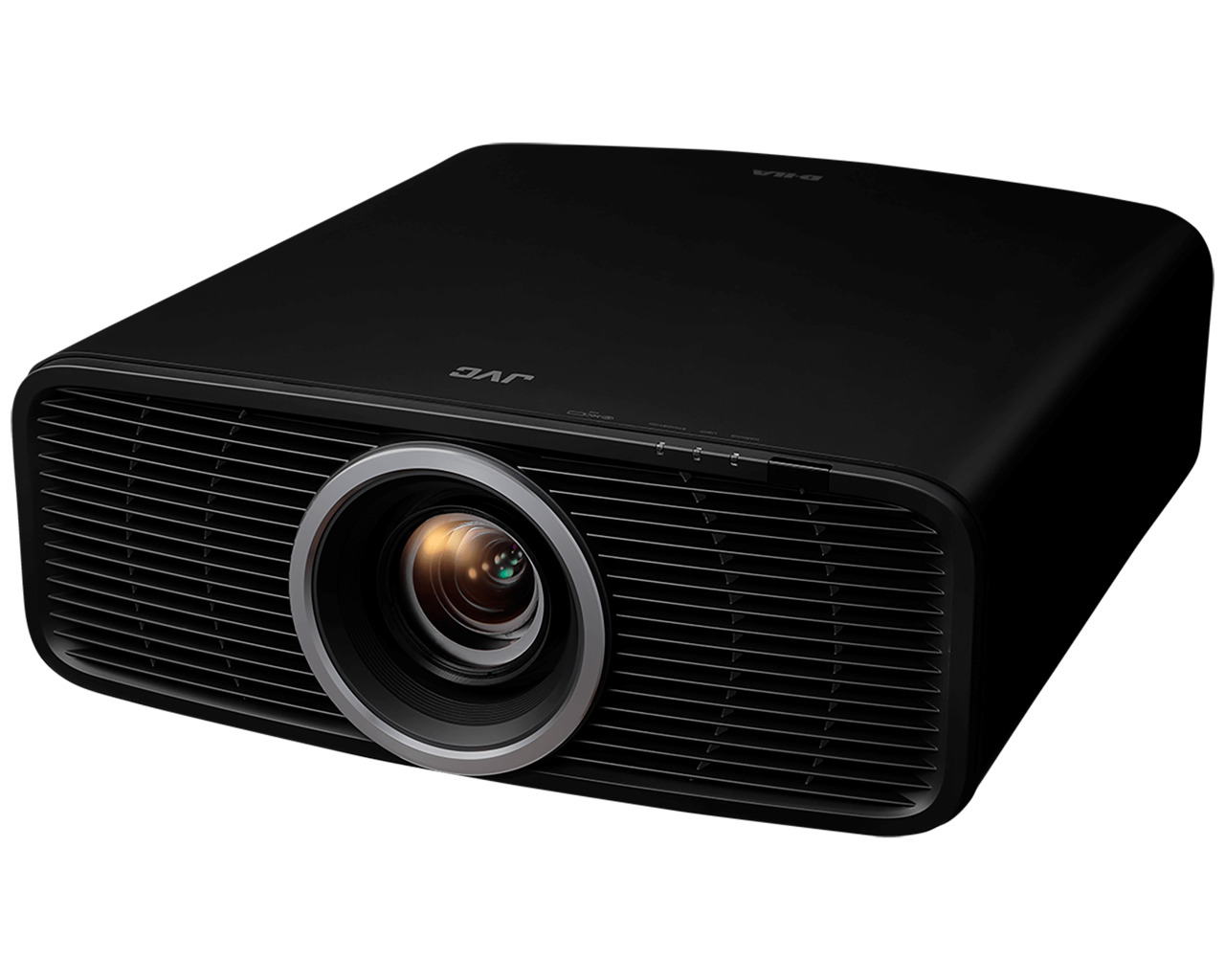

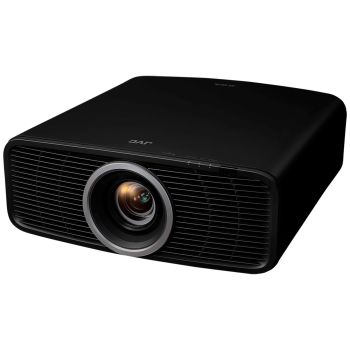

Ο JVC DLA-NZ700 ειναι ενας βιντεοπροβολεας 4096x2160 pixels (native 4K), φωτεινοτητας 2300 lumens. Πηγη φωτος Laser με διαρκεια ζωης 20000 ωρες. Υποδοχη σηματων 8K/60Hz ή 4K/120Hz. Native contrast 80.000:1.

Εγγυηση Αντιπροσωπειας LEC Hellas. Δυνατοτητα δοσεων.

Gen3 0.69-inch Native 4K D-ILA Devices (x3) / 80.000:1 native contrast / New BLU-Escent Laser 2,300-lumen / Gen2 Frame Adapt HDR with Deeper Blacks / New Picture mode “Vivid”

Features

• Completely redesigned interior and exterior results in world's smallest native 4K projector
• 2nd Generation 8K/e-shiftX technology reproduces 8K image quality
• New BLU-Escent Laser Light Source
• New 80mm, 15-element, 11-group all-glass high-quality lens
• Native Contrast Ratio of 80.000:1 translates to a spectacular Dynamic Contrast Ratio of ∞ :1
• 2x HDMI (32 Gbps, HDCP 2.3) inputs, supporting 4K60P input signals
• HDR10+ contains the metadata of the producer’s intentions for each scene, and with such data, the projector is able to automatically reproduce images as the creator intended.
• Frame Adapt HDR dynamically tone maps any HDR10 content frame-by-frame or scene-by-scene and automatically performs adjustment to achieve optimal images. It includes improved gamma processing accuracy from 12- to 18-bit equivalent to reproduce smoother and finer gradation.
• Auto Tone Mapping function automatically adjusts settings for optimum HDR10 image quality.
• Color Management System with 6-axis Matrix
• 3rd Generation 0.69-inch 4K D-ILA (4096 x 2160) device x 3
• High brightness of 2,300 lm provides vibrant and dynamic images
• FILMMAKER MODE™ that faithfully recreates the creator’s intentions.
• For easy reproduction, the projector switches automatically to HDR picture mode when HDR10 signals are received.
• Clear Motion Drive supporting 4K60P (4:4:4) signal improves moving images more than ever
• ISF C3 (Certified Calibration Controls) mode to reproduce excellent picture quality optimized for specific environments
• Eight settings of Installation Mode include Lens Control, Pixel Adjustment, Mask, Anamorphic on or off, Screen Adjust, Installation Style, Keystone, and Aspect; stored installation modes for various environments can be called up.
• Wide Colour Gamut above exceeds DCI/P3 spec creating saturated, beautiful images that come to life.
• Low Latency Mode suppresses display delay for faster response when receiving signals from PC and game consoles
• Auto-Calibration Function using an optical sensor.
• New picture mode ”Vivid” for SDR Images
• DML (Display Mastering Luminance) adjusts/sets the dynamic range for better HDR experience

Specifications

• Device
  • D-ILA Technology Yes
  • Chip Type 3rd Generation 0.69-inch 4K D-ILA device
  • Native Resolution 4096 x 2160
  • Number Of Chips 3
  • 8K/e-shiftX Yes
  • Display Resolution 4096 x 2160
• Light Source
  • Laser Yes
  • Type New BLU-Escent Laser Diode
  • Life Time (Standard Mode) 20000 hours
• Picture
  • Brightness 2300 lm
  • Dynamic Contrast ∞ : 1
  • Native Contrast 80000 : 1
  • Dynamic Light Power control Yes
  • Modes Low,High,Balance,Off
  • Manual Aperture Yes
  • Range -15 (stops down) to 0 (opens up)
  • DCI-P3 Color Gamut Yes
  • 100% REC 709 Yes
  • Color Bit Depth 12 bit
  • ISFccc Certification [2] Yes
• HDR
  • HDR10 Yes
  • HDR10+ Yes
  • Frame Adapt HDR Yes
  • Theater Optimizer Yes
  • HLG Yes
  • Auto Tone Mapping Yes
  • Mastering Info Display Yes
  • Info data MaxCLL and MaxFALL mastering data
  • HDR Picture Modes BT.709 / BT.2020 / DCI / HDR
  • Deep Black Tone Control Yes
• Lens
  • Zoom 1.6 x
  • Throw Ratio 1.24 - 2.04 (16:9)
  • Diameter 80 mm
  • Build 15-element, 11-group in full aluminium lens barrel.
  • Lens Shift Yes
  • Range Horizontal ± 28 %
  • Range Vertical ± 70 %
  • Motorized Zoom Yes
  • Motorized Shift Yes
  • Motorized Focus Yes
  • Projection Display size (diagonal) 60 - 200 inch
  • Memory Function Yes
  • Number of user presets 5
  • Lens Cover Yes
• HDMI
  • HDMI [6] Yes
  • Number of Inputs 2
  • Data Rate 32 Gbps
  • HDCP Version 2.3
  • 4K60P signal input Yes
  • Video Signal range 480p, 576p, 720p 60/50, 1080p 60/ 50/ 30/ 25/ 24, 3840 x 2160p 60/ 50/ 30/ 25/ 24, 4096 x 2160p 60/ 50/ 30/ 25/ 24
  • PC Signal range 640x480, 800x600, 2048x1080, 1600x1200, 1920x1200, 2048x1536, 2560x1440
  • Input Level Adjustment Auto / Standard (16-235) / Enhanced (0-255) / Super White (16-255)
  • Color Space Range Auto/ YCbCr444 / YCbCr422 / RGB
  • EDID Modes Standard, Option1 , Option2  (older hardware may need to use Option1 or Option2 settings)

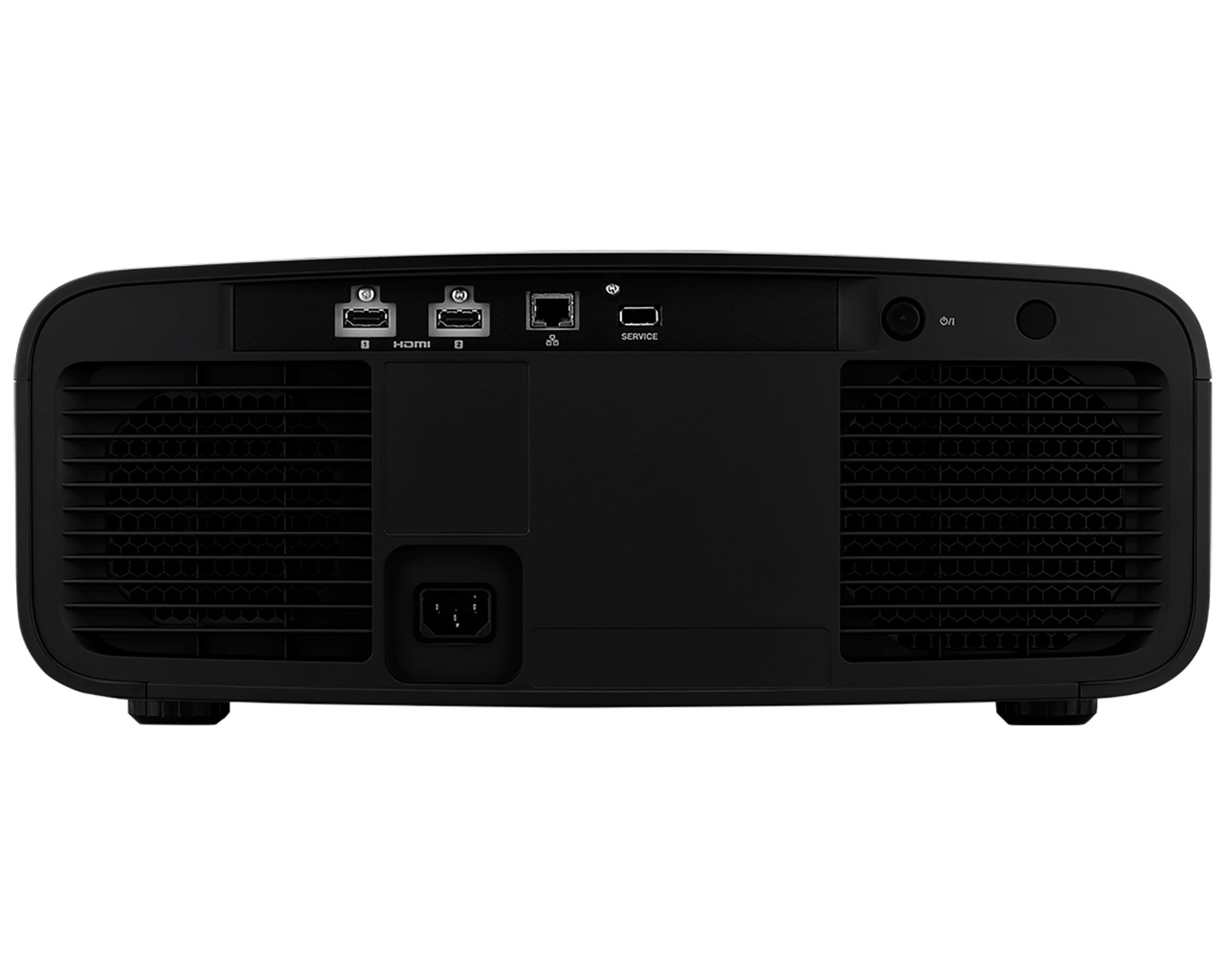

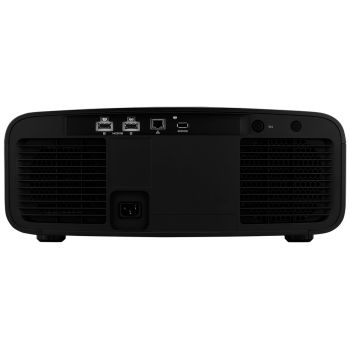

• Connections
  • LAN Yes
  • Connector RJ45
  • Service Yes
  • Connector USB (Type A) for firmware update or backup
• 3D
  • 3D Capability Yes
  • 3D Versions Frame Packing, Side-by-Side, Top & Bottom
  • Frame Packing Resolutions 720p 60/50, 1080p 24
  • Side-by-Side Resolutions 720p 60/50, 1080p 60/50/24, 1080i 60/50
  • Top & Bottom Resolution 720p 60/50, 1080p/24
  • 3D Emitter (Optional) Yes, PK-EM2
  • 3D Glasses (Optional) Yes, PK-AG3
• Picture Settings
  • Picture Modes Natural, Cinema, Filmmaker, Vivid, isf(Day), isf(Night), Frame Adapt HDR, HDR10, HLG, 4 User modes
  • Color Temperatures Xenon 1, Xenon 2, 5500K, 6500K, 7500K, 9300K, High Bright, HDR10+, HDR10, HLG, Custom 1, Custom 2
  • Gamma Processing Depth 12 bit
  • Gamma Adjust HDR (Auto), HDR(PQ), HDR(HLG), 2.2, 2.4, 2.6, Cinema 1, Cinema 2, Vivid, 3 Custom modes
  • Color Management 6-Axis adjustable CMS
  • MPC Yes
  • Filmmaker Mode [7] Yes
  • Low Latency Mode Yes
  • Clear Motion Drive Yes
  • Auto Calibration Yes
  • Optional Probe needed Yes
  • Installation Mode Yes
  • Number of modes 5
  • Included settings Lens Control, Pixel Adjustment, Mask, Anamorphic on or off, Screen Adjust, Installation Style, Keystone, and Aspect
  • Anamorphic Modes 4 Modes (A, B, C, D)
  • Control4 SDDP Yes
• Power & Environment
  • Power Requirement AC100-240V, 50/60Hz
  • Projector in Use 280W
  • Standby Eco-mode: 0.25W
  • Network Standby 1.4W (LAN)
  • Eco Mode Yes
  • Standby Timer Yes
  • Operating Temperature 5°C to 35°C
  • Operating Humidity 20% to 80%
  • Installation Angle Horizontal +/- 10 degree / Vertical +/- 10 degree
  • Installation Height Below 2,000 m
• In the box
  • Remote Control Yes, RM-MH27
  • User Manual Yes
  • Power Cord Yes
  • Batteries Yes, 2 x AAA-size batteries
• Dimensions & Weight
  • Product Dimensions (WxHxD) 450 x 180 x 479 (mm)
  • Product Weight 15.2 kg
