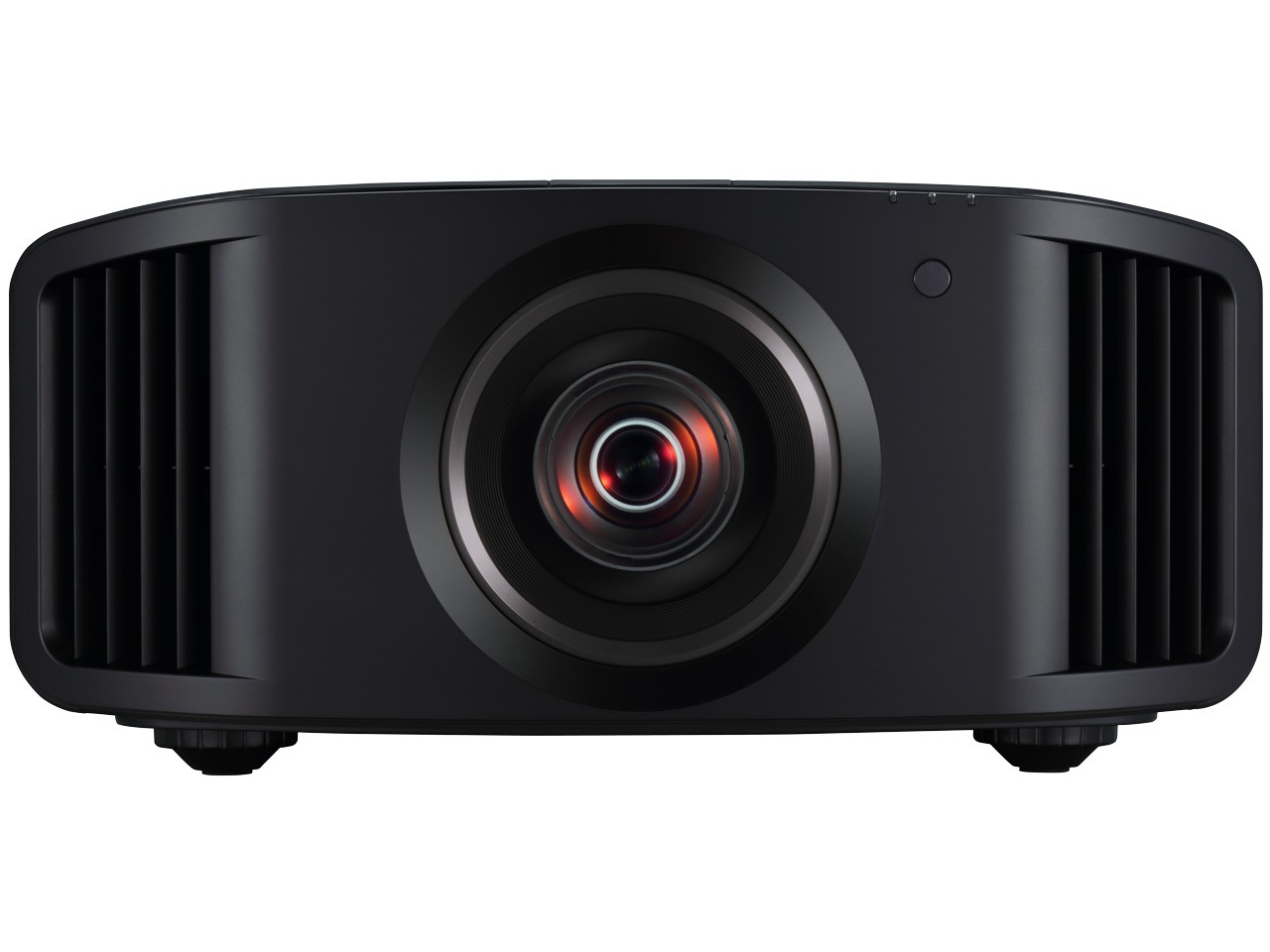

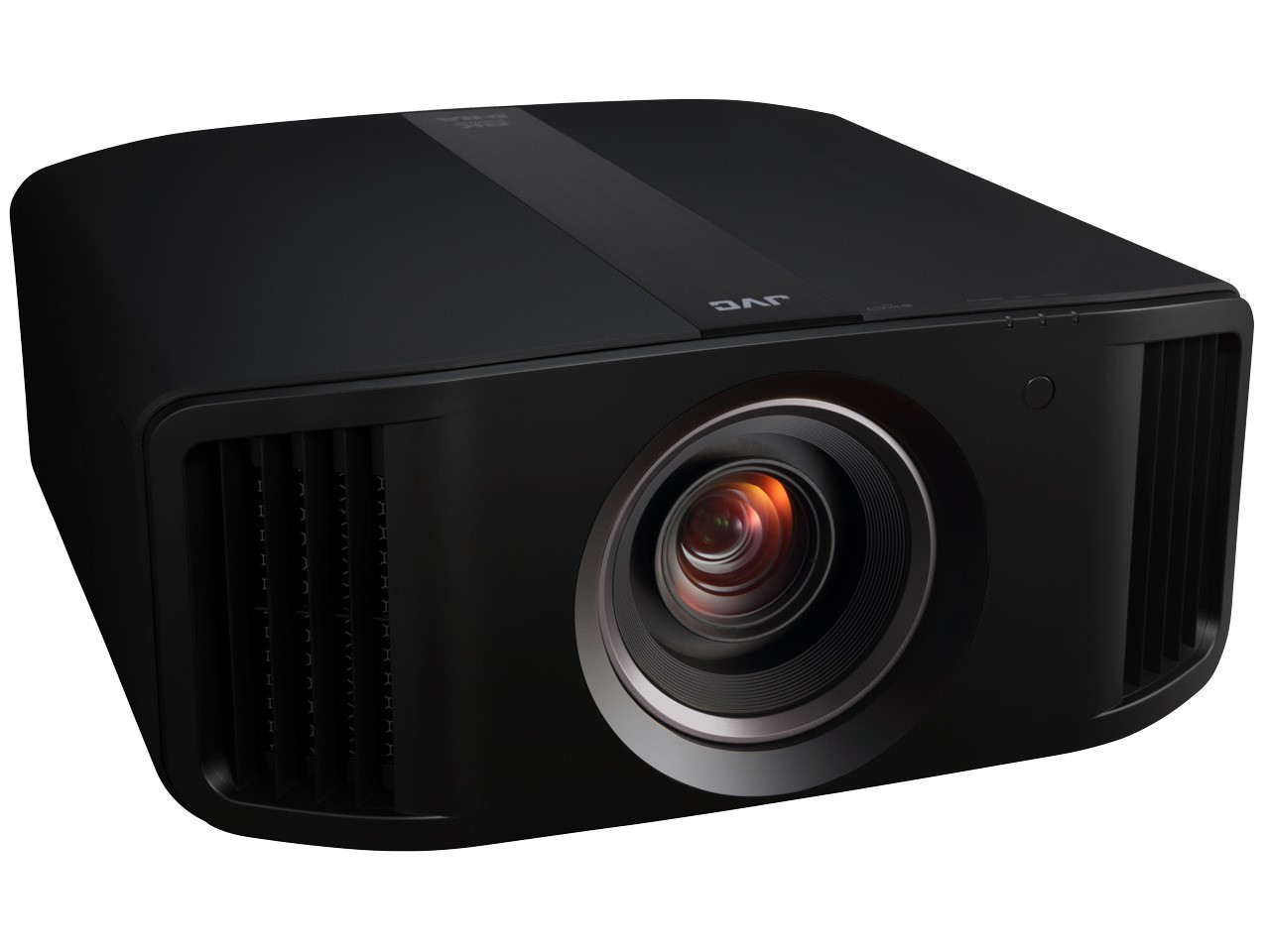

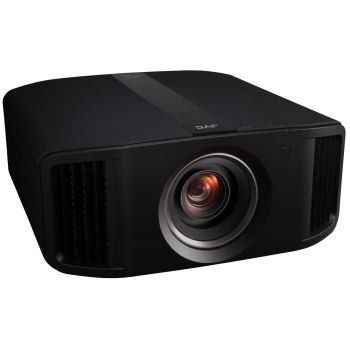

Ο JVC DLA-NZ800 ειναι ενας βιντεοπροβολεας 4096x2160 pixels (native 4K), φωτεινοτητας 2700 lumens, εφοδιασμενος με συστημα μετατοπισης pixels για εικονικο 8Κ (e-shiftX 8K). Υποδοχη σηματων 8K/60Hz ή 4K/120Hz.

Εγγυηση Αντιπροσωπειας LEC Hellas. Δυνατοτητα δοσεων.

Gen3 0.69-inch Native 4K D-ILA Devices (x3), 100,000:1 native contrast, New BLU-Escent Laser 2,700-lumen, Gen2 "8K/e-shiftX", Gen2 Frame Adapt HDR with Deeper Blacks, New Picture mode “Vivid”.

Features

• 2nd Generation 8K/e-shiftX technology reproduces 8K image quality
• New BLU-Escent Laser Light Source
• 3rd Generation 0.69-inch 4K D-ILA (4096 x 2160) device x 3
• High brightness of 2,700 lm provides vibrant and dynamic images
• Native Contrast Ratio of 100,000:1 translates to a spectacular Dynamic Contrast Ratio of ∞ :1
• 2x HDMI (48 Gbps, HDCP 2.3) inputs, supporting 8K60P and 4K120P input signals
• HDR10+ contains the metadata of the producer’s intentions for each scene, and with such data, the projector is able to automatically reproduce images as the creator intended.
• Auto Tone Mapping function automatically adjusts settings for optimum HDR10 image quality.
• 17-element, 15-group all-glass 65mm diameter high-quality lens
• Wide Colour Gamut above exceeds DCI/P3 spec creating saturated, beautiful images that come to life.
• Low Latency Mode suppresses display delay for faster response when receiving signals from PC and game consoles
• Frame Adapt HDR dynamically tone maps any HDR10 content frame-by-frame or scene-by-scene and automatically performs adjustment to achieve optimal images close to reality as seen by human eyes. As a part the Frame Adapt HDR, the projector offers improved gamma processing accuracy from 12- to 18-bit equivalent to reproduce smoother and finer gradation. Additional Frame Adapt HDR picture modes allows for optimum playback with the widest variety of lighting conditions or theater environments.
• Theater Optimizer function, which works in Frame Adapt HDR mode, offers optimum HDR images by analyzing usage environments using the screen size and gain information and intelligently adjusts tone mapping. HDR Quantizer with New Auto (Wide) level mode provides brighter/more dynamic HDR images.
• FILMMAKER MODE™ that faithfully recreates the creator’s intentions.
• For easy reproduction, the projector switches automatically to HDR picture mode when HDR10 signals are received.
• Clear Motion Drive supporting 4K60P (4:4:4) signal improves moving images more than ever
• ISF C3 (Certified Calibration Controls) mode to reproduce excellent picture quality optimized for specific environments
• Color Management System with 6-axis Matrix
• Eight settings of Installation Mode include Lens Control, Pixel Adjustment, Mask, Anamorphic on or off, Screen Adjust, Installation Style, Keystone, and Aspect; stored installation modes for various environments can be called up.
• Auto-Calibration Function using an optical sensor.
• Wireless transmission options for 3D viewing
• New picture mode ”Vivid” for SDR Images
• DML (Display Mastering Luminance) adjusts/sets the dynamic range for better HDR experience

Specifications

• Device
  • D-ILA Technology Yes
  • Chip Type 3rd Generation 0.69-inch 4K D-ILA device
  • Native Resolution 4096 x 2160
  • Number Of Chips 3
  • 8K/e-shiftX Yes
  • Display Resolution 8192 x 4320
• Light Source
  • Laser Yes
  • Type New BLU-Escent Laser Diode
  • Life Time (Standard Mode) 20000 hours
• Picture
  • Brightness 2700 lm
  • Dynamic Contrast ∞ : 1
  • Native Contrast 100000 : 1
  • Dynamic Light Power control Yes
  • Modes Mode 1 (gentle), Mode 2 (strong), Off
  • Manual Aperture Yes
  • Range -15 (stops down) to 0 (opens up)
  • DCI-P3 Color Gamut Yes
  • 100% REC 709 Yes
  • Color Bit Depth 12 bit
  • ISFccc Certification Yes
• HDR
  • HDR10 Yes
  • HDR10+ Yes
  • Frame Adapt HDR Yes
  • Theater Optimizer Yes
  • HLG Yes
  • Auto Tone Mapping Yes
  • Mastering Info Display Yes
  • Info data MaxCLL and MaxFALL mastering data
  • HDR Picture Modes BT.709 / BT.2020 / DCI / HDR
• Lens
  • Zoom 2 x
  • Throw Ratio 1.43-2.92:1
  • Diameter 65 mm
  • Material All-glass
  • Build 18-element, 16-group in full aluminium lens barrel.
  • Lens Shift Yes
  • Range Horizontal ± 34 %
  • Range Vertical ± 80 %
  • Motorized Zoom Yes
  • Motorized Shift Yes
  • Motorized Focus Yes
  • Projection Display size (diagonal) 60 - 200 inch
  • Memory Function Yes
  • Number of user presets 10
  • Lens Cover Yes
• HDMI
  • HDMI Yes
  • Number of Inputs 2
  • Data Rate 48 Gbps
  • HDCP Version 2.3
  • 8K60P signal input Yes
  • 4K120p signal input Yes
  • 4K60P signal input Yes
  • Video Signal range 480p, 576p, 720p 60/50, 1080i 60/ 50, 1080p 120/ 100/ 60/ 50/ 30/ 25/ 24, 3840 x 2160p 120/ 100/ 60/ 50/ 30/ 25/ 24, 4096 x 2160p 120/ 100/ 60/ 50/ 30/ 25/ 24, 7680 x 4320p 60/ 50/ 30/25 /24
  • PC Signal range VGA / SVGA / XGA / WXGA / WXGA+ / SXGA / WSXGA+ / UXGA / WUXGA / WQHD (60) / WQHD (120)
  • Input Level Adjustment Auto / Standard (16-235) / Enhanced (0-255) / Super White (16-255)
  • Color Space Range Auto/ YCbCr4444 / YCbCr422 / RGB
  • EDID Modes A and B (older hardware may need to use B settings)

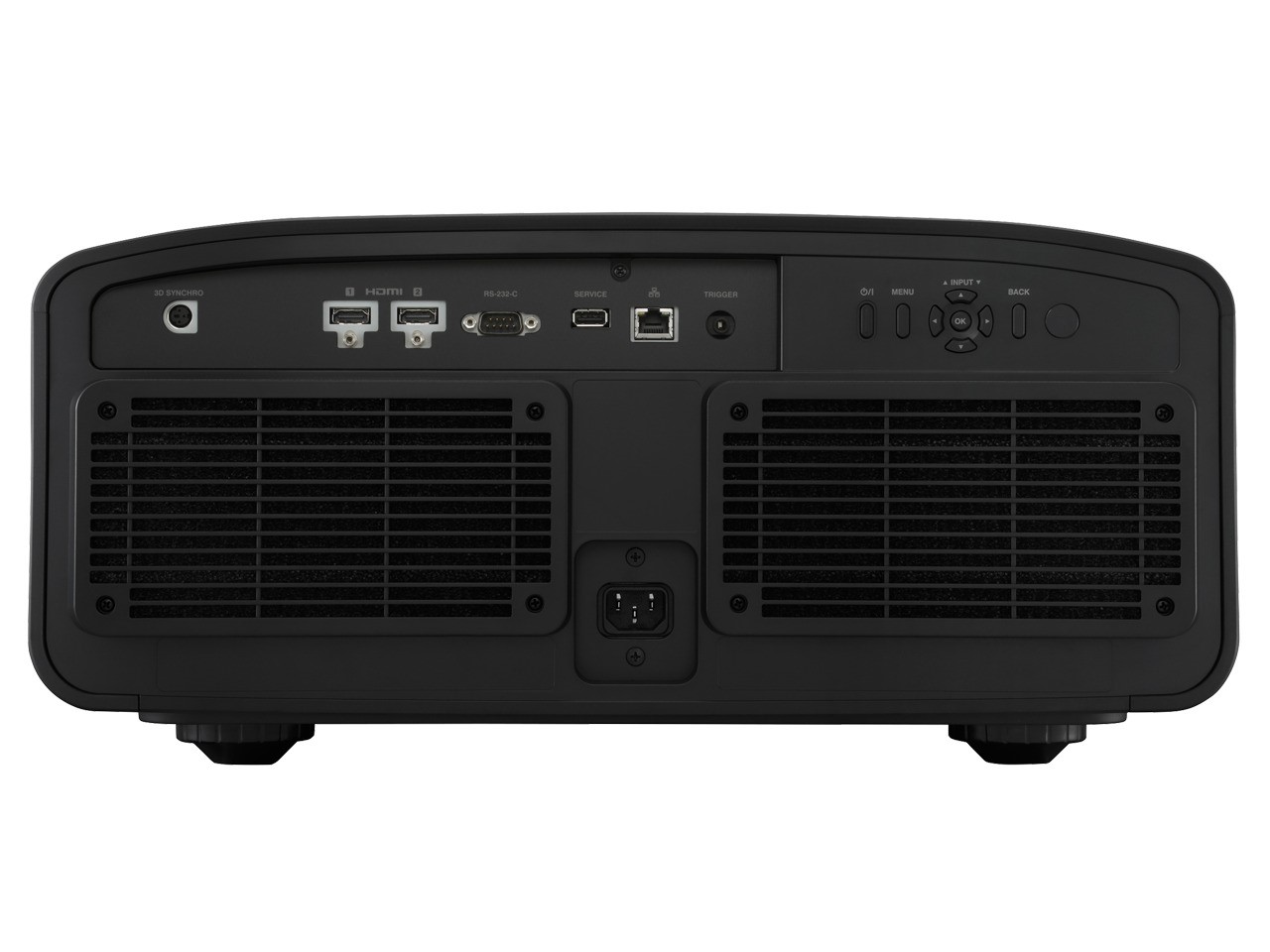

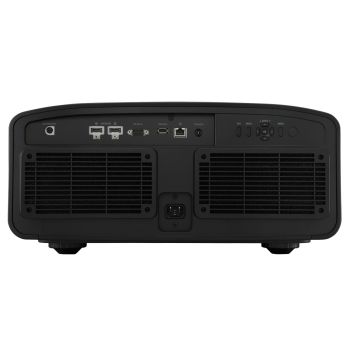

• Connections
  • Trigger out Yes
  • Connector Mini-Jack (3,5mm)
  • Power DC 12V / 100mA
  • 3D Synchro Yes
  • Connector Mini DIN 3-pin
  • LAN Yes
  • Connector RJ45
  • RS-232 Yes
  • Connector D-sub 9-pin
  • Service Yes
  • Connector USB (Type A) for firmware update or backup
• 3D
  • 3D Capability Yes
  • 3D Versions Frame Packing, Side-by-Side, Top & Bottom
  • Frame Packing Resolutions 720p 60/50, 1080p 24
  • Side-by-Side Resolutions 720p 60/50, 1080p 60/50/24, 1080i 60/50
  • Top & Bottom Resolution 720p 60/50, 1080p/24
  • 3D Emitter (Optional) Yes, PK-EM2
  • 3D Glasses (Optional) Yes, PK-AG3
• Picture Settings
  • Picture Modes Natural, Cinema, Film, Vivid, HDR10+, Frame Adapt HDR, HDR10, HLG, Pan_PQ, 6 User modes
  • Color Temperatures Xenon 1, Xenon 2, 5500K, 6500K, 7500K, 9300K, High Bright, HDR10+, HDR10, HLG, Custom 1, Custom 2
  • Gamma Processing Depth 12 bit
  • Gamma Adjust HDR (Auto), HDR(PQ), HDR(HLG), 2.2, 2.4, 2.6, Cinema 1, Cinema 2, Film 1, Film 2, Pana_PQ, 3 Custom modes
  • Color Management 6-Axis adjustable CMS
  • MPC Yes
  • Filmmaker Mode Yes
  • Low Latency Mode Yes
  • Clear Motion Drive Yes
  • Motion Enhance Yes
  • Auto Calibration Yes
  • Optional Probe needed Yes
  • Installation Mode Yes
  • Number of modes 8
  • Included settings Lens Control, Pixel Adjustment, Mask, Anamorphic on or off, Screen Adjust, Installation Style, Keystone, and Aspect
  • Anamorphic Modes 4 Modes (A, B, C, D)
  • Control4 SDDP Yes
• Power & Environment
  • Power Requirement AC100-240V, 50/60Hz
  • Projector in Use 440W
  • Standby Eco-mode: 0.3W
  • Network Standby 1.5W (LAN)
  • Fan Noise 24 dB
  • Eco Mode Yes
  • Standby Timer Yes
  • Operating Temperature 5°C to 35°C
  • Operating Humidity 20% to 80%
  • Installation Angle Horizontal +/- 5 degree / Vertical +/- 10 degree
  • Installation Height Below 2,000 m
• In the box

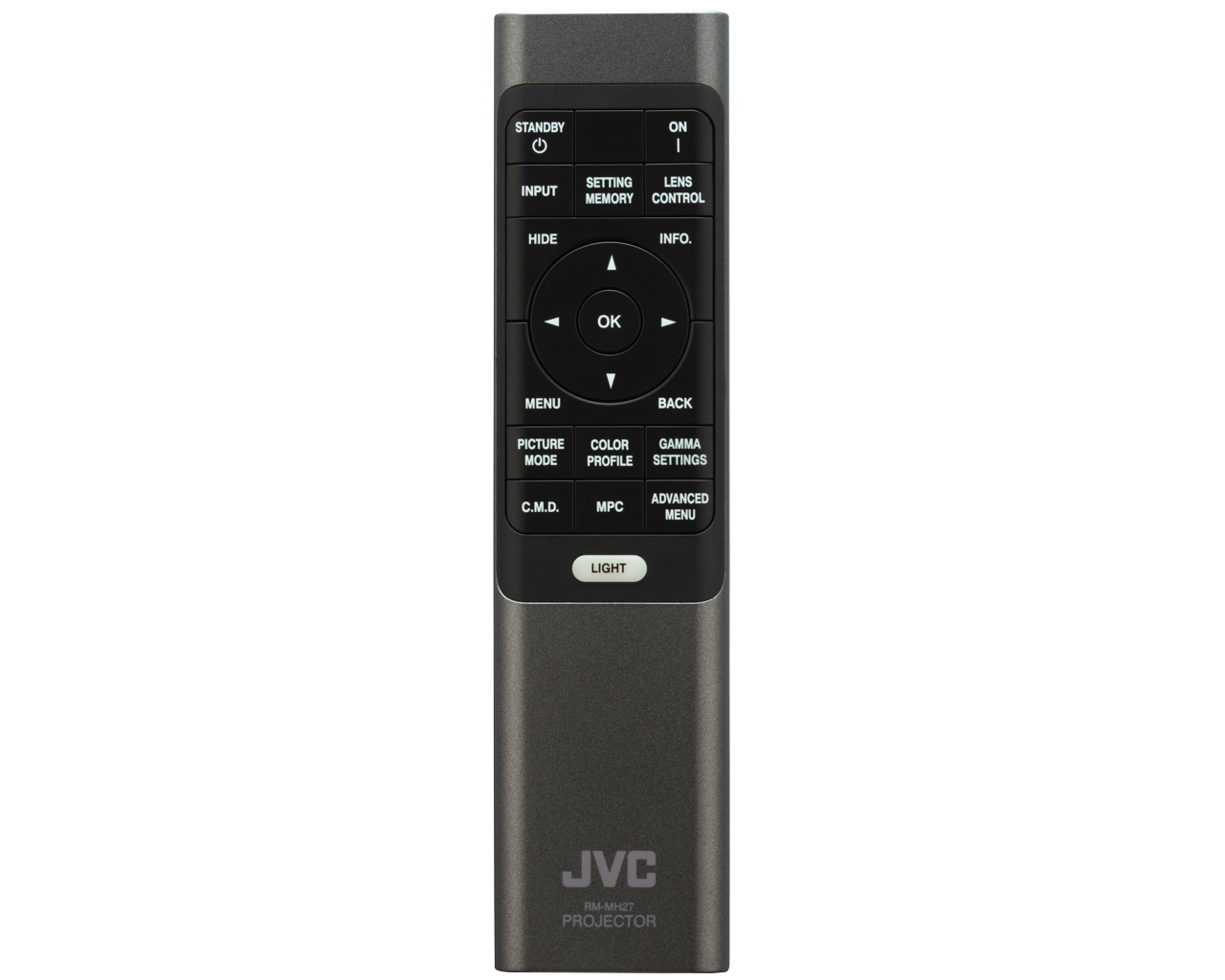

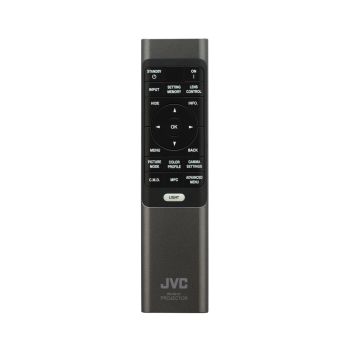

  • Remote Control Yes, RM-MH27
  • User Manual Yes
  • Power Cord Yes
  • Batteries Yes, 2 x AAA-size batteries
• Dimensions & Weight
  • Product Dimensions (WxHxD) 19-11/16 x 9-7/32 x 20-13/16 (inch)
  • Product Weight 55.7 Lb
