Ο Denon AVRX-1700H ειναι ενας πολυκαναλος (7.2ch) δικτυακός ραδιοενισχυτής home cinema με εισοδο USB, δεκτες FM/AM, Wi-Fi και Bluetooth. Υποστηριζει Dolby Atmos και DTS:X, Alexa.
Εγγυηση Αντιπροσωπειας (Κινοτεχνικη). Δυνατοτητα δοσεων.
Designed for 4K or 8K setups, the AVR-X1700H delivers the ultimate 3D audio home theatre/gaming experiences and supports the latest HDMI specifications.
Specifications
Number of Power Amps |
7 |
Power Output (8 ohm, 20 Hz - 20 kHz, 0.08% 2ch Drive) |
80 W |
Power Output (6 ohm, 1 kHz, 0.7% 2ch Drive) |
120 W |
Power Output (6 ohm, 1 kHz, 1% 1ch Drive) |
145 W |
General
Speaker impedance |
4-16Ω/ohms |
Input sensitivity |
200 mV |
Frequency response |
10 Hz - 100 kHz — +1, –3 dB (Direct mode) |
S/N Ratio |
98dB (IHF-A weighted, Direct mode) |
FM section (Tuning frequency range) |
87.5 - 107.9 MHz |
AM section (Tuning frequency range) |
520 - 1710 kHz |
Power Supply |
AC 230 V, 50 Hz |
Power Consumption in W |
440 |
Power Consumption No-Sound (ECO On / Off) in W |
29 W / 39 W |
Weight in kg |
8.6 |
3.5mm audio line-in connection |
Yes |
System Remote Control |
RC-1244 |
Standby Consumption in W |
0.1 |
CEC Standby Consumption in W |
0.5 |
Carton Maximum Dimensions (W x D x H) in mm |
523 x 435 x 232 |
Carton Weight (inc. product) in kg |
10.6 |
vailable colors: Black / Premium Silver |
Yes / No |
Maximum Dimensions (W x D x H) in mm |
434 x 339 x 151 mm |
Maximum Dimensions
Antenna:Horizontal:(W x D x H) in mm
( Antenna:Vertical :(W x D x H) in mm)
? w/o Antenna :(W x D x H) in mm? |
434 x 339 x 215 mm |

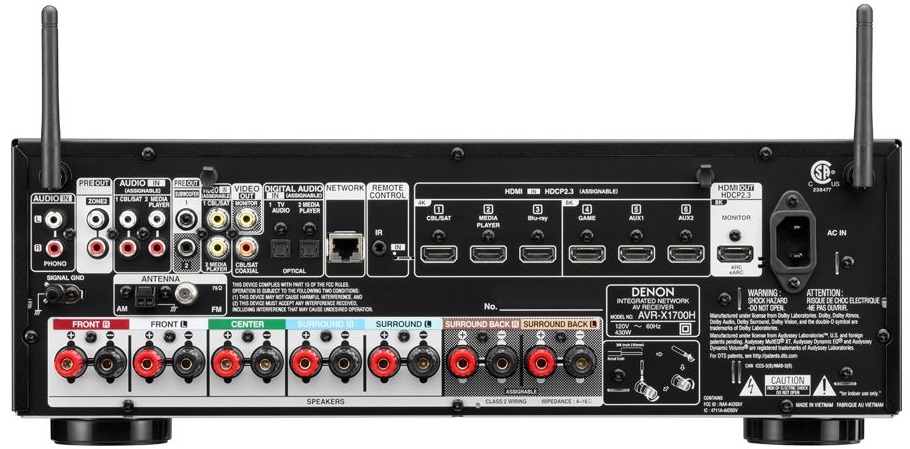

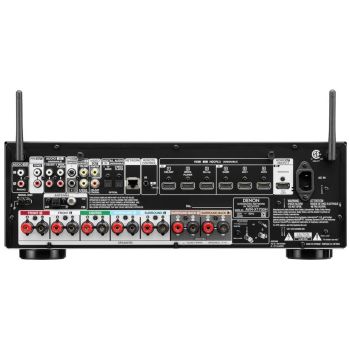

Inputs Outputs
HDMI In / Out |
6 / 1 |
Composite In / Out |
2 / 1 |
Phono (MM) In |
Yes |
Analogue In/out |
2 / No |
Digital Optical In/Out |
2 / No |
Front Inputs: Audio / Composite / Digital (Opt) / HDMI / USB |
No / No / No / No / Yes |
Pre-out / Main-in |
0.2 ch / no |
Multi-Room Speaker Terminal |
assignable |
Headphone output |
Yes |
Ethernet |
Yes |
AM/FM Tuner |
Yes |
USB Audio / Made for iPod / Made for iPhone |
Yes / AirPlay / AirPlay |
Bi-amp Drive |
assignable |
Speaker A / B |
assignable |
Number of Speaker Terminals |
7 |
Subwoofer Out |
2 |
Multichannel Preout |
Yes (0.2) |
Digital Outputs: Coaxial / Optical |
2 / 0 |
Digital Coaxial In / Out |
2 / 0 |
DAB / DAB+ tuner |
Yes |
FM Tuner with RDS |
Yes |
Multichannel Surround
Max Number of Processing (Preamp) Channels |
7.1 |
DTS HD Master / DTS:X |
Yes / Yes |
DTS Neo:X / DTS Neural:X |
No / Yes |
DTS Virtual:X |
Yes |
Dolby TrueHD / Dolby Atmos |
Yes / Yes |
Dolby ProLogic Ilz / Dolby Surround |
No / Yes |
Dolby Height Virtualization |
Yes |
Multichannel Stereo |
Yes |
Dialog Enhancer |
Yes |
Sound Enhancements
Discrete Power Amplifiers |
7 |
Audyssey Dynamic EQ / Dynamic Volume |
Yes / Yes |
Speaker Setup Presets |
2 |
Audyssey |
MultEQ XT |
Audyssey APP Support |
Yes |
Compressed Audio Restorer |
Yes |
Network
Gapless playback |
Yes (FLAC, WAV, ALAC, DSD) |
Internet Radio |
TuneIn |
Compatible with Remote APP for Smart Phones |
Android / iOS |
Compatible with Remote APP for Tablets |
Android / iOS / Amazon Kindle |
HEOS Multiroom and Streaming |
Yes |
Lossy Formats: MP3 / WMA / AAC |
Yes / Yes / Yes |
Lossless Formats: FLAC / ALAC / WAV |
Yes / Yes / Yes |
DSD Audio Streaming |
up to DSD5.6 |
FLAC HD 192/24 |
Yes |
WAV 192/24 |
Yes |
ALAC 192/24 |
Yes |
AirPlay 2 |
Yes |
Roon Tested |
Yes |
Spotify Connect* / Tidal* / Deezer* / others * |
Yes / Yes / Yes / Yes |
Amazon Prime Music* / Pandora* |
Yes / Yes |
Ethernet Ports |
Yes |
Wi-Fi |
Yes |
Bluetooth |
Yes |
Bluetooth Headphone transmission |
Yes |
HDMI
HDMI Inputs: Back / Front |
6 (3x 8K) / 0 |
HDMI max Resolution (8k / 4k) |
8k/60 - 4k/120 |
HDMI Outputs: Main / Zone |
1 / - |
HDMI to HDMI Scaling |
up to 8K 60/50 |
HDCP2.3 support |
Yes |
HDMI: 8K / 4K / CEC / eARC |
Yes / Yes / Yes / Yes |
HDMI: Dolby Vision / HDR 10+ / Dynamic HDR / HLG |
Yes / Yes / Yes / Yes |
HDMI: ALLM / QMS / QFT / VRR |
Yes / Yes / Yes / Yes |
HDMI pass-though in standby mode |
Yes |
Multi-room CI
Multiroom zones |
2 |
Zone Audio Source: HDMI / Opt, Coax / Network, USB / Analog |
Yes (2ch) / Yes (2ch) / Yes / Yes |
HEOS Multiroom integrated |
Yes |
TV Sound grouping |
Yes |
Main room multichanel audio - Zone stereo downmix |
Yes |
Zone Audio Output: Speaker / Preout |
Yes / No |
Webbrowser User Interface |
Yes |
IP Control / RS232 Control / Web Control / App Control |
Yes / No / Yes / Yes |
Others
Auto Speaker Setup by Microphone |
Audyssey MultEQ XT |
FL Display |
1 line |
Graphic User Interface - GUI |
Hybrid GUI |
GUI Languages |
9 |
Voice Control - Works with Amazon Alexa |
Yes |
Voice Control - Google Assist / Apple Siri |
Yes |
Setup Assistent |
Yes |
Quick Select Plus / Quick Select |
Yes / No |
Firmware Update by: Network / USB |
Yes / Yes |
Variable Cross Over |
Yes |
Optimized Bass Redirection |
Yes |
ECO Mode |
Yes |
Auto Power Off |
Yes |
Sleep Timer |
Yes |
