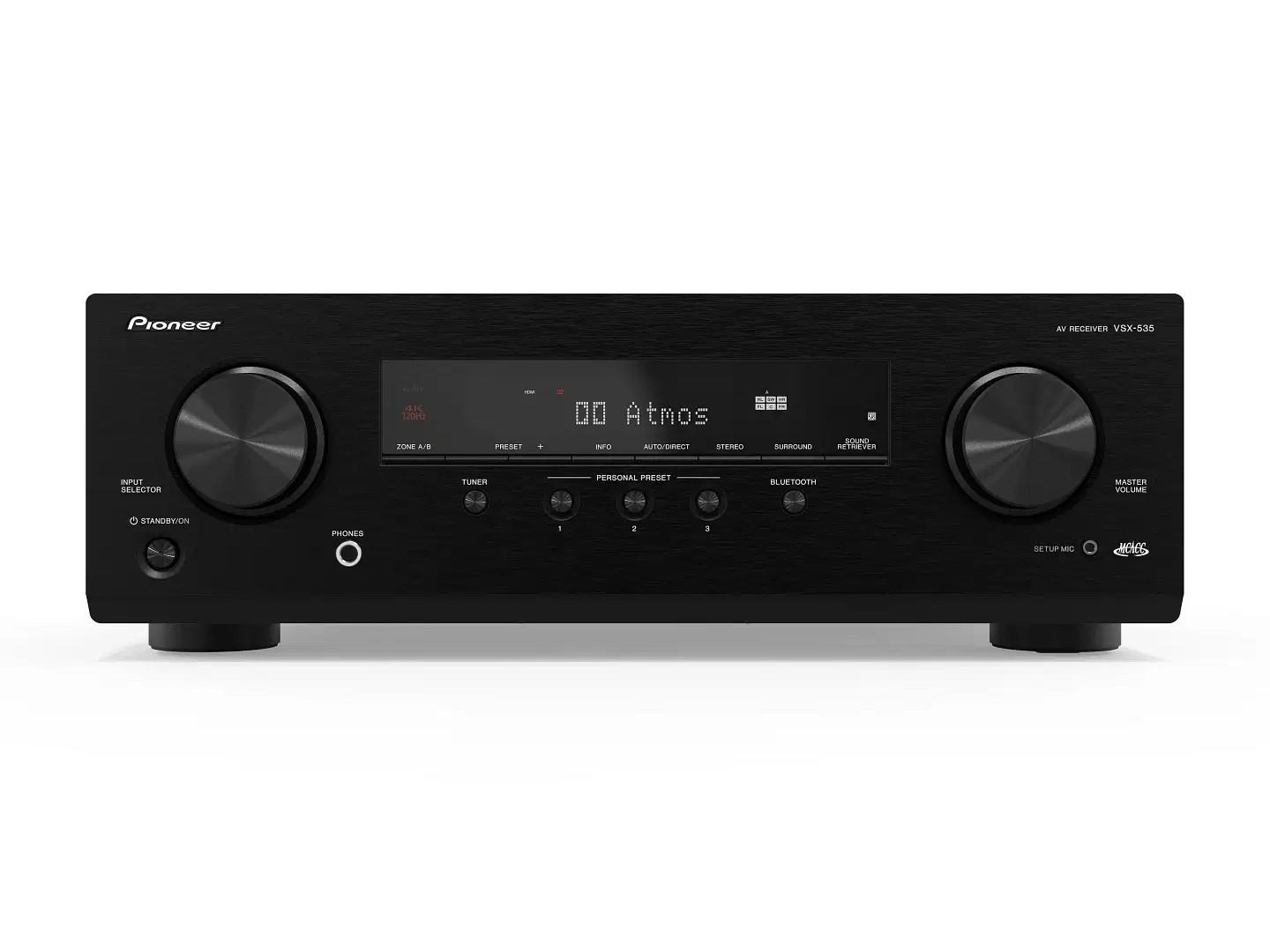

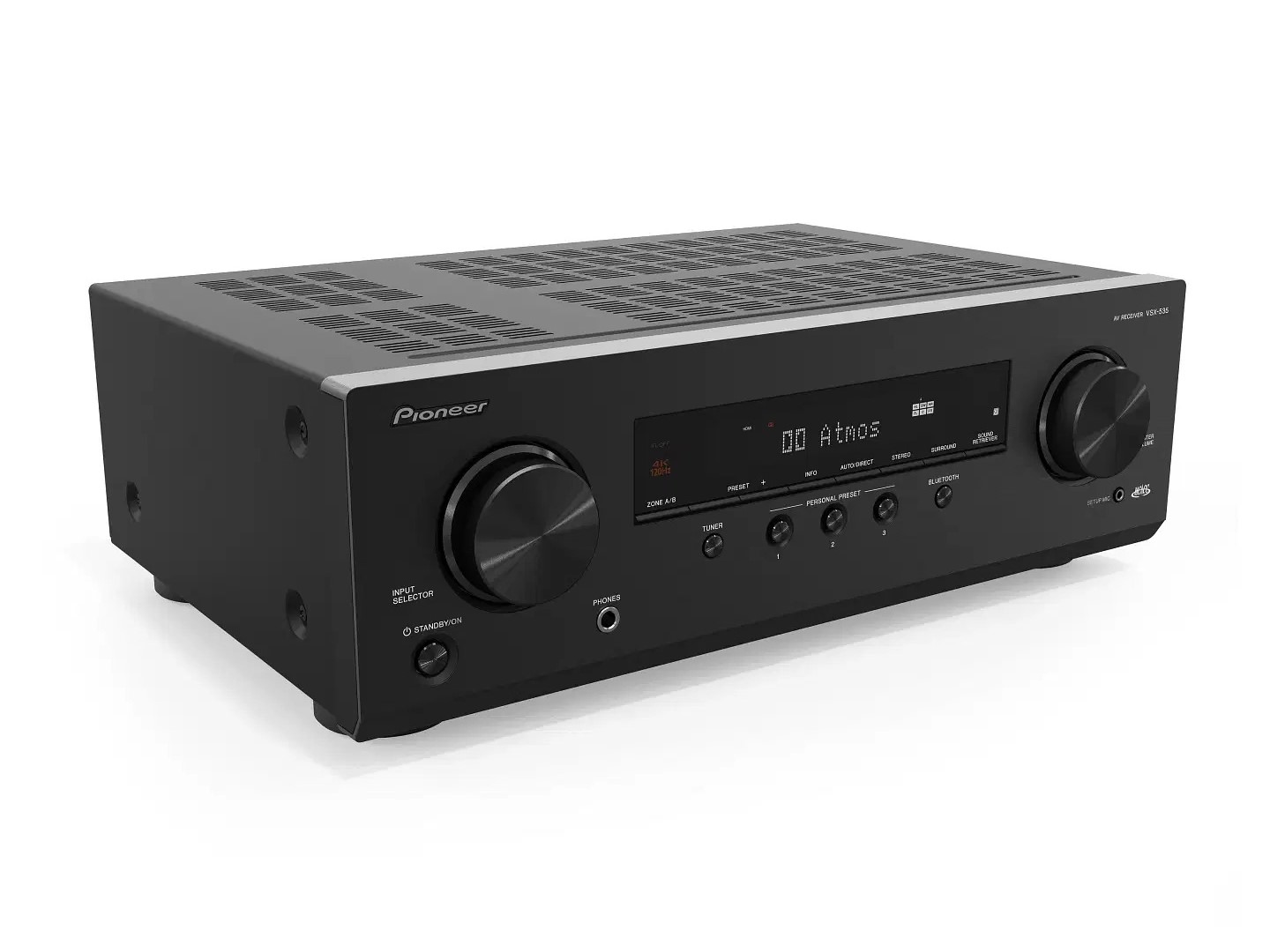

Ο Pioneer VSX-535D ειναι home cinema ραδιοενισχυτης 5.2 καναλιων, ισχυος 5x80w at 8 ohms, class AB. Διαθετει: FM, DAB. Ενσυρματη συνδεσιμοτητα εικονας 4x HDMI In, 1x HDMI Out. Ασυρματη διασυνδεσιμοτητα: Bluetooth. Υποστηριζομενοι Codecs εικονας: HDR, HDR 10+, Dolby Vision.

Εγγυηση Αντιπροσωπειας. Δυνατοτητα δοσεων.

Designed with the latest technology for streamers and home theater enthusiasts, the updated VSX-835 features IMAX Enhanced certification, DTS:X, Dolby Atmos® capabilities, 8K/4K Ultra HD, Bluetooth® streaming and more. Upgrade your shows, games and movies with stunning performance in speaker configurations up to 7.2 or 5.2.2 setup, perfectly calibrated to your space with proprietary MCACC Auto Room Tuning software.

Features

• Immersive sound experience with Dolby Atmos and DTS:X
• Support for 8K/4K Ultra HD videos with advanced HDR formats
• Customized acoustic calibration with MCACC Auto Room Tuning
• Bluetooth connectivity for wireless audio streaming
• Four HDMI 2.1a inputs for extended compatibility with future video technologies

Specifications

• Class AB amplifier, each channel 80w (20-20kHz, 0.08% THD, 2ch @ 8 ohms – FTC)
• Compatible with 5.2 or 3.2.2 channels
• Room correction: MCACC Auto Room Tuning
• Output power
  • Rated: 5 channels × 135 W at 6 ohms, 1 kHz, 1 channel driven at 1% THD (IEC)
  • Maximum: 5 channels × 150 W at 6 ohms, 1 kHz, 1 channel driven at 10% THD (IEC)
• THD+N: 0.08% (20 Hz - 20,000 Hz, Rated output power)
• Input sensitivity and impedance: 200 mV/32 kΩ (LINE(RCA))
• Rated RCA output level and impedance
  • PRE OUT (SUBWOOFER): 1 V/470 Ω
  • LINE OUT (ZONE B): 1 V/200 mV/2.3 kΩ
• Frequency response: 10 Hz - 100 kHz/+1 dB, – 3 dB (Direct)
• Tone control specifications
  • ±10 dB, 20 Hz (Bass)
  • ±10 dB, 20 kHz (Treble)
• Signal-to-noise ratio: 106 dB (IHF-A, LINE IN, SP OUT)
• Speaker impedance supported: 4 Ω - 16 Ω
• Rated headphone output power: 80 mW + 80 mW (32 Ω, 1 kHz, 10% THD)
• Headphone impedance supported: 8 Ω - 600 Ω
• Headphone frequency response: 10 Hz - 100 kHz

HDMI Capabilities

• Support for 8K/4K Ultra HD resolution
• Support for Dolby Vision, HDR10+, HDCP2.3 technologies
• HDMI2.1a features such as VRR, QFT, Dynamic HDR, ALLM, DSC, SB

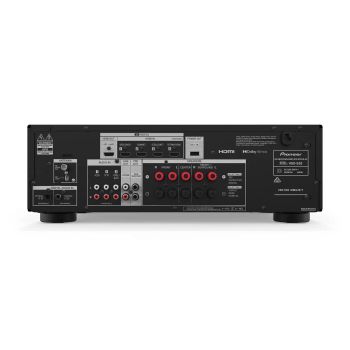

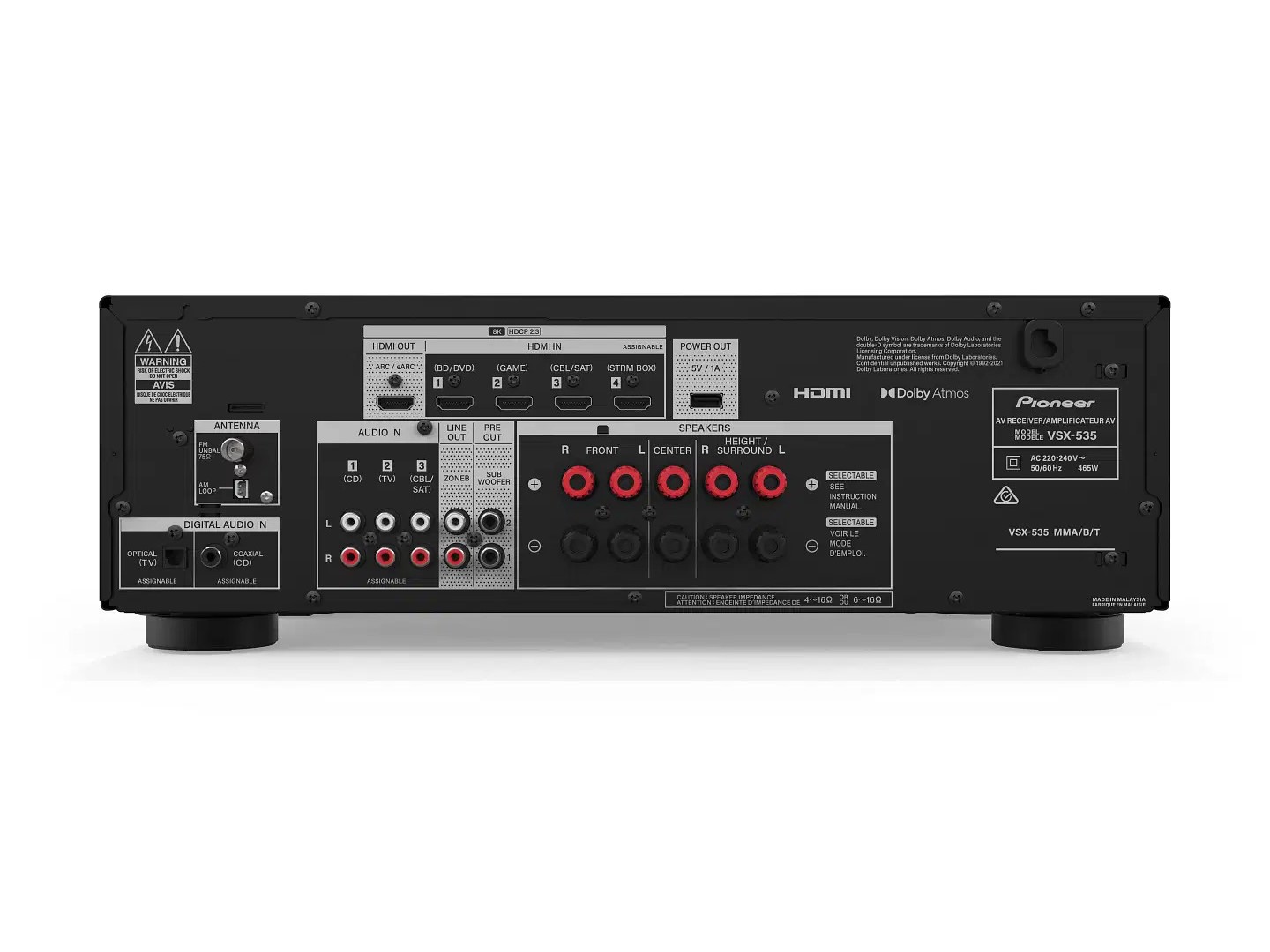

Connectivity

• 4 HDMI inputs
• 3 RCA inputs
• 1 optical input
• 1 coaxial input
• 1 HDMI output (eARC)
• Stereo RCA output for Zone B
• 2 subwoofer pre-outs

Surround Modes

• Dolby Atmos
• Dolby Atmos Height Virtualizer
• Dolby Surround

Bluetooth

• System: Bluetooth version 5.0
• Frequency band: 2.4 GHz (2.402-2.480 GHz)
• FHSS modulation method
• Compatible Bluetooth profiles: A2DP v1.3, AVRCP v1.6, AVDTP v1.3, AVCTP v1.4
• Supported codecs: SBC, AAC
• Transmission range (A2DP): 20 Hz - 20 kHz (Sampling frequency 44.1 kHz)

General

• Power supply: AC 220 - 240 V, 50/60 Hz
• Power consumption:
  • Operating: 465 W
  • Full Standby mode: 0.3 W
  • HDMI CEC Standby: 0.3 W
• Dimensions (W × H × D): 435 × 148 × 321 mm
• Weight: 8.2 kg
