Ραδιοενισχυτής 7.1 καναλιών με διπλό DSP 32bit. Ενισχυτής class D, 7x100 W/RMS/8Ω. Ρωτηστε μας τηλεφωνικα για δυνατοτητα δοσεων μεσω καρτας .
Υποστηρίζει Dolby True HD, Dolby Digital Plus,DTS HD Master Audio, DTS HD.Διαχείριση σημάτων εικόνας με FaroudjaTorino FLI30336Cortez με ενσωματωμένοαποκωδικοποιητή 3D. HDMI 1.4a(3D & Audio Return Channel)Audio DAC 24bit/192Khz. Παραμετρικόs ισοσταθμιστής 10 περιοχών. Υποδοχή USBγια χρήση με iPod/iPhone/mp3 Players ήγια streaming μέσω του παρεχόμενου USBBluetooth Dongle. 6 είσοδοι/2 έξοδοι HDMI. Learning τηλεχειριστήριο RR-CX94.

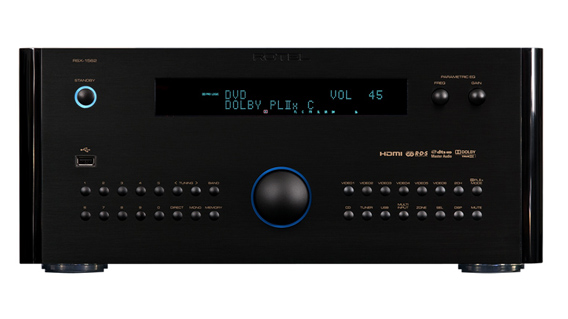

The RSX-1562 builds upon the excellence established by its highly acclaimed predecessor, the RSX-1560, but with the addition of new, improved circuitry and technologies such as HDMI® 1.4 with 3D. In addition, the advent of so many video sources such as a cable or satellite box, DVRs, DVD players, and WiFi or Ethernet audio / video feeds from devices such as Apple TV® and Roku® etc., have necessitated adding more HDMI inputs. The RSX-1562 now has six HDMI 1.4 inputs and two HDMI 1.4 outputs, one with an Audio Return Channel (ARC). The ARC in HDMI 1.4 enables a TV via a single HDMI cable, to send audio data “upstream” to an A/V receiver or surround audio controller, increasing user flexibility and eliminating the need for any separate S/PDIF audio connection.
Model | RSX-1562 |
Audio | - |
Continuous Power (7 channels driven) |
100 watts/ch (20-20k Hz, <0.05% THD, 8 ohms) |
Continuous Amplifier Power |
200 watts (1 kHz, <1.0% THD, 4 ohms, DIN) |
Total Harmonic Distortioner | <0.008% |
Intermodulation Distortion (60Hz:7kHz) |
<0.008% |
Signal to Noise Ratio (IHF A-weighted) |
95dB (analog bypass) 92dB (Dolby Digital, DTS) 0 dBFs |
Input Sensitivity/ Impedance |
Line Level: 200 mV/100k ohms |
Preamp Output Level/ Output Impedance |
1.0V/1k ohms |
Decodable Digital Input Signals |
Dolby Digital, Dolby Digital EX, Dolby Pro Logic IIz, DTS, DTS-ES, DTS 96/24, DTS-ES 96/24, LPCM (up to 192k). Lossless audio formats (using HDMI 1.3): Dolby TrueHD and DTS HD Master Audio |
Decodable USB/iPod Digital Input Signals |
AAC(m4a), WAV, MP3, WMA |
Video | - |
Input Resolution | 480i/576i, 480p/576p, 720p, 1080i 1080p, 1080p 24Hz, 3D (HDMI only) |
Output Resolution | 480i/576i (Composite only), 480p/576p, 720p, 1080i, 1080p, 1080p 24Hz, 3D (HDMI only) |
Signal to Noise Ratio | 45dB |
Input Impedance | 75 ohms |
Output Impedance | 75 ohms |
Output Levelance | 1.0 volt |
HMDI Inputs/Outputs | Version 1.3, supporting Deep Color passthrough and Broad Color Space passthrough. Version 1.4, supporting 3D passthrough and Audio Return Channel |
FM Tuner | - |
Usable Sensitivity | 14.2dBf |
Signal to Noise Ratio (at 65dBf) |
70dB |
Harmonic Distortion (at 65dBf) |
0.03% |
Stereo Separation (1 kHz)5dBf) |
45dB |
Output level | 1V |
Antenna Input (unbalanced) |
75 ohms |
AM Tuner | - |
Sensitivity | 50microV/m |
Signal to Noise Ratio | 40dB |
Output Level | 500 mV |
Antenna Input | Loop Antenna |
General | - |
Power Consumption | 500 watts 0.5 watt (standby) |
Power Requirements (AC) |
120 volts, 60Hz (USA version) 230 volts, 50Hz (EC version) |
Weight | 15.5kg/34.17 lbs |
Dimension (W x H x D) | 431 x 188 x 422 mm 17 x 71/2 x 165/8 in |
Front Panel Height (feet removed for rack mount) |
4U/176.8mm/7 |
