Ο Heed Elixir ειναι ενας δικαναλος ενισχυτης 2x 50 wrms at 8 oHms. Διαθετει Phono Stage MM και class A ενισχυτη ακουστικων. Εισοδοι 1x RCA phono, 4x RCA line. Εξοδοι 1x pair RCA Preout, 1x 6.35mm headphones, 1x pair speakers terminals. Κατασκευασμενος με εξαιρετικα υλικα, σχεδιαστηκε να ειναι διαφανος και μουσικος με ζεστες χροιες.

Εγγυηση Αντιπροσωπειας. Δυνατοτητα δοσεων.

The Elixir is the essence of how we think about music reproduction. This integrated amplifier puts down four important cornerstones that show provide a playground for the listener. A preamplifier with its dedicated output, a power amplifier with plenty of juice to drive anything reasonable, a phono preamplifier to re-discover those black discs, and a headphone amplifier with way too much talents for a secondary function only. But we have built them into one box because these are the basic functions everyone should experience in “My First Hi-Fi System”.

The Elixir has a neat place amongst our Transcap technology amplifiers. It is the purest music performer of all, without any technical compromise and presents the music effortlessly. Besides the power amplifier, the headphone stage also benefits from the basic idea of the Transcap technology. Class-A, darlington-driven, capacitor-coupled outputs feed your headphones like nothing else you have experienced before.

The MM phono stage is based on the Questar’s circuit. As the standalone amp, this integrated incarnation is thick and warm and provides a great overall amplification for nearly all kind of MM cartridges. It’s a very easy way to find your way back into the analogue domain, and be a lifetime captive of the black vinyl.

Features

• 4 analogue and 1 MM phono inputs
• class-A headphone amplifier
• Transcap – output capacitor technology
• discrete bipolar transistor architecture

Specifications

• Inputs:     4x line analogue / 1x MM phono

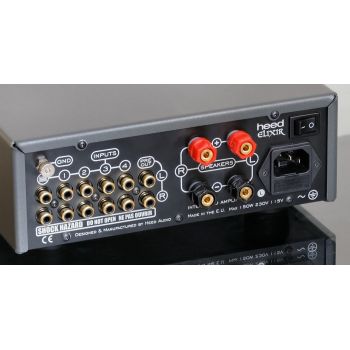

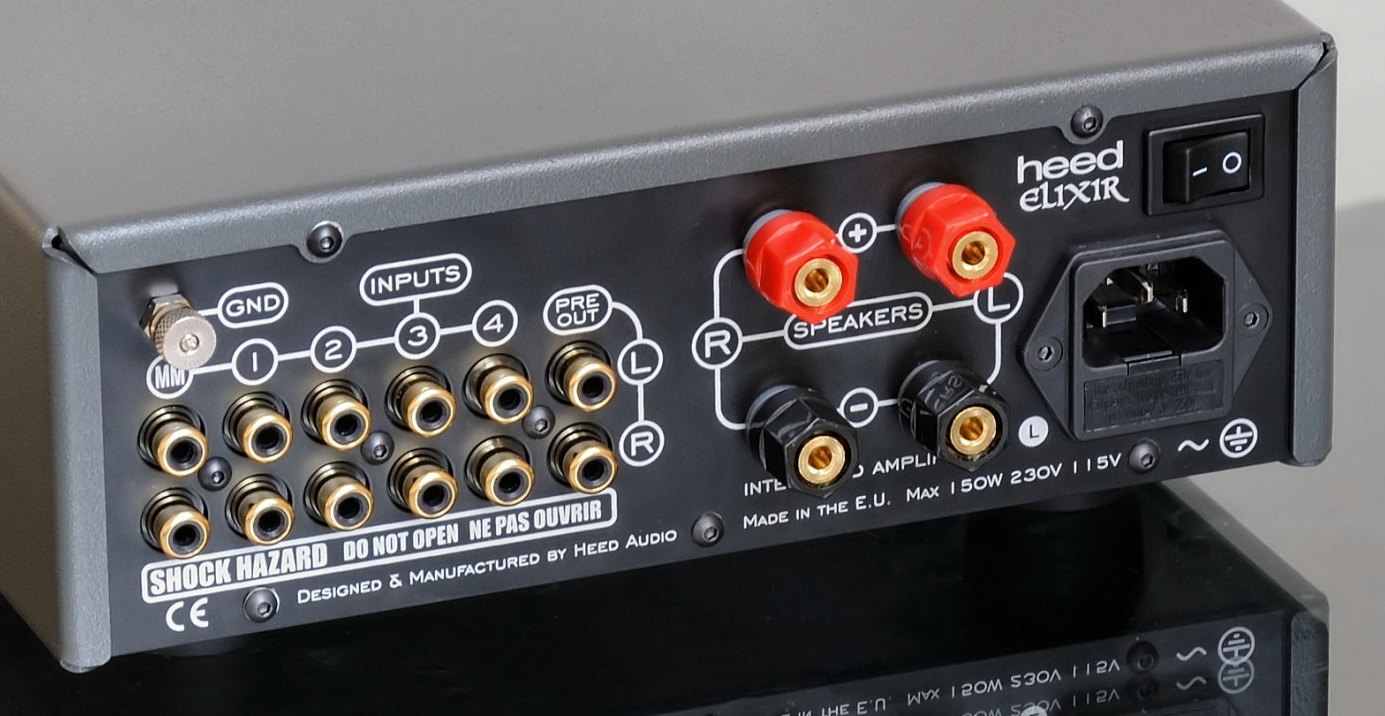

• Outputs:     1x stereo speaker / 1x preamplifier out / 1x 6.35mm headphones out
• Freq. response (spekers):     10 Hz – 110 kHz
• Freq. response (preamp):     3.5 Hz – 300 kHz
• Freq. response (headphones):     3.5 Hz – 320 kHz
• Input impedance (line):     10 kΩ
• Input impedance (MM):     47 kΩ / 100 pF
• Input sensitivity:     135 mV
• Power (8Ω):     50 W / channel (55 W peak / ch)
• Power (4Ω):     65 W / channel (90 W peak / ch)
• Max. consumption:     150 W
• Idle consumption:     20 W
• Weight:     6 kg
• Dimensions (WxHxD):     22 x 8.5 x 36 cm
