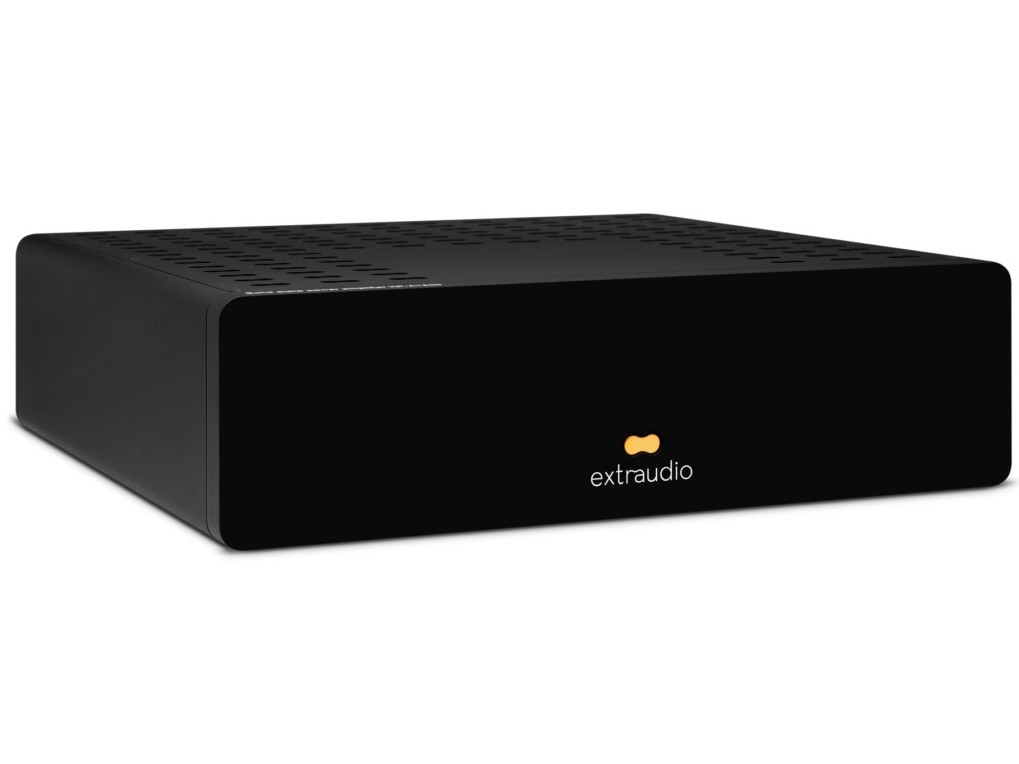

Ο Extraudio XP-A1500 mkII ειναι dual mono τελικος ενισχυτης 2x1500 wrms at 8Ω και 2x2400 wrms at 4Ω, class-D. Υλοποιειται με 2 τροφοδοτικα. Το σταδιο ενισχυσης της τελικης βαθμιδας λειτουργει σε class-A.

Εγγυηση Αντιπροσωπειας. Δυνατοτητα δοσεων, ανταλλαγων.

ENERGY: POWER AND EFFICIENCY
The Extraudio XP-A1500 MKII offers very high controlled power, thanks to our new EPAM modules of 1500 watts x2 at 4 ohms.

The Extraudio XP-A1500 MKII also offers a maximum current of 90 amps per channel, which, together with a greater damping factor of 1000 at 8 ohms, allows full control of any speaker model.

The true value of the watts of a power amplifier cannot be compensated or masked, and that, at Extraudio, we know. The only way to get 1500W of real sound, for example, is to have a power supply that generates 1500W peak and high current intensity, in the case of the XP-A1500 MKII it is two 1500W peak power supplies.

The XP-A1500 MKII power amplifier has a power supply that delivers a total current of 90 Amps X2 along with an impressive 1500 W X2 power reserve, so that any complex musical passage, such as those present in a symphony, is reproduced in all its glory, without loss, latency or distortion.

INNOVATIVE ELECTRONICS
The electronic design of the Extraudio XP-A1500 MKII is based on two fully separate monophonic power stages with balanced inputs, an input buffer with pure class A polarized BJT transistor stages, and two high-power, energy-efficient EPAM modules.

The RCA and XLR audio inputs feature a new pure Class A buffer input with BJT transistor input stages, providing dynamic, analog sound. BJT-type transistors offer the best sound, extending down to very low frequencies.

PROTECTIONS
The Extraudio XP-A1500 MKII incorporates built-in protection functions to protect the power amp against abuse or extreme use and to prevent the speakers from being damaged in the event of an incident. These protections focus on temperature control, electrical overvoltage, DC protection, and HF protection.

Specifications

• Input buffer: Input stages Pure Class A BJT
• Frequency Response: 2Hz to 110Khz +0dB
• Noise Floor: -160dB
• Dynamic range / dBA: > 120dBA
• THD+N (1kHz @ 1W): 0.003 %
• Peak output current: 90Amp x2
• Voltage Gain: 28dB
• Damping Factor: >1000, two-channel (8 Ω load, 1 kHz and below)
• Extraudio EPAM amplification modules Ultra Output Power: 2400W X2 4Ω / 1500W X2 8Ω
• Input impedance: Balanced 7k2 Ohm / RCA SE 3K6 Ohm

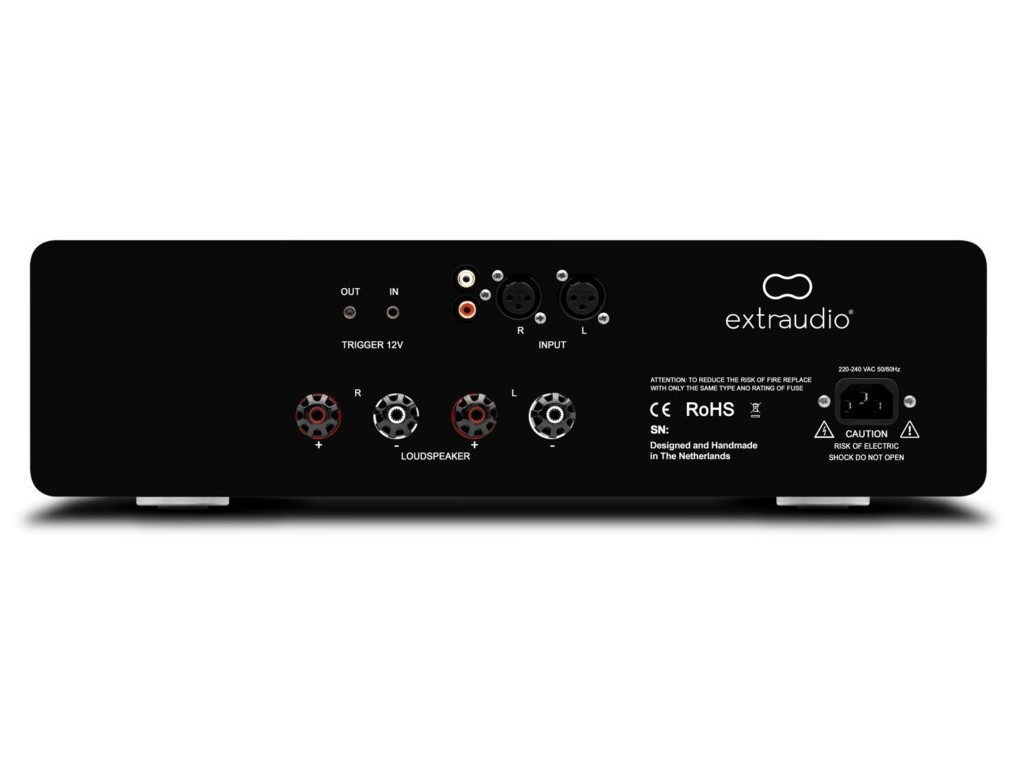

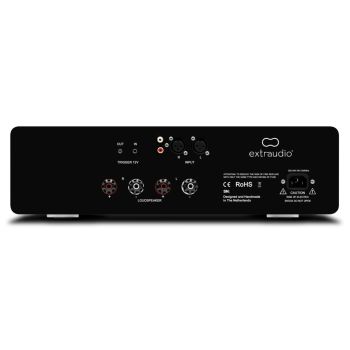

• Analog inputs:
  • 1 Pair unbalanced RCA
  • 1 Pair Balanced XLR
• Outputs:
  • Speakers connectors, WBT Germany.
  • Trigger connectors input and output
• Power consumption: Stand-by: 0.5W, Idle: 19W
• Power Supply RMS Power Limit: 1500W
• Dimensions: W x H x D 44 x 12 x 40 cm
• Weight: 18 kg
