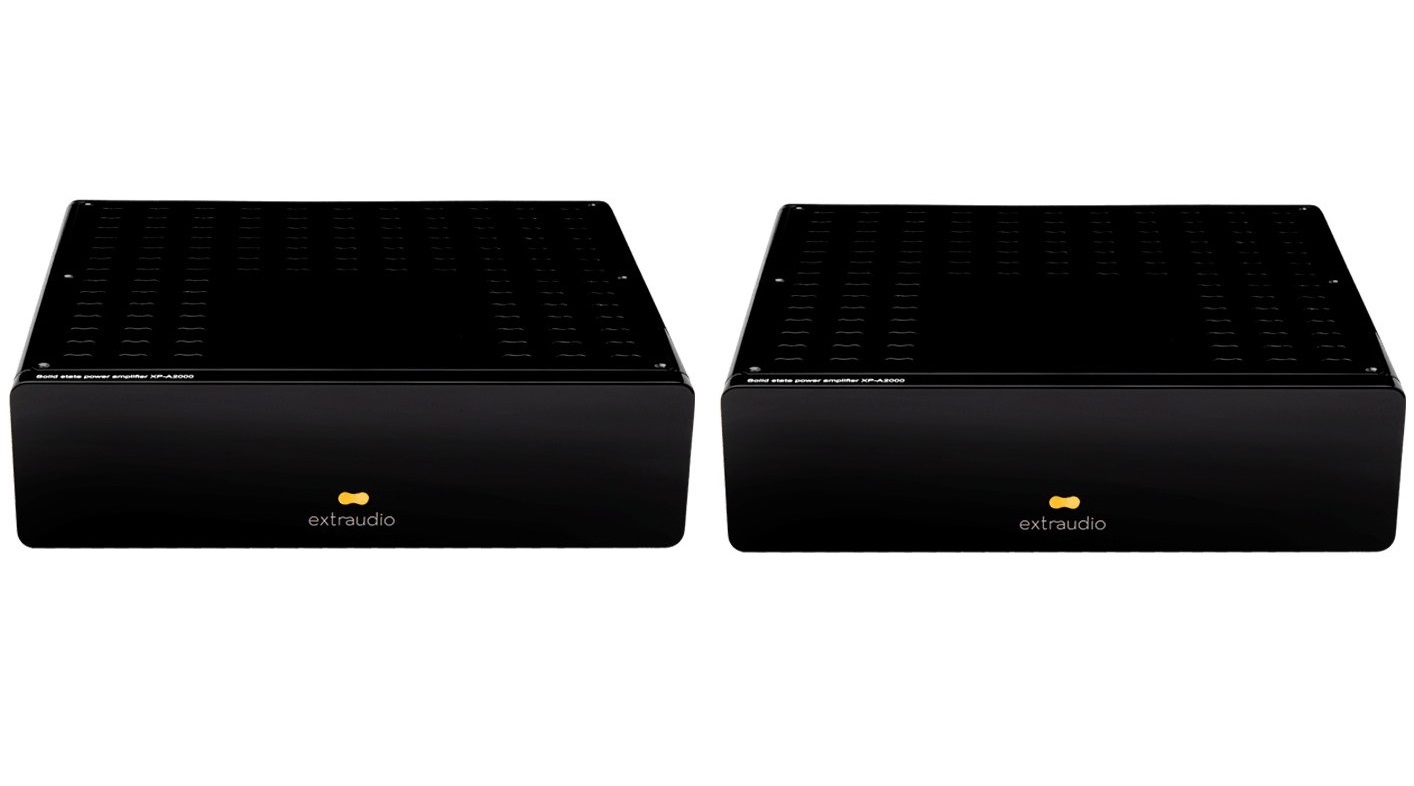

Οι Extraudio XP-A2000 mkII ειναι ζευγος μονοφωνικων τελικων ενισχυτων, ισχυος 1x1500 wrms at 8Ω και 1x2400 wrms at 4Ω, class-D. Καθε μινοφωνικος τελικος υλοποιειται με 2 τροφοδοτικα. Το σταδιο ενισχυσης της τελικης βαθμιδας λειτουργει σε class-A.

Εγγυηση Αντιπροσωπειας. Δυνατοτητα δοσεων, ανταλλαγων.

INNOVATIVE ELECTRONICS
The electronic design of the Extraudio XP-A2000 is based on One fully separate monophonic power amplifier module with balanced inputs, an input buffer with pure class A polarized BJT transistor stages, and one high-power, energy-efficient EPAM modules.

The RCA and XLR audio input feature a new pure Class A buffer input with BJT transistor, providing dynamic, analog sound. BJT-type transistors offer the best sound, extending down to very low frequencies.

ENERGY: POWER AND EFFICIENCY
The Extraudio XP-A2000 offers very high controlled power, thanks to our new EPAM modules of 1500 watts at 4 ohms.

The Extraudio XP-A2000 also offers a maximum current of 90 amps per power amplifier, which, together with a greater damping factor of 1000 at 8 ohms, allows full control of any speaker model.

The true value of the watts of a power amplifier cannot be compensated or masked, and that, at Extraudio, we know. The only way to get 1500W of real sound, for example, is to have a power supply that generates 1500W peak and high current intensity, in the case of the XP-A2000 it is One 1500W peak power supplies.

The XP-A2000 power amplifier has a power supply that delivers a total current of 90 Amps, along with an impressive 1500 W  power reserve, so that any complex musical passage, such as those present in a symphony, is reproduced in all its glory, without loss, latency or distortion.

PROTECTIONS
The Extraudio XP-A2000 incorporates built-in protection functions to protect the power amp against abuse or extreme use and to prevent the speakers from being damaged in the event of an incident. These protections focus on temperature control, electrical overvoltage, DC protection, and HF protection.

Each Amplifier Specifications

• Input buffer: Input stages Pure Class A BJT
• Frequency Response: 2Hz to 110Khz +0dB
• Noise Floor: -160dB
• Dynamic range / dBA: > 120dBA
• THD+N (1kHz @ 1W): 0.003 %
• Peak output current: 90Amp x1
• Voltage Gain: 28dB
• Damping Factor: >1000, two-channel (8 Ω load, 1 kHz and below)
• Extraudio EPAM amplification modules Ultra Output Power: 2400W X1 4Ω / 1500W X1 8Ω
• Input impedance: Balanced 7k2 Ohm / RCA SE 3K6 Ohm

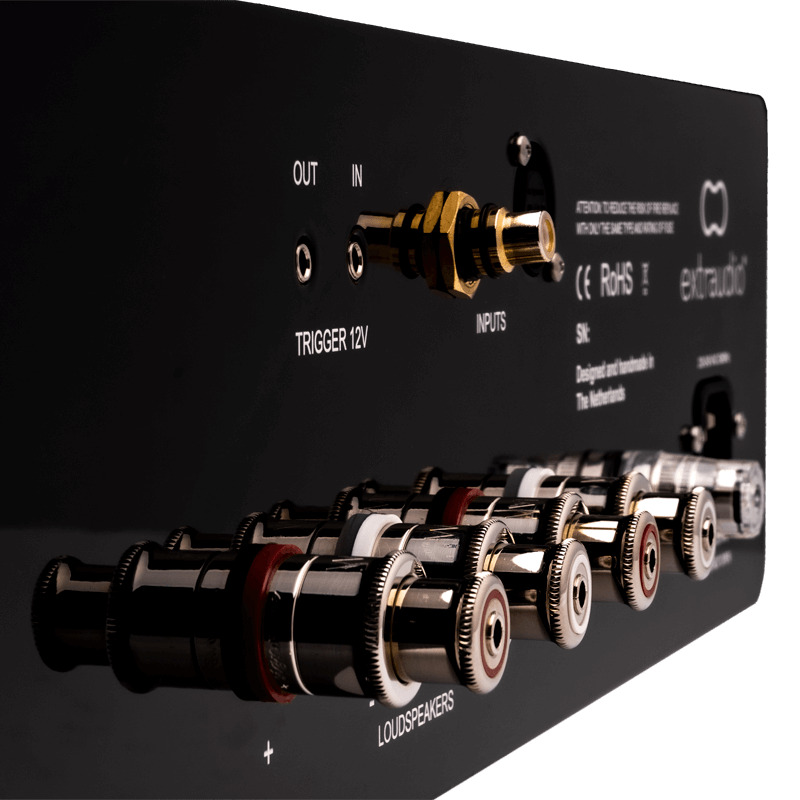

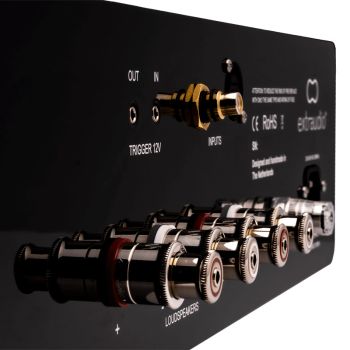

• Analog inputs:
  • 1 Pair unbalanced RCA
  • 1 Pair Balanced XLR
• Outputs:
  • Speakers connectors, WBT Signature Platinum Germany.
  • 1 Ground Binding Post for Grounding free Loudspeakers Trigger connectors input and output.
• Power consumption: Stand-by: 0.5W, Idle: 19W
• Power Supply RMS Power Limit: 1500W
• Dimensions: W x H x D 44 x 12 x 40 cm
• Weight: 18 kg
