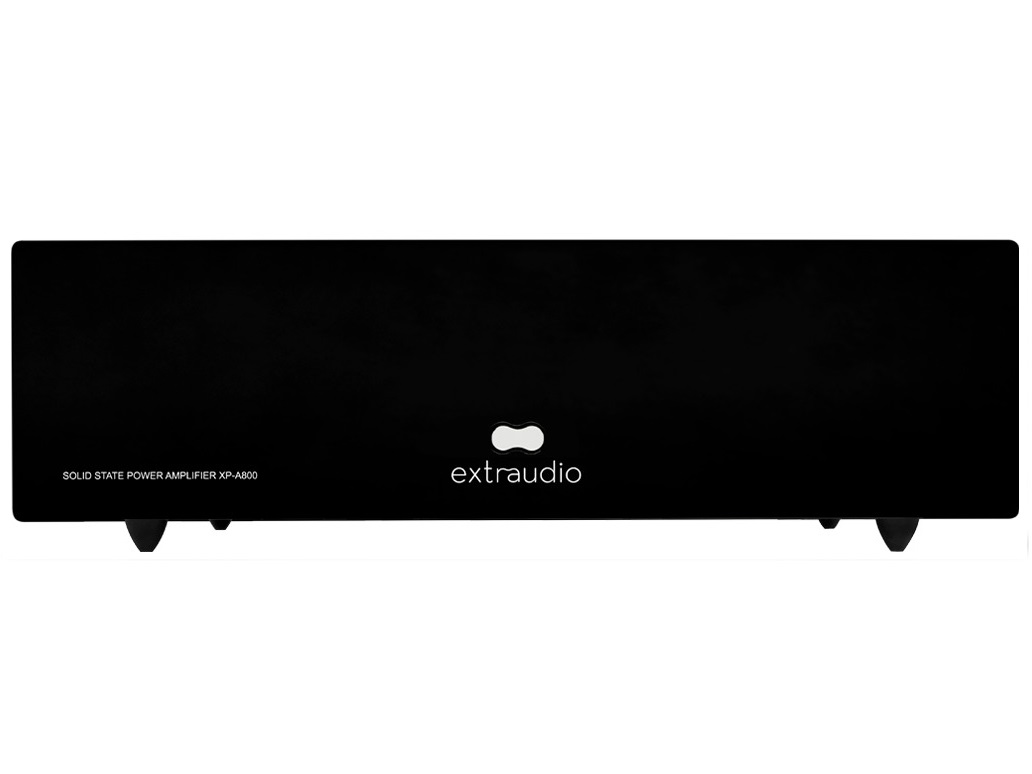

Ο Extraudio XP-A800 ειναι dual mono τελικος ενισχυτης 2x400 wrms at 8Ω και 2x800 wrms at 4Ω, class-D. Υλοποιειται με 2 τροφοδοτικα. Το σταδιο ενισχυσης της τελικης βαθμιδας λειτουργει σε class-A.

Εγγυηση Αντιπροσωπειας. Δυνατοτητα δοσεων, ανταλλαγων.

ENERGY: POWER AND EFFICIENCY
The Extraudio XP-A800 delivers controlled power in spades, thanks to our new 800 Watts x2 at 4 Ohms and 400 Watts x2 at 8 Ohms EPAM modules.

The Extraudio XP-A800 also delivers a peak current of 40 Amps per channel, which, together with a higher damping factor of 700 at 8 Ohm, allows full control of any loudspeaker model.

The real wattage value of a power amplifier cannot be invented or masked, and at Extraudio know that. The only way to get 1500W of real sound, for example, is to have a power supply that generates a 1500W peak and high current.

The XP-A800 has a power supply that delivers a total current of 80 Amps coupled with an impressive 1500W of reserve power, so that any complex musical passages, such as those in a symphony, are reproduced in all their glory, without any loss, decay or distortion.

INNOVATIVE ELECTRONICS
Every Extraudio equipment assembled, manufactured, and soldering by hand in Europe.The electronics design of the Extraudio XP-A800 is based on our reference XP-A1500 power amplifier and features our revolutionary energy-efficient, high-power EPAM amplifier modules. The RCA and XLR audio inputs incorporate a new pure Class A input buffer with BJT transistor input stages for a dynamic, analog sound. The BJT-type transistors provide the best sound, extending down to very low frequencies.

Specifications

• Input buffer: Input stages Pure Class A BJT
• Frequency Response: 2Hz to 110Khz +0dB
• Noise Floor: -150dB
• Dynamic range / dBA: > 110dBA
• THD+N (1kHz @ 1W): 0.003 %
• Peak output current: 40Amp x2
• Voltage Gain: 28dB
• Damping Factor: >700, two-channel (8 Ω load, 1 kHz and below)
• Extraudio EPAM amplification modules Ultra Output Power: 800W X2 4Ω / 400W X2 8Ω
• Input impedance: Balanced 7k2 Ohm / RCA SE 3K6 Ohm

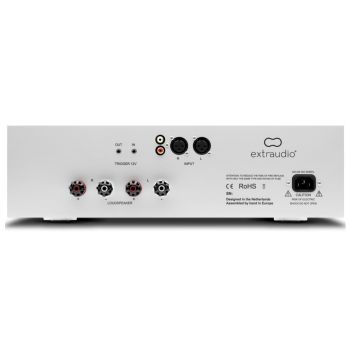

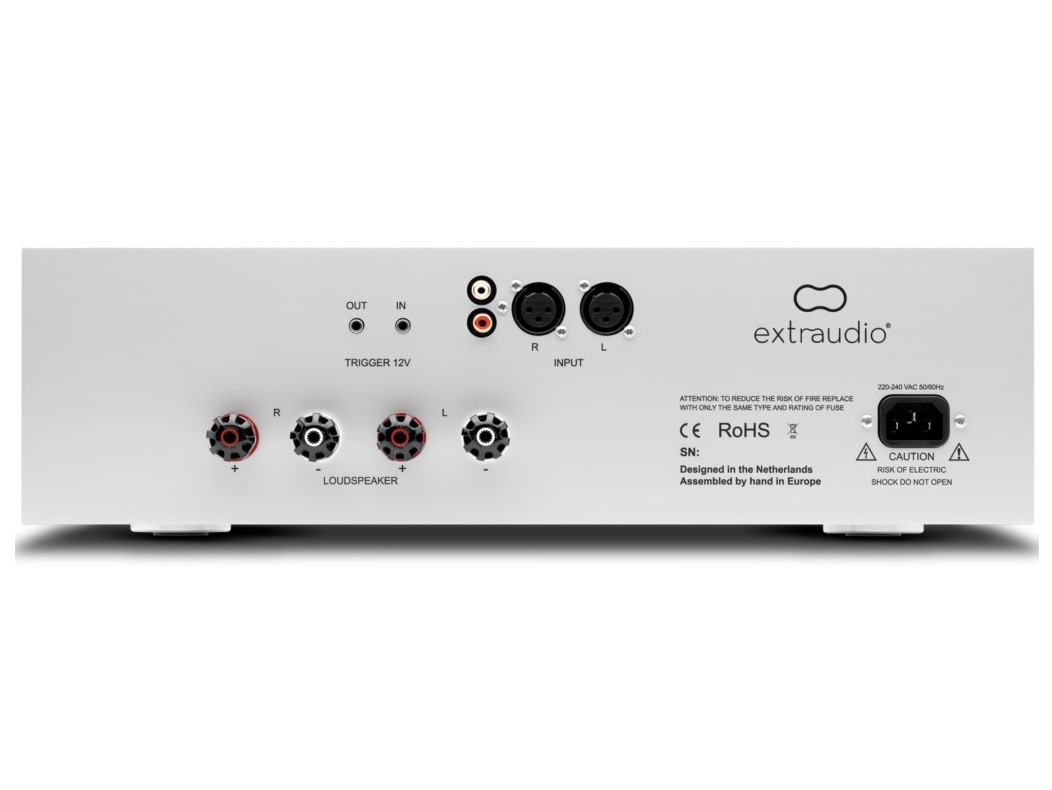

• Analog inputs:
  • 1 Pair unbalanced RCA
  • 1 Pair Balanced XLR
• Outputs:
  • Speakers connectors, WBT Germany.
  • Trigger connectors input and output
• Power consumption: Stand-by: 0.5W, Idle: 19W
• Power Supply RMS Power Limit: 1500W
• Dimensions: W x H x D 44 x 12 x 40 cm
• Weight: 16 kg
