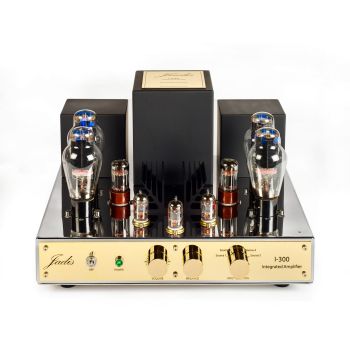

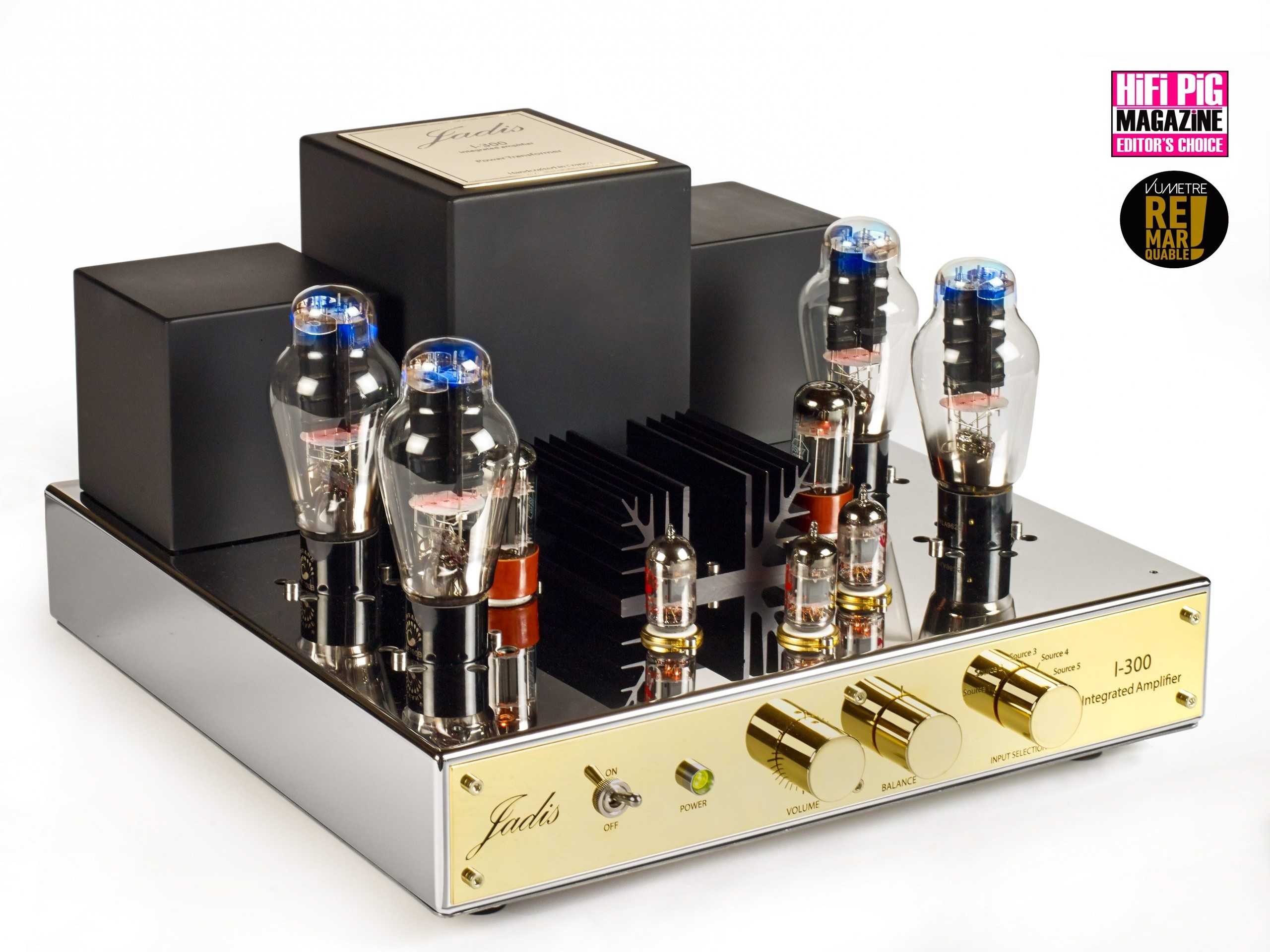

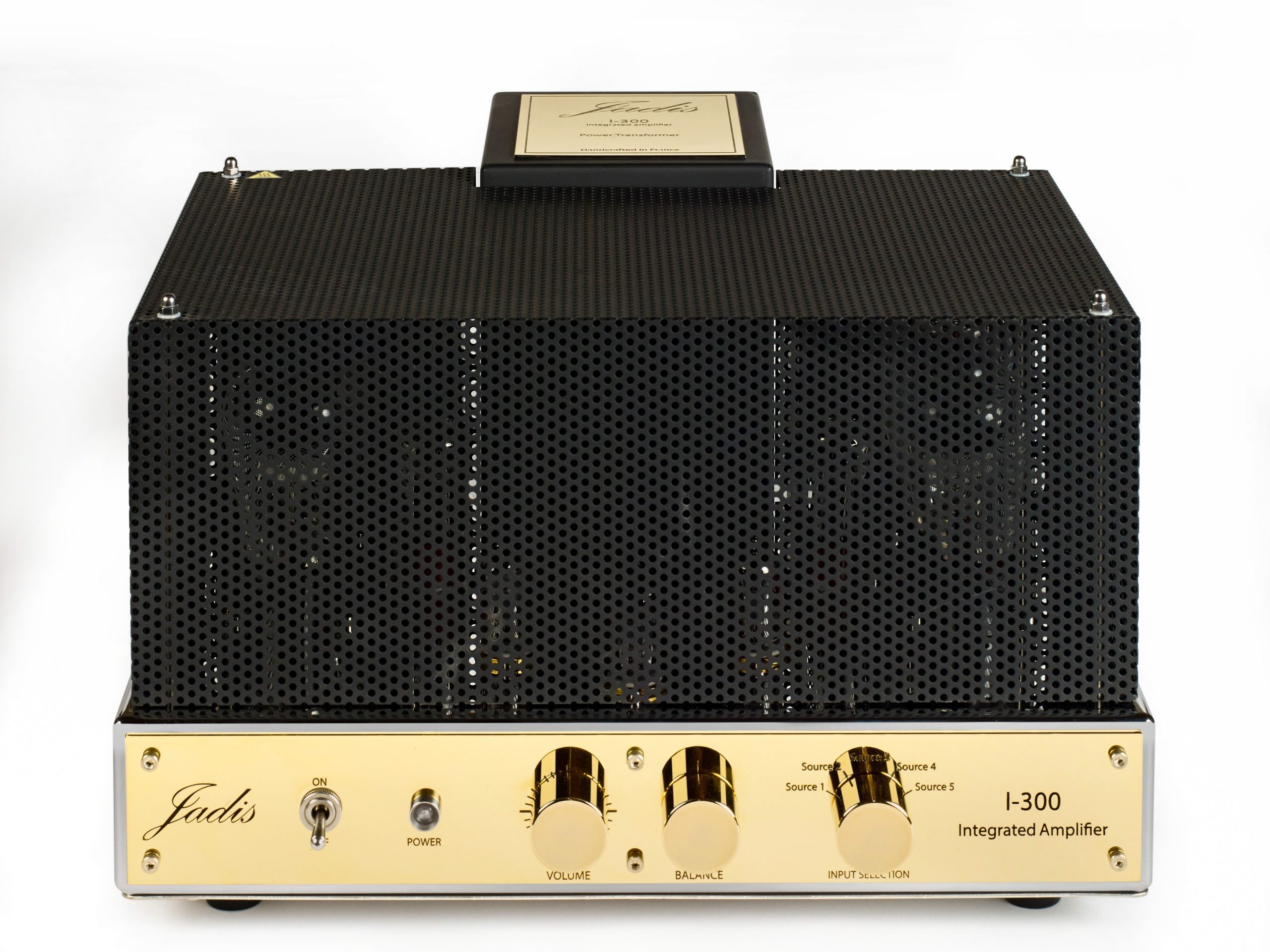

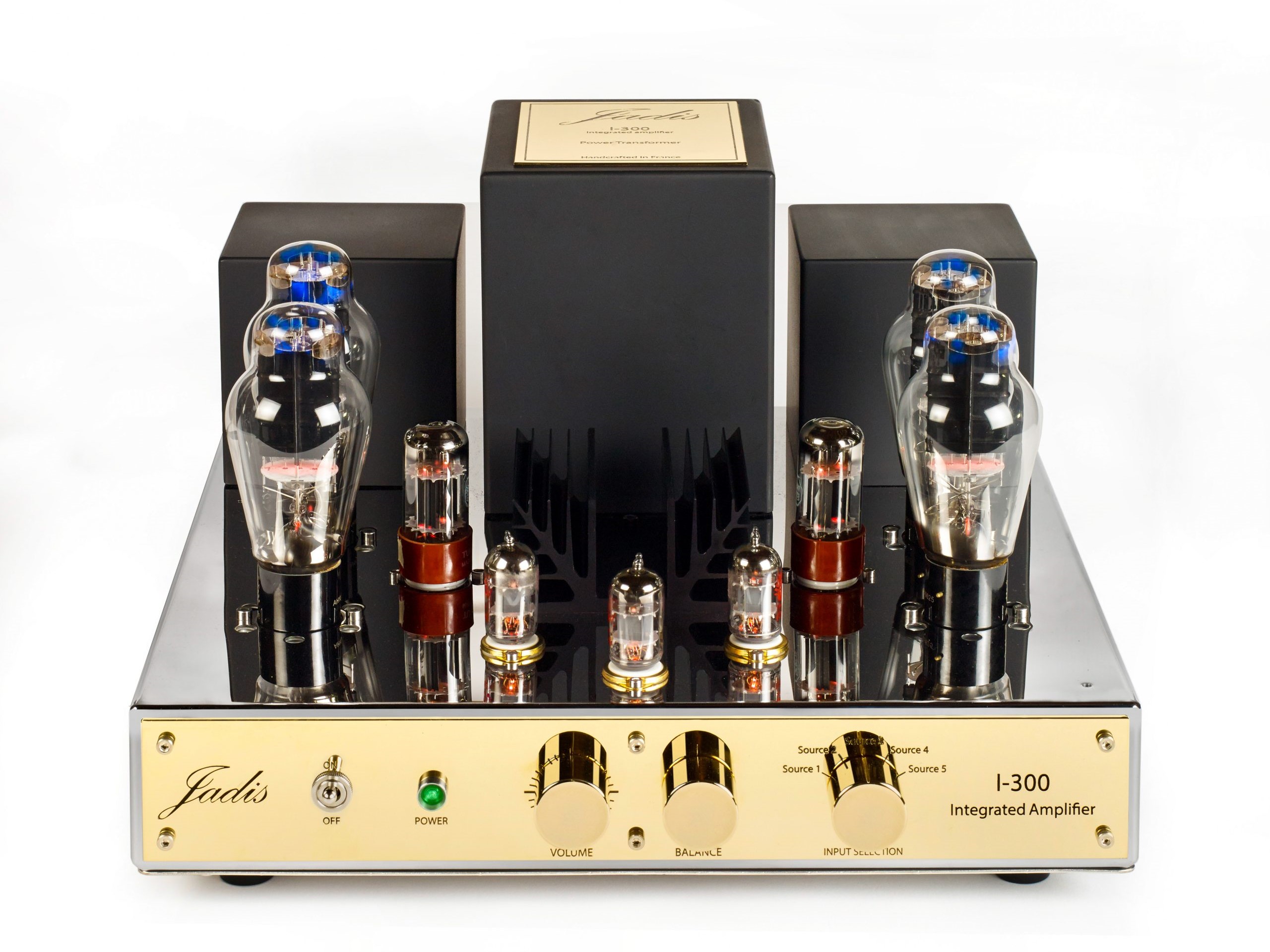

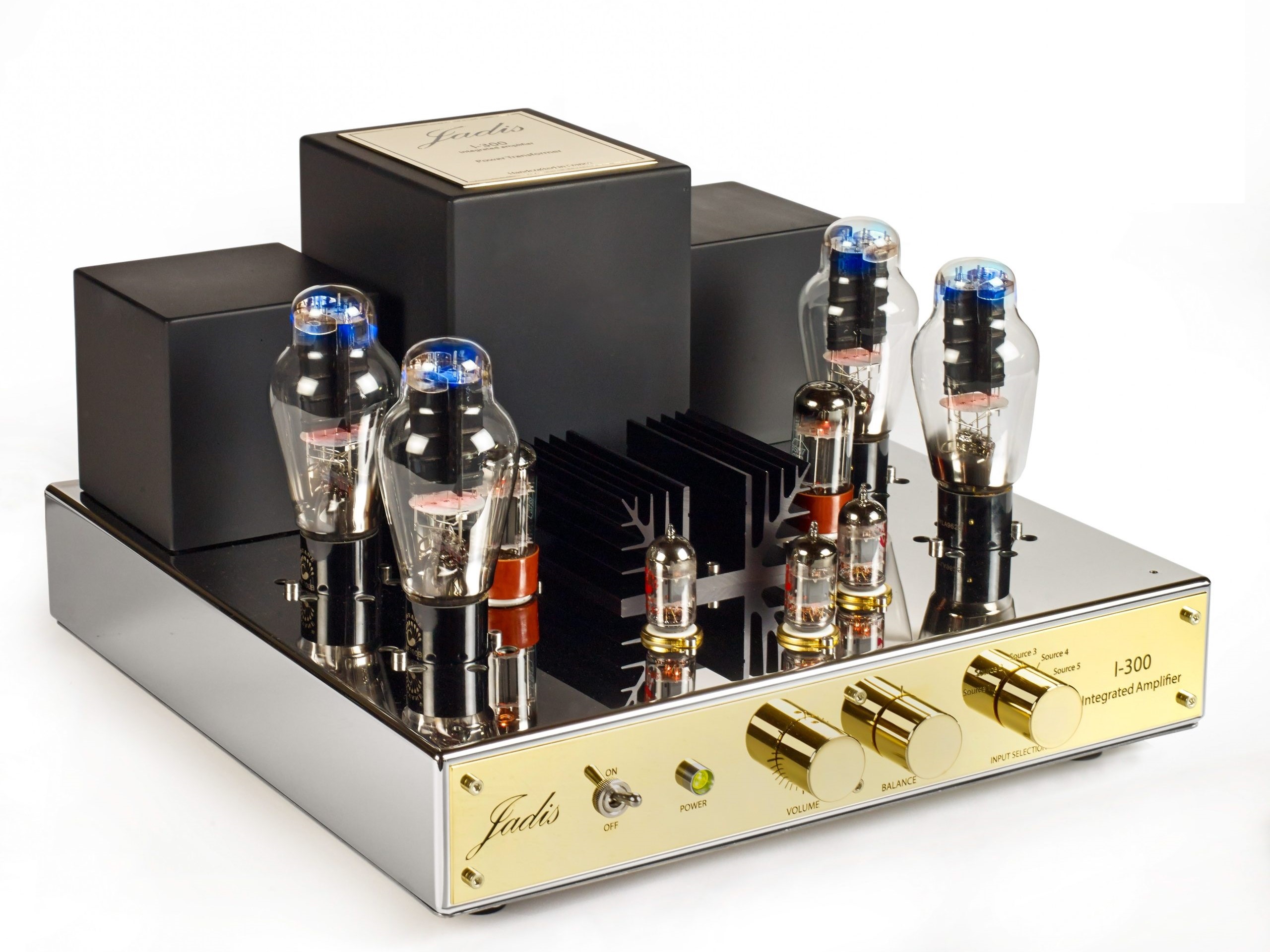

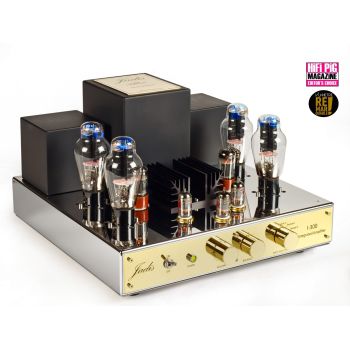

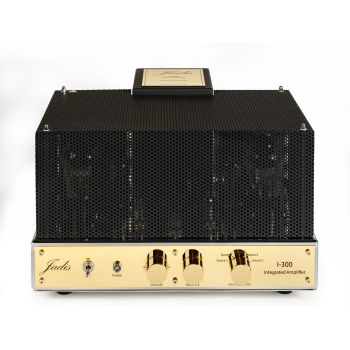

Ο Jadis Ι300 ειναι ενας δικαναλος ολοκληρωμενος χειροποιητος ενισχυτης 2x10 watts Class-A, με λυχνιες 300B.

Εγγυηση Αντιπροσωπειας. Δυνατοτητα δοσεων, ανταλλαγων.

Description

I300 is built around a simple 300B  push-pull without feedback which offers unequalled musiciality of this tube.

After the preamplification using an ECC82, the signal feeds a phase inverter  (called Schmitt) followed by 6SN7 triodes sufficient to drive the 300B.

The power supply is another strong point. In addition to the fact that each stage has its own power supply, particular care has been taken with the 300Bs themselves.

As for all our devices, transformers are designed and manufactured in our workshop. The one dedicated to the power supply, uses a magnetic circuit EI M6X of a design which gives  a very stable operation, without noise and with a reduced overheating.

The output ones use a double CV38 magnetic circuit built according to our standards. The I300 is the only integrated with such an output transformer.

A design mode that allows the device to appear much more powerful than its 10W may suggest!

As far as design is concerned, the I300 remains faithful to our range and has a compact design. The 2mm thick 304L chassis easily supports the weight of the other elements. For a better comfort of use it is equipped with a remote control.

References

http://www.jadis-electronics.com/documents/84/i300_hifi_pig_janvier_23.pdf

Specifications

• Type Integrated Amplifier wiht remote control
• Bias Automatic
• Power 10W - Class A
• Input type 5 lines, 1 Bypass output, 1 loudspeakers output
• Bandwidth 20 Hz to 55kHz @-3dB
• Sensibility 100 mV
• Number of blocks 1
• Tubes list 4 x 300B, 2 x 6SN7, 3 x ECC82
• Dimensions 40 X 40 X 25.5 CM
• Weight 39Kg
• Consumption 300 VA
