Νεα γενια ΥΑΜΑΗΑ A/V ραδιοενισχυτες 11.2 , 9.2 , με δυνατοτητα 4K pass trough , HQV κλπ
Τα νεα μοντελα ειναι : RX-A3020 , RX-A2020 , RX-A1020 , RX-A820 (ηδη διαθεσιμος) και RX-A720

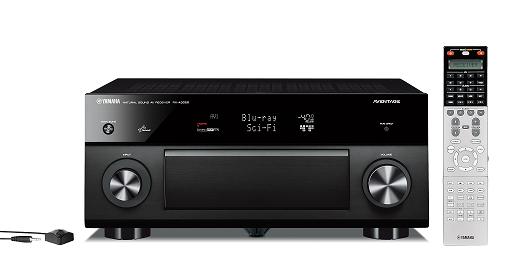

Εδω βλεπετε τον 11.2 RX-A3020 Aventage και τα τεχνικα χαρακτηριστικα του .
Amplifier Section | Channel | 9.2 |
---|---|---|
Rated Output Power (1kHz, 2ch driven) | 165W (8ohms, 0.9% THD) | |
Rated Output Power (20Hz-20kHz, 2ch driven) | 150W (8ohms, 0.06% THD) | |
Dynamic Power per Channel (8/6/4/2 ohms) | 175/220/295/410W | |
Surround Sound Processing | CINEMA DSP | Yes (HD3) |
DSP Programs | 23 | |
Compressed Music Enhancer | Yes | |
Virtual Presence Speaker | Yes | |
Dialogue Lift | Yes (no Presence speakers required) | |
SILENT CINEMA / Virtual CINEMA DSP | Yes | |
Dolby TrueHD | Yes | |
Dolby Digital Plus | Yes | |
Dolby Pro Logic IIx | Yes | |
DTS-HD Master Audio | Yes | |
Dialog Level Adjustment | Yes | |
Audio Features | Pure Direct | Yes (with video on mode) |
YPAO multi-point measurement | Yes with R.S.C. (Reflected Sound Control) and angle measurement | |
Adaptive DRC (Dynamic Range Control) | Yes | |
Initial Volume & Maximum Volume Setting | Yes | |
A.R.T. Wedge | Yes | |
Bi-amp capability | Yes | |
Audio Delay | Yes (0-500 ms) | |
192kHz/24-bit DACs for all channels | Yes (Burr-Brown) | |
High-resolution Music Enhancer | Yes | |
Video Features | HDMI 3D passthrough | Yes |
HDMI Audio Return Channel | Yes | |
Component upconversion | Yes | |
HDMI upscaling | Yes (analog to HDMI / HDMI to HDMI) | |
Video adjustment | Yes with variable parameters | |
Deep Color/x.v.Color/24Hz Refresh Rate /Auto Lip-Sync | Yes | |
4K Pass-through & 4K Upscaling | Yes | |

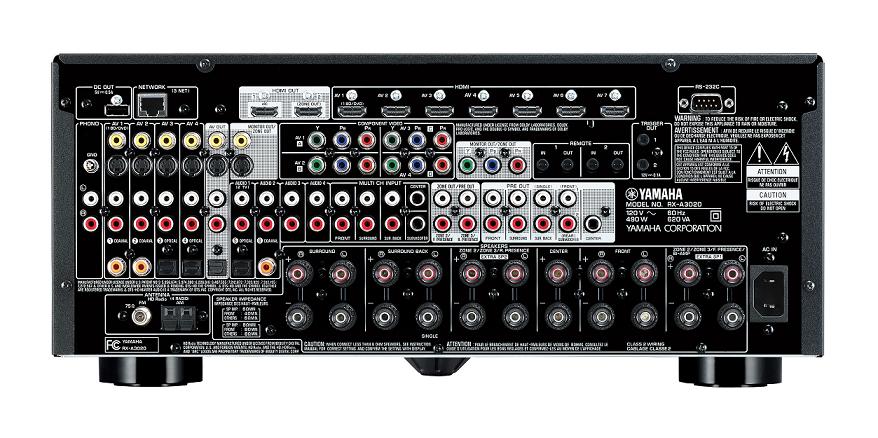

Extensive Connection | HDMI Input/Output | 8 (1 front) / 2 (assignable for zone) |
HDMI CEC | Yes (SCENE, device control) | |
USB Input | iPod/iPhone/iPad, USB memory, portable audio player | |
Network Port | Access to vTuner Internet Radio service and DLNA 1.5 compatible | |
Front AV Input | HDMI, USB, analog audio, optical, composite | |
Digital Audio Input/Output: Optical | 4 (1 front) / 1 | |
Digital Audio Input/Output: Coaxial | 3 / 0 | |
Analog Audio Input/Output | 10 (1 front) / 1 | |
Phono Input | Yes | |
Component Video Input/Output | 4 / 1 | |
S-Video Input/Output | 4 / 1 | |
Composite Video Input/Output | 5 (1 front) / 1 | |
Multi-Channel Input | 8ch | |
Preout | 11.2ch | |
Headphone Output | 1 | |
Connectivity | AirPlay | Yes |
Tuner Section | FM/AM Tuner | Yes |
HD Radio Compatibility | Yes | |
User Interface | On-screen display | Advanced graphical user interface with Status Bar |
SCENE | SCENE PLUS (12 sets) | |
App Control | Yes (iPhone/iPad, Android phone/tablet, Kindle Fire) | |
Web Browser Control | Yes | |
Remote Control Unit | Yes (preset, learning, macro, full LED backlight) | |
Zone Control | Zone HDMI | Yes |
Zone 2 Audio Output | Preout | |
Zone 3 Audio Output | Preout | |
Zone 4 Audio Output | HDMI | |
Powered Zone | Zone 2/3 | |
Zone Video Output | HDMI, component, S-Video, composite | |
Zone GUI | Yes | |
RS-232C Interface | Yes | |
+12V Trigger Output | 2 | |
Remote (IR) Input/Output | 2 / 2 | |
Party Mode | Yes | |
General | ECO mode | Yes |
Standby Power Consumption (IR only) | ≤0.3W (typical) | |
Auto Power Down | Yes | |
Dimensions (W x H x D) | 17-1/8” x 7-1/2” x 18-3/8” | |
Weight | 40.1 lbs. | |
Shipping Dimensions (W x H x D) | 21-3/8" x 11-3/4" x 22-1/2" | |
Shipping Weight (lbs.) | 47.4 lbs. |
Detachable Power Cord | Yes | |
---|---|---|
Front Panel | Aluminum front panel |
