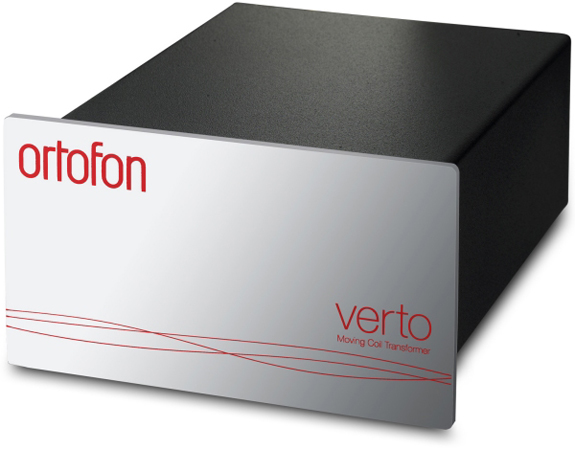

Ortofon Verto Moving Coil transformer

---

The Ortofon Verto MC transformer reserved for only the most discerning audiophiles and music lovers

The Verto, not unlike its predecessors, takes an unrelenting approach to audio reproduction by combining the finest components available along with world class engineering, for unparalleled sound reproduction.

Exeptional quality of Ortofon Verto

Starting with exceptional quality Lundahl™ transformers, surrounded by a specialized mu-metal shielding, listeners can be assured that each detail in a complex array of notes is reproduced with utter purity, with freedom from internal and external sources of interference.

These two items combined make the Verto transformer one of the quietest, most revealing transformers ever offered to the audiophile market.

Featuring dual mono design, the Verto provides discrete circuitry for each channel, resulting in the elimination of crosstalk and possible distortions.  This results in cleaner, clearer reproduction with substantially increased stereo imaging.  Regardless of the composition being played, the Verto’s expansive stereo separation provides lifelike realism, and accurate tonal balance devoid of coloration.

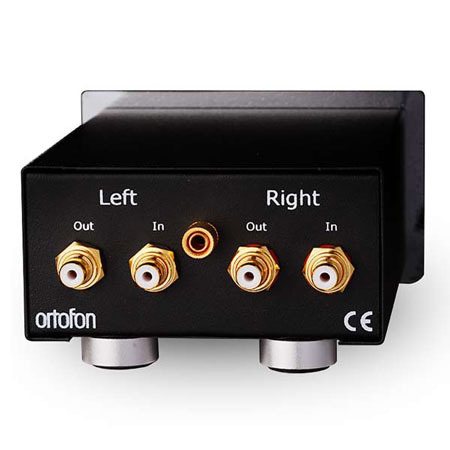

To further minimize signal degradation and maximize signal flow, the Verto has been engineered using high quality industrial grade PCB. Additionally, gold plated RCA jacks with Teflon insulation provide optimal conductivity for use with high quality interconnects.  Internally, the unit is assembled with an absolute bare minimum of internal wiring, preserving absolute signal integrity.

Verto maintains compatibility with most Moving Coil cartridges, with internal jumpers offering two gain/impedance options. This affords audiophiles with broad flexibility while still maintaining a clean aesthetic.

Technical data Configuration A:

Recommended cartridge impedance 5-50 Ohm
Gain 24dB at 1kHz
Frequency response 10 Hz - 100 kHz ± 1 dB

Technical data Configuration B:

Recommended cartridge impedance < 10 Ohm
Gain 30dB at 1kHz
Frequency response 10 Hz - 80 kHz ± 1 dB
Gain and frequency responce at recommended load 47 kOhm / 200 pF
Dimensions 75 X 125 X 170 mm
Recommended load 47 Kohm // 200 pF
