Ο Ground Zero GZHA Mini DSP ειναι πεντακαναλος ενισχυτης αυτοκινητου (5 channels car amplifier), class-D, ισχυος 4x 75 wrms 1x 190 wrms στα 4Ω. Εισοδοι: RCA και High Level In. Διαθετει high pass, low pass filters. Διαθετει ενσωματωμενο DSP 8 καναλιων.

Εγγυηση Αντιπροσωπειας. Δυνατοτητα δοσεων.

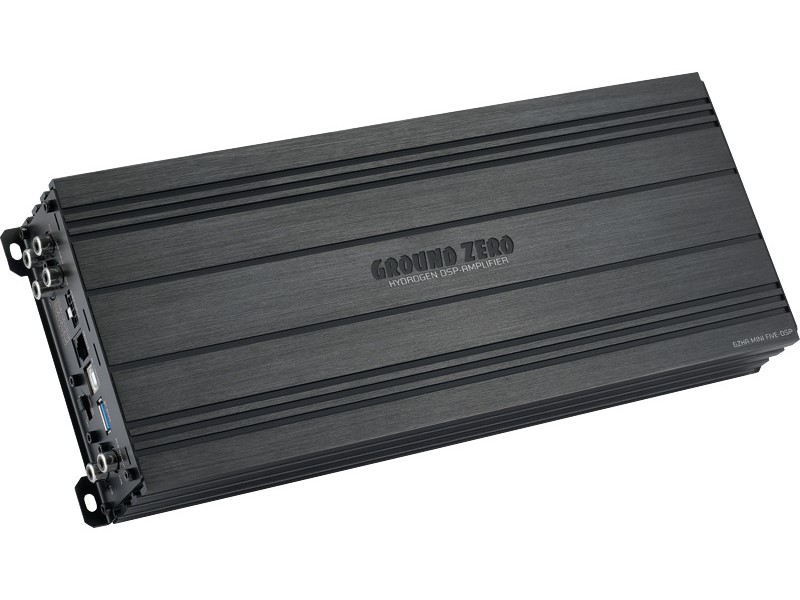

Ground Zero GZHA Mini DSP: Highly efficient 5-channel Class D amplifier with 8-channel DSP

Features

• 2 ohm stable (channels 1-4)
• 1 ohm stable (subwoofer channel)

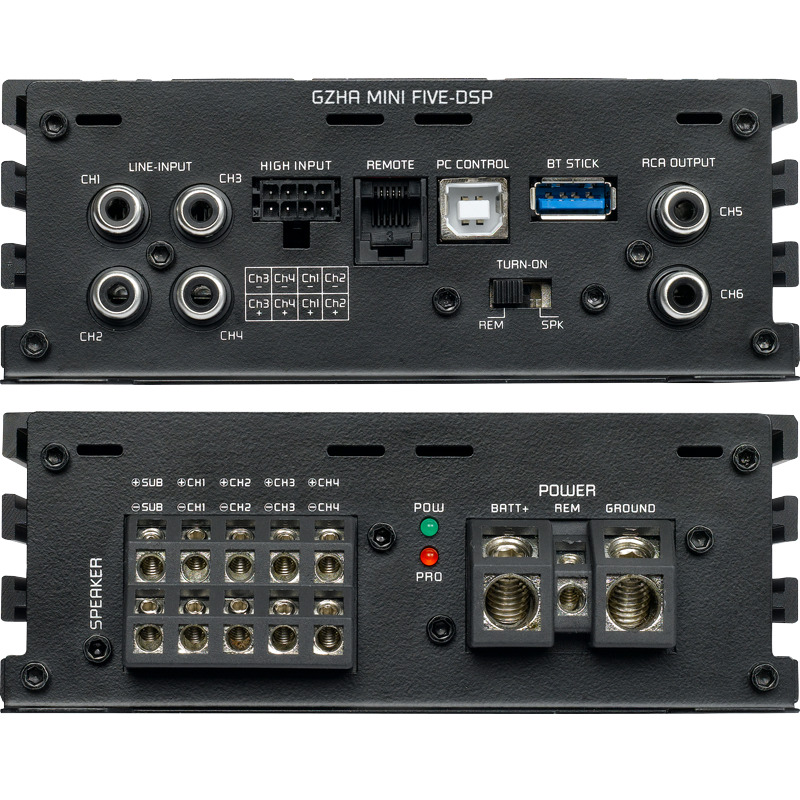

• 2x stereo RCA & 4-channel high level input / stereo RCA output
• Auto-on function (when using the high level input)
• Thermal / short circuit and overload protection circuit
• Digital Sound Processor (DSP)
• Simple real-time operation of all functions (via PC or APP*)
• Clear PC software (Windows ® compatible)
• Channel-separated, parametric equalizer (8x 10-band)
• Channel-separate runtime correction (0-8 ms / 0-272 cm)
• Adjustable frequency crossover (HPF/LPF/BPF in the range 20 Hz – 20 kHz)
• Selectable crossover slope (6-24 dB/oct.)
• 3 filter variants (Butterworth/Bessel/Linkwitz-Riley)
• Selectable phase correction per channel (0° or 180°)
• 6 memory locations for individual settings
• Optional wired remote control GZDSP REM 4-8XII(-S)
• Optional adapter GZDSP BTS 4-8XII for wireless music transmission

Specifications

• Type 5-channel Class D amplifier with integrated 8-channel DSP
• RMS power @ 4 Ω (channel 1-4) based on the CEA standard (CEA-2006-A) 4 x 75 W (1% THD+N)
• RMS power @ 2 Ω (channel 1-4) based on the CEA standard (CEA-2006-A) 4 x 125 W (1% THD+N)
• RMS power @ 4/2/1 Ω (subwoofer channel) based on the CEA standard (CEA-2006-A) 190/320/500 W (1% THD+N), 600 W @ 1 Ω (10% THD+N )
• Damping factor > 100
• Frequency response 20Hz - 20kHz
• Input sensitivity (RCA) 300 mV – 1.0 V
• Wired level remote control available separately
• Fuse(s) 2x 40A (internal)
• Dimensions W x H x L (mm) 135 x 52 x 322

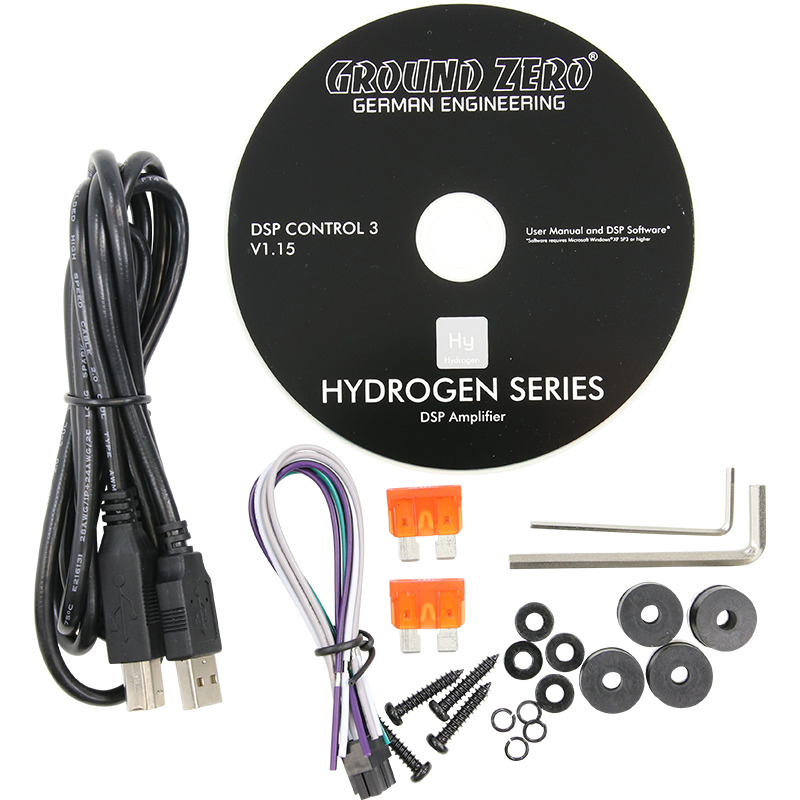

Supplied accessories:

• 1 x USB cable (A to B male)
• 1x cable set for high level input
• 1 x CD-ROM (software & driver) compatible with Microsoft Windows ® XP SP3, Vista, 7, 8, 8.1 and 10
• 2 x instructions (German/English)
• 1 x Mounting Kit

Available separately as an accessory

• *GZDSP BTS 4-8XII adapter for wireless music transmission and use of the APP (USB dongle)
• GZDSP REM 4-8XII(-S) wired remote control
