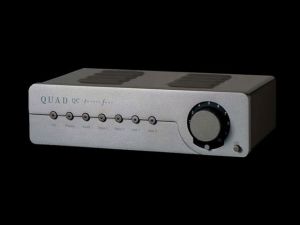

For the analogue purist, the combination of a good valve amplifier and a good turntable is the closest possible approach to the original recording. There are two options for adding such functionality to our valve pre-amplifiers. A solid-state module is available for the standard QC-twenty four pre-amplifier (known as the QC-24 phono stage), which allows direct connection of a turntable with an internal switch to change between moving coil and moving magnet cartridges. This can be fitted as standard or added later.
Inputs (line level)t | 5 |
Inputs (buffered tape loops) | 2 |
Valve complement | 1 x 6111 twin triode |
Total Harmonic Distortion (THD) @1 VRMS | <0.2% |
0.02%@1W | |
Frequency Response | 5Hz to 50kHz (+0/-0.5dB) |
Hum and Noise | >-80dB |
Line stage gain | 15dB |
Recommended minimum load | 50k ohms |
Dimensions (H x W x D) | 90 x 220 x 300mm |
Phono stage | Optional |
