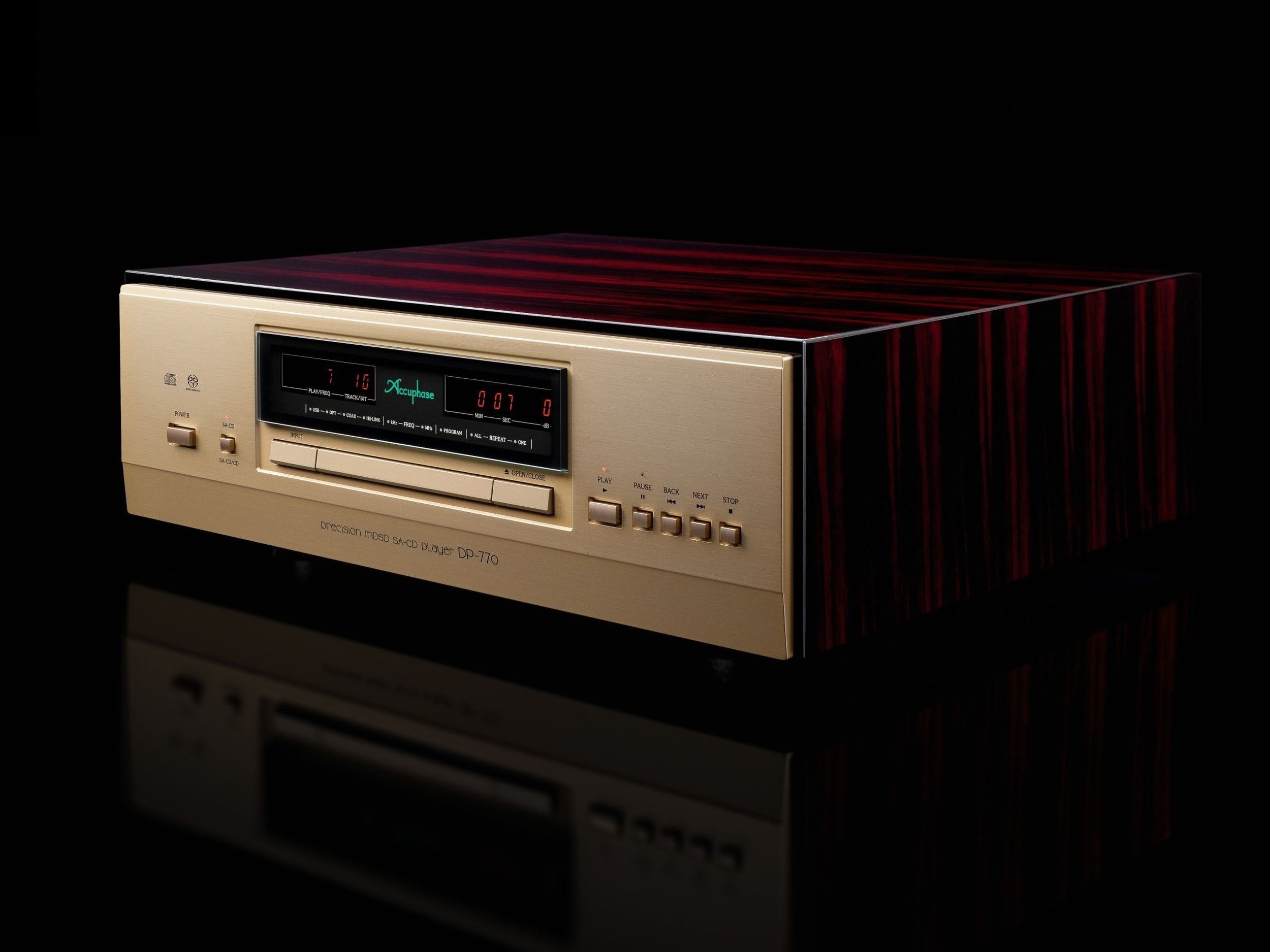

Το Accuphase DP-770 ειναι CD, SACD player. Λειτουργει και ως DAC με θυρες: 1x Coaxial, 1x Optical και 1x USB.

Εγγυηση Αντιπροσωπειας. Δυνατοτητα δοσεων, ανταλλαγων.

The high rigidity, high precision drive traverse mechanism equipped with an outer rotor brushless DC motor drive rotates discs smoothly and delivers accurate data reading, while the 8MDSD (DSD signal) / 8MDS++ (PCM signal) type D/A converter driving the ES9028 PRO (ESS Technologies) processor in 8 parallel channels converts the inputs into highly precise analog signals. The DP-770 also incorporates numerous noise suppression technologies like ANCC* to create an unparalleled musical experience.

Features

• High-rigidity, high-precision aluminum machined SA-CD/CD drive with low center of gravity
• MDSD/MDS++ D/A converter driving 8 parallel channels using ANCC
• Programmable playlists so that you can enjoy your music in the order you want
• Data disc playback
• Direct Balanced Filter with completely separate line and balanced signals
• Display with sampling frequency and number of quantization bits

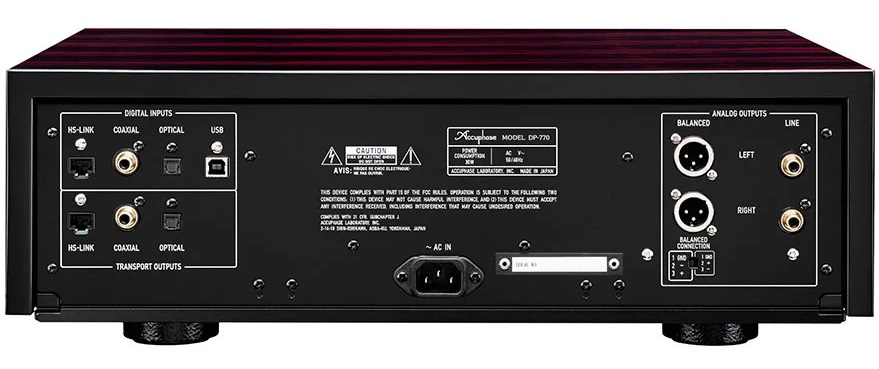

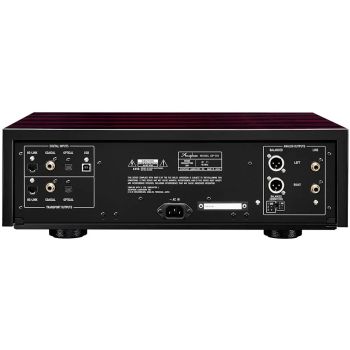

• Abundant transport outputs and digital inputs
• Digital connections to an Accuphase Voicing Equalizer
• Balanced output phase selector

Specifications

• Compatible Disc Formats: 2-channel Super Audio CD, CD, DSD disc DVD-R/-RW/+R/+RW (DSF file format), Data disc CD-R/-RW, DVD-R/-RW/+R/+RW (Supported formats: WAV, FLAC, DSF, DSDIFF)
• Data Read Principle: Non-contact optical pickup
• Laser Diode Wavelength: SA-CD-655 nm, CD-790 nm
• D/A Converter: CD playback and external input (PCM) – 8 MDS++ type, SA-CD playback and external input (DSD) – 8 MDSD type
• Frequency Response: 0.5 to 50,000 Hz +0, –3.0 dB
• THD + Noise: 0.0004% (20 to 20,000 Hz)
• Signal-to-Noise Ratio: 121 dB
• Dynamic Range: 119 dB
• Channel Separation: 118 dB (20 to 20,000 Hz)
• Output Voltage: BALANCED – 2.5 V 50 ohms, balanced XLR type, LINE – 2.5 V 50 ohms, RCA phono jack
• Output Level Control:  0 dB to –80 dB in 1-dB steps (digital)
• Power Requirements: 230 V AC, 50/60 Hz
• Power Consumption: 30 W
• Maximum Dimensions: Width 477 mm Height 156 mm Depth 394 mm
• Weight: 28.5 kg
