Το Gold Note DS-10 EVO ειναι PCM/DSD dac 32bit/768kHz. Διαθετει WiFi, Bluetooth. Ειναι Roon ready, Tidal coonect.

Εγγυηση Αντιπροσωπειας. Δυνατοτητα δοσεων.

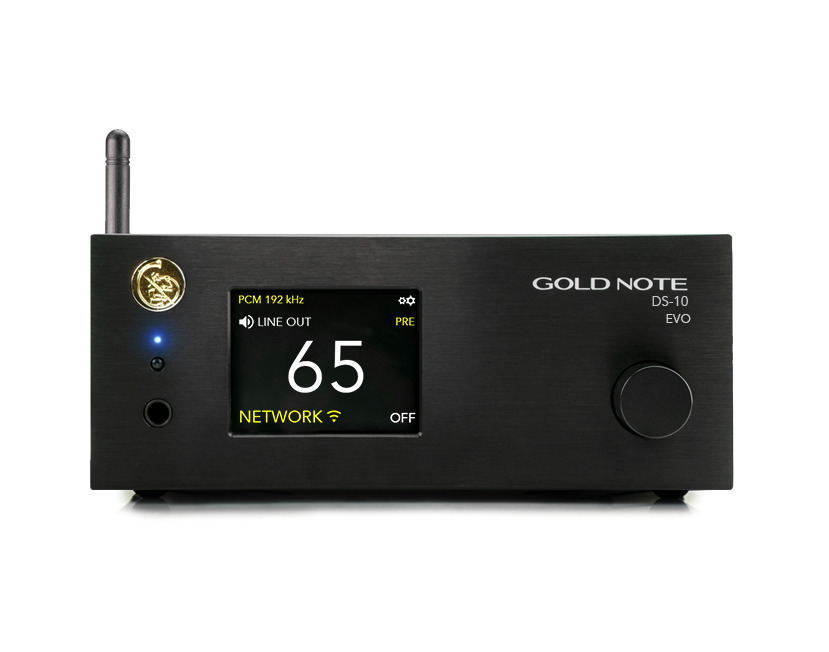

The Gold Note DS-10 EVO is a versatile state-of-the-art streaming DAC, featuring a D/A converter with a cutting-edge streamer, a line preamplifier and a headphone amplifier. In addition to the already complete connectivity, it also features high-definition Bluetooth and audiophile headphone output. The DS-10 EVO supports high-resolution files, such as MQA and DSD (up to DSD512), providing the best audio quality to enjoy your favourite songs. The technology of the DS-10 is enclosed in a compact-sized ultra-rigid aluminium chassis, which makes it the perfect addition to a modern High-End audio system.

The Gold Note DS-10 EVO is equipped with an on/off switchable High-End Analogue Preamp stage to enable the control of the analogue volume using the remote, the SKC or the app GN Control, ensuring the best performance ever. The DS-10 EVO also features a professional 6.3mm headphones output with two sensitivity levels (High/Low), a proprietary technology Gold Note developed to get the best out of your headphones. With the additional analogue input, the LINE model becomes the perfect integration between the Gold Note PH-10 phono stage and the PA-10 power amplifier.

With the Gold Note DS-10 EVO, you can stream through Roon, Airplay, Tidal, MQA, Qobuz, Spotify, vTuner, and Deezer or access your collection of digital music stored locally on a NAS or a USB flash drive, controlling the device with our easy-to-use GN Control App on your smartphone or tablet (available for free on iOS and Android). In addition the DS-10 EVO, thanks to the implementation of Tidal Connect, you will be also able to stream directly from Tidal. A fully Roon Ready streamer, the DS-10 EVO is also compatible with all UPnP/DLNA services, and Airplay 2.0. Simply connect it to your network using the Wi-Fi or the Ethernet port and to your power amplifier or active speakers, and get ready to explore the limitless possibilities of high-resolution music.

Specifications

• D/A Converter: AKM AK4493 PCM (32bit/768kHz, DSD512)
• Frequency response: 20Hz-20kHz +/-0.1dB
• THD (Total Harmonic Distortion): 0.001% max
• Signal to Noise ratio: 125dB
• Dynamic range: 120dB
• Output impedance: 50Ω
• Preamp Stage Volume Control: enabled/disabled

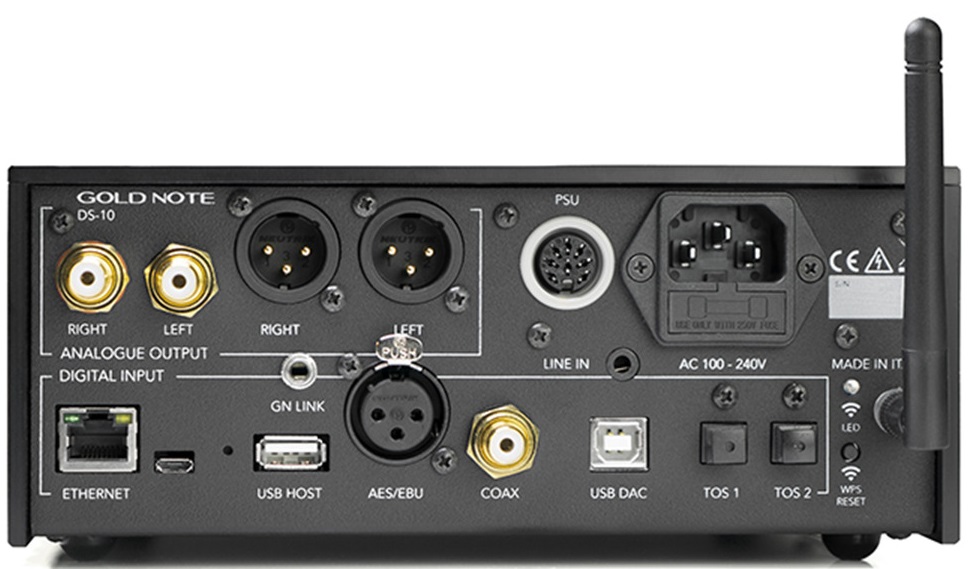

• Digital Inputs: 1x RCA coaxial PCM asynchronous up to 24bit/192kHz
• 2x TOS-optical PCM asynchronous up to 24bit/192kHz
• 1x AES/EBU XLR PCM asynchronous up to 24bit/192kHz
• 1x USB-A port DSD256 and PCM up to 32bit/384kHz, formatted in FAT32/NTFS (32Gb max for pen drives)
• 1x USB-B asynchronous up to DSD512 and PCM up to 32bit/384kHz
• 1x Network (LAN/WLAN) DSD256 and PCM up to 32bit/384kHz
• Analogue Input: 3.5mm mini jack ((input impedance 10kΩ) Line Version Only)
• Audio Outputs: DAC: 1 RCA @ 2Vrms, 1 XLR @ 2Vrms
• PREAMP: 1 RCA, 1 XLR; 1 headphone output with 6,3mm jack
• Power supply: 100-240V, 50/60Hz
• Multiple Transformer proprietary power supply
• Power consumption: 35W
• Fuse: 2A F
• Network Connectivity: LAN/WLAN (WiFi) 10/433Mbps 802.11a/b/g/n/ac Dual Band
• Bluetooth: High Definition 5.0 (44/16)
• High Quality Streaming: Tidal, Qobuz, MQA, vTuner, Deezer, Spotify Connect, Airplay, Roon Ready, Tidal Connect
• SUPPORTED AUDIO FORMATS (NETWORK): Up to PCM 32bit/384kHz
• DSD256: DSF, DFF, AIFF (.aif, .aiff, .aifc), ALAC, WAV (.wav) packed/unpacked, FLAC, MP3, Apple Lossless, OGG, Monkey’s
• IMPORTANT: UPnP server must support DSD streaming in order to stream DSD files.
• SUPPORTED MEDIA SERVERS: all UPnP / DLNA / Roon
• DIMENSIONS: 200mm W, 80mm H, 260mm D
• WEIGHT: 4kg net, 5Kg boxed
