Το Hegel D50 ειναι Dac PCM 24bit/192kHz και σε DSD 32bit/384kHz. Διαθετει εισοδους 1x USB-B, 1x AES/EBU, 1x BNC, 1x Coaxial, 2x Optical. Εξοδοι 1xRCA, 1X XLR.

Εγγυηση Αντιπροσωπειας. Δυνατοτητα ανταλλαγων,δοσεων.

At Hegel, we approach circuit board design with meticulous attention to detail, ensuring the best possible performance. In the D50, even the routing features rounded corners to minimize impedance drops and reduce radiation, reflecting our commitment to precision. However, the real innovation lies in how the D50 processes incoming digital signals before converting them to analog. The AES/EBU input features a unique RS422 receiver balanced by a transformer, allowing it to handle both weak and strong signals flawlessly, free of jitter and time delays.

The DAC chip itself is thoughtfully perched on a separate board above the rest of the electronics. This elevated placement reduces noise and interference while providing short and unobstructed signal paths. With the D50, every aspect of the design has been carefully engineered to ensure that the signal remains as true to the original as possible. The result is an unaltered and breathtakingly accurate translation from digital to analog.

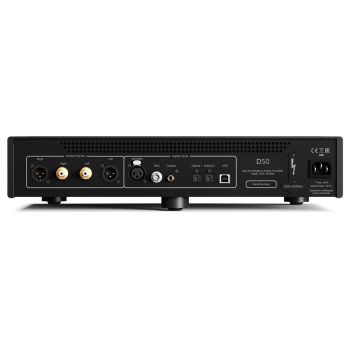

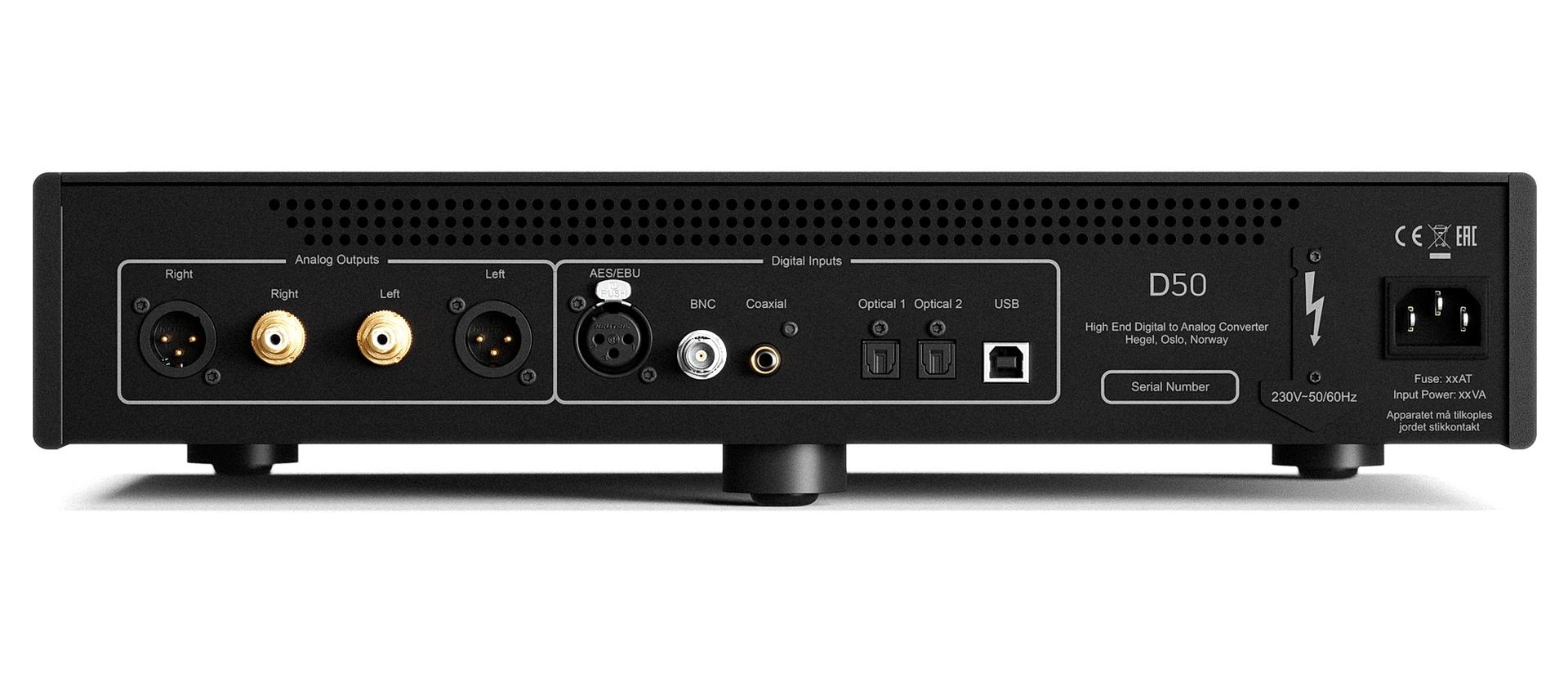

The D50 offers every connection you might need, accommodating USB, optical, coaxial RCA, coaxial BNC, and AES/EBU inputs. On the output side, it features true balanced analog and single-ended RCA connections, giving you the flexibility to suit any system. The D50's versatile inputs and outputs make it a perfect fit for any audio environment.

Features

• Input sense
• Display dimming
• MQA 8x
• Up to 32 bit/384 kHz
• DSD 256 (DoP)

Specifications

• Digital inputs:
  • 1 x AES/EBU S/PDIF, 24/192, DSD64(DoP), MQA 8x
  • 1 x Coaxial (BNC) S/PDIF, 24/192, DSD64(DoP), MQA 8x
  • 1 x Coaxial (RCA) S/PDIF, 24/192, DSD64(DoP), MQA 8x
  • 2 x Optical S/PDIF, 24/96, MQA 8x
  • 1 x USB 32/384, DSD256(DoP), MQA 8x
• Line level outputs:
  • 1 x Unbalanced fixed (RCA), 2.5 V
  • 1 x Balanced fixed (XLR), 2.5 V
• Analog bandwidth: More than 0 Hz - 100 kHz
• Signal-to-noise ratio: More than 100 dB
• Noise floor: Typically -150 dB
• Distortion: Less than 0.0002 %
• Power use in standby: Less than 0.5 W
• Power use when on: Less than 20 W
• Dimensions/weight: 43 x 30.5 x 9.9 cm (WxDxH), 6.6 kg
