Η Audio-Technica AT-OC9XEΒ ειναι κεφαλη κινητου πηνιου (Dual Moving Coil) με ελλειπτικη βελονα. Εξοδος 0.32mV
Features

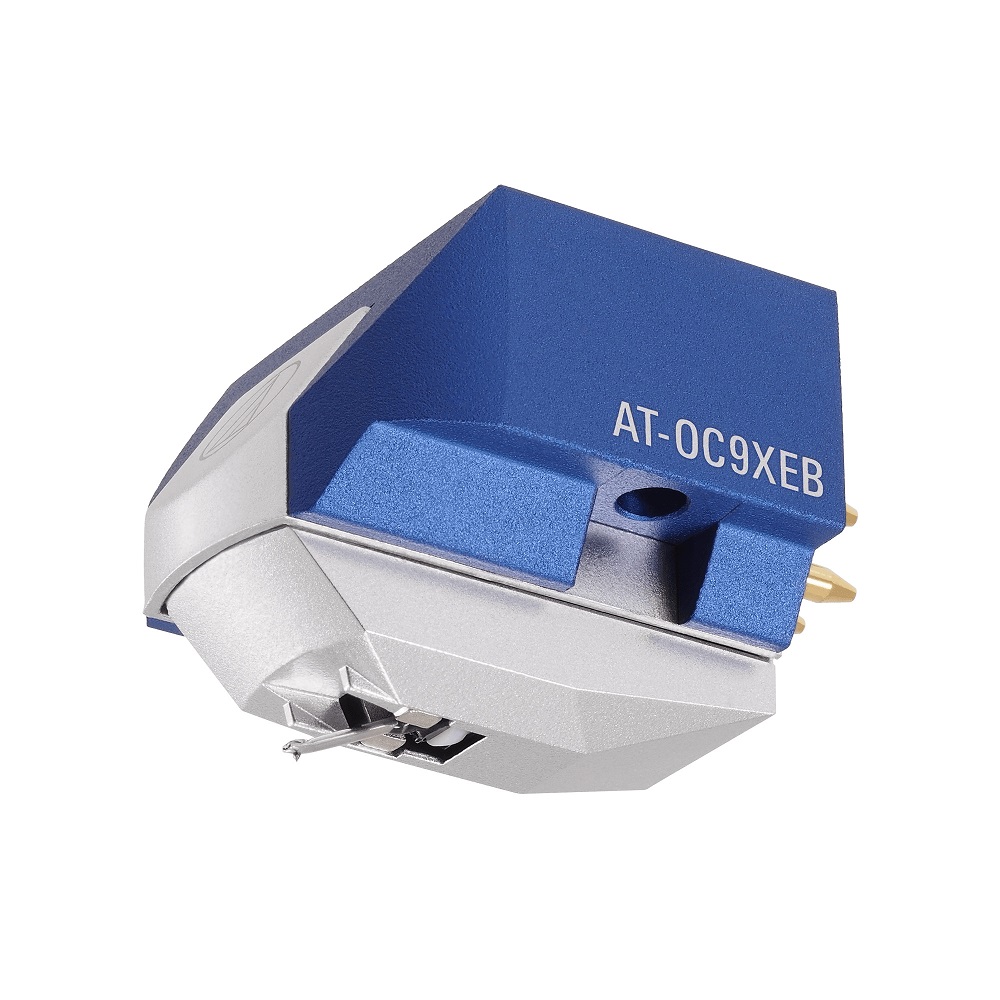

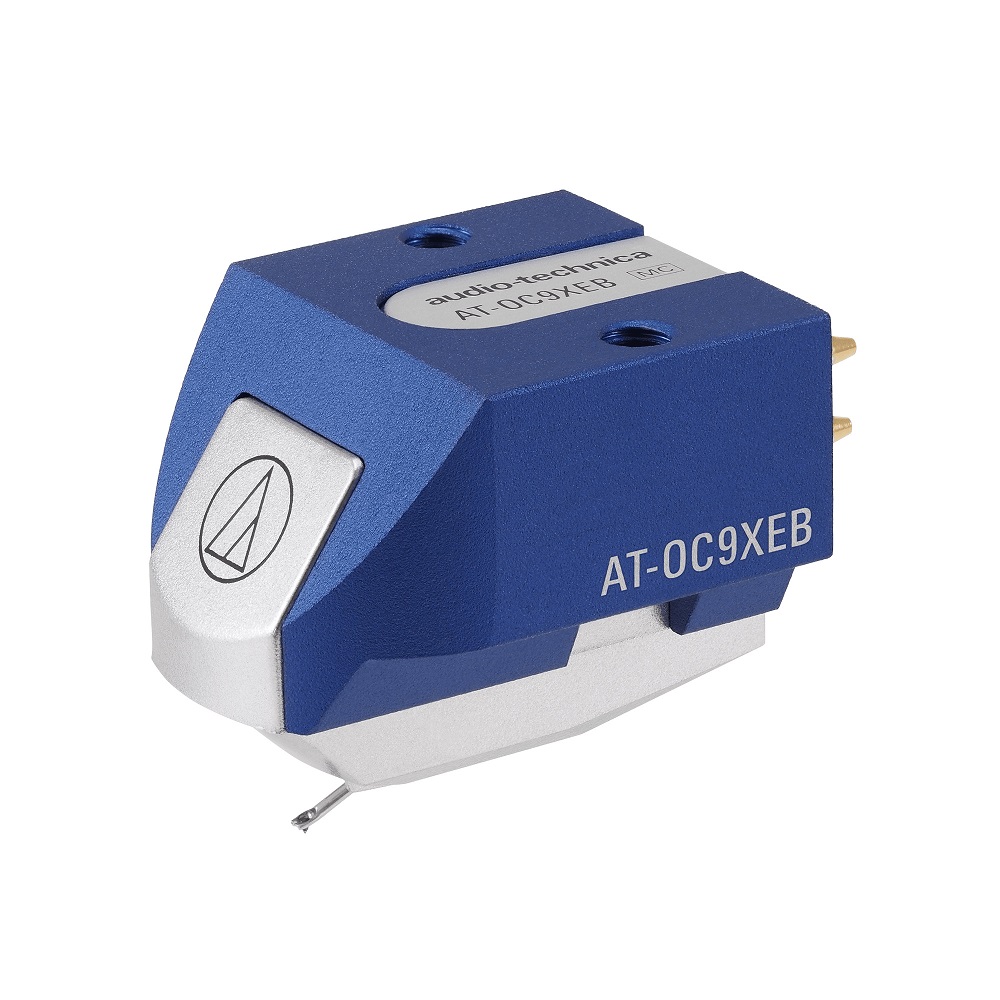

The AT-OC9XEB Dual Moving Coil cartridge with bonded elliptical stylus is designed to provide outstanding channel separation. The Pure Copper by Ohno Continuous Casting (PCOCC) coils ensure pure audio transmission and are aligned in a reverse V-shaped formation to exert less pressure on the stylus, thereby minimizing distortion. Audio quality is further enhanced by a rigid aluminum body that reduces resonance, a neodymium magnet and pure iron yoke that increase the magnetic energy, and the bonded elliptical stylus on an aluminum cantilever that accurately tracks the record groove. The cartridge body has been pre-threaded, enabling it to be mounted to a headshell or integral tonearm with just two screws – no nuts required.
Specifications
- Frequency Response 20 - 30,000 Hz
- Channel Separation 25 dB (1 kHz)
- Vertical Tracking Angle 20 degrees
- Vertical Tracking Force 1.8 to 2.2 g (standard 2.0 g)
- Stylus Construction Bonded round shank
- Recommended Load Impedance Min 100 Ohms
- Coil Impedance 12 Ohms (1 kHz)
- DC Resistance 12 Ohms
- Coil Inductance 25 μH (1 kHz)
- Output Voltage 0.32 mV (@ 1 kHz, 5 cm/sec)
- Output Channel Balance 1.5 dB (1 kHz)
- Stylus Shape Elliptical Bonded
- Cantilever Aluminium pipe
- Static Compliance 20 x 10 – 6 cm / dyne
- Dynamic Compliance 9 x 10 – 6 cm / dyne (100 Hz)
- Mounting 1/2” centers / Threaded inserts
- Dimensions 17.3 (H) x 16.8 (W) x 25.7 (L) mm
- Accessories Included 1 non magnetic screw driver,
- 1 brush; 2 washers,
- 4 pairs of mounting screws: 5mm, 8mm, 10mm, 12mm
- 1 plastic protector
- Body Material Aluminium
- Model AT-OC9XEB
- Stylus Size 0.3 x 0.7 mil
- Terminal Pins Brass
- Weight 7.6 g
- Wire Used for Coil PCOCC (Copper by Ohno Continuous Casting process.)
