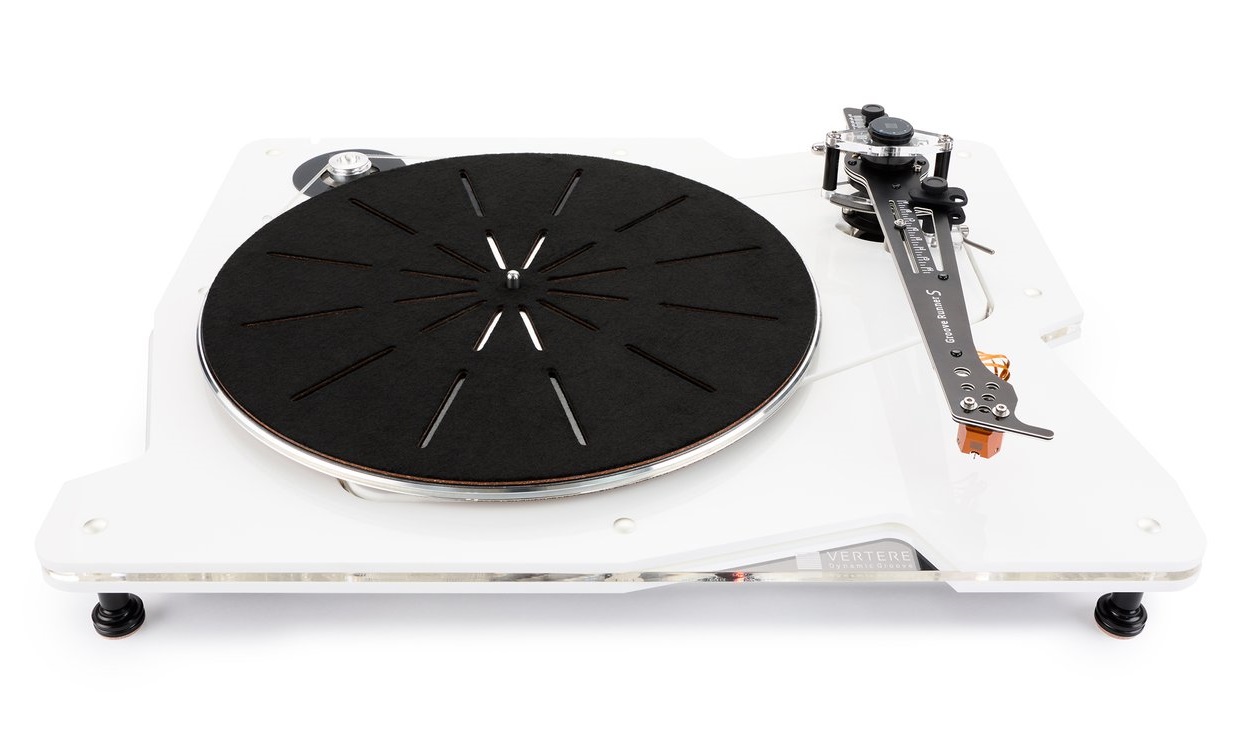

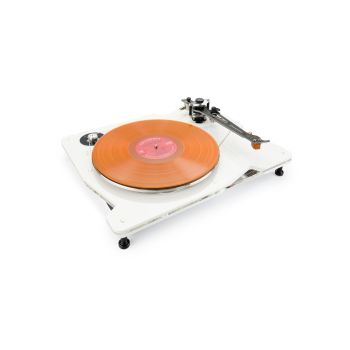

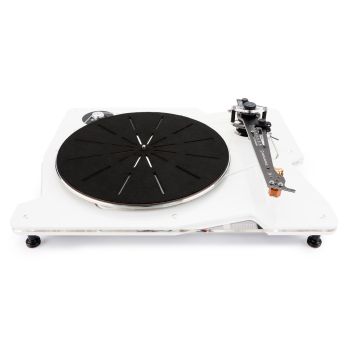

Το πικαπ Vertere DG-1S περιλαμβανει με τον βραχιονα (Vertere Groover Runner S). Η κινηση δινεται στο μοτερ μεσω υλικολογισμικου που αναγεννα το ρευμα ετσι ωστε να μην παρουσιαζεται οποιαδηποτε ανωμαλια στην περιστροφη του. Διαθεσιμο σε Black Gloss ή White Closs. Δυναται να παραγγελθει με τοποθετημενη εργοστασιακα την κεφαλη Magneto ή Sabre ή το Red Line Pack σκετο ή με οποιοδηποτε συνδυασμο κεφαλων.

Το Red Line Pack περιλαμβανει: Stylus Balance, Technomat, Iso-Paws, Red Line Interconnect Cable.

Εγγυηση Αντιπροσωπειας. Δυνατοτητα ανταλλαγων, δοσεων.

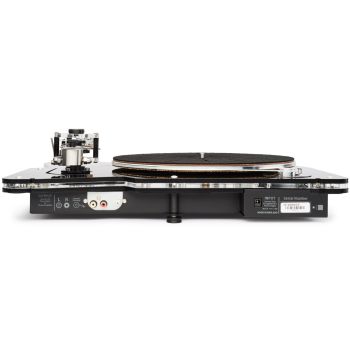

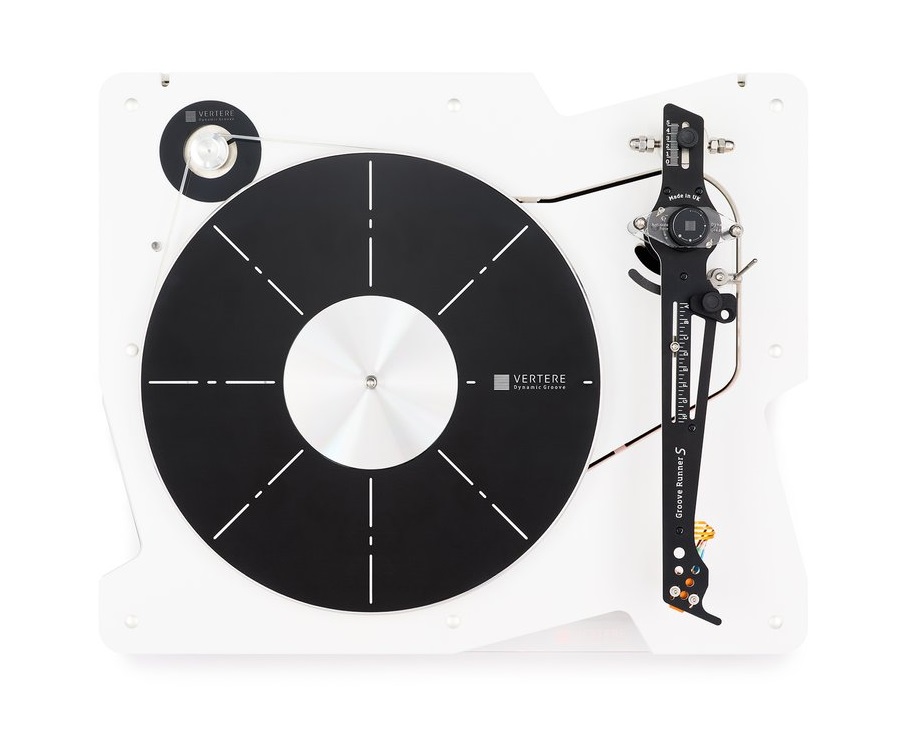

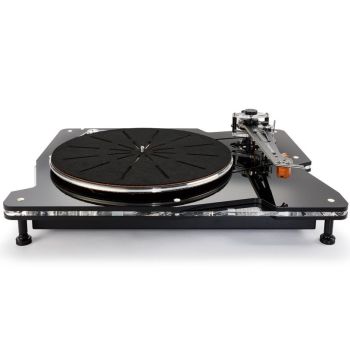

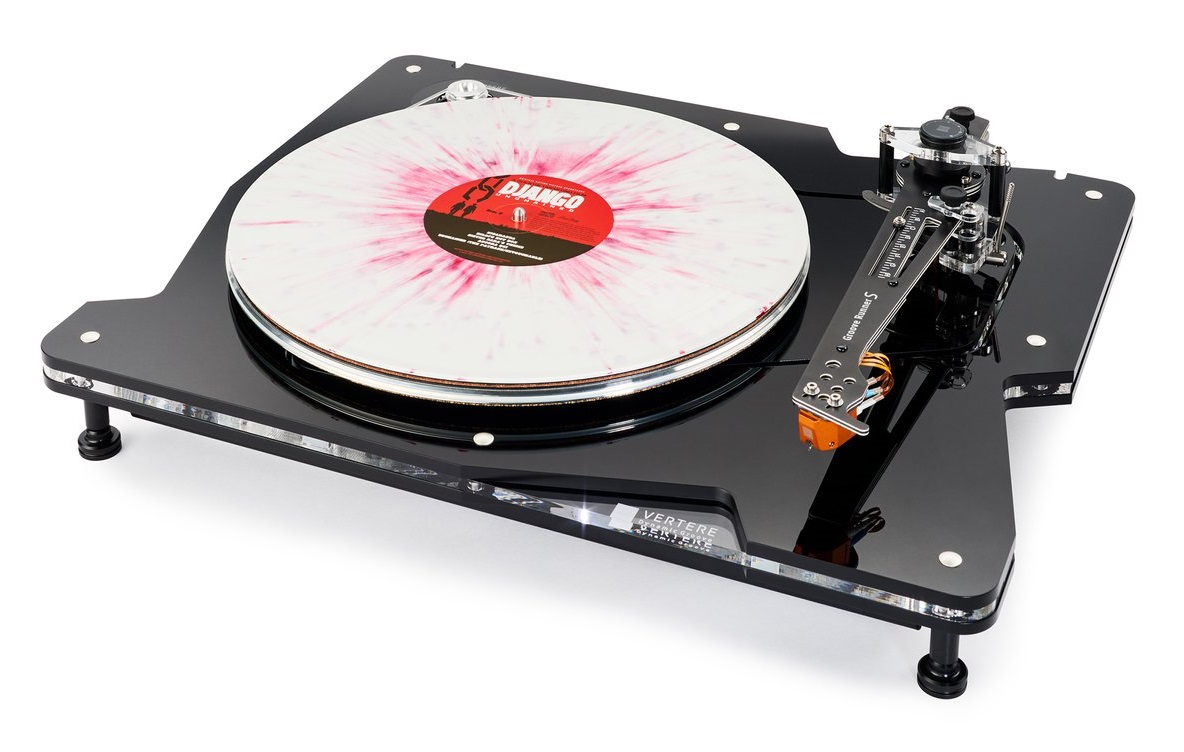

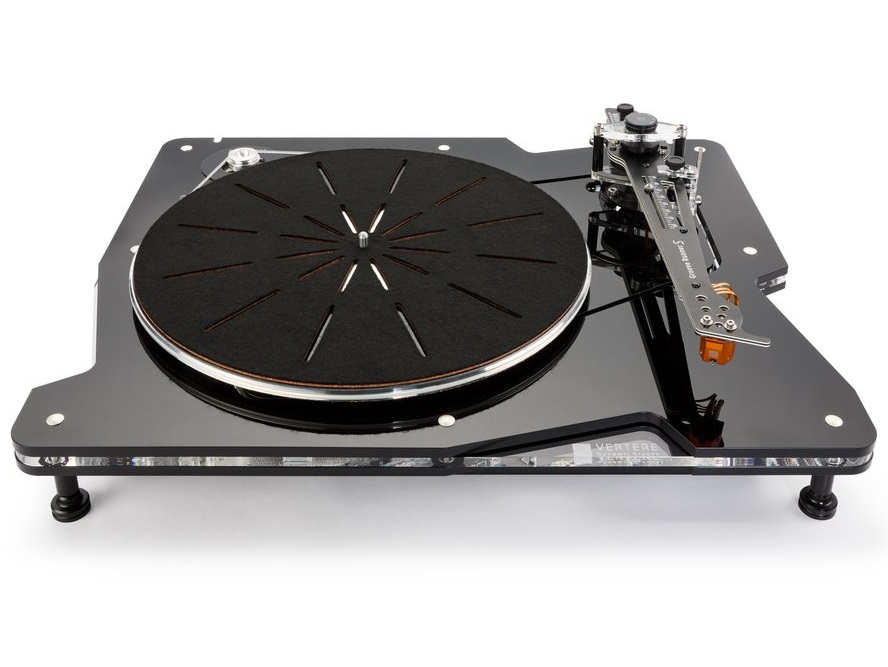

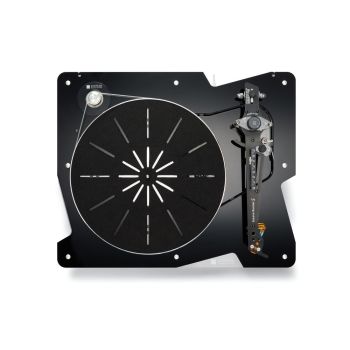

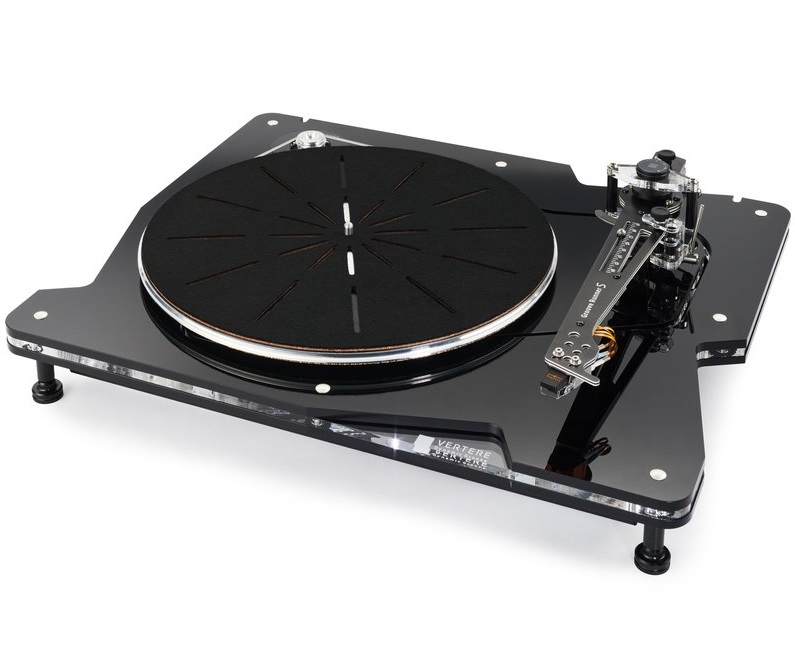

Vertere DG-1S Dynamic Groove Record Player
Our award-winning DG-1 just got better. The new DG-1S   delivers higher resolution replay, greater dynamic contrasts, improved stereo separation with greater precision while at the same time keeping the musicality the DG-1 is known for.

Features

Improved platter bearing
The precision machining and polishing operations have a higher tolerance with the variation halved statistically. The super smooth finish bore with the precision Tungsten Carbide interference fit ball delivers lower noise, lower rumble, a lower effort for the motor and less rotational variability.

Groove Runner S tonearm
The arm beam is now constructed from a five-layer polymer laminate bonded to a second five-layer polymer laminate. The PCB flex signal carrier is bonded in-between the two laminates. The profile of the arm and bearing has improved the counterweight/bearing/headshell/cartridge alignment.

Improved tonearm bearings
The Vertical Kevlar thread bearing is now adjustable for tension and azimuth. The Horizontal nylon thread bearing is now fitted with greater precision to ensure even greater consistency.

New Motordrive Software
New Motor Drive software allows separate adjustment in two steps, initially the sine wave voltage and then the cosine wave adjustment at the final stage for the absolute lowest noise and vibration.

Technology

The Motor Drive
In case you thought the motor’s only job was to make sure the record rotates at the correct speed, think again: as the only source of energy for the signal generated by the cartridge, in short the music we hear, it’s arguably the most important component of any record player. The DG-1S’ motor system is derived from that developed for the flagship RG-1 Reference Motor Drive and it is as sophisticated as it is innovative yet it sits hidden away inside the main steel chassis.  DG-1S’ advanced motor drive incorporates a programmable microprocessor with a D/A convertor to provide low distortion sine and cosine waves that are used to turn the motor. The signals generated are then amplified to the correct level using two bridged-balanced amplifiers. The amplified drive signals then feed and control every move of the motor to ensure a linear, smooth turning of the drive pulley. The motor itself is a low voltage Precision Synchronous design, individually ‘tuned’ for the lowest noise by adjusting the microprocessor controls during manufacture. A copper foil and a stainless-steel cover provide shielding of both inward and outward interference to ensure the best possible performance. The result is accuracy and precision of drive to the motor that ultimately is responsible for making of the music. There is a service panel on the underside of the chassis that allows connection to the motor drive PCB for future adjustment and software upgrades.

The Plater
Drive to the platter is via a precision machined aluminium alloy pulley on the motor and a bespoke silicon rubber drive belt for smoothness and durability, while electronic speed change, via a switch to the rear of the plinth top-plate, adds to the ease of use and removes any need for belt-handling. Like the pulley, the platter itself is also precision-machined alloy, to the top of which is bonded a PETG record interface mat. On the underside an aluminium alloy bonded disc controls platter resonance while a cork/Neoprene/nitrile bonded disc protects the acrylic plinth from accidental damage that could be caused by the platter inadvertently touching the plinth.

The Main Bearing
The platter fits onto the super polished stainless-steel spindle that rides on a precision tungsten carbide ball in the high tolerance DG-1S main bearing housing. The complete bearing assembly is long-term lubricated for longevity and ease of use. This avoids regular repeated recharging of the bearing lubricant, which is essential to prevent premature wear and damage – another example of simplifying record player maintenance and optimising performance. The new super polished precision bearing delivers even lower noise, lower rumble and higher rotational stability all essential for accurate playback of.

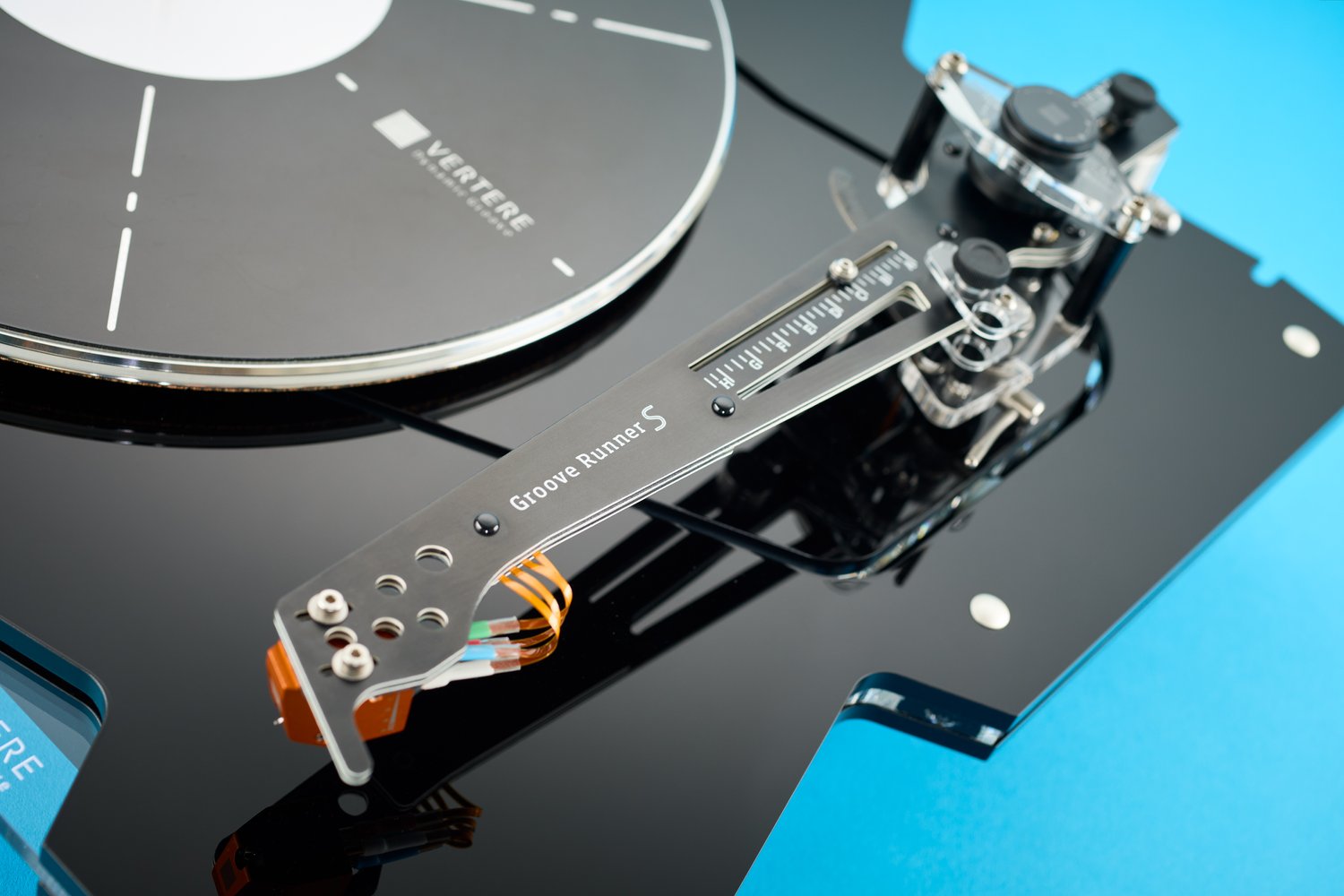

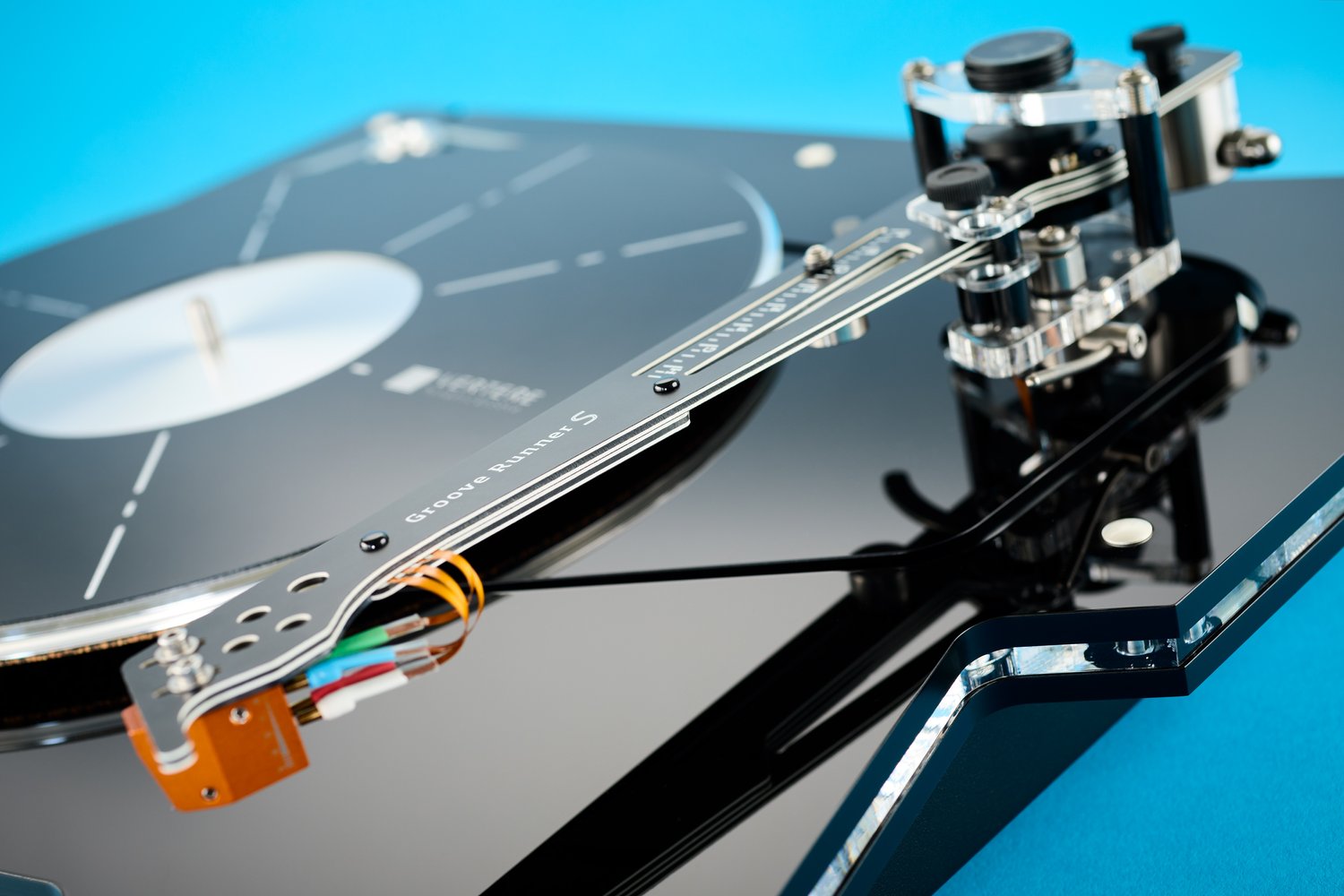

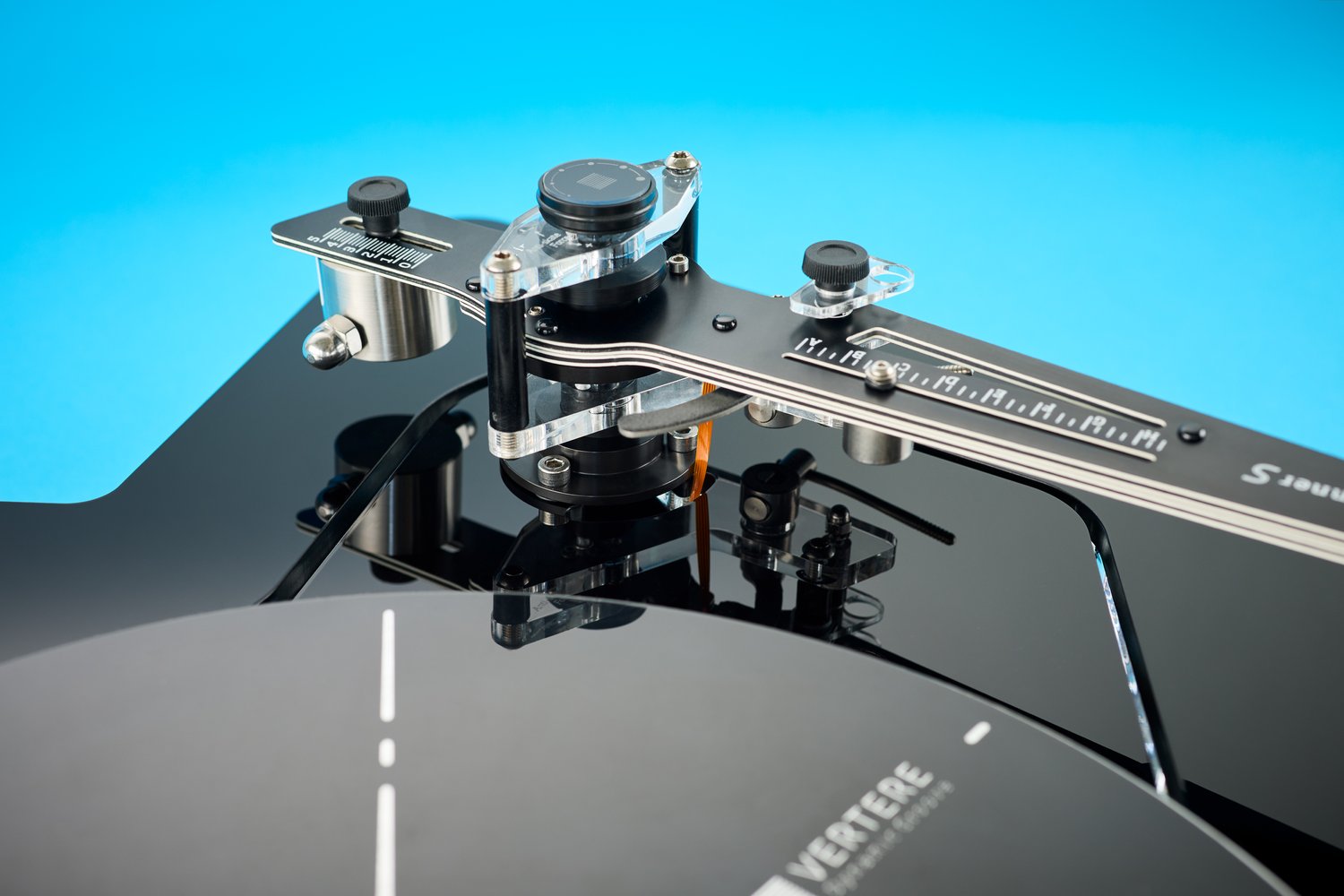

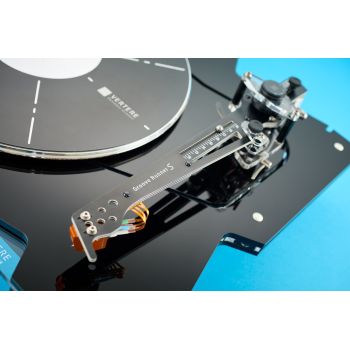

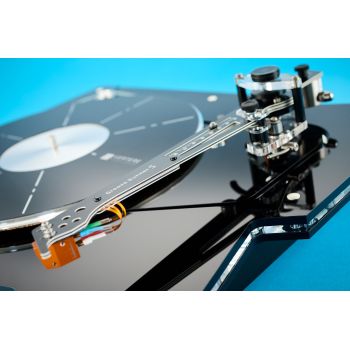

The Groove Runner Tonearm
The DG-1S  arm is uniquely Vertere and differs from conventional thinking in its use of a flat profile in place of the usual tube. Conventional arms use tubes for stiffness, but these can introduce all kinds of problems with high Q resonances and thus the need for extra damping – costly and complicated. The DG-1S' bonded double five-layer, non-resonant tonearm beam avoids these problems. In addition, in place of conventional tonearm cabling, a flexible PCB is sandwiched into the arm to shield and ‘carry’ the signal from the cartridge to the output terminals. Completing the arm are a stainless-steel counterweight with azimuth adjustment screw and a fine adjustment tracking weight, to provide a total solution that's as simple and elegant as it is innovative.

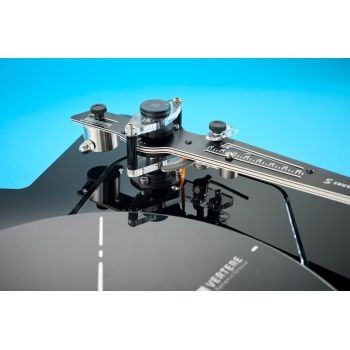

The Siled Thread Bearings
The bearings allowing the arm its horizontal and vertical movement on the Groove Runner are also innovative: there aren’t any – well, not in the conventional sense!

Many solutions have been sought over the years for ‘precise’ bearings, which need to be small and hopefully not too noisy. For the Groove Runner, Vertere has developed an elegant, innovative solution borrowing ideas from the Reference Tonearm: twisted nylon (hundreds of 3 microns thick twined Nylon strands) and high strength Kevlar threads. Utilising one nylon thread for movement in the horizontal plane, and two Kevlar ones for the vertical motion replace the conventionally used ball-race or gimbal type bearings.

These threads have many advantages, not the least of which is simplicity: they exhibit none of the Stiction – or initial resistance to movement – of conventional bearings, are super-light and noiseless. In addition, the twist of the nylon thread smartly provides the anti-skate force without any other moving or sliding part. Finally, design geometry of these bearings cleverly provides the optimum support rigidity for the cartridge during playback to ensure lifelike dynamics that is only achievable from much costlier designs.

The Plinth Structure
Similar to the Groove Runner tonearm the DG-1 plinth is a three-layer sandwich construction using non-resonant cast acrylic to form the main plinth and the sub-plinth – clean and sophisticated. This three-layer design incorporates the control button, the speed indicator and the user-selectable standby mood-lighting, as well as six bespoke silicon rubber suspensions that isolate the sub-plinth from the main plinth and chassis. The sub-plinth isolation effectively ‘distances’ the bearing/platter assembly and the tonearm/cartridge from the main plinth structure. The main plinth assembly sits on a steel chassis, chosen for optimal stability, housing the motor drive circuit and the motor all supported by three adjustable feet.

The DG-1S’  formed polycarbonate dust-cover clips onto its hinges that are neatly integrated into the main plinth for a sleek and modern profile.

Challenger DC Power Supply
Challenger is a performance enhancing dedicated DC power supply for the award-winning DG-1S  Record Player and Tempo Motor Drive. Countless hours of testing and investigative listening has enabled us to provide this astonishing upgrade for the DG-1S record player and the Tempo Motor Drive. Challenger elevates the performance of our worldwide award-winning record players to yet a new peerless level. Challenger is supplied with standard Mains cable or, as Challenger Redline Package, with Redline Mains Cable for further enhanced performance. Redline Mains cable can be fitted with UK, Europe, US, Swiss and Australian plugs to suit.

DG-1S Specifications

• Type Belt drive
• Motor 24 Pole Synchronous Acetal Spindle Thrust Bearing
• Motor Mount Axially De-coupled
• Pulley Super Precision Aluminium Alloy
• Drive Belt Bespoke Silicone Rubber
• Platter DG-1 Precision Machined Aluminium Alloy, PETG Bonded Record Interface Mat, Underside Bonded Resonance Control Disc and Bonded Protective Cork/Neoprene/Nitrile Disc
• Bearing Spindle DG-1 Non Magnetic Stainless Steel Super Precision Machined and Polished
• Roundness / Concentricity < 5 Microns
• Bearing Housing Brass, Super Precision Machined
• Bore Tolerance < 5 Microns, Super Precision Tungsten Carbide Ball
• Plinth Structure 3 Layer Cast Acrylic, Middle Clear Plinth, Internally Illuminated
• Isolation System 6 Point, Bespoke Silicone Rubber
• Support Structure Black Coated Zintec Steel Chassis, Three Adjustable Feet with Resistive Felt
• Motor Drive Advanced Microprocessor Controlled, Fully Programmable with Motor Noise Reduction, Bridged Balanced Motor Output Amplifiers
• Speeds 33.3 and 45 rpm (+/- 0.2%) Electronically Selectable
• Dust Cover Bespoke Formed Tinted Polycarbonate
• Dimensions (W x D x H) 469 x 384 x 130mm (including dust cover)
• Power Supply Wall Adaptor Type UK, US, EU and AUS Exchangeable Plugs 100 – 240 Vac with 1.5m Cord
• Finishes Black and White gloss
• Weights 8kg - Net

Groove Runner S Tonearm Specifications

• Type Fixed Axis Bearing
• Effective Length  240mm
• Overhang  17.5mm
• Offset Angle  22.9°
• Bearing Structure One Twisted Nylon 6.6/6 Thread – Horizontal Motion, Two High Strength Kevlar Threads – Vertical Motion
• Counterweight Stainless Steel With Fine Azimuth Adjustable Screw
• Front Beam Small Weight Stainless Steel Block Fine Tracking Weight and Arm/Cartridge Resonance Tuning
• Internal Wiring Gold Plated Flexible PCB with Vertere Gold Plated Cartridge Tags One Piece from Cartridge To Output RCA Sockets
• Weight 310g
