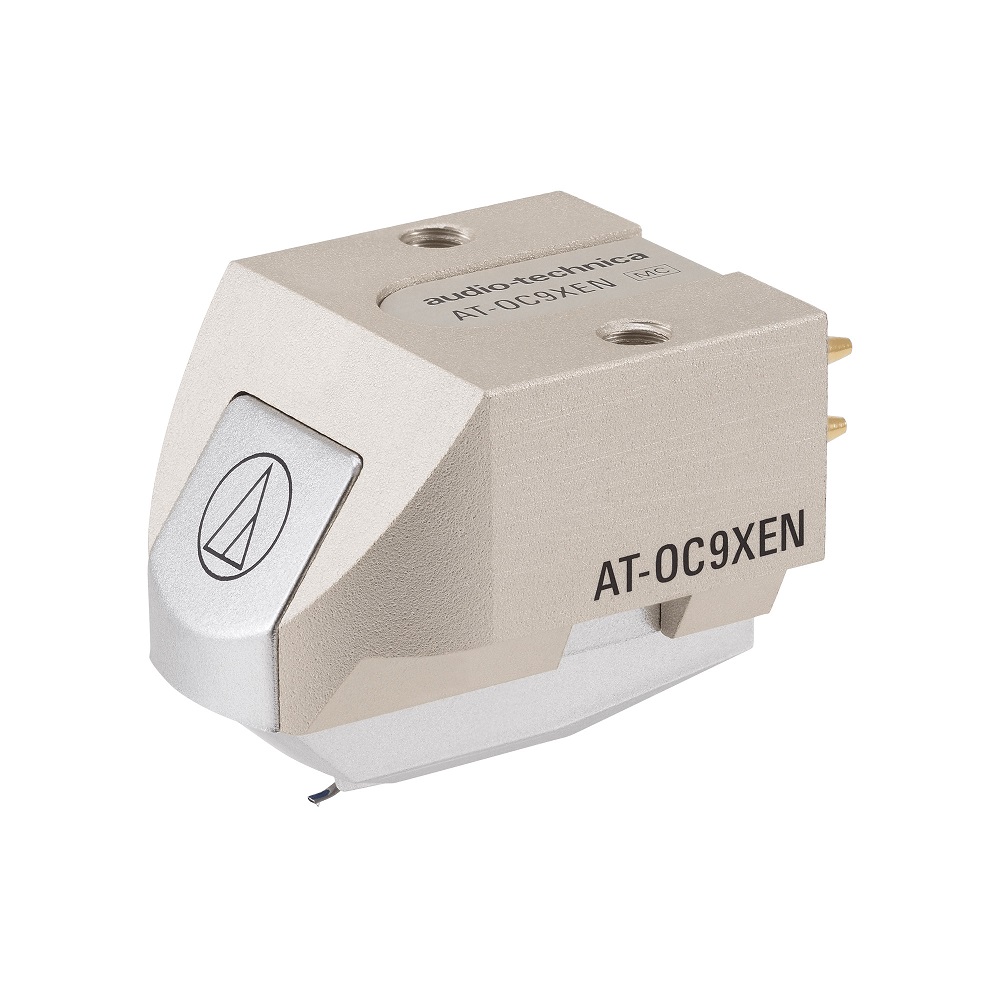

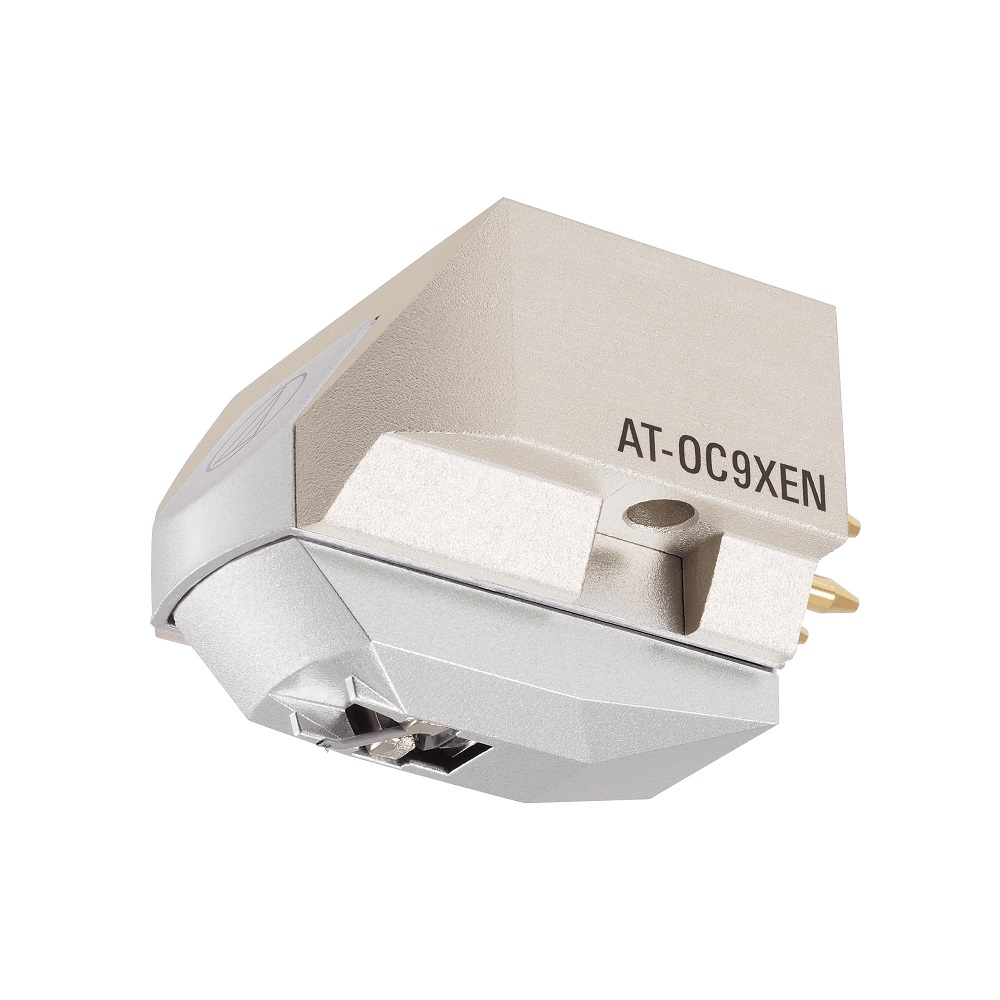

Η Audio-Technica AT-OC9XEN ειναι κεφαλη κινητου πηνιου (Dual Moving Coil), χαμηλης εξοδου, με ελλειπτικη βελονα. Εξοδος 0.35mV

The Next Generation of the legendary OC9 cartridge series.The Audio Technica AT-OC9XEN MC cartridge from the OC 9 product line replaces the AT-F7. Since its introduction more than 30 years ago, Audio-Technica’s pioneering moving coil OC9 cartridge series has been prized by demanding vinyl listeners and professional critics alike for its musical transparency, expression of sound and precise construction. Featuring a square shank for accurate stylus alignment and nude diamond for increased fine detail retrieval.

Features

• Low mass nude elliptical stylus and aluminium cantilever
• A neodymium magnet and pure iron yoke provide increased magnetic energy
• Threaded inserts in the cartridge body enable the cartridge to be mounted on to the headshell or integral tonearm with just two screws – no nuts required
• Aluminium body minimizes unwanted vibration for reduced resonance and a superior audio reproduction
• Pure Copper by Ohno Continuous Casting process (PCOCC) is used for the coils to achieve the purest signal possible

Specifications

• Model AT-OC9XEN
• Mounting 1/2” centers / Threaded inserts
• Frequency Response 20 - 30,000 Hz
• Body Material Aluminium
• Channel Separation 25 dB (1 kHz)
• Output Channel Balance 1.5 dB (1 kHz)
• Output Voltage 0.35 mV (@ 1 kHz, 5 cm/sec)
• Vertical Tracking Angle 20 degrees
• Vertical Tracking Force Range 1.8 to 2.2 g (standard 2.0 g)
• Stylus Shape Elliptical Nude
• Stylus Size 0.3 x 0.7 mil
• Stylus Construction Nude square shank
• Cantilever Aluminium pipe
• Coil Impedance 12 Ohms (1 kHz)
• Coil Inductance 25 μH (1 kHz)
• DC Resistance 12 Ohms
• Static Compliance 20 x 10 – 6 cm / dyne
• Dynamic Compliance 9 x 10 – 6 cm / dyne (100 Hz)
• Terminal Pins Brass
• Wire Used for Coil PCOCC (Copper by Ohno Continuous Casting process.)
• Recommended Load Impedance Min 100 Ohms
• Cartridge Weight 7.6 g
• Dimensions 17.3 (H) x 16.8 (W) x 25.7 (L) mm

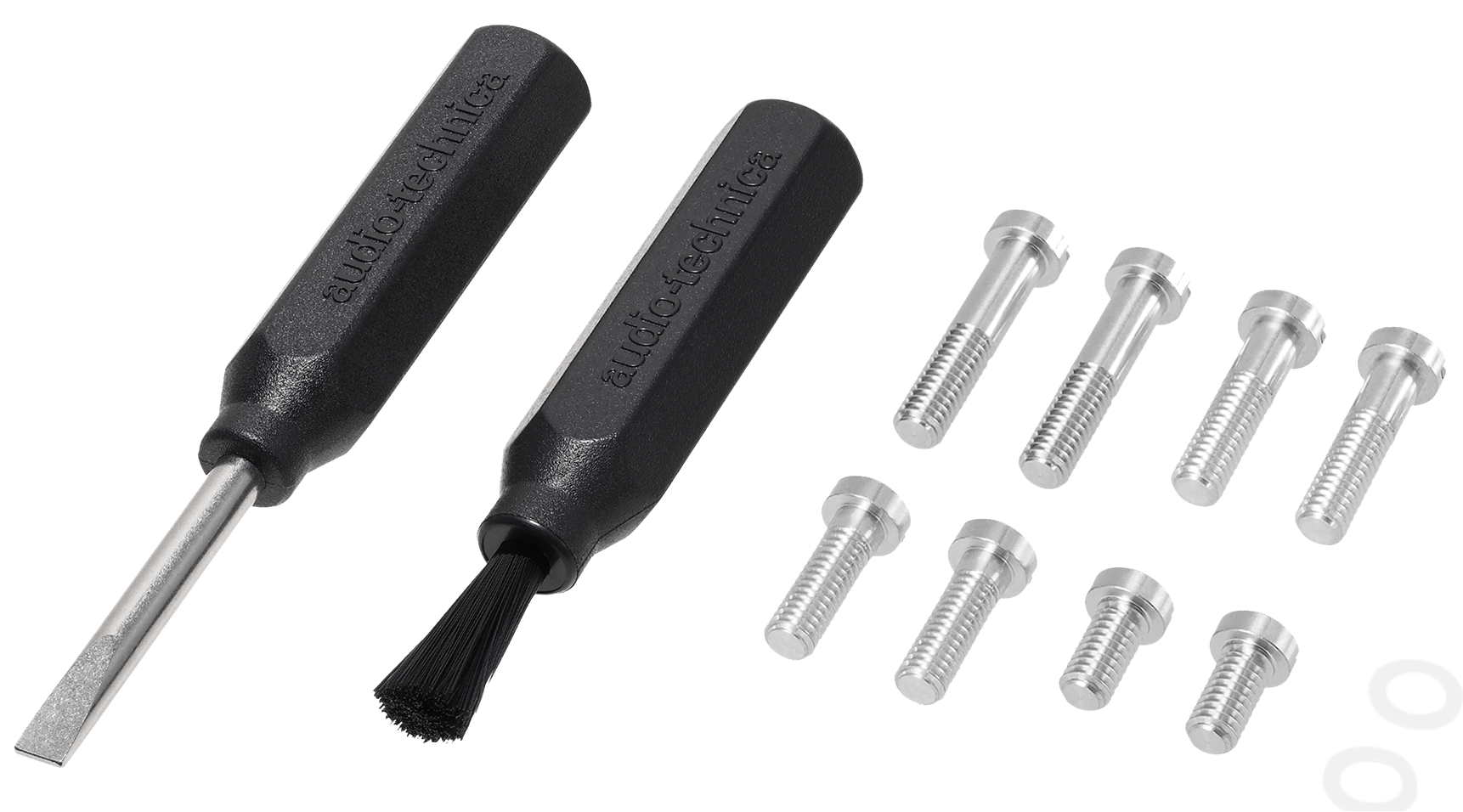

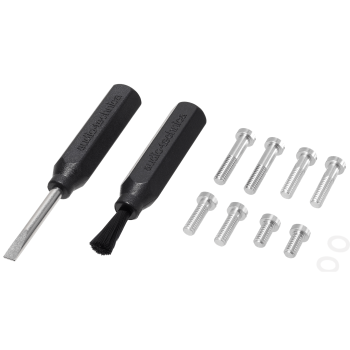

• Accessories Included 1 non magnetic screw driver, 1 brush, 2 washers, 4 pairs of mounting screws: 5mm, 8mm, 10mm, 12mm, 1 plastic protector
