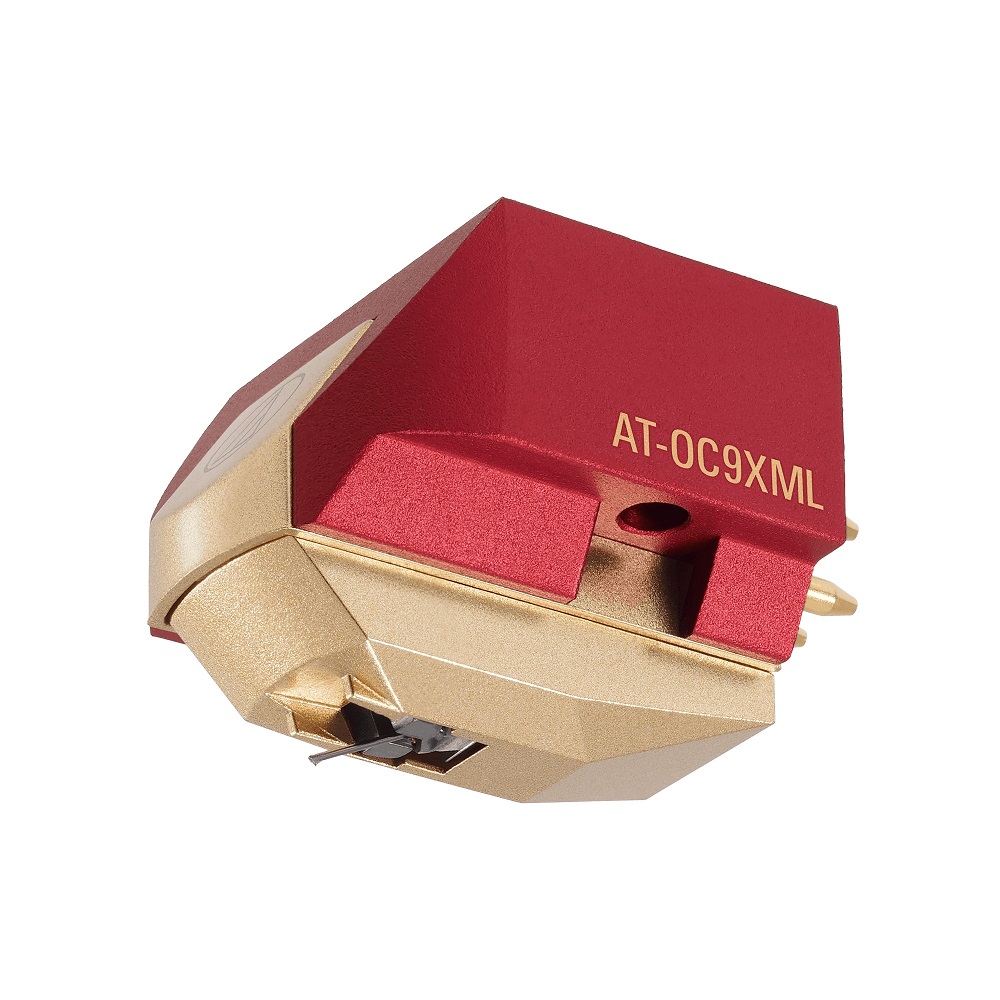

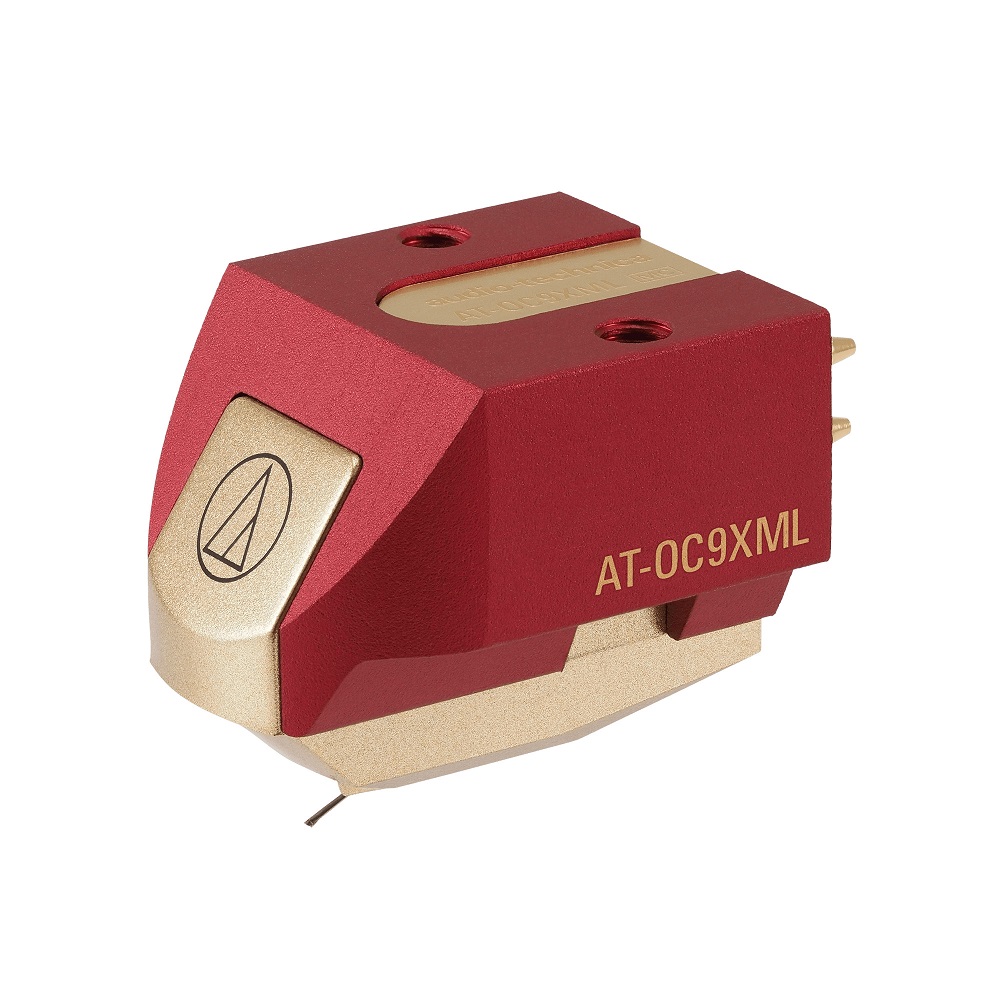

Η Audio-Technica AT-OC9XML ειναι κεφαλη κινητου πηνιου (Dual Moving Coil), χαμηλης εξοδου, με βελονα microlinear. Εξοδος 0.4mV

The AT-OC9XML Dual Moving Coil cartridge with Microlinear stylus is designed to provide outstanding channel separation. The Pure Copper by Ohno Continuous Casting (PCOCC) coils ensure pure audio transmission and are aligned in a reverse V-shaped formation to exert less pressure on the stylus, thereby minimizing distortion. Audio quality is further enhanced by a rigid aluminum body that reduces resonance, a neodymium magnet and premium permendur yoke that increase the magnetic energy, and the nude Microlinear stylus on a boron cantilever that tracks the record groove with incredible accuracy, low distortion and high-transient response. The cartridge body has been pre-threaded, enabling it to be mounted to a headshell or integral tonearm with just two screws – no nuts required.

Specifications

• Frequency Response     20 - 47,000 Hz
• Channel Separation     27 dB (1 kHz)
• Vertical Tracking Angle     20 degrees
• Vertical Tracking Force     1.8 to 2.2 g (standard 2.0 g)
• Stylus Construction     Nude square shank
• Recommended Load Impedance     Min 100 Ohms
• Coil Impedance     12 Ohms (1 kHz)
• DC Resistance     12 Ohms
• Coil Inductance     25 μH (1 kHz)
• Output Voltage     0.4 mV (@ 1 kHz, 5 cm/sec)
• Output Channel Balance     1.0 dB (1 kHz)
• Stylus Shape     Microlinear
• Cantilever     0.28 mm Ø nude boron
• Static Compliance     20 x 10 – 6 cm / dyne
• Dynamic Compliance     16 x 10 – 6 cm / dyne (100 Hz)
• Mounting     1/2” centers / Threaded
• Cartridge Weight     7.6 g
• Dimensions     17.3 (H) x 16.8 (W) x 25.7 (L) mm
• Accessories Included     1 non magnetic screw driver 1 brush, 2 washers, 4 pairs of mounting screws: 5mm, 8mm, 10mm, 12mm, 1 plastic protector
• Body Material     Aluminium
• Model     AT-OC9XML
• Stylus Size     2.2 x 0.12 mil
• Terminal Pins     Brass
• Wire Used for Coil     PCOCC (Copper by Ohno Continuous Casting process.)
