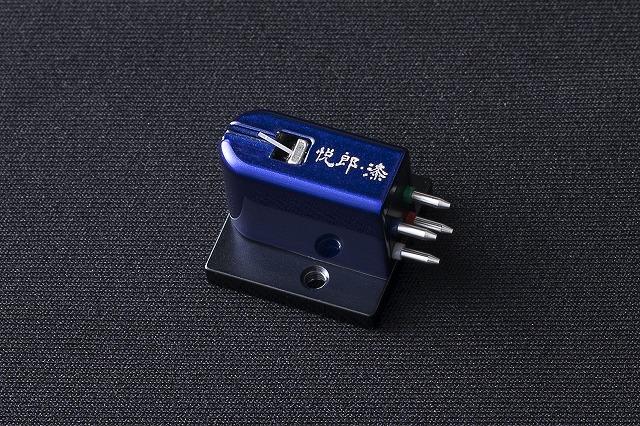

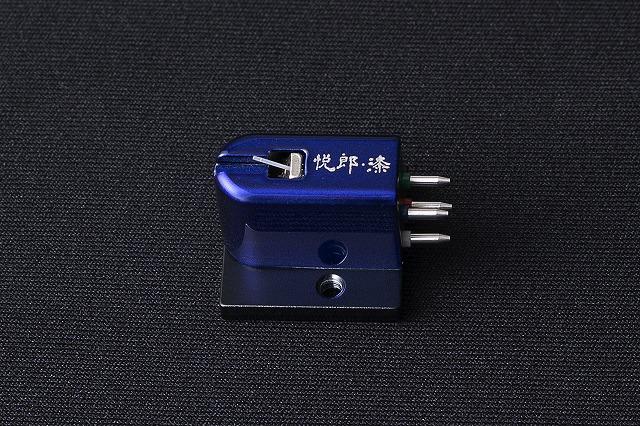

Η Etsuro Urushi Cobalt Blue ειναι κεφαλη κινητου πηνιου χαμηλης εξοδου (mc low output). Το cantilever ειναι απο ζαφειρι. Η ακιδα απο διαμαντι microline.
Ρωτηστε μας για δοσεις.
The Cobalt Blue uses the Microline tip stylus possessing ideal curvature of 80μm contact surface against the record groove. This contact surface achieved a superior reproduction characteristic. Cobalt Blue has been created to naturally reproduce the sound cut on the record.
Ultra-precise Sapphire pipe material has been introduced for the cantilever. The remarkable hardness of the sapphire will help reduce distortions and is also superb in the transmission of high speed vibration to create an increasingly clear sound.
The magnetic circuit combined the performance proven samarium cobalt and electromagnetic soft-iron to achieve the magnetic features consistent with the coil vibration. Overall balance and steady sound has been secured. The terminal pin has selected to use rhodium plating.
Extra-super duralumin (A7075) known for its extreme strength among the aluminum alloy has been chosen for both the cartridge housing and the base section. Because of this, the cartridge succeeded to gain overall rigidity to the structure and avoid unnecessary resonance.
In addition to this extreme strength, the Extra-Super Duralumin housing has further been reinforced and handcrafted by the Japanese traditional craft urushi lacquering. This gives the cartridge a superb strength, weight, and a beautiful aesthetic appearance of the cobalt blue color.
The experience and craftsmanship built for over half a century will unlock the door towards the renewed sound of analog record.
Type |
Moving coil |
---|---|
Frequency response |
15-50,000Hz |
Output voltage |
0.25mV/1kHz |
Output balance |
?0.5dB/1kHz |
Channel separation |
33dB/1kHz |
Tracking weight |
2gr |
Impedance |
3Ω/1kHz |
Trackability |
?70μm/2gr |
Stylus shape |
80μm microline diamond |
Cantilever |
0.4φsapphire pipe |
Cartridge base |
Extra super duralumin(A7075) |
Cartridge housing |
Extra super duralumin(A7075) |
Housing processing |
Urushi handmade |
Terminal pin |
Rhodium plated |
Cartridge weight |
8.1 grams |
Content |
Warranty card, Instruction manual (Dimensions, specifications), Stylus brush, 2 mounting screws |
Box Material |
Paulownia |
Spec table |
