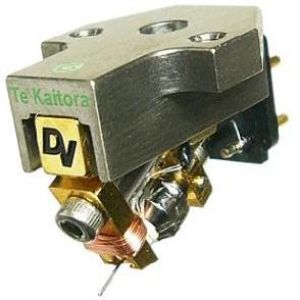

H Dynavector Te Kaitora Rua ειναι κεφαλη κινητου πηνιου (Moving Coil), χαμηλης εξοδου.

Εγγυηση Αντιπροσωπειας. Δυνατοτητα δοσεων.

The original Te Kaitora cartridge was the result of collaboration between Dynavector Japan and Dynavector New Zealand. The Te Kaitora allowed analogue enthusiasts to embark on a voyage of discovery to the outer limits of vinyl reproduction.

The improved Te Kaitora Rua continues the journey by incorporating many of the newest features of its Dynavector stable-mates, the XV-1s and XX-2. The Te Kaitora Rua has even managed to improve on the original's silk-like treble and openness.

Improvements

• The wire for the coil has been changed to the PCOCC copper wire from the silver wire. It sounds a much smoother and has a much better musical performance.
• A titanium headpiece for maximum ridgity along with a miniature stainless steel bolt coupling the front and rear yokes to the magnetic circuit assembly.
• A 6mm long boron cantilever with the Pathfinder (PF) line contact stylus as used with both Dynavector XV-1s and XX-2.
• The ingenious square shaped armature and matching square shaped aperture in the front yoke providing much improved linearity in the magnetic flux distribution.
• Alnico magnets are used for high magnetic flux density

Specifications

• Type low output moving coil cartridge with flux damper and alnico magnet
• Output Voltage     0.26mV (at 1KHz, 5cm/sec.)
• Channel Separation     30 dB (at 1KHz)
• Channel balance     1.0 dB (at 1KHz)
• Frequency response     20 - 20,000Hz (± 1dB)
• Compliance     10 mm/N
• Tracking force     1.8 - 2.2 g
• Impedance     6 ohms
• Recommended load impedance     > 30 ohms
• Cantilever     6mm length solid boron
• Stylus tip     PF Line contact shape, stylus radius: 7 x 30 micron
• Weight     9.8 g
