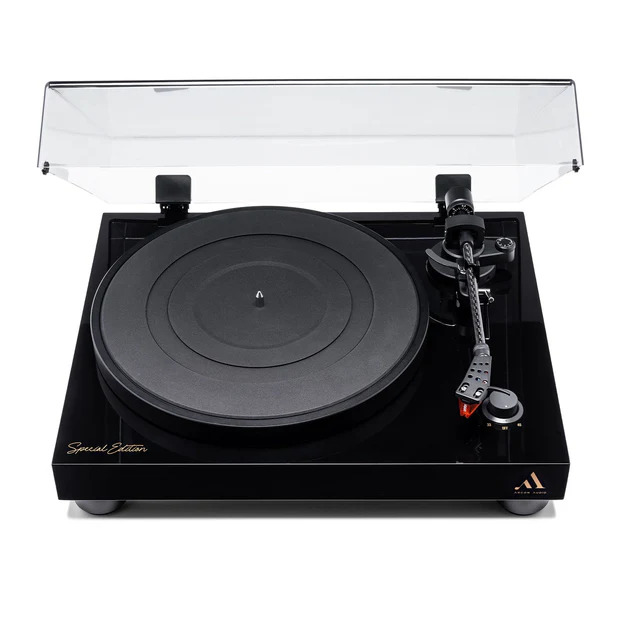

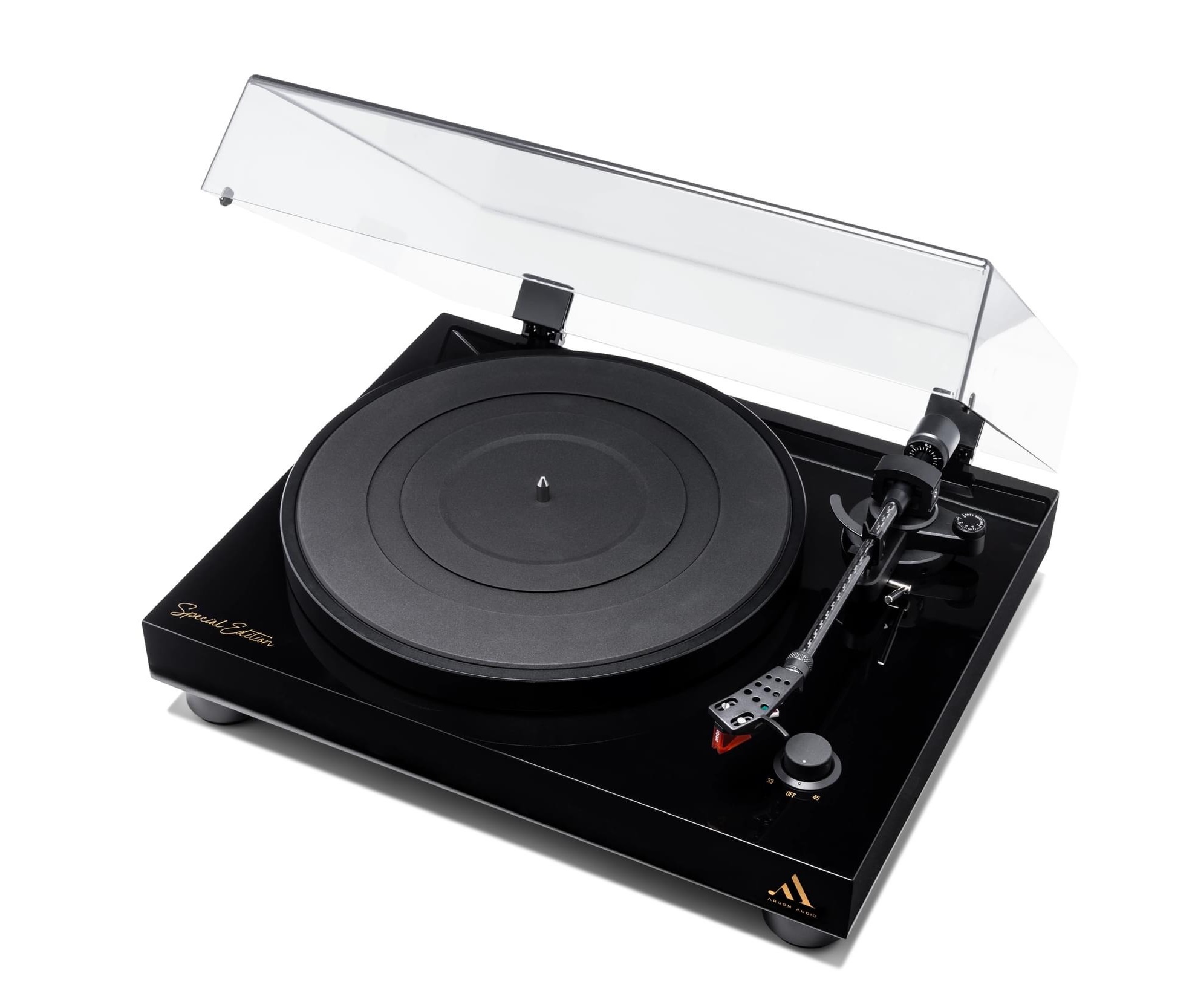

Το Argon Audio TT-4 Special Edition ειναι χειροκινητο belt-drive πικαπ με κεφαλη Ortofon 2M-Bronze και καπακι. Διαθετει πληρως ρυθμισιμο carbon βραχιονα με καλυτερη εσωτερικη καλωδιωση. Εχει ενσωματωμενο υψηλης ποιοτητας phono stage MM και διακοπτη επιλογης για phono out η line out.

Εγγυηση Αντιπροσωπειας. Δυνατοτητα δοσεων.

Celebrating our first ever EISA-award, we wanted to do something very special… So we took our award-winning TT-4 turntable and made it even better! We’ve improved upon almost all aspects of the turntable, from the platter to the internal wiring, and most importantly, the TT-4 Special Edition comes pre-fitted with the fantastic Ortofon 2M Bronze cartridge.

Features

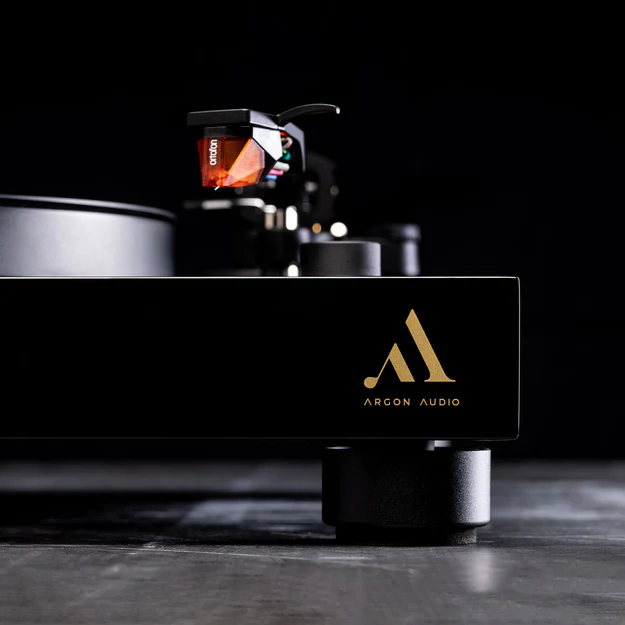

• Carbon-fiber tonearm with Ortofon 2M Bronze pre-fitted
• Upgraded with rubber mat, dampened platter and better cartridge wiring
• Built-in high-quality custom RIAA (MM)
• ATS technology (patent pending) for clearer sound

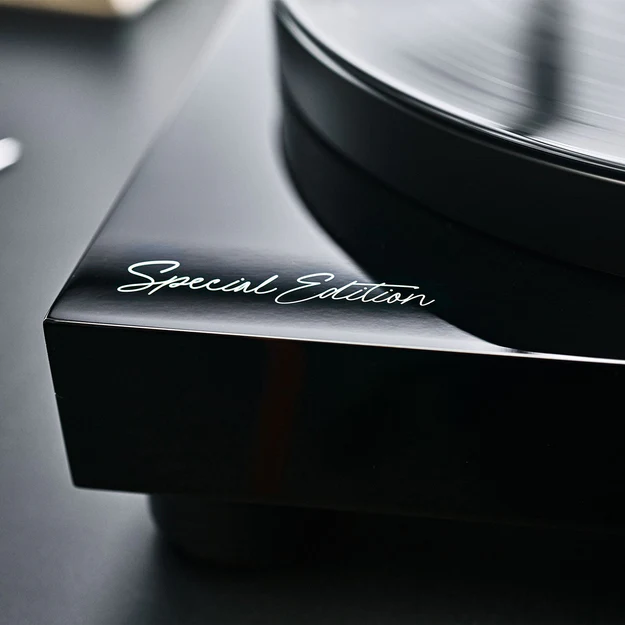

• Available only in exclusive high gloss black with five layers of lacquer

Specifications

• Drive Method Belt Drive
• Motor DC Motor

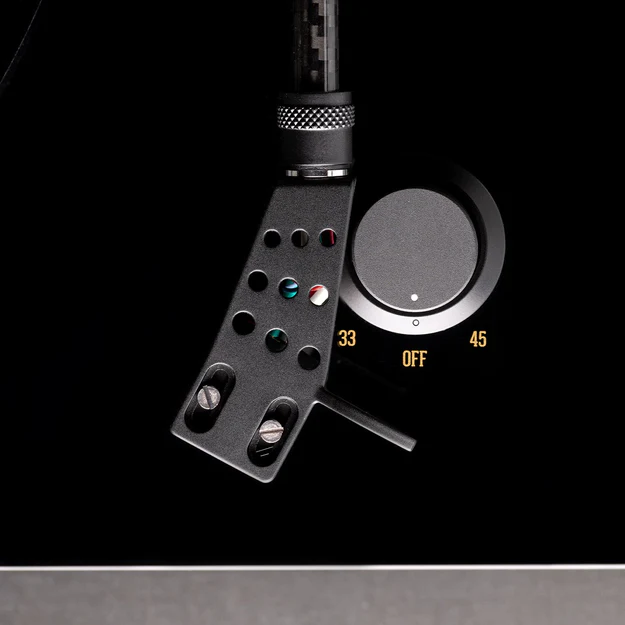

• Speed 33-1/3 rpm, 45 rpm
• Rotation Speed Variation ±2 %
• Wow and Flutter  0.2 %
• Platter    Aluminum die-cast (Diameter 30 cm)
• With rubber damping
• Platter Weight  1500 g
• Output Level RIAA on: 528 mV / RIAA off: 5.5 mV
• Signal-to-Noise Ratio 67 dB or higher (A-weighted, 20 kHz, LPF)
• Tonearm    Carbon Static Balance Straight Tonearm
• Effective Arm Length  223.5 mm
• Effective Tonearm Mass 16.2 g
• Overhang 18.6 mm
• Acceptable Cartridge Weight 15.5-21.5 g (including headshell)
• Cartridge Type  MM type
• Output Voltage 5.5 mV (at 1 kHz, 5 cm/sec)
• Stylus Pressure 1.5 g
• Cartridge Weight 7.2 g
• Headshell Weight 10.6 g (including screws, nuts, and wires)

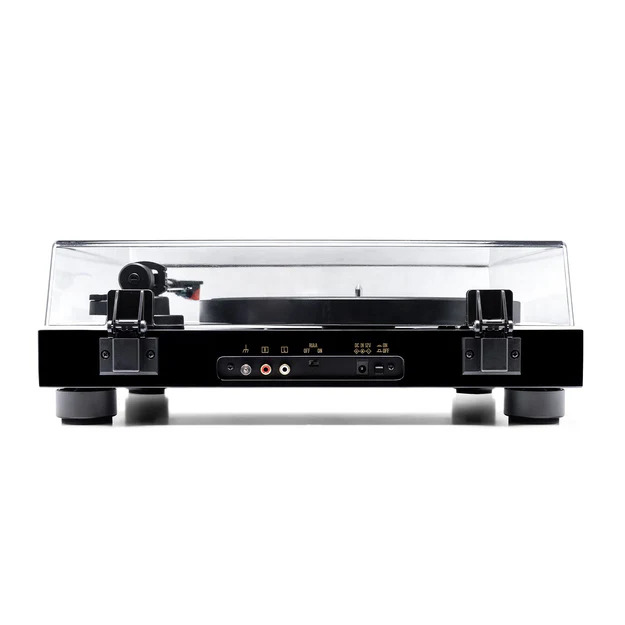

• Output Terminal    RCA: RIAA on/off
• Power Consumption 1.5 W
• Dimensions (W×H×D) 420 mm x 142 mm x 355 mm
• Weight 7.4 kg
