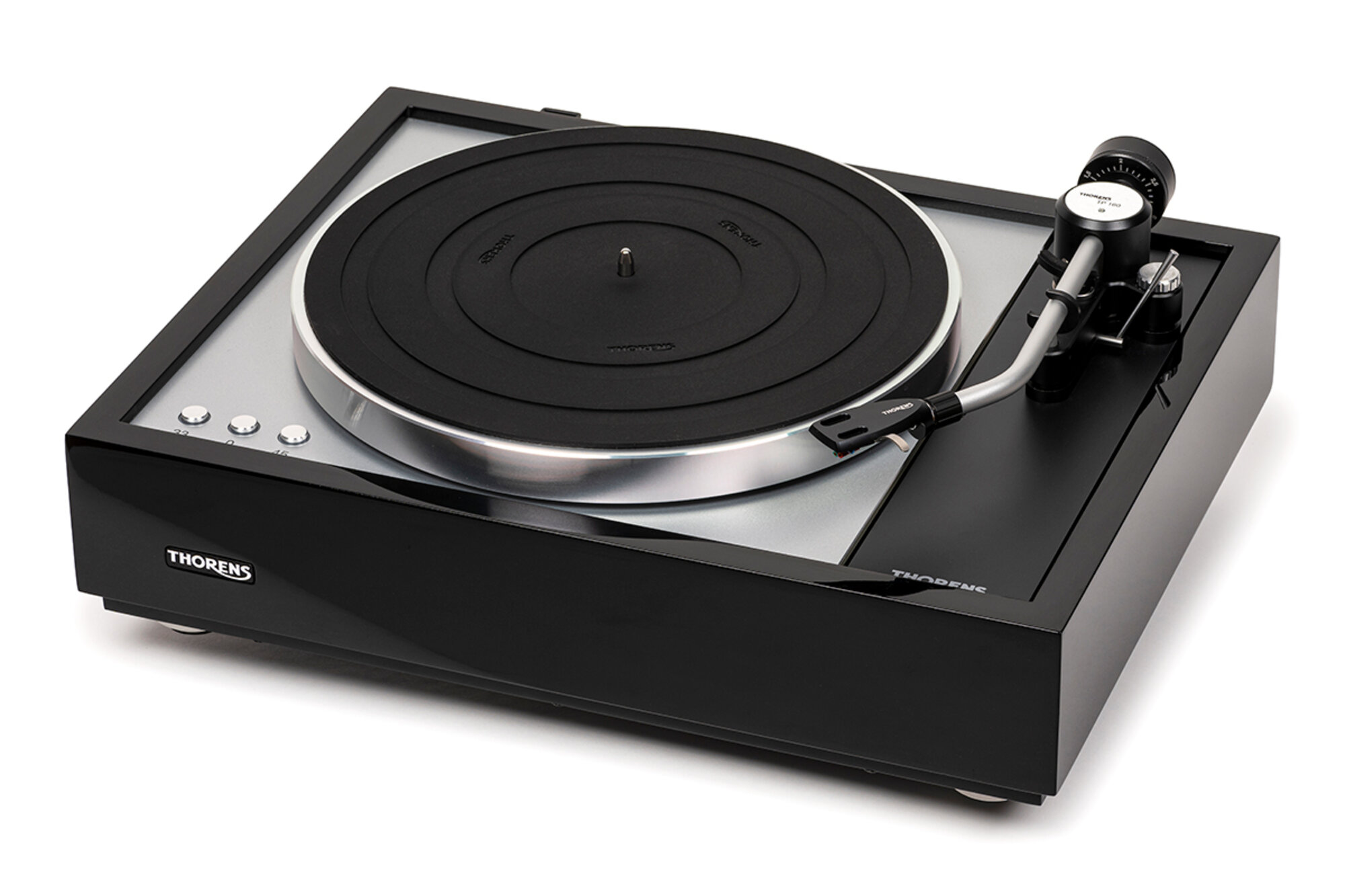

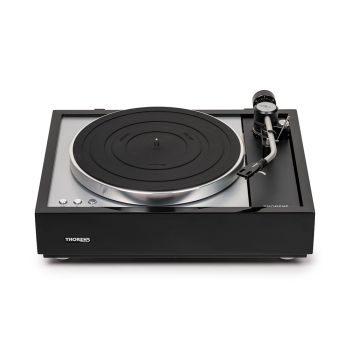

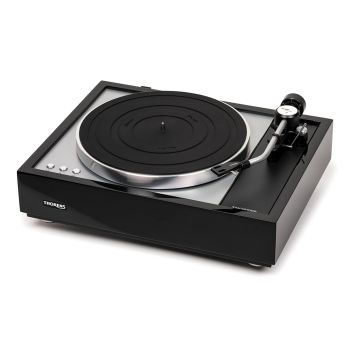

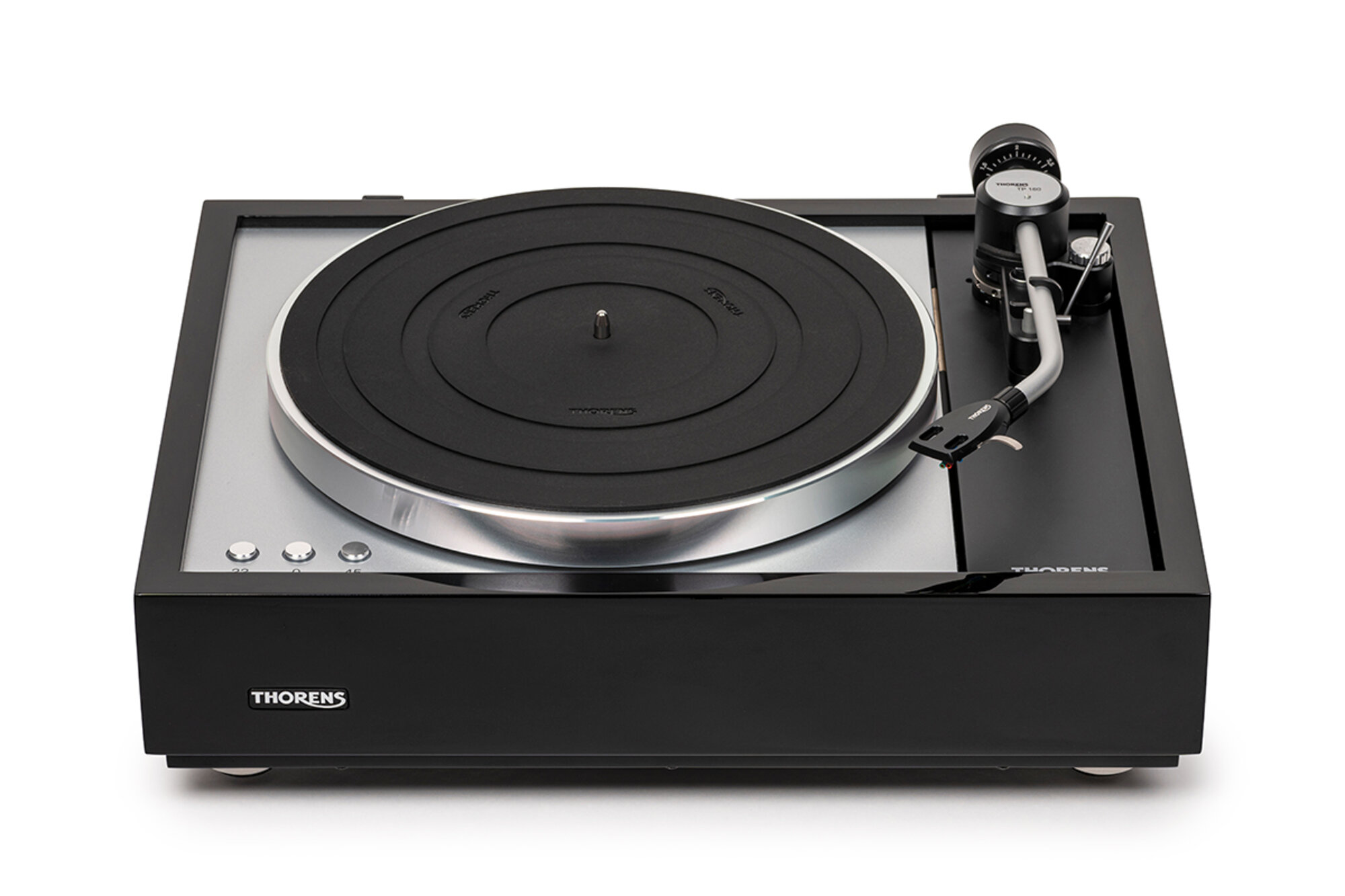

Το Thorens TD-1601 ειναι χειροκινητο πικαπ belt drive με σασσι αναρτημενο με 3 ελατηρια σε υποσσασσι και με εξωτερικο τροφοδοτικο. Διαθετει τον 9" βραχιονα Thorens TP-160.

Εγγυηση αντιπροσωπειας. Δυνατοτητα ανταλλαγων, δοσεων.

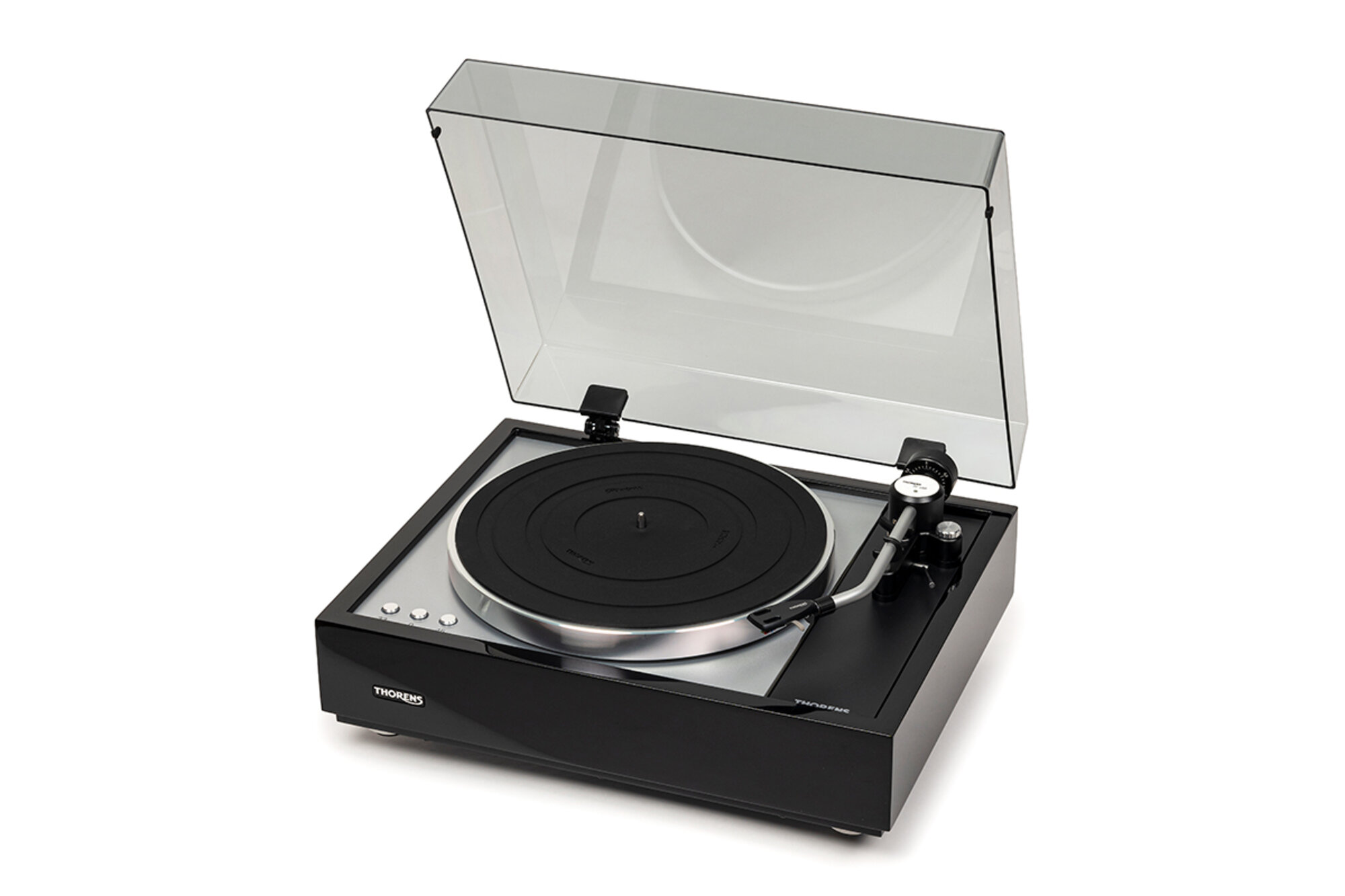

Thorens TD 1601 combines everything TD 1600 brings with some additional features regarding comfort and connection to amplifiers. Classical wooden plinth, two-part platter with inner belt and thick rubber mat, powerful motor control unit, arm board and acrylic dust cover are expanded by balanced outputs and functions for easier handling.

The conical springs for sub chassis are not mounted on top board any longer but standing on the bottom. Additionally, a small but strong tightened thread made of steel connects sub chassis with a steel pin on the bottom and so prevents sub chassis from staggering and allows only vertical movement.
An electrical lift is included, too and a contactless auto shut off. XLR jacks provide a real balanced connection to amplifiers.

The TP 160 is a nine-inch radial arm in the medium weight class. Its favorable mass distribution and high strength make it the ideal support for the finest cartridges. These fit into the standard original headshell, which has been newly designed along with the arm. Alternatively, the TP 160 also accommodates any other headshell with SME bayonet or integrated cartridges like the Ortofon SPU. Since the effective lengths of different cartridges can vary slightly, we have also provided for axial adjustment of the arm tube to ensure perfect overhang at all times.

Features

• Stabilized sub chassis on three conical springs
• Precision pivot bearing tonearm TP 160 with SME headshell connector
• Machined precision belt
• Two-part machined aluminum platter
• Adjustable belt tension
• Electronically controlled synchronous motor
• Patented electric lift
• Touchless shut-off mechanism
• True balanced (XLR) and (RCA) outputs

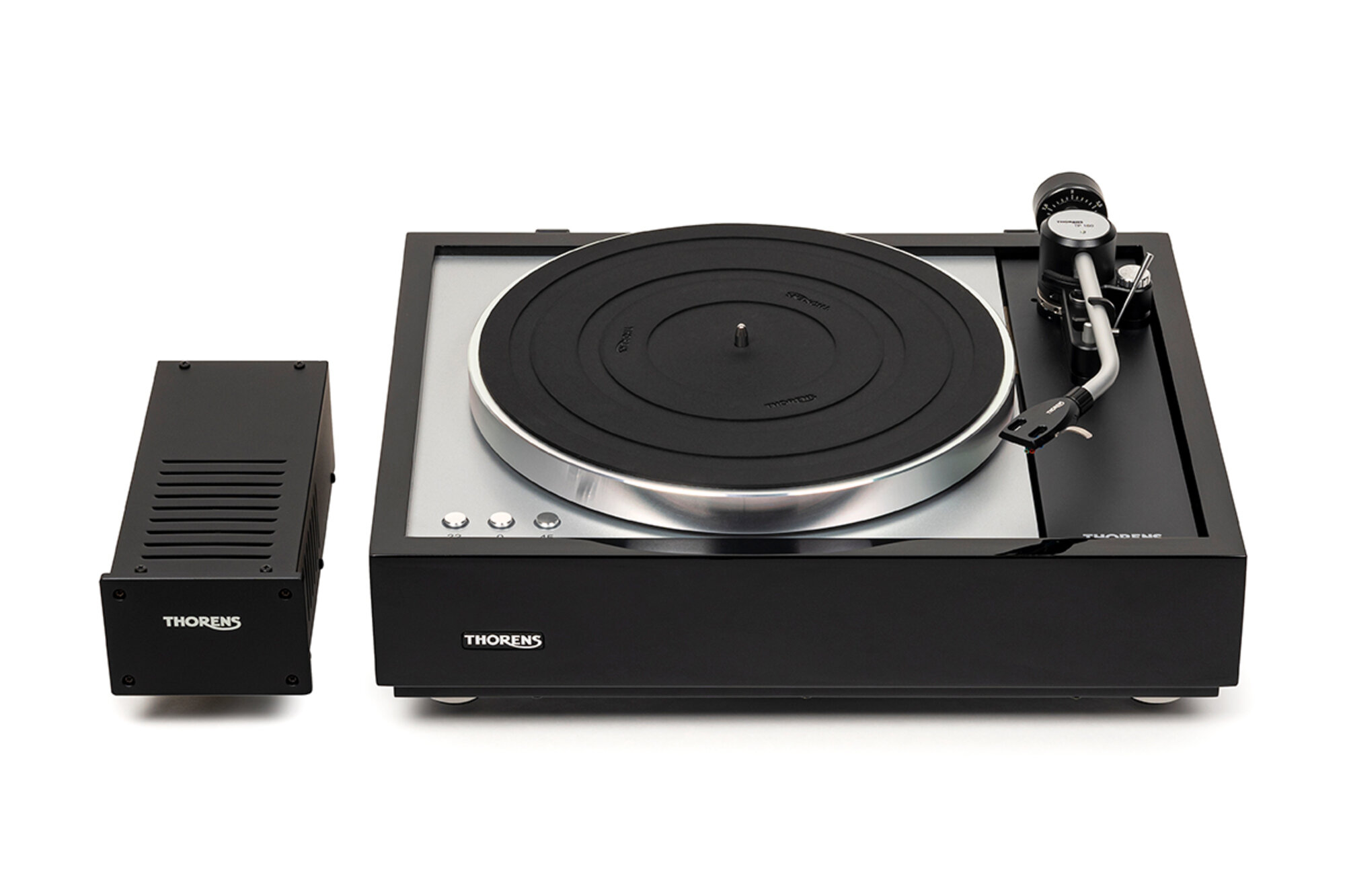

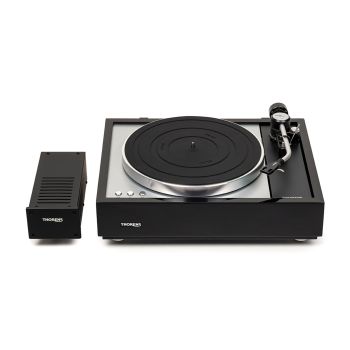

• External linear power supply TPN 1600

Specifications

• Function manual turntable with subchassis, auto shut off, electrical lift
• Drive system Belt, sub platter aluminum
• Motor electronically controlled and stabilized AC synchronous motor
• Speeds 33-1/3, 45 rpm.
• Speed select electronical
• Platter 12“ / 4,2 kg (aluminum)
• Tonearm Thorens TP 160
• Shut off yes

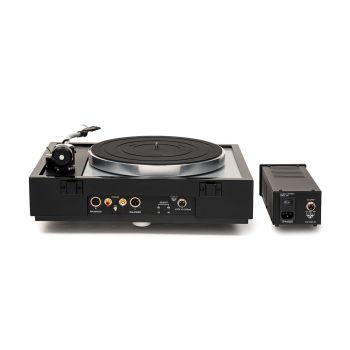

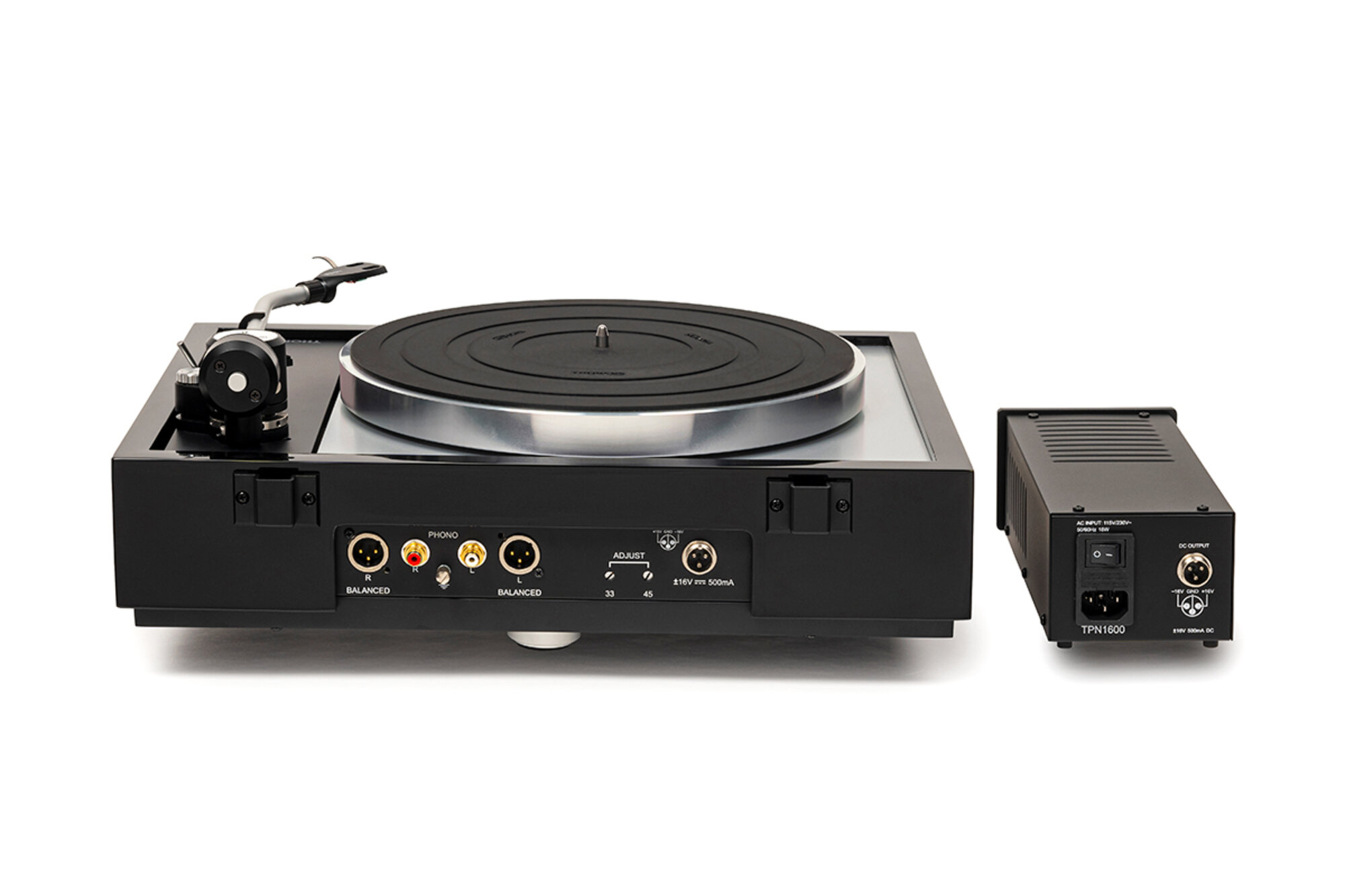

• Outputs RCA / balanced XLR
• Power supply external power supply
• Dimensions 454 x 180 x 369 mm (W x H x D)
• Weight 11 kg
• Finish solid wooden plinth, black high gloss, walnut high gloss, top board made of triCom

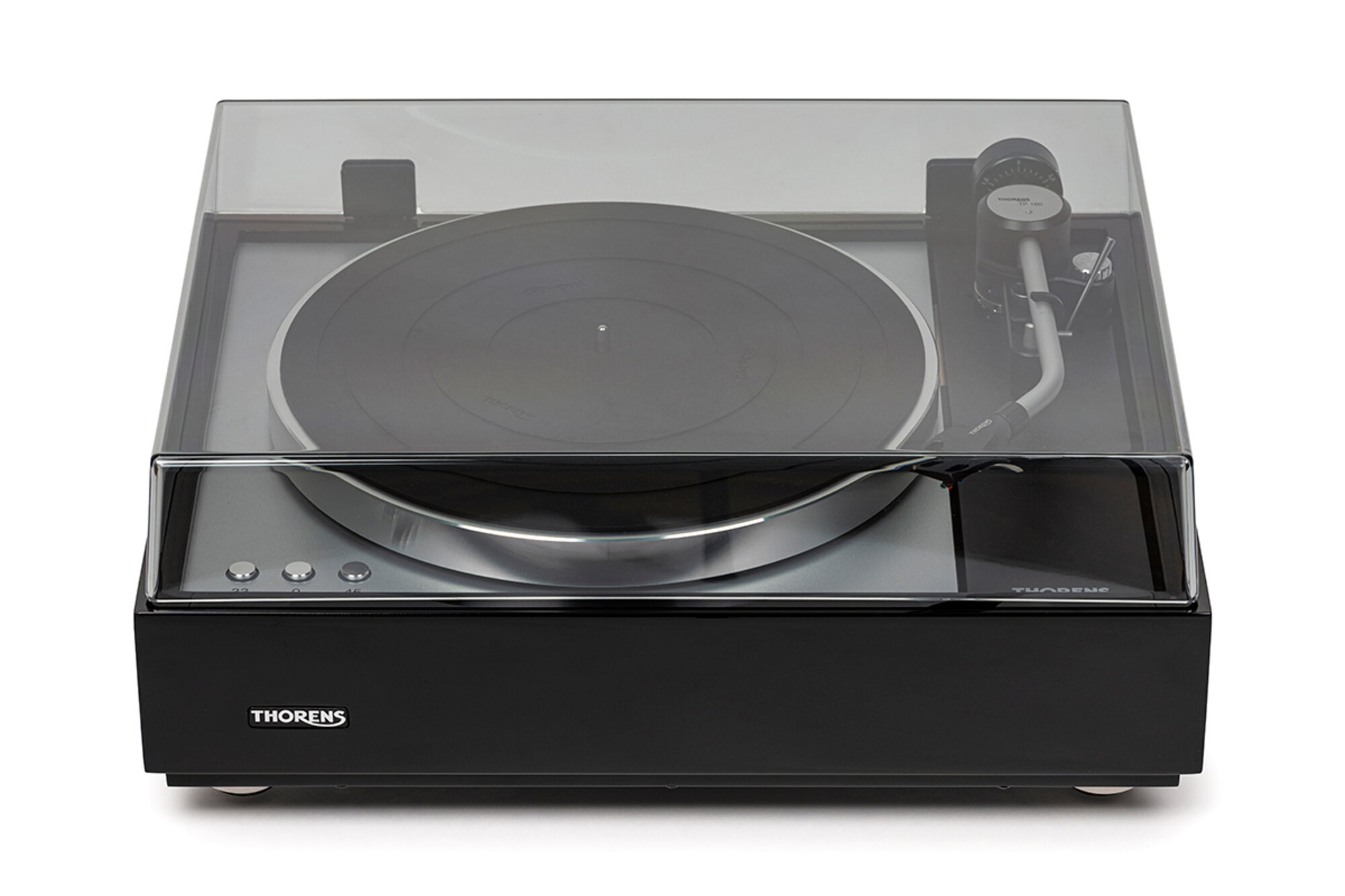

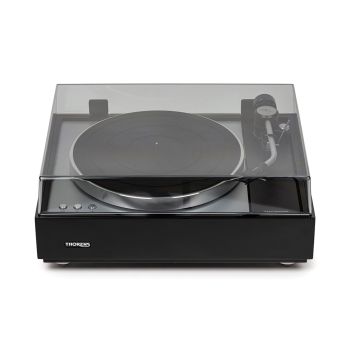

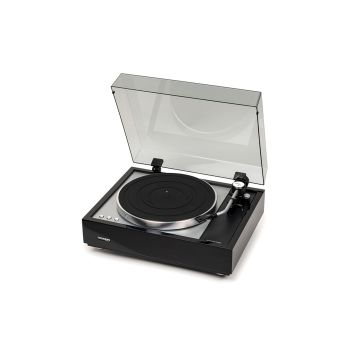

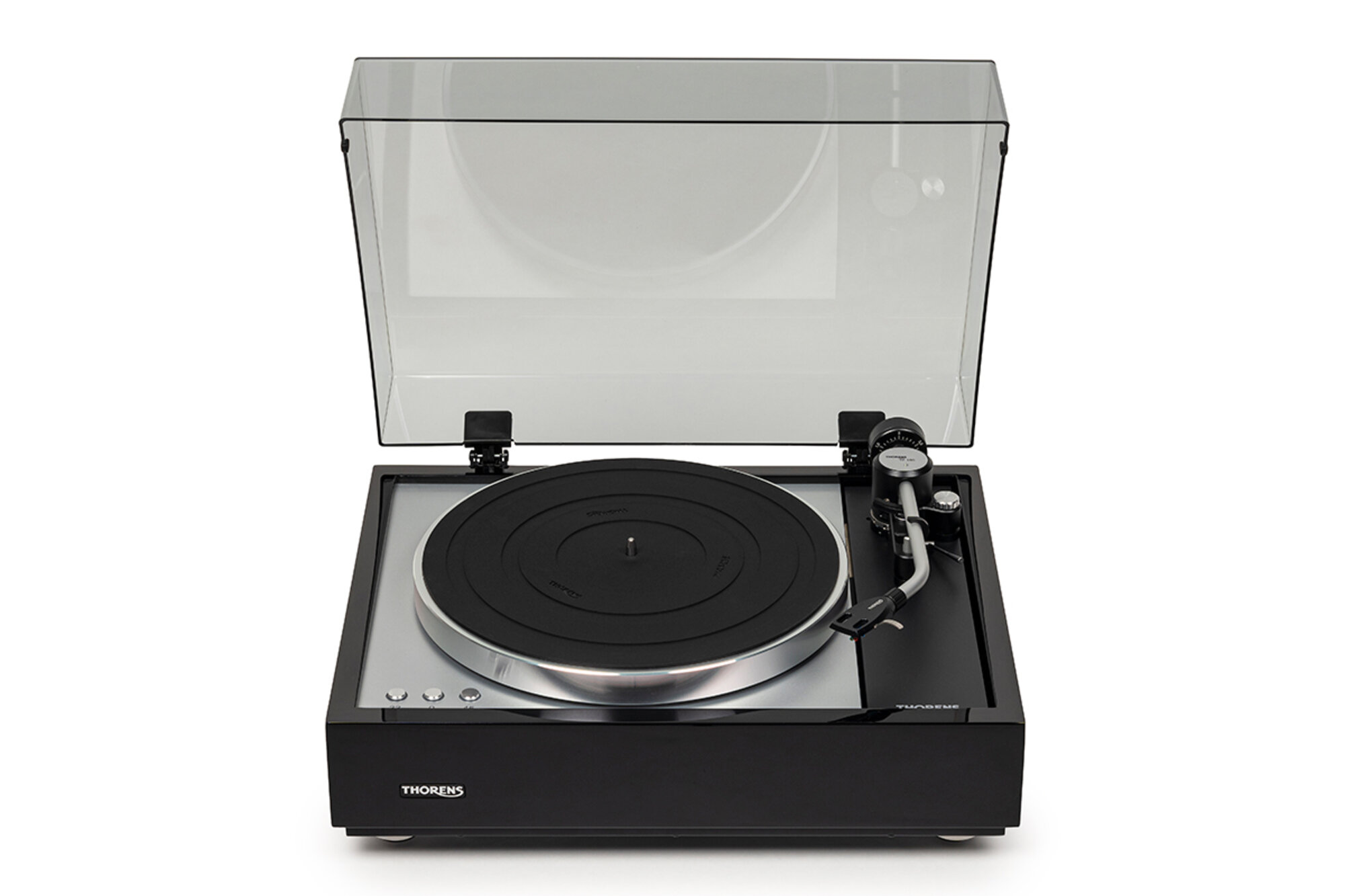

• Scope of delivery power supply, acrylic dust cover
