Η AudioTechnica VM510CB ειναι κεφαλη διπλου μαγνητη, για πικαπ με σφαιρικη βελονα (conical stylus). Εξοδος 5 mV
Δυνατοτητα δοσεων.

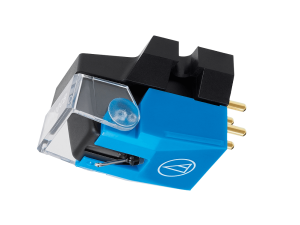

AudioTechnica VM510CB stereo cartridge
The VM510CB conical stylus cartridge is the entry-level 500 Series model in Audio-Technica’s new VM cartridge line – a line that harks back to A-T’s early days as a manufacturer primarily of high-end phono cartridges, while also incorporating today’s advanced technology. Like all VM cartridges, the VM510CB is equipped with dual magnets that are positioned to match the left and right channels in the stereo record groove for outstanding channel separation and extended frequency response. The cartridge’s 0.6 mil conical bonded stylus tracks the center of the record groove for reliable performance and excellent fidelity. Includes mounting hardware.
Features
Specifications
Frequency Response
20 - 20,000Hz
Channel Separation
25dB (1kHz)
Vertical Tracking Angle
23?
Vertical Tracking Force
1.8 to 2.2g (2.0g standard)
Stylus Construction
Bonded Round Shank
Recommended Load Impedance
47,000?
Coil Impedance
2,700? (1kHz)
Output Voltage
5.0mV (1kHz, 5cm/sec.)
Output Channel Balance
1.5dB (1kHz)
Stylus Shape
Conical Bonded
Cantilever
Aluminium Pipe
Static Compliance
35 x 10-6 cm/dyne
Dynamic Compliance
8 x 10-6 cm/dyne (100Hz)
Mounting
1/2” centres
Dimensions
17.3 (H) x 17.0 (W) x 28.2 (L) mm
Accessories Included
Cartridge installation screws 5mm ×2 and 10mm ×2, Washer ×2, Hexagon nut ×2
Recommended Load Capacitance
100 – 200pF
Replacement Stylus
VMN10CB
Stylus Size
0.6 mil
Type
VM Type
Weight
6.4g
