Η AudioTechnica VM520EB ειναι κεφαλη διπλου μαγνητη, για πικαπ με ελλειπτικη βελονα (elliptical stylus). Εξοδος 4 mV

Δυνατοτητα δοσεων.

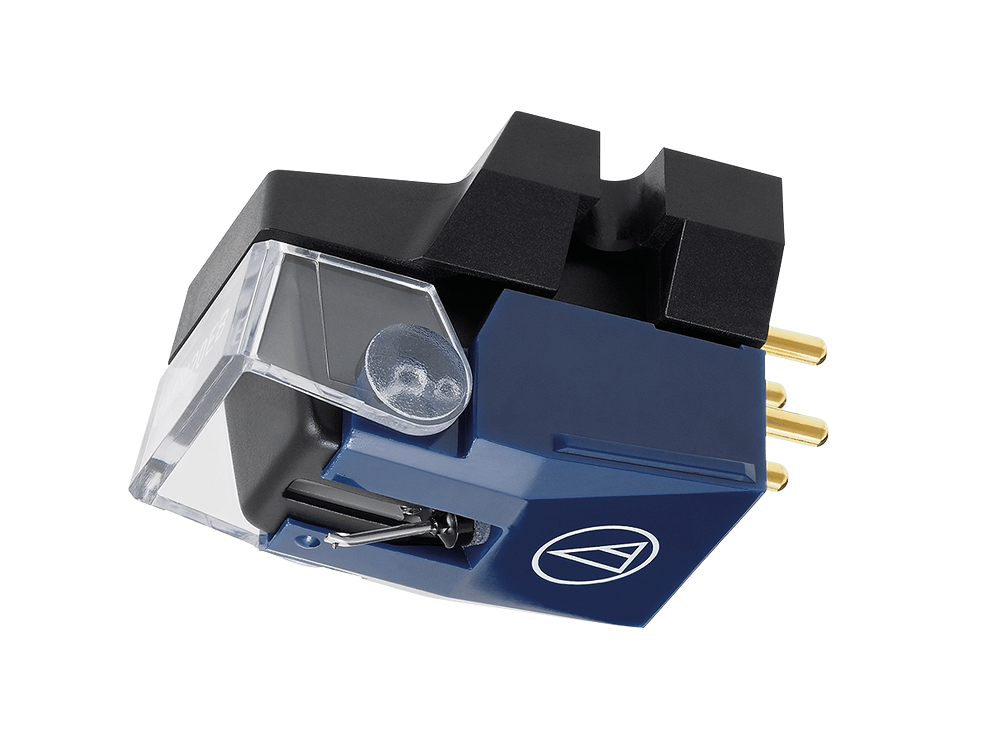

AudioTechnica VM520EB stereo cartridge

The VM520EB is part of the 500 Series in Audio-Technica’s new VM cartridge line – a line that harks back to A-T’s early days as a manufacturer primarily of high-end phono cartridges, while also incorporating today’s advanced technology. Like all VM cartridges, the VM520EB is equipped with dual magnets that are positioned to match the left and right channels in the stereo record groove for outstanding channel separation and extended frequency response. The cartridge’s 0.3 x 0.7 mil elliptical bonded stylus tracks the record groove with high accuracy for outstanding audio reproduction. Includes mounting hardware.

Features

• VM dual magnet cartridge with 0.3 x 0.7 mil elliptical stylus
• Aluminum cantilever
• Paratoroidal coils improve generating efficiency
• Center shield plate between the left and right channels reduces crosstalk
• Durable low-resonance polymer housing

Specifications

• Frequency Response 20 - 23,000Hz
• Channel Separation 27dB (1kHz)
• Vertical Tracking Angle 23?
• Vertical Tracking Force 1.8 to 2.2g (2.0g standard)
• Stylus Construction Bonded Round Shank
• Recommended Load Impedance 47,000?
• Coil Impedance 2,700? (1kHz)
• Output Voltage    4.0mV (1kHz, 5cm/sec.)
• Output Channel Balance 1.5dB (1kHz)
• Stylus Shape Elliptical Bonded
• Cantilever Aluminium Pipe
• Static Compliance 35 x 10-6 cm/dyne
• Dynamic Compliance 8 x 10-6 cm/dyne (100Hz)
• Mounting 1/2” centres
• Dimensions 17.3 (H) x 17.0 (W) x 28.2 (L) mm
• Accessories Included Cartridge installation screws 5mm ×2 and 10mm ×2, Washer ×2, Hexagon nut ×2
• Recommended Load Capacitance     100 – 200pF
• Replacement Stylus VMN20EB
• Stylus Size 0.3 x 0.7 mil
• Type VM Type
• Weight 6.4g

Compatible Stylus

• AudioTechnica Stylus VMN10CB
• AudioTechnica Stylus VMN20EB
• AudioTechnica Stylus VMN30EN
• AudioTechnica Stylus VMN40ML
• AudioTechnica Stylus VMN50SH
• AudioTechnica Stylus VMN60SLC
• AudioTechnica Stylus VMN70SP 78 rpm
