Η AudioTechnica VM530EN ειναι κεφαλη διπλου μαγνητη, για πικαπ με nude elliptical βελονα. Εξοδος 4 mV

Δυνατοτητα δοσεων.

Features

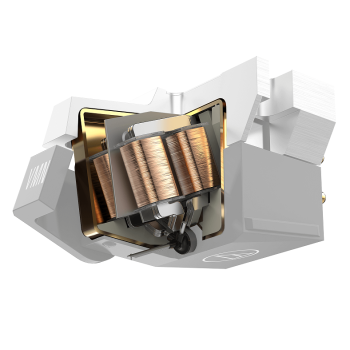

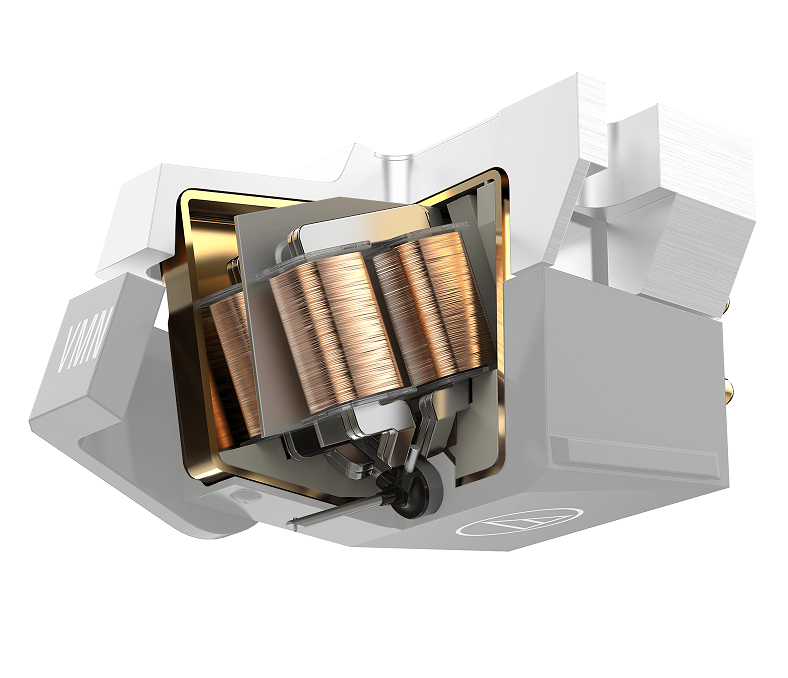

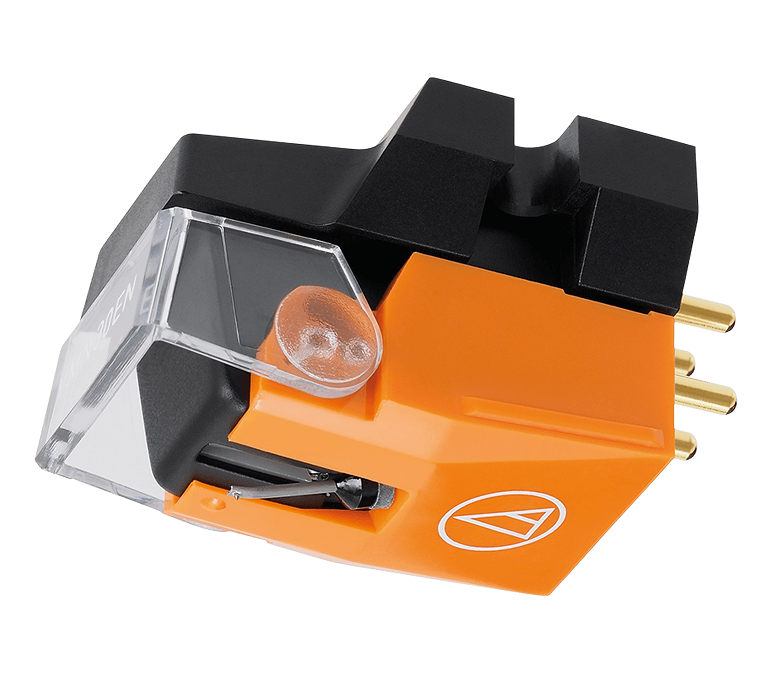

The VM530EN is a top-end elliptical stylus cartridge in Audio-Technica’s new VM cartridge line – a line that harks back to A-T’s early days as a manufacturer primarily of high-end phono cartridges, while also incorporating today’s advanced technology. Like all VM cartridges, the VM530EN is equipped with dual magnets that are positioned to match the left and right channels in the stereo record groove for outstanding channel separation and extended frequency response. The cartridge’s lightweight 0.3 x 0.7 mil elliptical nude stylus reduces the execution mass of the vibration system, enabling fuller frequency reproduction and less tracking distortion than a bonded stylus. Includes mounting hardware.

Specifications

• Frequency Response 20 - 25,000Hz
• Channel Separation 27dB (1kHz)
• Vertical Tracking Angle 23?
• Vertical Tracking Force 1.8 to 2.2g (2.0g standard)
• Stylus Construction Nude Round Shank
• Recommended Load Impedance 47,000?
• Coil Impedance 2,700? (1kHz)
• Output Voltage 4.0mV (1kHz, 5cm/sec.)
• Output Channel Balance     1.5dB (1kHz)
• Stylus Shape Elliptical Nude
• Cantilever Aluminium Pipe
• Static Compliance 35 x 10-6 cm/dyne
• Dynamic Compliance 8 x 10-6 cm/dyne (100Hz)
• Mounting 1/2” centres
• Dimensions 17.3 (H) x 17.0 (W) x 28.2 (L) mm

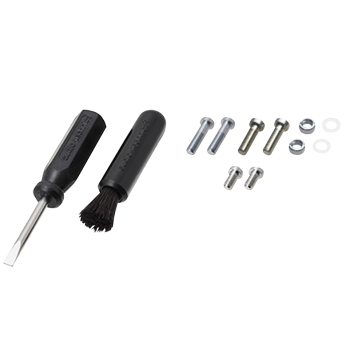

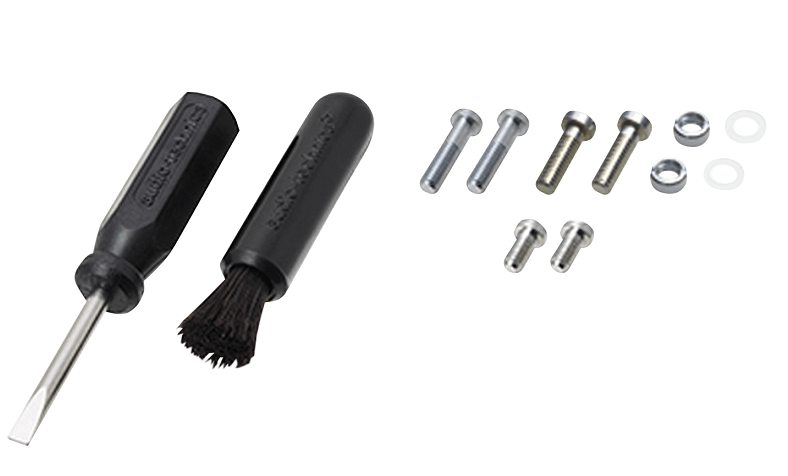

• Accessories Included Cartridge installation screws 5mm ×2 and 10mm ×2, Washer ×2, Hexagon nut ×2, Non-magnetic screwdriver ×1, Brush ×1
• Recommended Load Capacitance 100 – 200pF
• Replacement Stylus VMN30EN
• Stylus Size 0.3 x 0.7 mil
• Type VM Type
• Weight 6.4g

Compatible Stylus

• AudioTechnica Stylus VMN10CB
• AudioTechnica Stylus VMN20EB
• AudioTechnica Stylus VMN30EN
• AudioTechnica Stylus VMN40ML
• AudioTechnica Stylus VMN50SH
• AudioTechnica Stylus VMN60SLC
• AudioTechnica Stylus VMN70SP 78 rpm
