Η AudioTechnica VM750SH ειναι κεφαλη διπλου μαγνητη, για πικαπ με nude shibata βελονα. Εξοδος 4 mV

Δυνατοτητα δοσεων.

Features

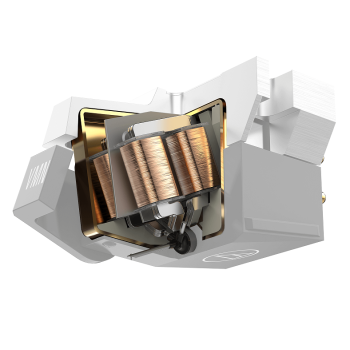

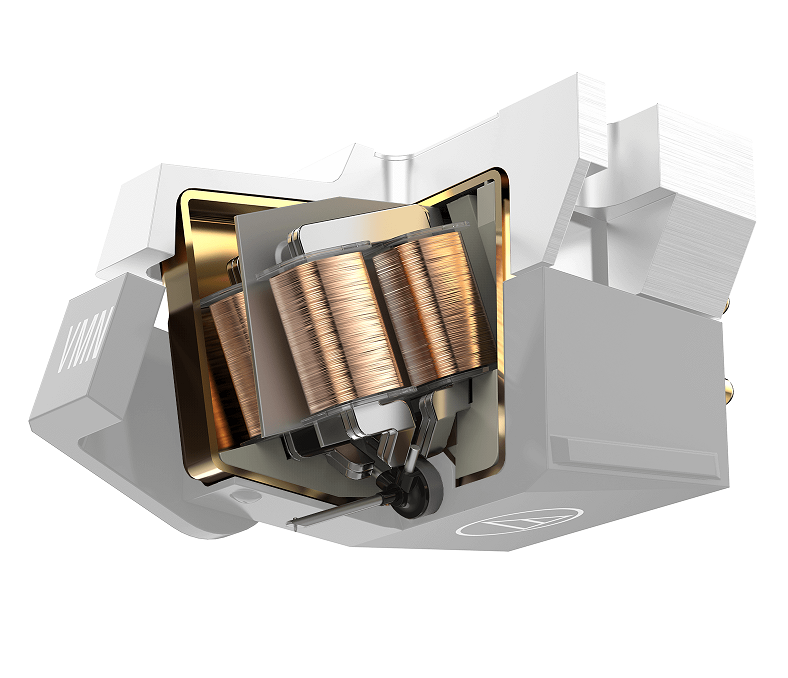

The VM750SH Shibata stylus cartridge is a premier 700 Series model in Audio-Technica’s new VM cartridge line – a line that harks back to A-T’s early days as a manufacturer primarily of high-end phono cartridges, while also incorporating today’s advanced technology. Like all VM cartridges, the VM750SH is equipped with dual magnets that are positioned to match the left and right channels in the stereo record groove for outstanding channel separation and extended frequency response. The cartridge’s Shibata stylus provides greater surface contact with the record groove than an elliptical stylus does, resulting in the pickup of ultra-high frequencies with less groove stress and distortion. Includes mounting hardware.

Specifications

• Frequency Response    20 - 27,000Hz
• Channel Separation    30dB (1kHz)
• Vertical Tracking Angle    23
• Vertical Tracking Force    1.8 to 2.2g (2.0g standard)
• Stylus Construction     Nude Square Shank
• Recommended Load Impedance     47,000Ω
• Coil Impedance     2,700Ω (1kHz)
• Output Voltage     4.0mV (1kHz, 5cm/sec.)
• Output Channel Balance     1.0dB (1kHz)
• Stylus Shape     Shibata
• Cantilever     Aluminium Tapered Pipe
• Static Compliance     40 x 10-6 cm/dyne
• Dynamic Compliance     10 x 10-6 cm/dyne (100Hz)
• Mounting     1/2” centres
• Dimensions     17.3 (H) x 17.0 (W) x 28.2 (L) mm
• Accessories Included     Cartridge installation screws 5mm ×2 and 10mm ×2, Washer ×2, Hexagon nut ×2, Non-magnetic screwdriver ×1, Brush ×1, Lead wire set ×1
• Recommended Load Capacitance     100 – 200pF
• Replacement Stylus     VMN50SH
• Stylus Size     0.26 x 2.7 mil
• Type     VM Type
• Weight     8.0g

Compatible Stylus

• AudioTechnica Stylus VMN10CB
• AudioTechnica Stylus VMN20EB
• AudioTechnica Stylus VMN30EN
• AudioTechnica Stylus VMN40ML
• AudioTechnica Stylus VMN50SH
• AudioTechnica Stylus VMN60SLC
• AudioTechnica Stylus VMN70SP 78 rpm
