Η AudioTechnica AT VM-95ML ειναι κεφαλη για πικαπ με microlinear ελλειπτικη βελονα.  Εξοδος: 3,5mV

Δυνατοτητα δοσεων.

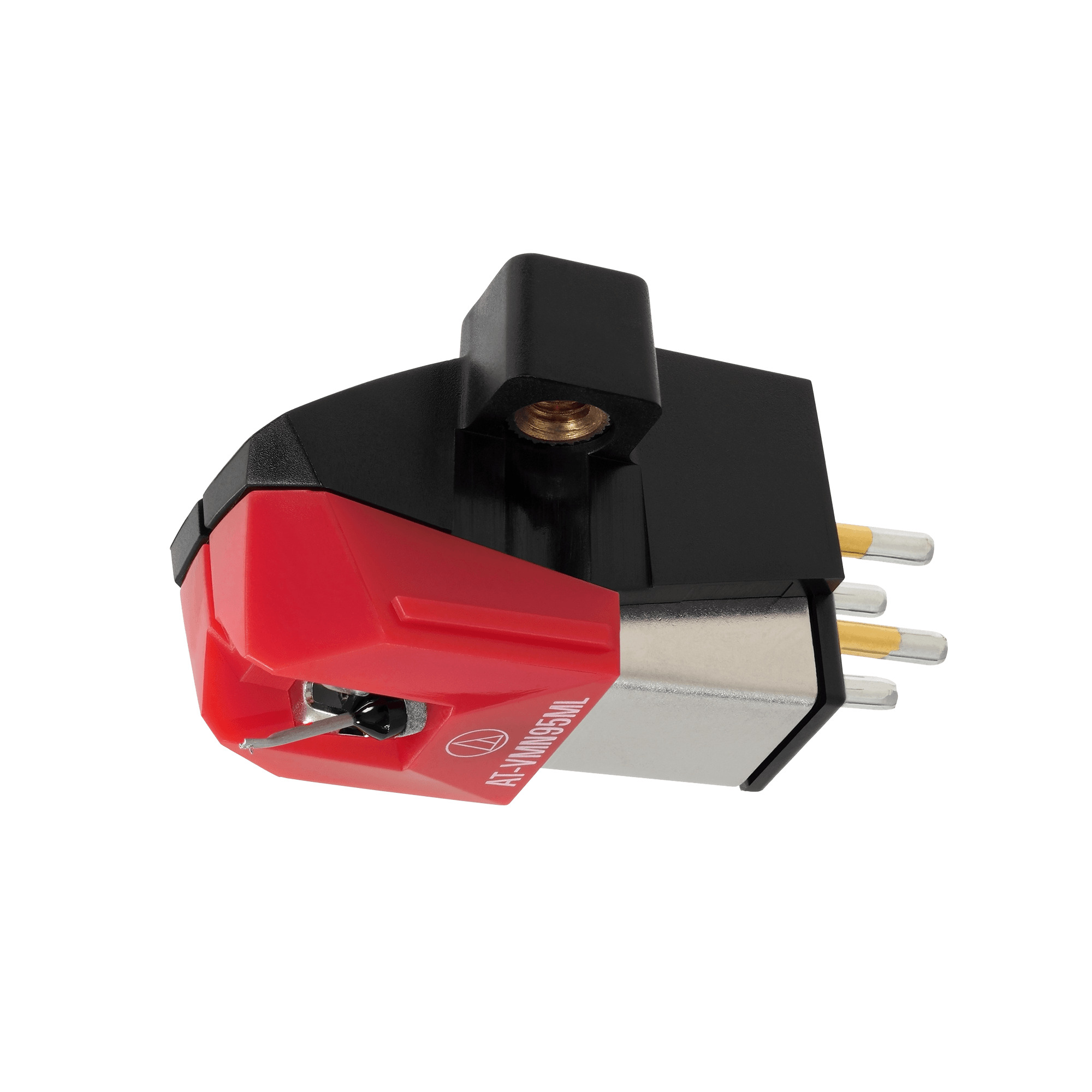

AudioTechnica AT VM-95ML microlinear stereo cartridge

This VM95 Series cartridge with 2.2 x 0.12 mil Microlinear stylus fits half-inch mount turntables. The cartridge offers excellent channel separation and low distortion for outstanding tonal quality. The durable, low-resonance housing includes threaded inserts that enable the cartridge to be mounted to the headshell with just two screws – no nuts required. And since all VM95 Series share the same body, the stylus can be replaced with any of the six interchangeable AT-VMN95 replacement styli.

Specifications

• Frequency Response 20 - 25,000 Hz
• Channel Separation 23 dB (1 kHz)
• Vertical Tracking Angle 23°
• Vertical Tracking Force 1.8 to 2.2g (2.0g standard)
• Stylus Construction Nude Square Shank
• Recommended Load Impedance     47,000 Ω
• Coil Impedance 3.3 kΩ (1 kHz)
• DC Resistance 485 Ω
• Coil Inductance     550 mH (1 kHz)
• Output Voltage     3.5 mV (@ 1 kHz, 5 cm/sec)
• Output Channel Balance     1.5 dB (1 kHz)

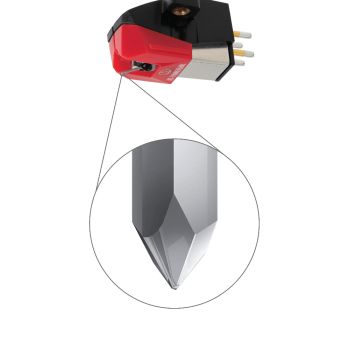

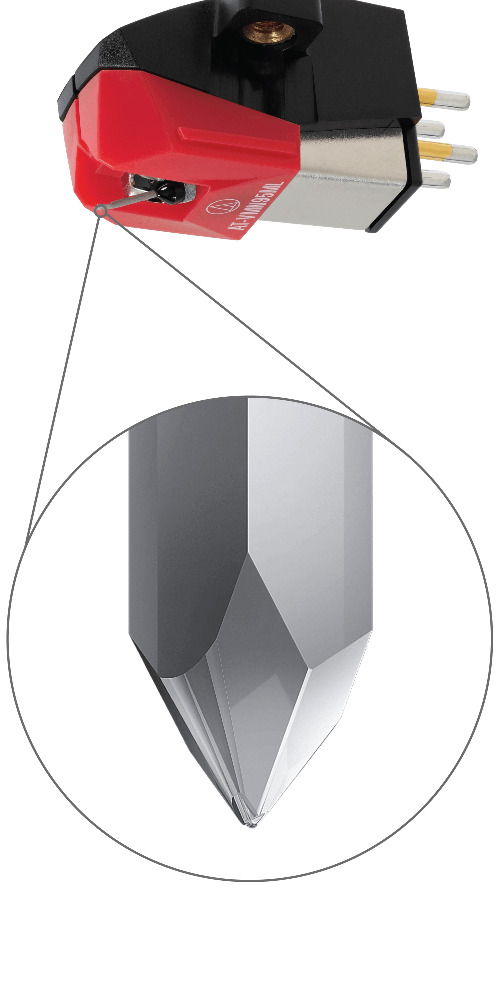

• Stylus Shape  Microlinear
• Cantilever Aluminium Pipe
• Static Compliance 20 x 10 – 6 cm / dyne
• Dynamic Compliance 10 x 10 – 6 cm / dyne (100 Hz)
• Mounting 1/2” centres
• Cartridge Weight   6.1g
• Dimensions     17.2 x 18.9 x 28.3 ( H x W x D mm)
• Accessories Included     Two 11 mm installation screws;
• Two 8 mm installation screws;
• Two washers
• Non-magnetic screwdriver
• Recommended Load Capacitance     100-200 pF
• Replacement Stylus     AT-VMN95ML
• Stylus Size 2.2 x 0.12 mil
• Type     VM Stereo Dual Magnet
• Wire Used for Coil T.P. Copper
