Η Ortofon Concorde Music Blue ειναι κεφαλη κινητου μαγνητη (ΜΜ), με ελλεπτικη βελονα. Καταλληλη για βραχιονες με αποληξη bayonet/SME. Εξοδος 6 mV.

Εγγυηση Αντιπροσωπειας. Δυνατοτητα δοσεων.

The Concorde Music series
Developed by music lovers, for music lovers, the Concorde Music HiFi cartridges blend premium performance with an iconic design. Concorde Music, not just a cartridge, but a dedication to the profound impact music has on our lives, turning every listening session into a captivating journey.
Installing a Concorde Music cartridge on a turntable is easy and straightforward, no tools required making it hassle free and convenient.

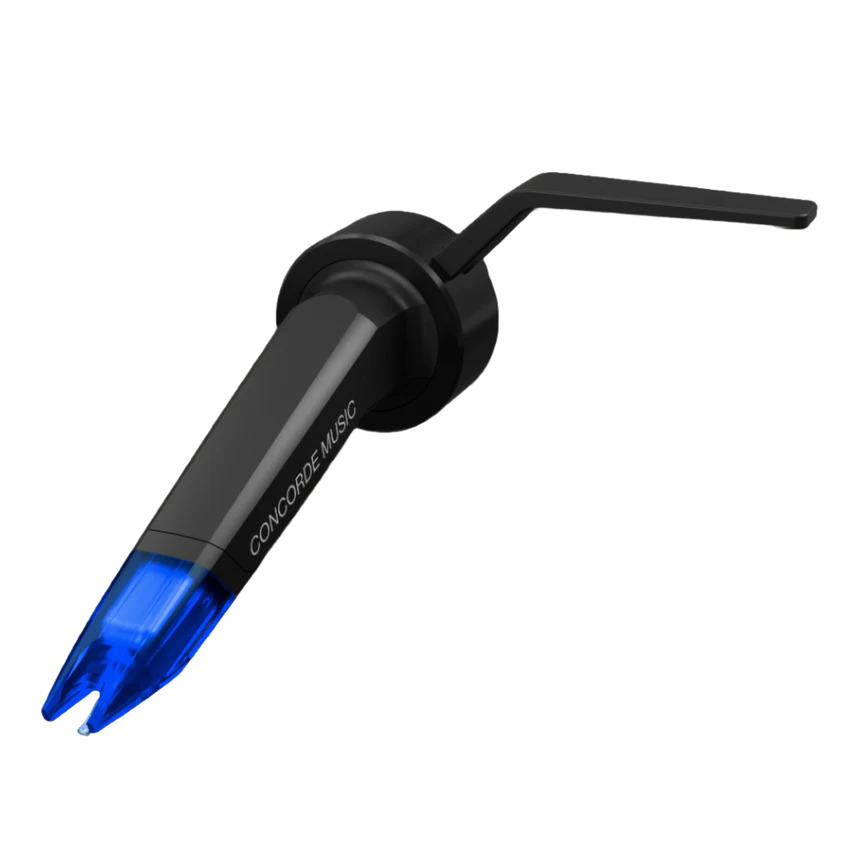

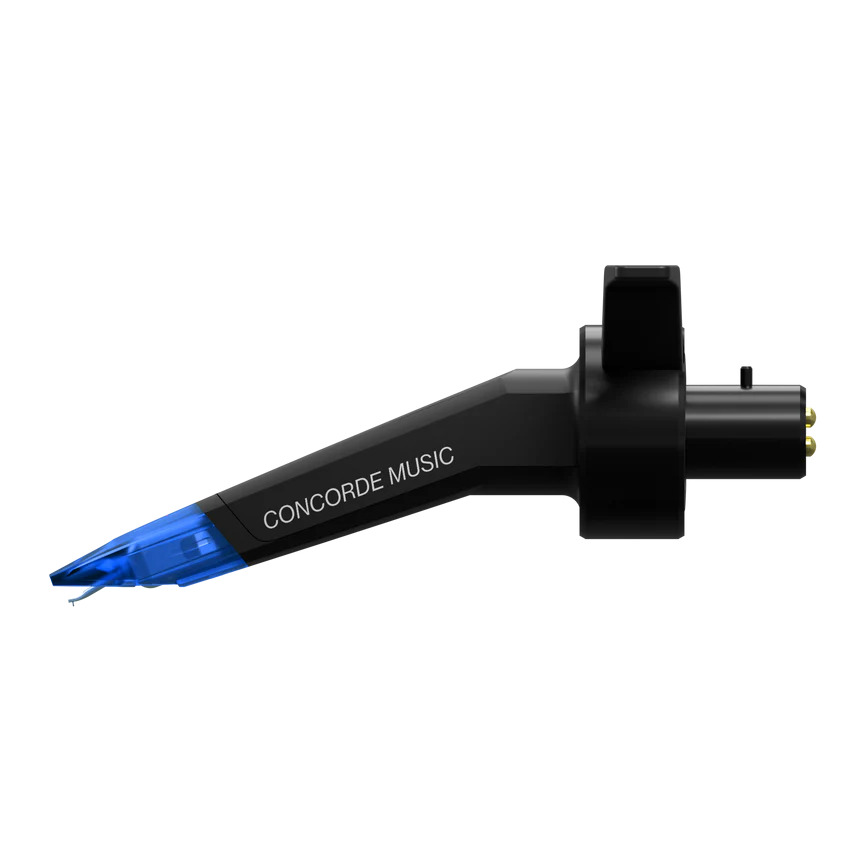

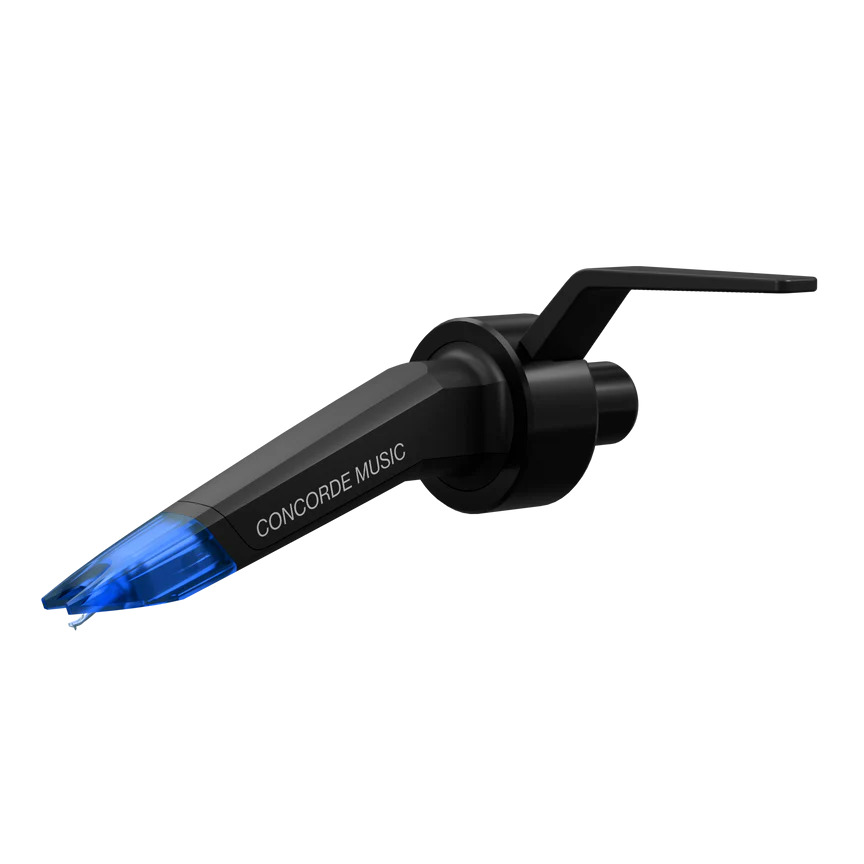

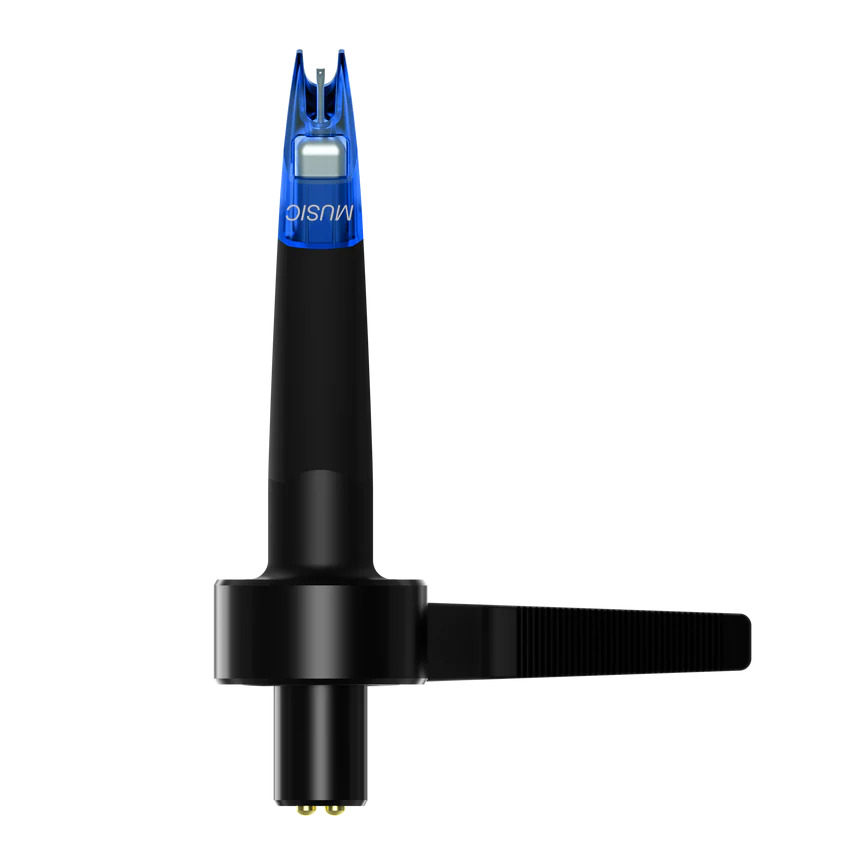

Ortofon Concorde Music Blue
Experience unveiled and clear sound reproduction with the Concorde Music Blue, featuring a Nude Elliptical stylus on an Aluminum cantilever, and offers an upgrade from the Concorde Music Red. Enjoy seamless upgrades throughout the series, from the Concorde Music Blue to the Concorde Music Black LVB 250, simply by replacing the stylus.

Specifications

• Channel balance at 1 kHz 1.5 dB
• Output voltage at 1 kHz, 5cm/sec 6mV
• Channel seperation at 1 kHz 25 dB
• Channel seperation at 15 kHz 15 dB
• Frequency response 20 Hz - 20 kHz +3 / -1 dB
• Tracking ability at 315Hz at recommended tracking force 80 µm
• Compliance, dynamic, lateral 15 µm/mN
• Stylus type Nude Elliptical diamond on Aluminium cantilever
• Stylus tip radius r/R 8/18 µm
• Tracking force, recommended 1.8 g
• Tracking angle 20°
• Internal impedance, DC resistance 1.27 kΩ
• Cartridge colour Black/Blue
• Cartridge weight 18 g
• Recommended load resistance 47 kΩ
• Internal inductance 815 mH
• Recommended load capacitance 150-300 pF
