Το Gold Note PH-10 ειναι phono stage MM/MC με δυνατοτητα επιλογης 3 EQ curves και περιλαμβανεται και εξωτερικο εξτρα τροφοδοτικο Gold Note PSU-10.

Εγγυηση Αντιπροσωπειας. Δυνατοτητα δοσεων, ανταλλαγων.

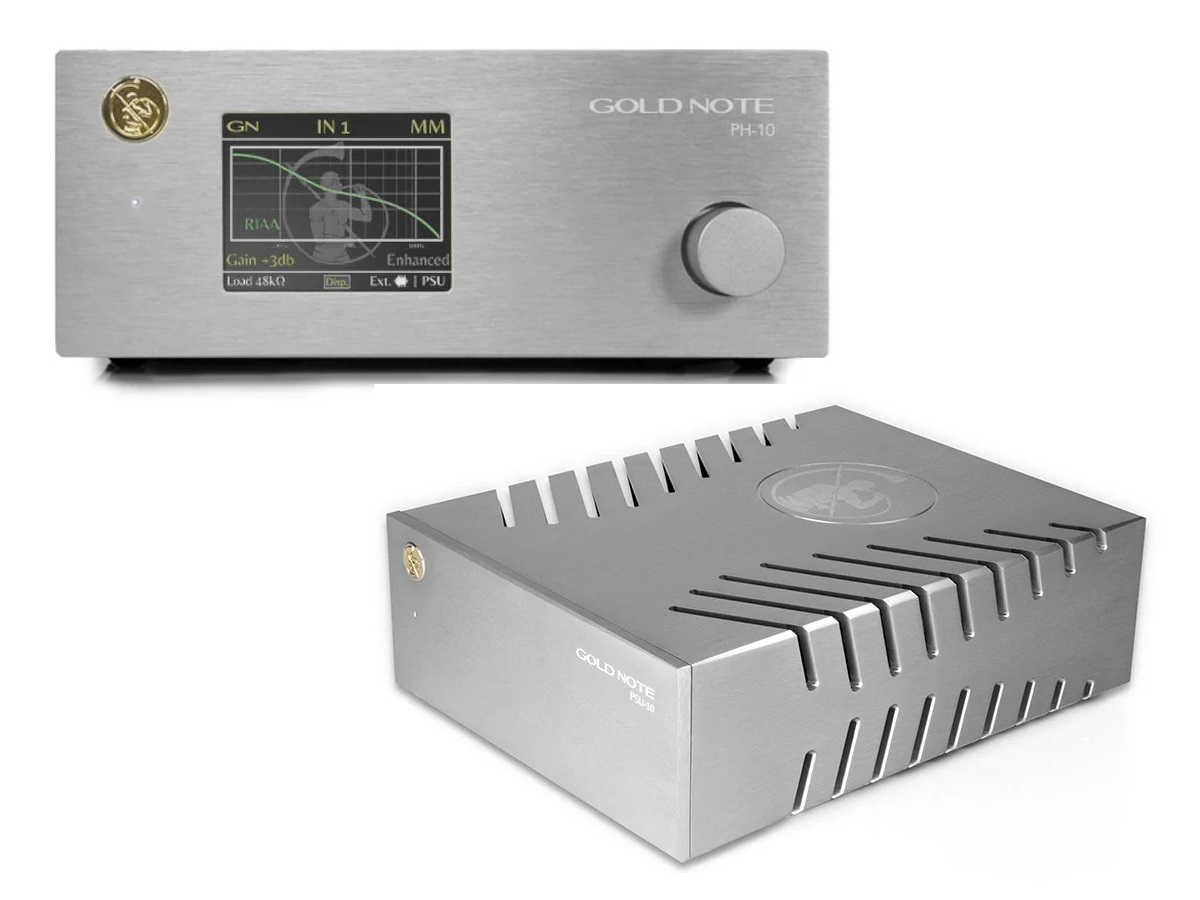

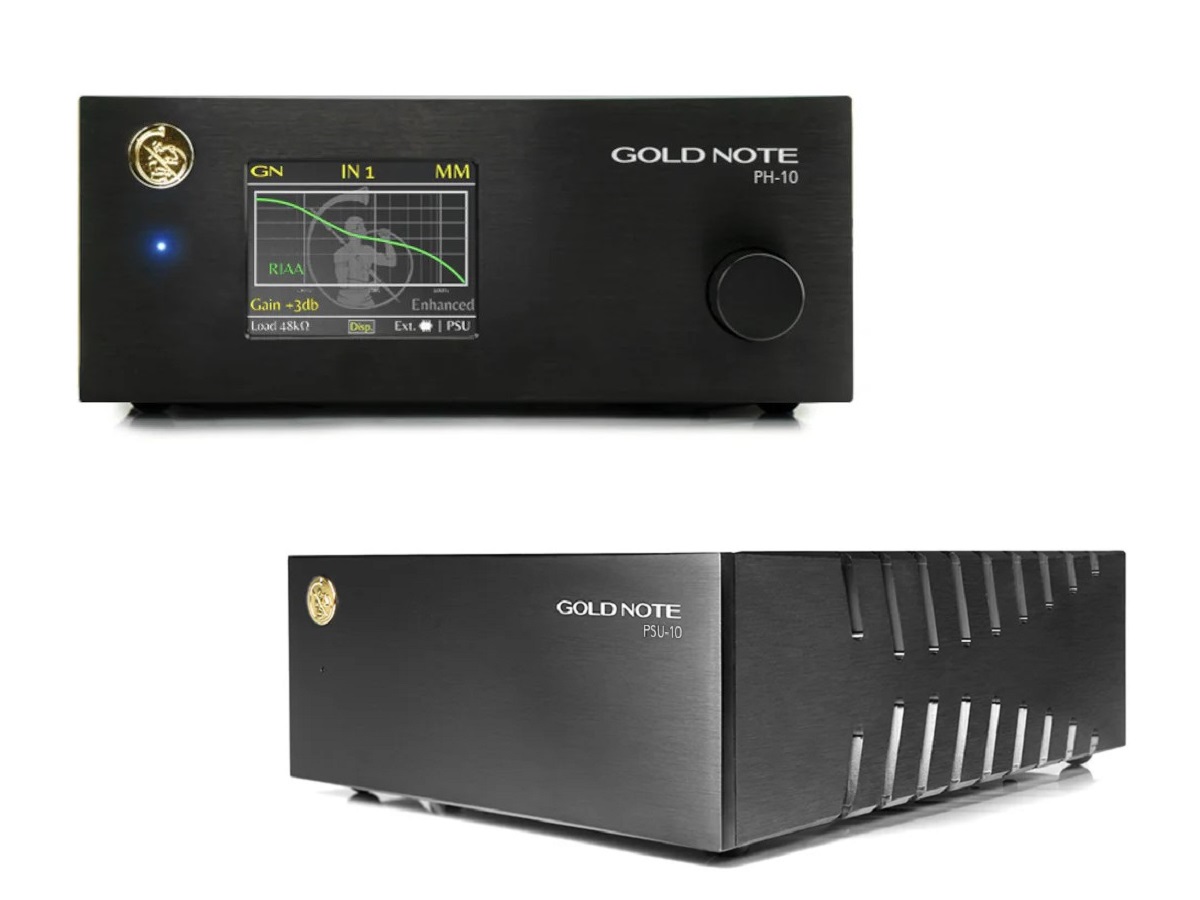

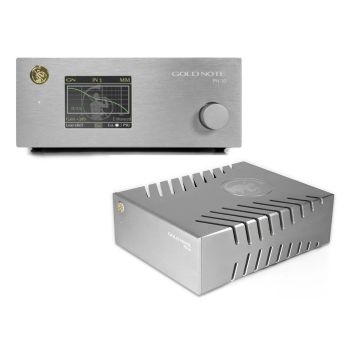

PH-10 is an ultra-versatile phono preamplifier with unique features, including EQ curve, load and gain adjustment: a fully analogue design crafted with the best components to recreate the musical event in the most natural way possible. To control PH-10 Gold Note has developed the intuitive Single Knob Control (SKC) which, in combination with the color display, allows to quickly adjust any function without interrupting the audio playback. The PH-10 allows selecting the most appropriate equalization curve for each record: RIAA, DECCA LONDON or AMERICAN COLUMBIA, through the menu present on the display. Thanks to our proprietary technology, inspired by the Neumann Cutting Lathe, each curve can be further enhanced with the “enhanced” function.

Nine different loading options [10Ω, 22Ω, 47Ω, 100Ω, 220Ω, 470Ω, 1000Ω, 22KΩ, 47KΩ] and four different gain options selectable [0dB, ± 3dB, +6dB] allow you to accurately adjust the preamplifier and get the best sound experience with any type of MM and MC cartridge. Through the two separate RCA inputs, it is possible to connect two different arms to PH-10, each with independently adjustable settings that can be saved in memory even when the unit is off, ensuring extreme flexibility and intuitiveness. To maximize the performance of PH-10 Gold Note has developed PSU-10, an external super inductive power supply that allows the phono stage to fully express its potential, restoring with extreme realism, three-dimensionality and precision the sound of vinyl.

The external power supply that magnifies the PH-10

The PSU-10 external power supply is designed to improve the performance of the Gold Note PH-10 pre-phono, thanks to its hybrid Super Inductive Dual Choke technology. It is characterized by an inductive filter on the analogue stage and is powered by a double inductor that drives the high current stages both negative and positive. This proprietary technology is able to perfectly filter the signal voltage to eliminate any interference and electrical noise from the AC power system, achieving complete isolation and creating an ideal environment for the PH-10 phono stage to perform at its best.

The power and cleanliness of sound generated by PSU-10 allow for reduced interference, ensure better dynamics and resolution, restore the smallest sound details and reproduce the musical event in an extremely realistic way. Dedicated to the pre-phono PH-10, the PSU-10 power supply has 4 power stages with 4 very low noise voltage regulators. The device is powered by 4 transformers, 3 of which are dedicated to the power supply and 1 to the special dual choke inductive filter. The PH-10 must be updated with the latest firmware to be compatible with the PSU-10 power supply; to know how to update your PH-10 consult the Download area of the website.

Specifications

• EQUALISATION CURVE CONTROL: 3 EQ curves (RIAA, Decca London, American Columbia) all with Enhanced option
• INFRASONIC FILTER: 10Hz/36dB octave
• FREQUENCY RESPONSE: 20Hz -20kHz ± 0.3dB, Enhanced 20Hz-50kHz ± 0.3dB
• THD (Total Harmonic Distortion): <0.05% @1kHz
• SIGNAL TO NOISE RATIO: 89dB
• DYNAMIC RESPONSE: 105dB
• ANALOGUE INPUT: MM/MC two independent stereo RCA
• INPUT SENSITIVITY: 0.1mV MC up to 10.0mV MM
• INPUT IMPEDANCE: 9 options [10Ω, 22Ω, 47Ω, 100Ω, 220Ω, 470Ω, 1000Ω, 22kΩ, 47kΩ]
• GAIN: MM= 45dB, MC= 65dB with 4 options [0dB, + 3dB, ± 6dB]
• CAPACITANCE (MM ONLY): 220pF
• AUDIO OUTPUTS: 1x unbalanced RCA, 1x balanced XLR (+12dB)
• OUTPUT IMPEDANCE: 50Ω
• POWER CONSUMPTION: 10W
• WHEIGHT: 3 kg
• DIMENSIONS WHD 200x80x260 mm
