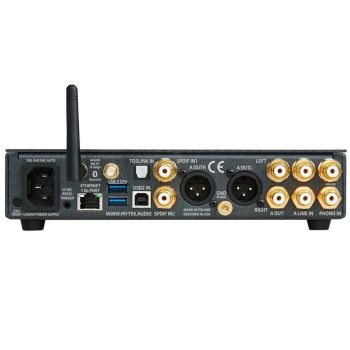

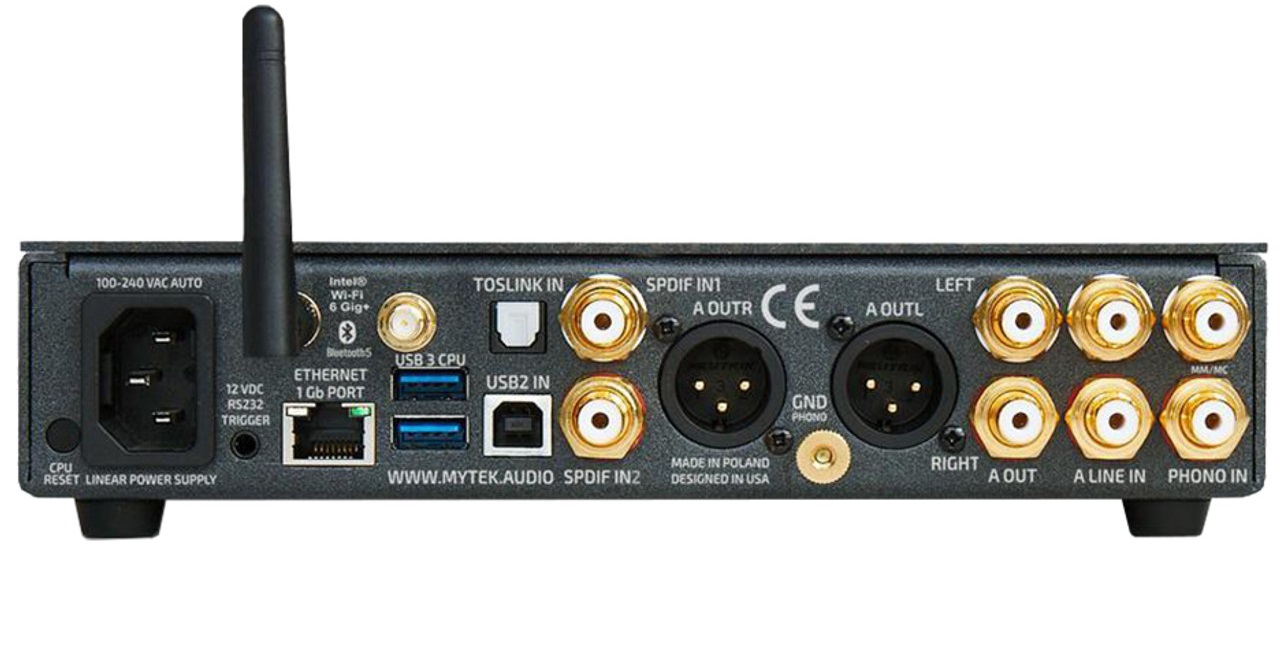

O Mytek Brooklyn Bridge II ειναι προενισχυτης, server, ενισχυτης ακουστικων, Streamer, DAC με ενσωματωμενο: phono MM και 4TB SSD. Ασυρματη συνδεσιμοτητα: WiFi 6G, Bluetooth 5G. Ενσυρματη συνδεσιμοτητα: 1x MM Phono In, 1x Line In, 2x Coaxial In, 1x Optical In, 2x USB 3.0 In, 1x Ethernet In, 1x XLR Line Out, 1x RCA Line Out, 2χ Headphones Jack Outs.

Καθε Mytek Brookyn Bridge περιλαμβανει στην τιμη: 2 μηνες συνδρομη στο Roon.

Εγγυηση Αντιπροσωπειας. Δυνατοτητα δοσεων, ανταλλαγων.

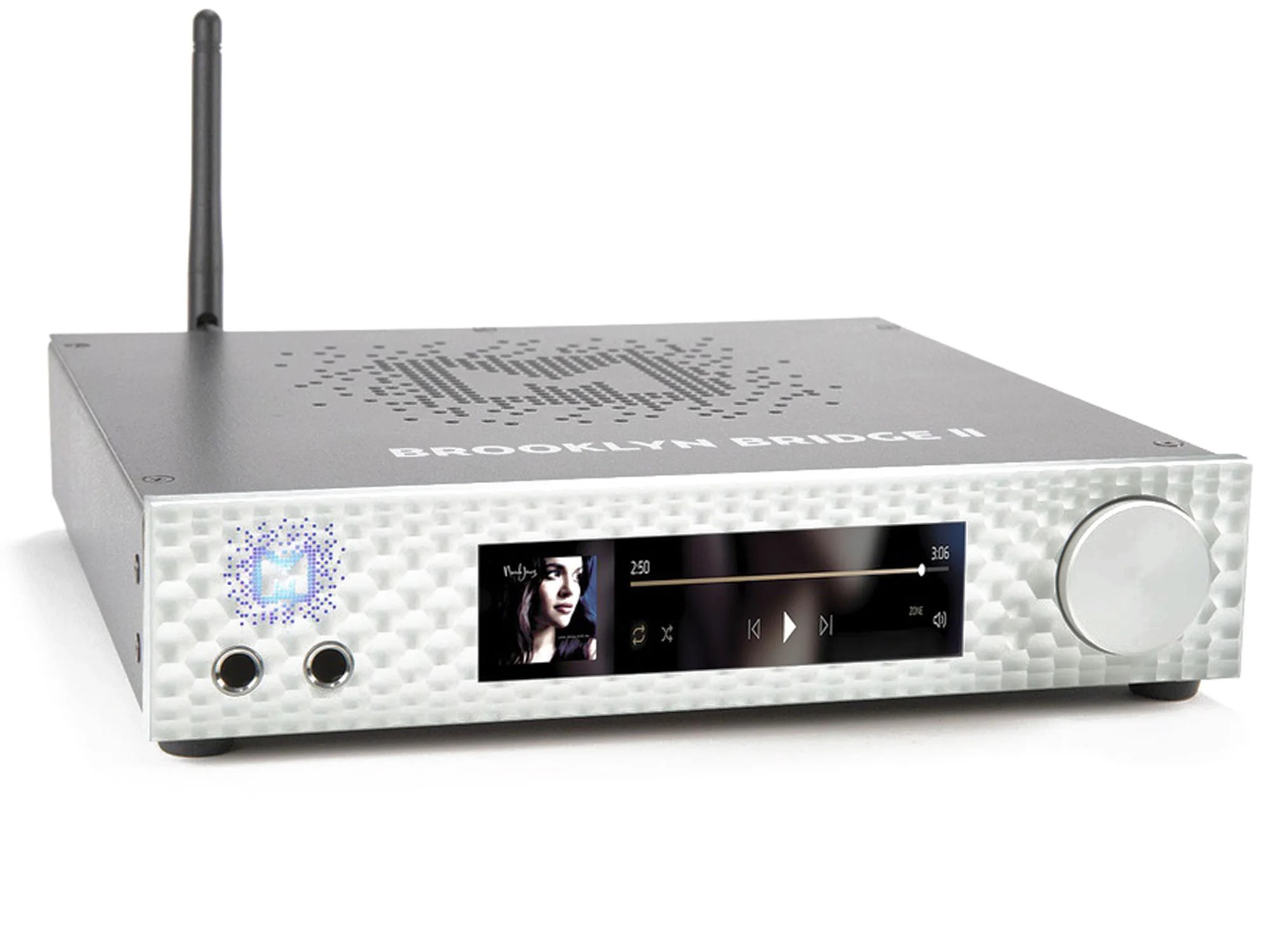

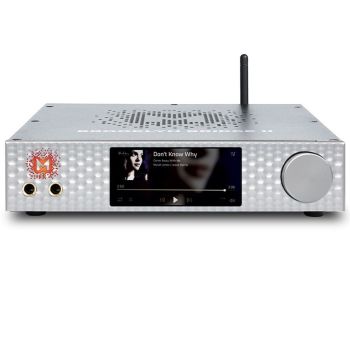

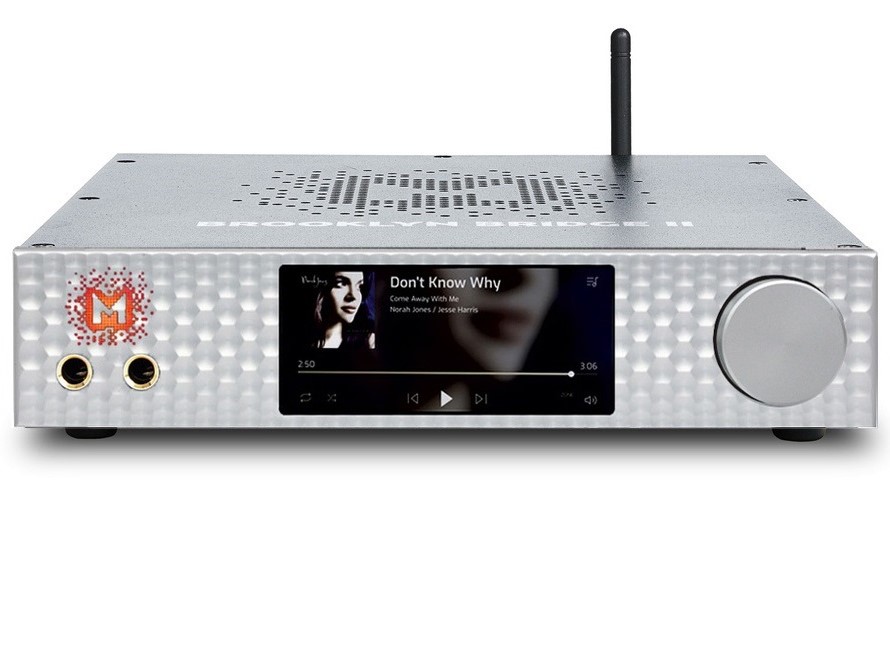

Brooklyn Bridge II (BB2) is a major redesign of our best selling original Brooklyn Bridge (BB1). The BB1 has been very successful, receiving the Stereophile Product of the Year and EISA award in 2019-2020 for its innovative, beautiful design and sound. The BB2 has the same award winning preamp and DAC circuits, but now also features a 90W linear power supply. In addition it features next generation, smartphone/tablet accessible touch screen menu and a complete computer system bringing the 21st century Iphone like operation. BB2 has a built in Intel I5 Roon Core computer combined with Mytek OS for easy touch screen operation from an ipad, smart phone or front panel screen.  BB2 is a complete all in one Roon system and designed to be used primarily with Roon playback software. In addition it will provide similar functionality to the original Brooklyn Bridge (Upnp and Roon End Point) and more (Bluetooth, DSP etc). You can think of BB1 functionality being a subset of BB2. BB2 has the functionality of BB1 plus Roon Core computer, touch screen, toroidal linear power supply. Because the computer will be continuously updated over the life of the product, a lot of new functionality will be added, including new streaming and DSP options, file management etc., which are not possible nor intended for the BB1. The DAC and analog section is the same in both products, but because BB2 has the linear regulated power supply, it subjectively sounds about 20% better than the BB1.  Using Roon with BB2 requires Roon subscription. A free 1 year subscription is included in the purchase. Roon provides superior playback and browsing experience, especially with metadata (lyrics, credits, just like a vinyl album covers), not available with other playback software and preferred by thousands of music lovers. Roon also provides more options such as advanced playlist management, multiroom playback and ARC which turns your local library into your own, private streaming service. Roon will play any format including DSD256 and 384k PCM, while other software is limited to max PCM 192k.
If you don't want to use Roon, nor Bluetooth and upgradable future functionality, and are happy with standard Tidal, Qobuz or Spotify playback interface which uses Upnp for simple playback, you should consider instead buying the Brooklyn Bridge Original.

BUILT IN ROON CORE i5 (11th Gen) Intel CPU - (more powerful than the Nucleus+) POWERED BY ROON OS: Brooklyn Bridge has all functionality of a Roon Core CPU combined with high performance DAC. Roon Software can be operated from Roon Remote App or from Mytek Web Interface from any device connected to the network. Bridge can function as a multiroom playback machine playing to different Roon end points.

Features

Brooklyn Bridge 2 is all in-one Roon Core Streamer + excellent DSD/MQA DAC+ Analog (w/Phono) and Digital Preamp and a high-end headphone amplifier in a compact, modern beautiful chassis. It connects all your music sources in a highest sound quality hub before sending the music to amp and speakers or headphones. It's powered by modern touch operated software - Roon for music browsing and streaming and Mytek OS for all other functionality. Software controls available on front panel are repeated on a wifi device: tablet or smartphone for comfort and convenience.
Music Sources:

• Built in Roon Core: Tidal, Qobuz and local library in any format up to PCM 384kHz, DSD256 and MQA
• Analog Preamp: Phono M/M and line RCA input
• Digital Preamp: SPDIF and Optical inputs for disk players, or TV, Roon Ready DAC input for use w another streamer when required
• Bluetooth 5: including hi-res audio (quality depends on cellphone) - For quick casual listening to any internet sound/music source.

Future Functions: Mytek OS is a software platform that is continuously expanded with new functionality added. Software upgrade happens the same way as on any computer: upon "new software" notification user can choose to download and update the system. New software contains new features and fixes. Within the next months and years, Mytek plans to add alternative players such as Upnp Spotify and Tidal Connect and features like Apple Airplay etc. Their availability will be announced when software work on them begins. Future Functions: Mytek OS is a software platform that is continuously expanded with new functionality added. Software upgrade happens the same way as on any computer: upon "new software" notification user can choose to download and update the system. New software contains new features and fixes. Within the next months and years, Mytek plans to add alternative players such as Spotify and Tidal Connect and features like Apple Airplay etc. Their availability will be announced when software work on them begins.
Inside the shipping box: power cord for country of destination, usb 2.0 cable, code for 2 months of FREE Roon subscription. Current manual is available as a pdf download on this page.

Specifications

CONVERSION
up to 384k, 32bit PCM, native DSD up to DSD256, DXD, 130dB DR, ES9028PRO chipset with superior Mytek implementation (HAT (tm) Harmonic Audio Tuning)

MQA HI-RES DECODER
DECODER: built in hardware MQA decoder, full unfold to original sample rate

DIGITAL DAC INPUTS
USB2 Class2 (OSX, Linux driverless, all formats up to 384k, DSD256), 2x S/PDIF, 1 Toslink optical (PCM up to 24/192k, up to DSD64 DOP, MQA)

ADDITIONAL DIGITAL INPUTS
Bluetooth 5 and Roon Ready Network Endpoint DAC input- PCM384k, DSD256, MQA.
ANALOG PREAMP INPUTS
Line level input (10k input impedance) or Phono M/M, relay controlled. All analog signal path to output.

2xUSB3/2 connectors
Can be used for: 1) Any music files on FAT /NTFS / Exfat drive or USB Stick. SSD is recommended because of 1A current limit), 2) additional USB DACs for additional Roon Zones (2pcs or up to several can be connected if USB hub is used)

ANALOG OUTPUTS
RCA, balanced XLR, simultaneous, 10 Ohm output impedance

CLOCK
Mytek Femtoclock Generator(tm) 0.82ps internal jitter

HEADPHONE OUTPUTS
Reference High Current, High transient Headphone Amp, 500mA, 6 Watts, dual headphone jacks, designed to drive hard to drive headphones. Balanced operation with a 1/4" to 4 pin XLR adapter

VOLUME ATTENUATOR
Choice of 1dB step analog attenuator,  or 1dB step digital 32 bit attenuator and purist relay bypass.

INTERNAL STORAGE
4TB of internal SSD (approx 6000 CDs). Internal storage is part of the system SSD on the main CPU board and it is fixed and not user upgradable. Internal storage is accessed by the user as a network drive.

POWER SUPPLY
90W Toroidal Linear Power Supply powers the DAC and the Intel  I5 CPU from separate windings. Auto voltage detection adjusts to the local line voltage (90-240VAC 50/60Hz)

WEIGHT 3kg

WARRANTY 2 years

DIMENSIONS (WxDxH) 216x225x44mm
