PRODUCT HIGHLIGHTS

• 175 W/Ch THX® Certified Select™ DAA system
• Works with Sonos, Chromecast built-in*1, AirPlay 2, DTS Play-Fi®, FlareConnect™*2, Spotify®, Amazon Music, TIDAL, Deezer, TuneIn*3
• Supports 5.2.2-ch Dolby Atmos® and DTS:X® playback
• Dolby Atmos Height Virtualizer*4 and DTS Virtual:X™*4
• HDMI Sub/Zone 2 output shares media to a second display or projector
• Quad-core SoC supports 802.11ac (2x2 MIMO) Wi-Fi® specification*5
• Zone 2/Zone B line-out/Front L/R pre-out with DAC shares D/A audio (including HDMI/SPDIF*6) or connects power amp
• Zone 2 outputs distribute D/A audio sources (including HDMI/SPDIF*6)
• Stereo Assign Mode to switch Front playback to Height channels
• DSP-based Vocal Enhancer improves dialog audibility
• GUI with OSD via HDMI features media input/output data display function
• HDMI supports 4K/60p, 4K HDR, 4:4:4/24-bit, BT.2020, HDCP 2.2
• AccuEQ with subwoofer EQ and AccuReflex™
• One-touch volume memory-presets for A/V inputsputs

AMPLIFIER FEATURES

• 175 W/Ch (6 Ω, 1 kHz, 10% THD, 1 channel driven)
• THX Certified Select certified Dynamic Audio Amplification
• Custom High-Current Low-Noise Power Transformer
• Large custom-made audio power capacitors
• Non-phase-shift amp topology with discrete output stage
• New dual-transistor amp output stages (L/R/C) doubles instantaneous current output for stunning dynamics and bass impact
• Strengthened power-supply line for high-current dynamics
• Refined HDMI grounds, short signal paths reduce noise
• SoC board remote from audio paths to reduce noise
• High-current drive handles 4-ohm speaker loads
• High-grade AKM (AK4458) 384 kHz/32-bit multichannel D/A conversion
• VLSC™ (Vector Linear Shaping Circuitry) filtering (Front L/R)
• PLL (Phase Locked Loop) anti-jitter technology for S/PDIF audio
• Tone controls (bass/treble) for front L/R channels
• Pure Audio Mode and Direct Mode for high-fidelity sound

VIDEO & AUDIO SUPPORT

• Supports HDCP 2.2, 4K/60p, HDR (Dolby Vision, HDR10, HLG), BT.2020, 4:4:4 color-space, 3D Video, ARC (Audio Return Channel), DeepColor™, x.v.Color™, and LipSync via HDMI
• Dolby Atmos, DTS:X, Dolby® TrueHD, and DTS-HD Master Audio® decoding
• Dolby Atmos Height Virtualizer and DTS Virtual:X 3D processing
• Dolby Surround® and DTS® Neural:X upmixing technology
• THX listening modes for movies, music, and games
• Sound optimization for games (Rock, Sports, Action, and RPG)
• SACD (Super Audio CD) playback via HDMI (2.8 MHz 2-ch/multichannel)
• Theater-Dimensional virtual surround-sound function

NETWORK FEATURES

• Next-Generation Network Audio with multi-room audio, streaming service integration, and remote app control
• Works with Sonos certified for the Sonos Home Sound System*7
• Chromecast built-in and voice control with the Google Assistant*8
• AirPlay 2 multi-room audio and voice control with Siri*9
• DTS Play-Fi® multi-room audio via Onkyo Music Control App*10
• FlareConnect™ multi-zone audio with compatible components
• Quad-core SoC processing evolves network functions and supports high-speed 802.11ac (2x2 MIMO) Wi-Fi specification
• Supports Onkyo Controller remote and music streaming app*10
• Hi-Res Audio playback via network (DSD 11.2 MHz/5.6 MHz/ 2.8 MHz*11; FLAC, WAV [RIFF], AIFF, and ALAC to 192 kHz/24-bit*12)

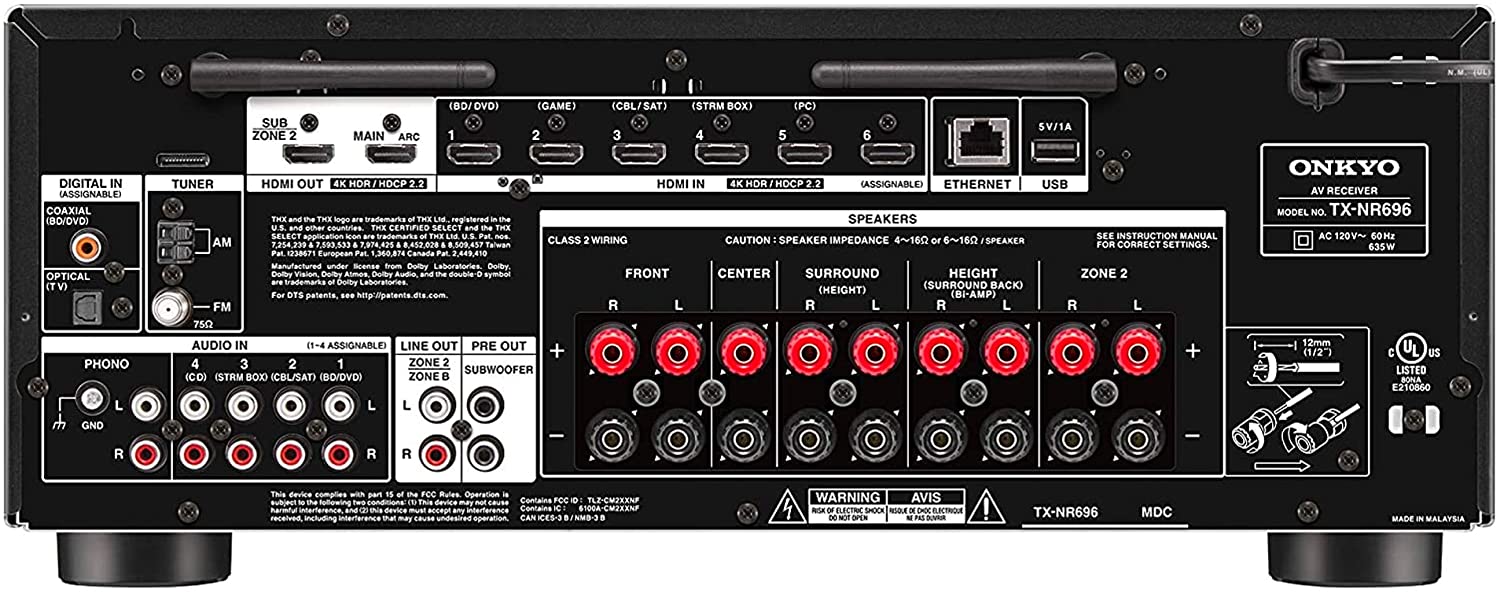

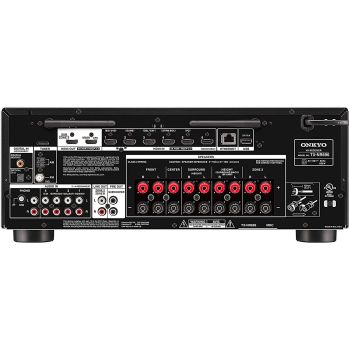

CONNECTION TERMINALS

• 7 HDMI inputs (1 front), 2 outputs (Main [ARC], Sub/Zone 2)
• 2 digital audio inputs (optical and coaxial, assignable)
• 4 analog RCA inputs (assignable)
• 3.5 mm mini-stereo analog input (front)
• 1 phono input with built-in MM equalizer for turntable
• 3.5 mm setup mic input for AccuEQ (front)
• 6.35 mm headphone jack (front)
• 2 subwoofer pre-outs
• Zone 2/Zone B line-out/Front pre-out (analog RCA)
• 7 screw-type speaker posts
• Ethernet terminal for network connection and IP control
• USB input (5 V/1 A) for audio playback (rear)
• AC socket for detachable power cable

ADVANCED FEATURES

• AccuEQ Room Acoustic Calibration and AccuReflex
• DSP Vocal Enhancer boosts dialog audibility via remote keys or  front panel
• Bluetooth® wireless technology and Wake on Play Standby with auto input selection supporting select smart speakers
• Advanced Music Optimizer™ improves compressed audio playback
• Zone 2 speaker outputs for powered simultaneous multi-source  D/A audio distribution (including HDMI/SPDIF) with Zone 2 DAC; output via Zone 2 and Zone 2 line-out
• Front/Height/Surround Back switching (layout dependent) for ambient listening in Stereo Assign Mode
• Zone 2/Zone B line-out/Front L/R pre-out (analog RCA) with Zone 2 DAC connects compatible audio systems for synced/independent D/A playback (including HDMI/SPDIF) in Main and Zone 2; connects compatible transmitters for wireless headphones; connects power amp for Front L/R speakers
• One-touch volume memory-presets for A/V inputs via front panel
• 1080p to 4K upscaling and GUI with overlaid OSD via HDMI
• Crossover adjustment for each channel(40/50/60/70/80/90/100/120/150/180/200 Hz)
• A/V Sync Control (up to 500 ms in 5 ms steps at 48 kHz)
• Various standby modes and HDMI pass-through
• IP control for home automation systems via LAN
• 3-Mode display dimmer (Normal/Dim/Dimmer)
• 40 FM/AM random presets
• Redesigned simple remote control
