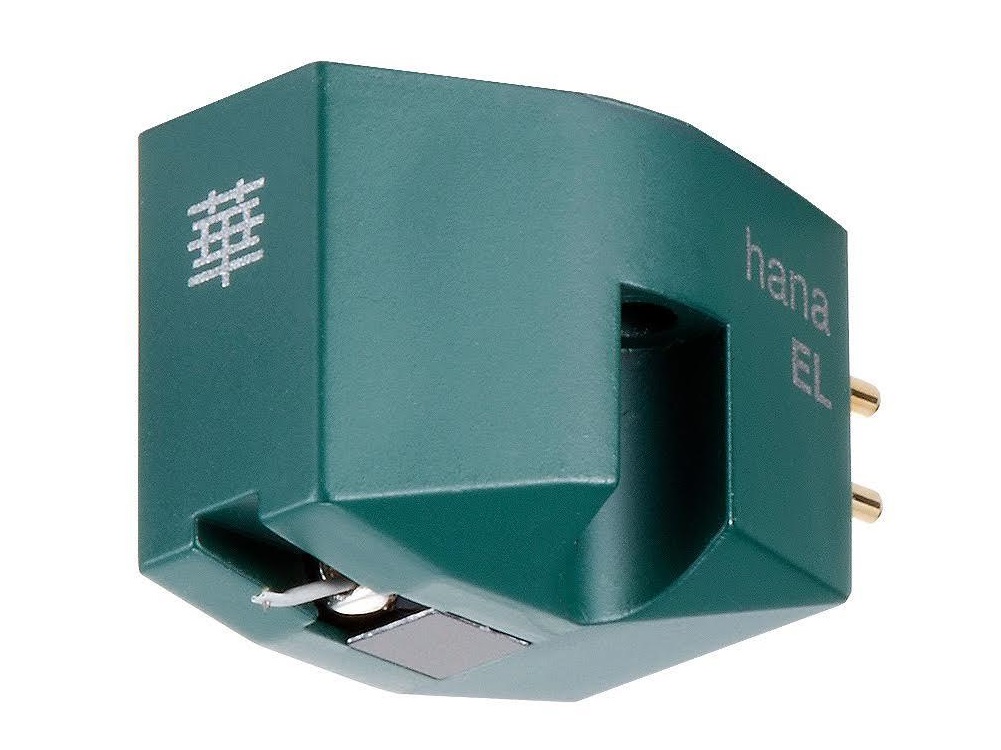

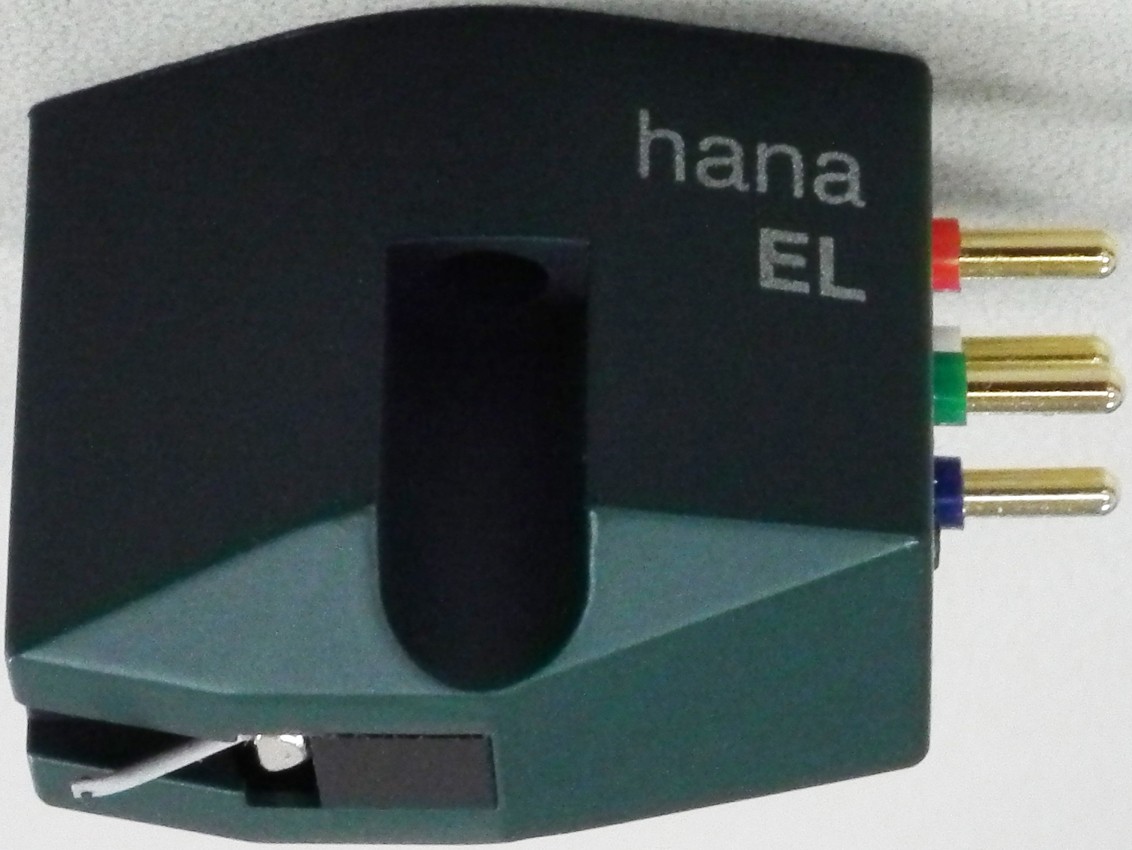

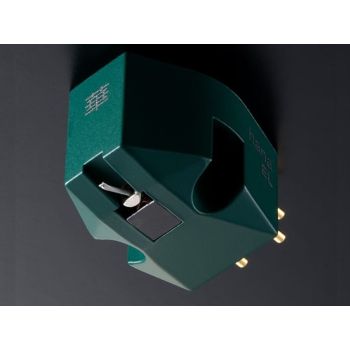

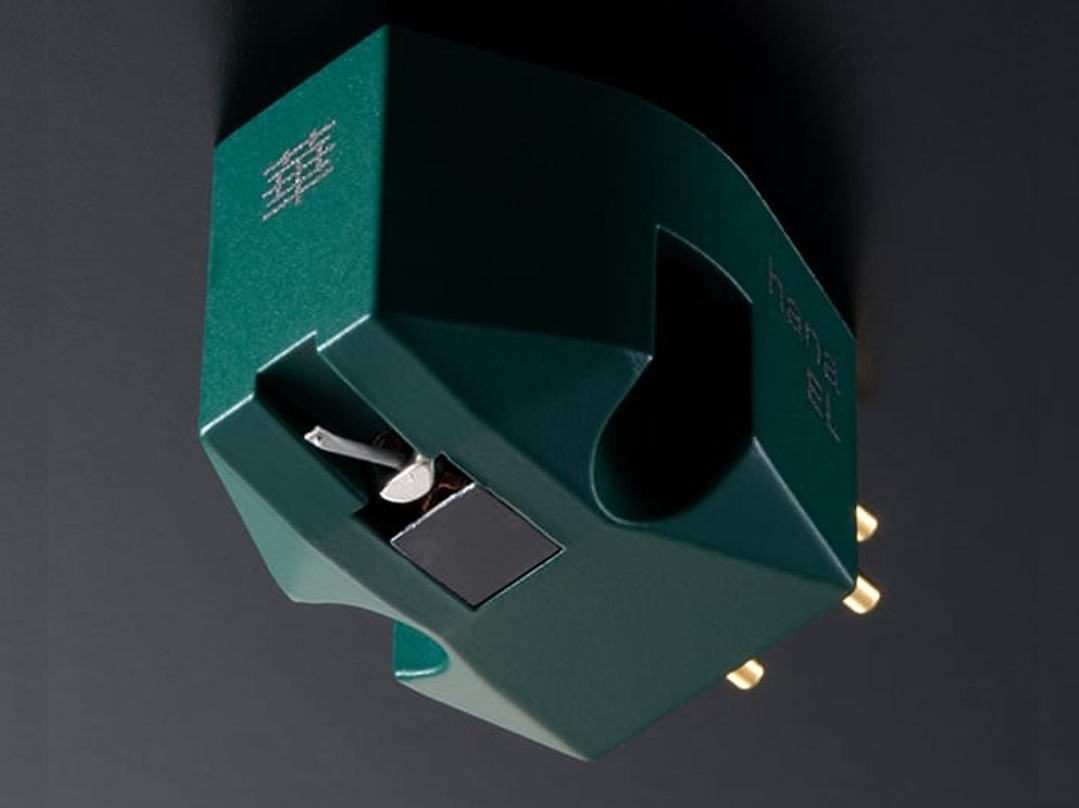

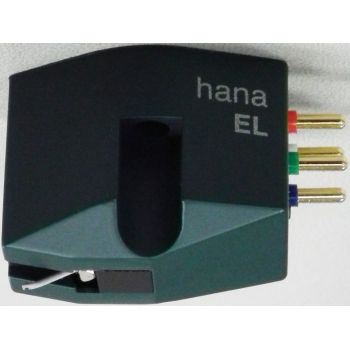

Η Hana EL ειναι κεφαλη κινητου πηνιου, χαμηλης εξοδου (low output). Εξοδος 2.0mV.
Εγγυηση Αντιπροσωπειας. Δυνατοτητα δοσεων.
The Hana EL provides high-end musical performance from a low-output moving coil cartridge at an extremely attractive price. Handmade in Japan, the EL uses ALNICO magnets and affords the listener the textural, imaging, and musically involving qualities associated with the best MC cartridges.
Long prized by audiophiles and music lovers, affordable low-output MCs such as the EL are a perfect match for today’s generation of high-gain phono stages.
Specifications
Comparison Table
MODEL
|
EH
|
EL
|
SH
|
SL
|
Stylus Type |
Elliptical
|
Elliptical
|
Nude Shibata
|
Nude Shibata
|
Cantilever Type |
Aluminum
|
Aluminum
|
Aluminum
|
Aluminum
|
Output Voltage |
2.0mV
|
0.5mV
|
2.0mV
|
0.5mV
|
Channel Separation |
25dB@1kHz
|
25dB@1kHz
|
28dB@1kHz
|
28dB@1kHz
|
Channel Balance |
<2dB@1kHz
|
<2dB@1kHz
|
<1.5dB@1kHz
|
<1.5dB@1kHz
|
Recommended Tracking Force |
2.0 Grams
|
2.0 Grams
|
2.0 Grams
|
2.0 Grams
|
Frequency Response |
15 – 25000Hz
|
15 – 25000Hz
|
15 – 32000Hz
|
15 – 32000Hz
|
Internal Impedance In Ohms |
130@1kHz
|
30@1kHz
|
130@1kHz
|
30@1kHz
|
Recommended Resistive Loading |
47k Ohms
|
>400 Ohms
|
47k Ohms
|
>400 Ohms
|
Weight |
5.0 Grams
|
5.0 Grams
|
5.0 Grams
|
5.0 Grams
|
Body Color |
Moss Green
|
Moss Green
|
Black
|
Black
|
